Wired doorbell button D01 White
Sale price35,09 zł
Regular price36,09 zł

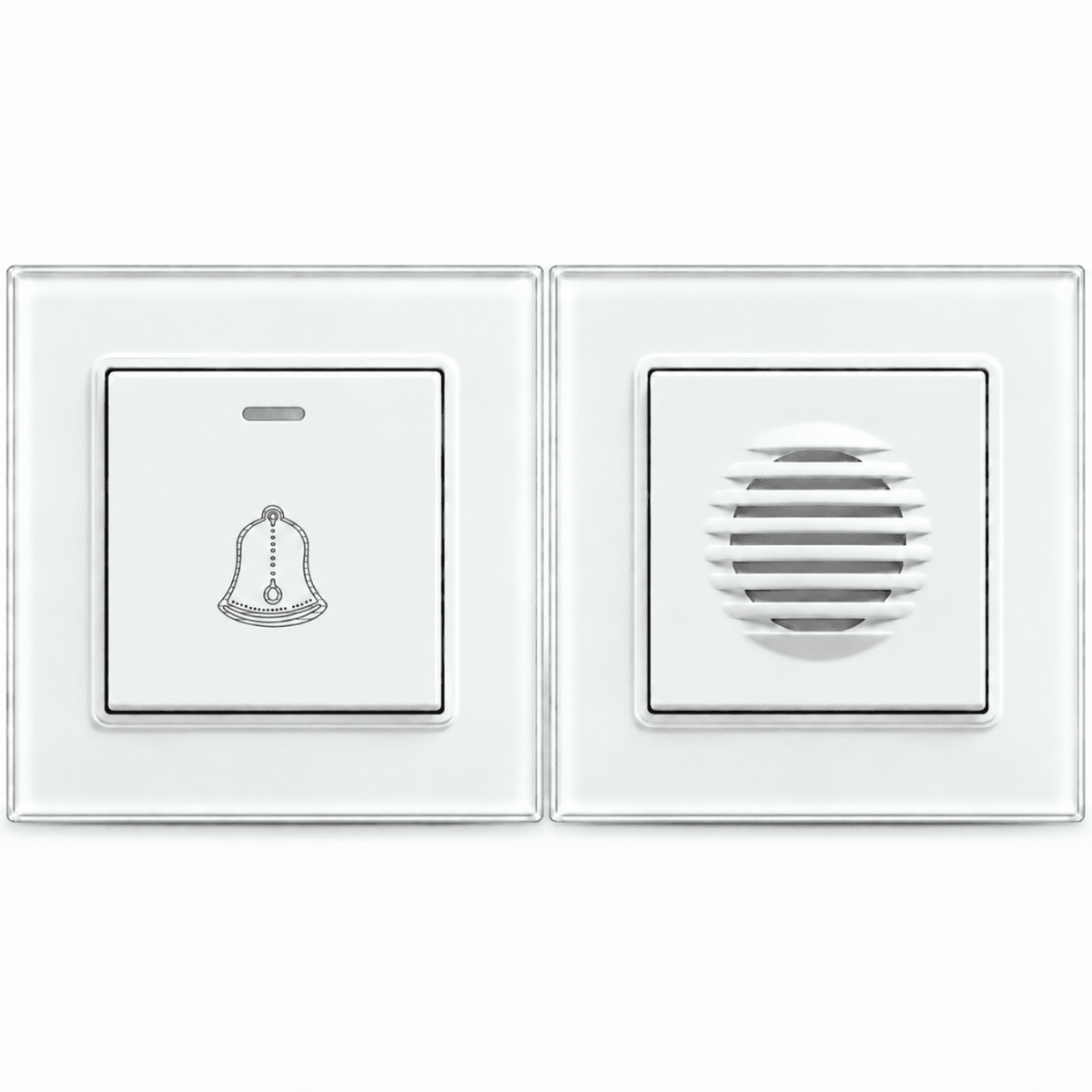

The Spreest doorbell is designed for durability and aesthetics, making it an ideal choice for those who value both functionality and appearance.
- The doorbell has a very solid and aesthetic construction, while maintaining a fashionable, modern look.

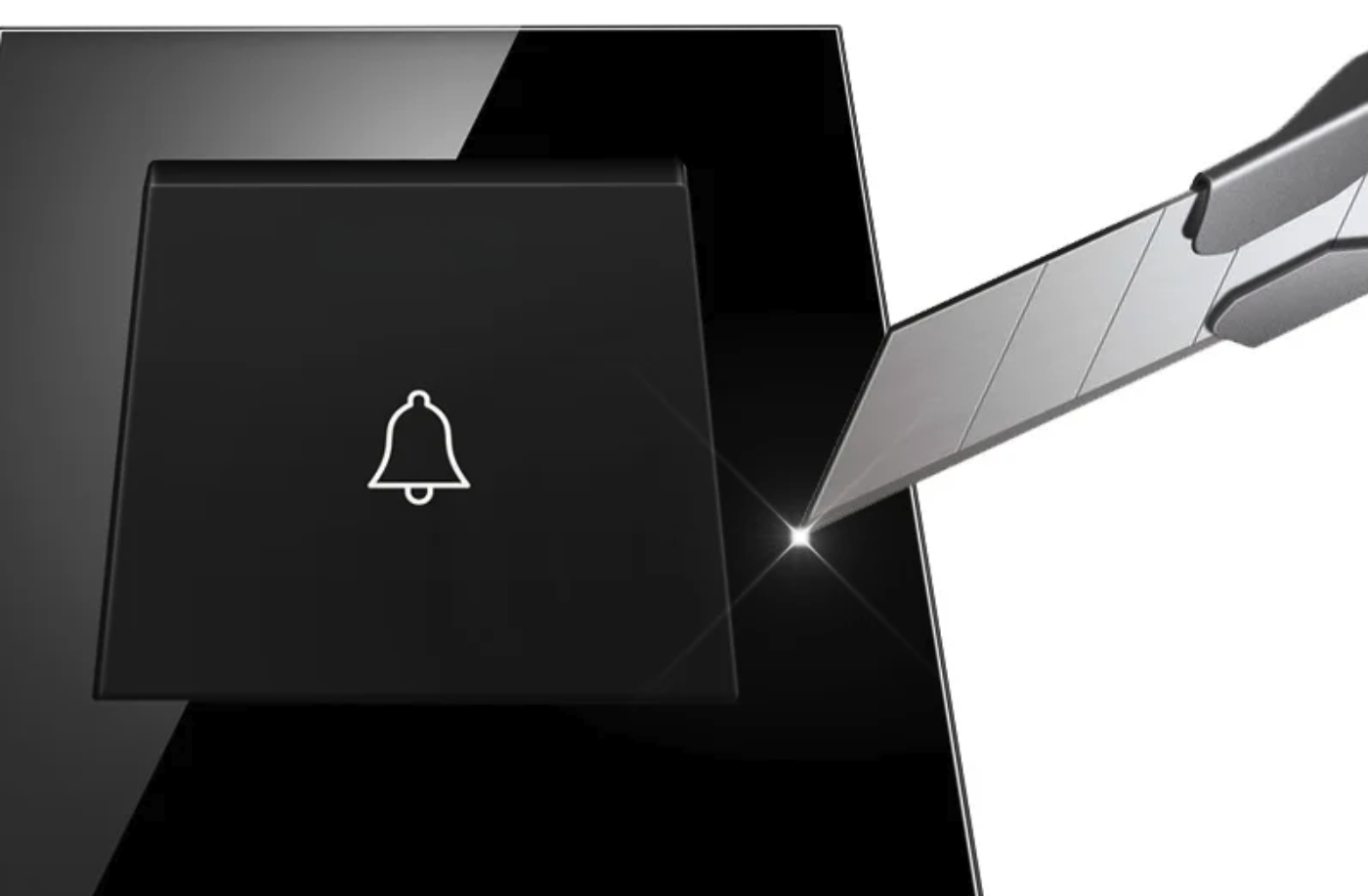

- Made of reinforced glass resistant to scratches and discoloration. An additional advantage is the easy maintenance of the doorbell.
- The doorbell fits standard FI70 flush-mounted boxes and FI60 after adjustment. Our doorbells require wiring.

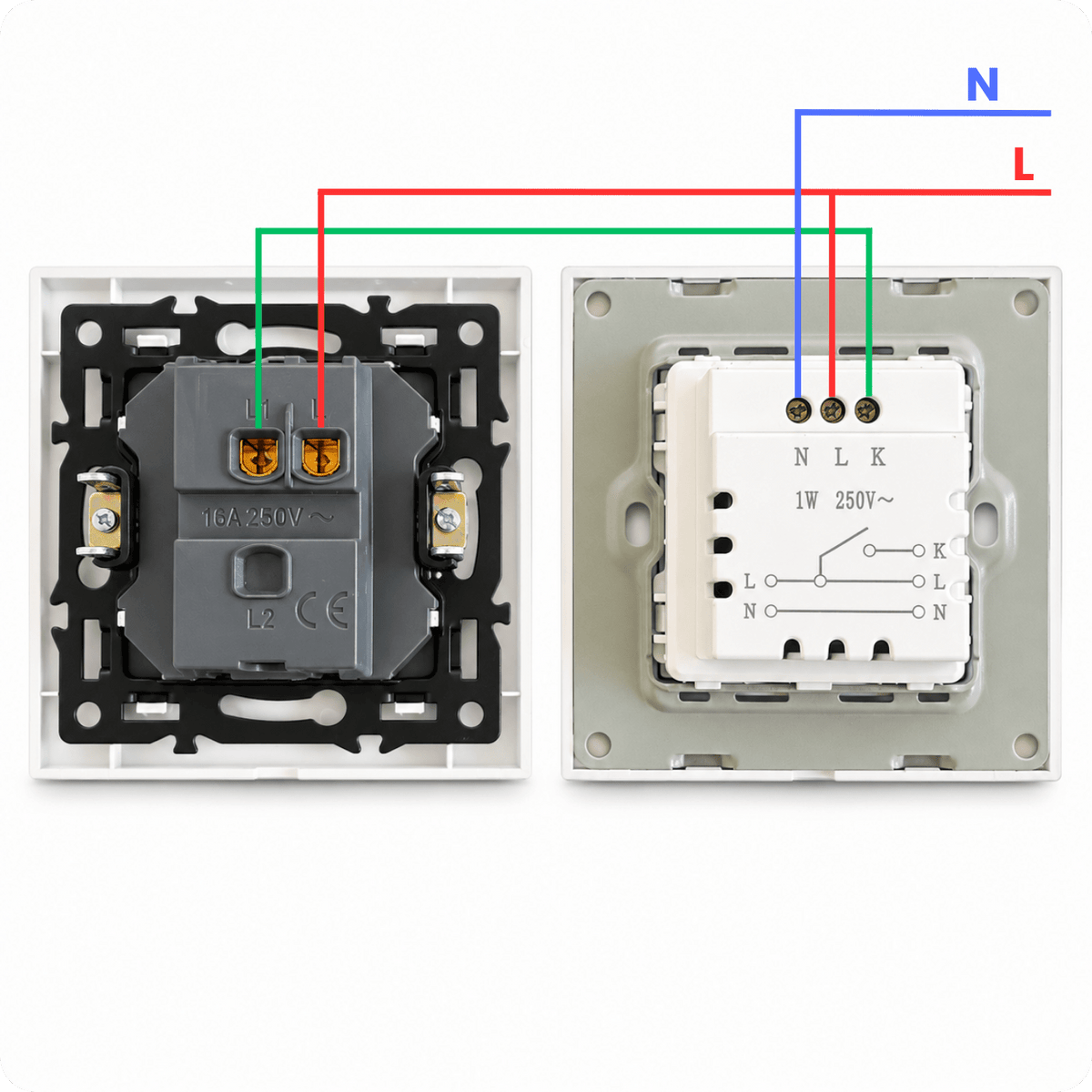

Doorbell Installation

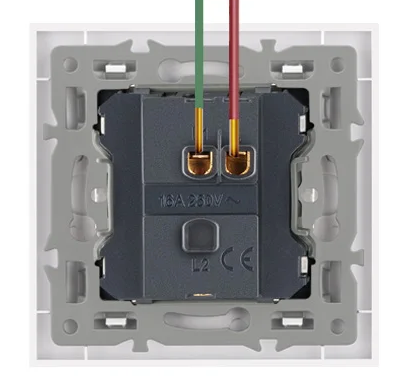

Doorbell button (left side):
- Red wire (phase L): Connected to the lower left terminal.
- Green wire (communication): Connected to the lower right terminal.
Doorbell receiver (right side):
- Red wire (phase L): Connected to the lower right terminal (marked L).
- Blue wire (neutral N): Connected to the lower left terminal (marked N).
- Green wire (communication): Connected to the lower center terminal.
Important tips:
- Ensure all connections are tightened securely.
- Check that wires are properly insulated to prevent short circuits.
Specification:
- Rated voltage: AC 110~250V / 50~60Hz

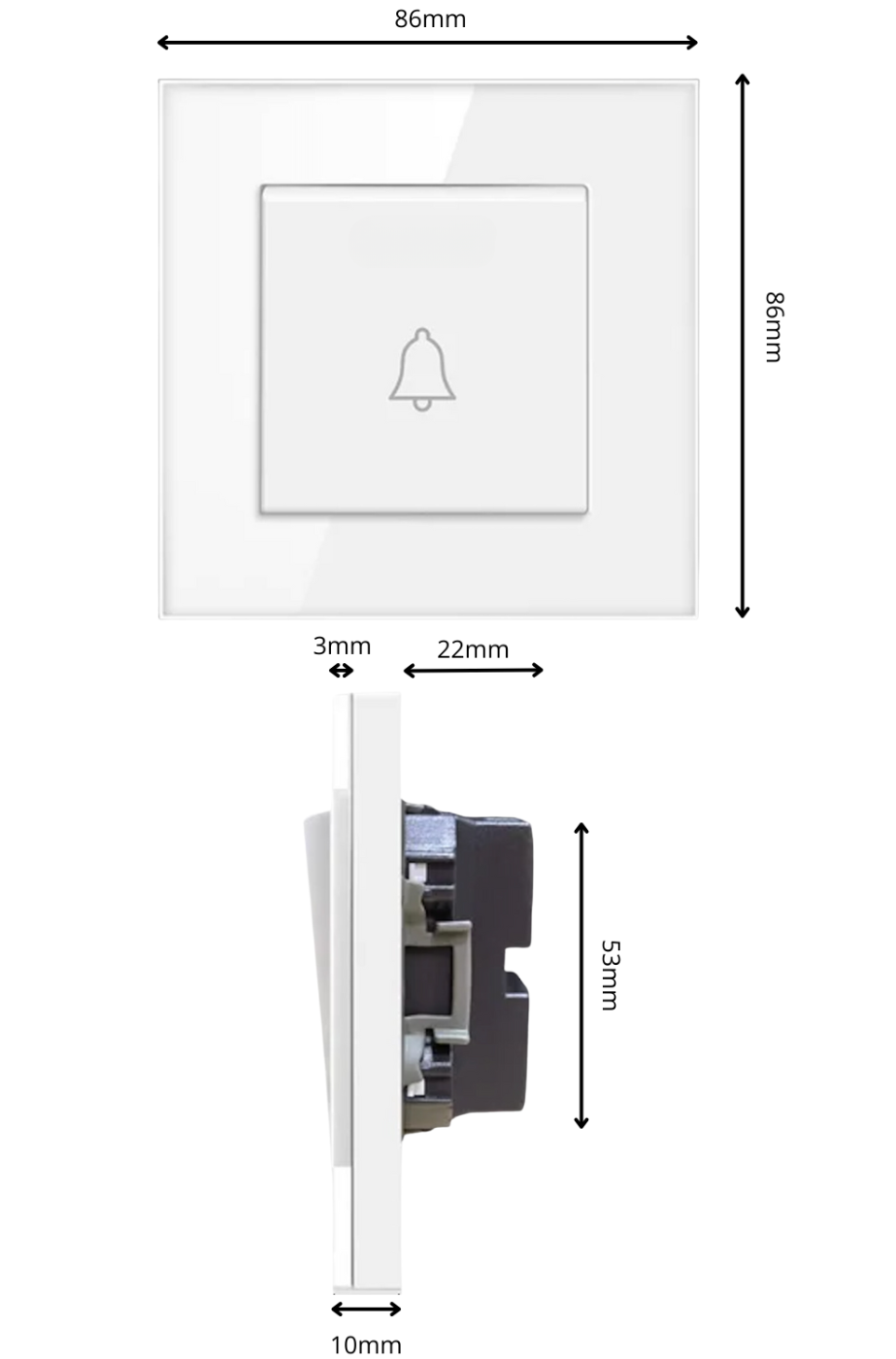

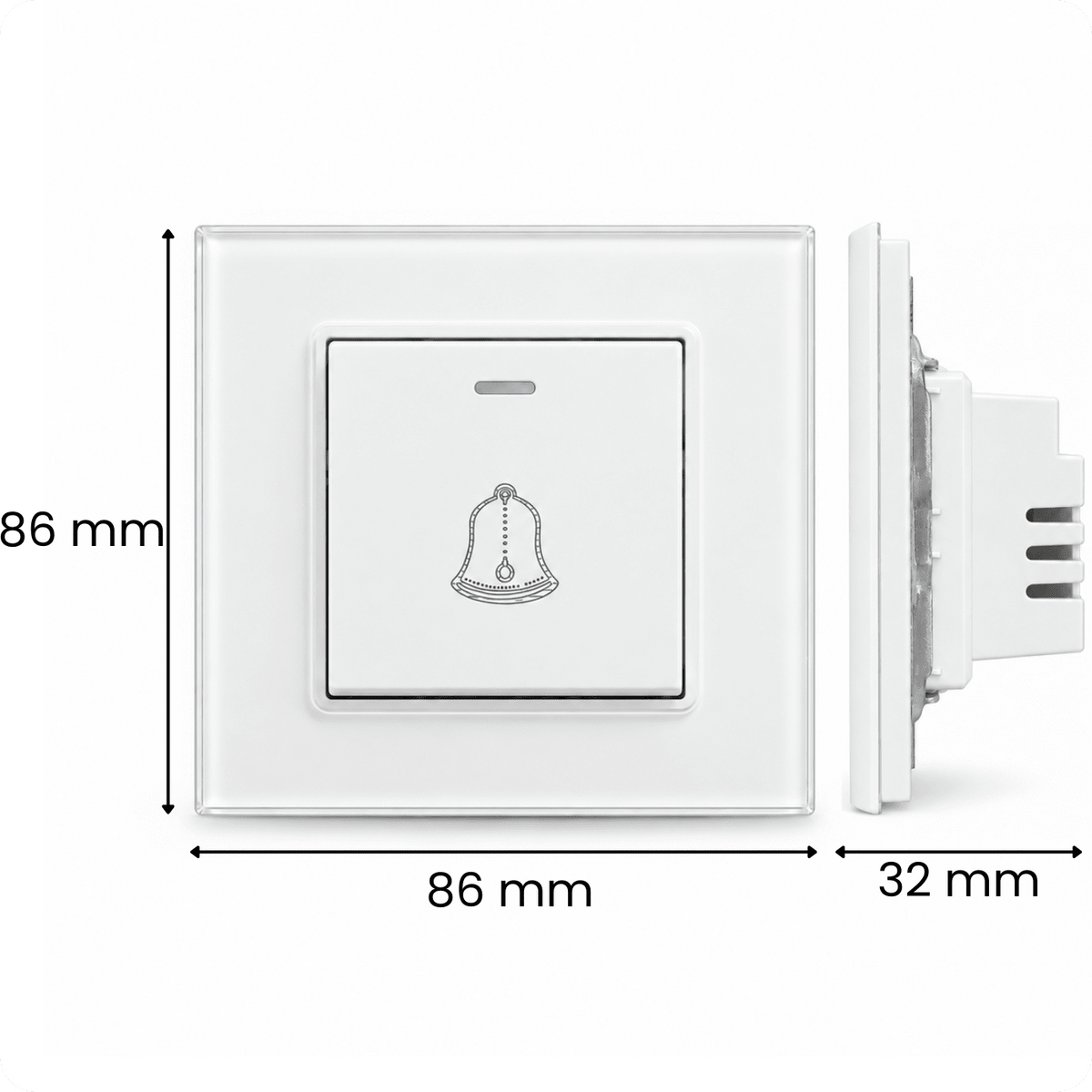

- Dimensions: 86mm x 86mm
- Mounting: Flush-mounted box
- Color: White
- Panel material: Tempered crystal glass | PC plastic
- Protection class: IP20
- Power supply type: Mains
- Type: Electromechanical
- Transmission type: Wired
Available colors

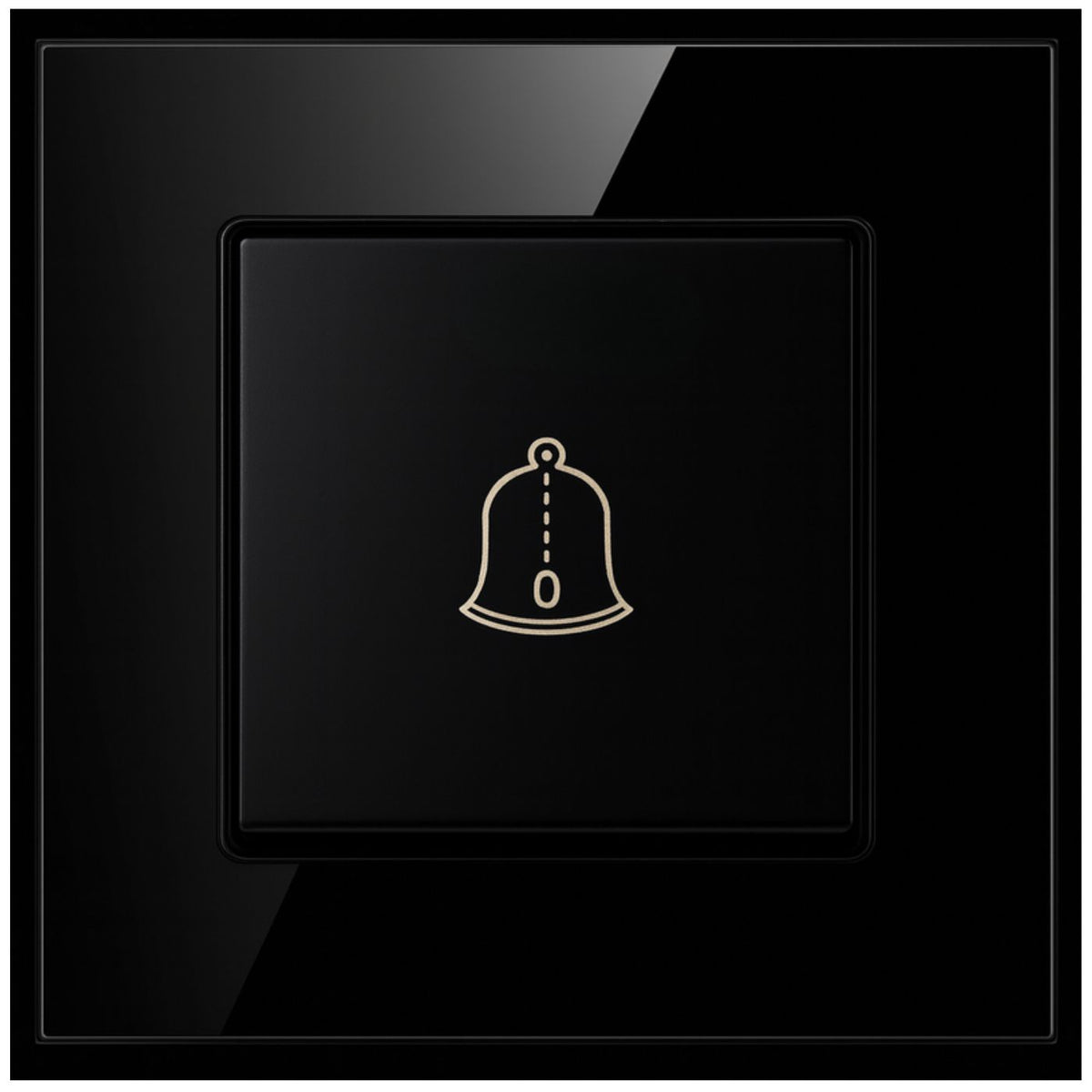

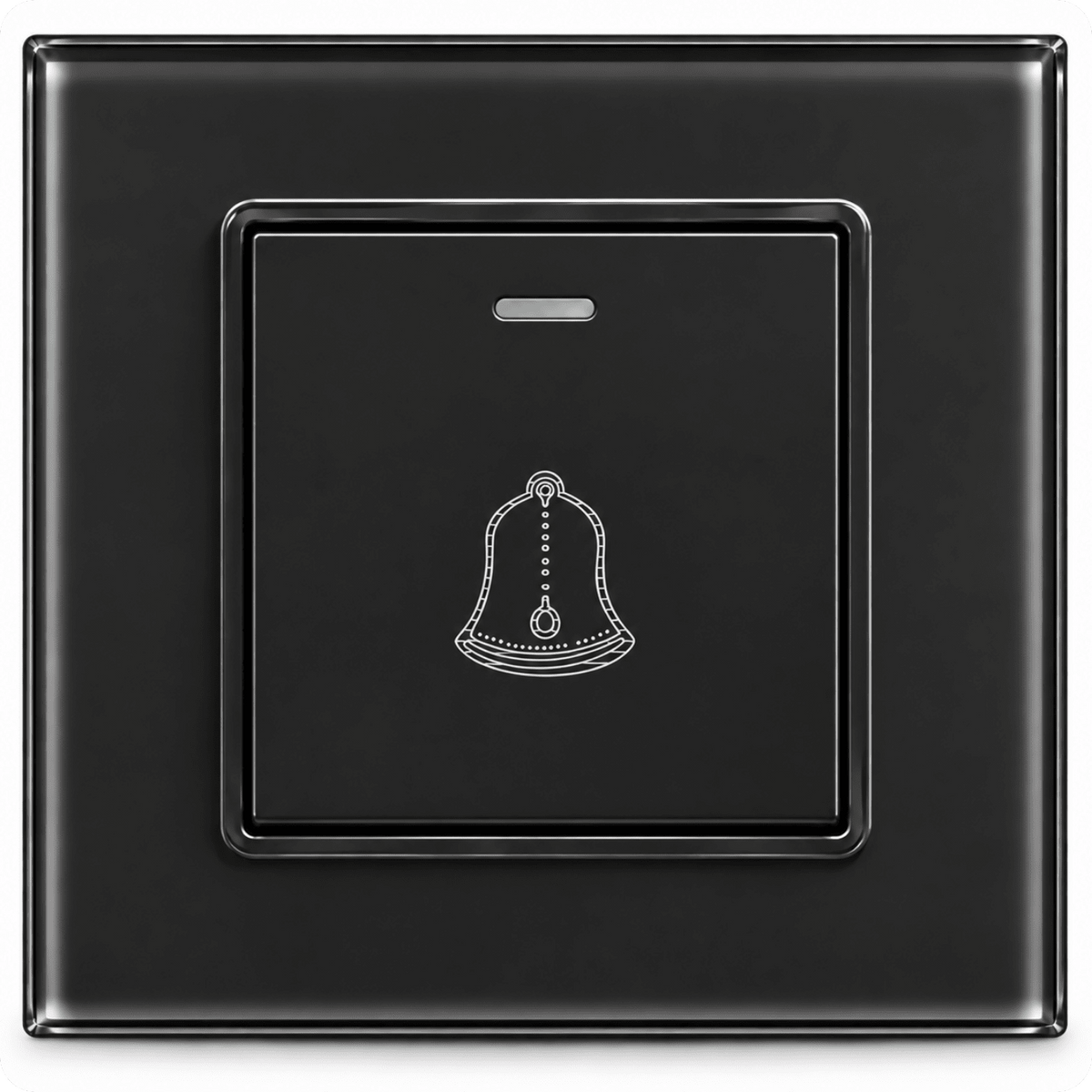

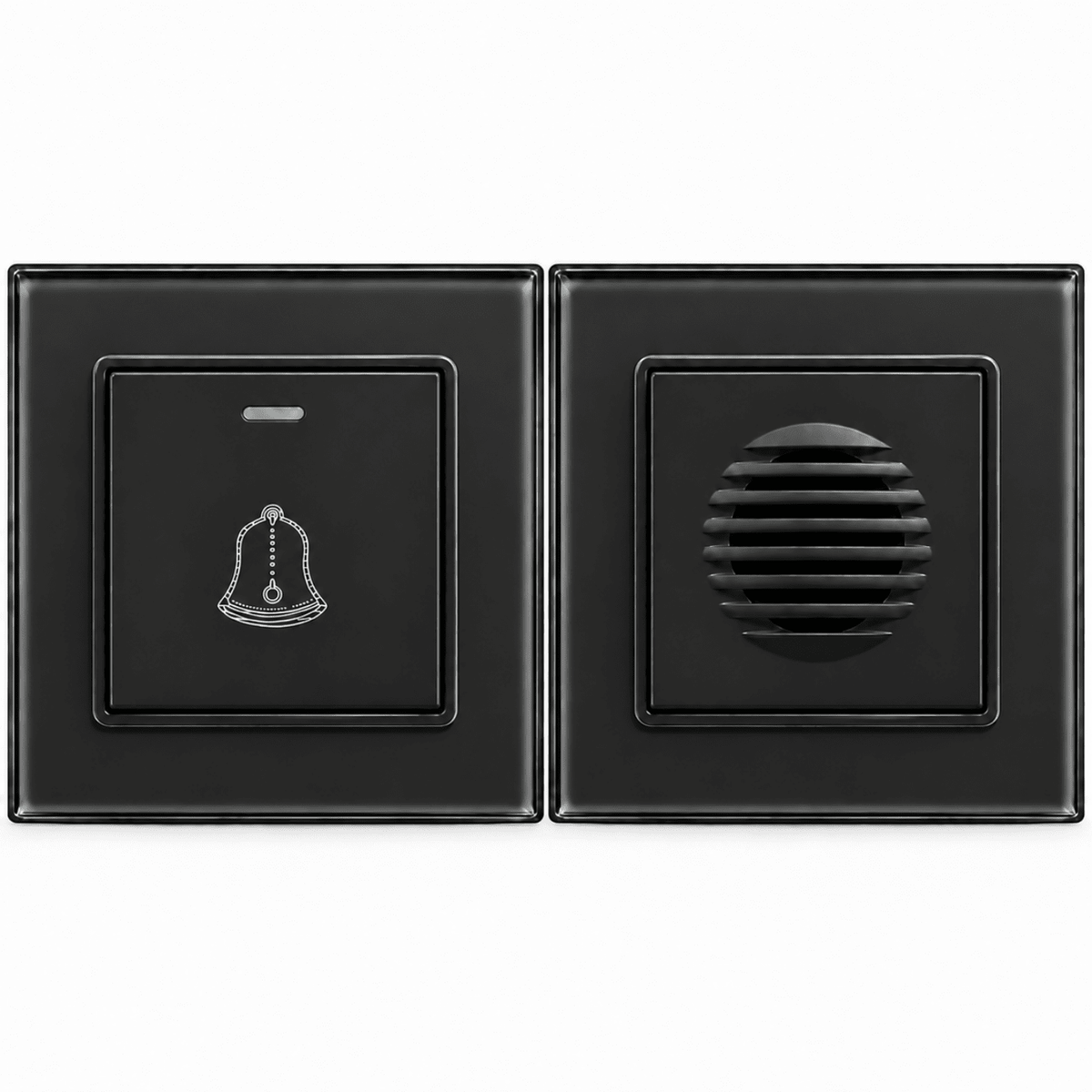

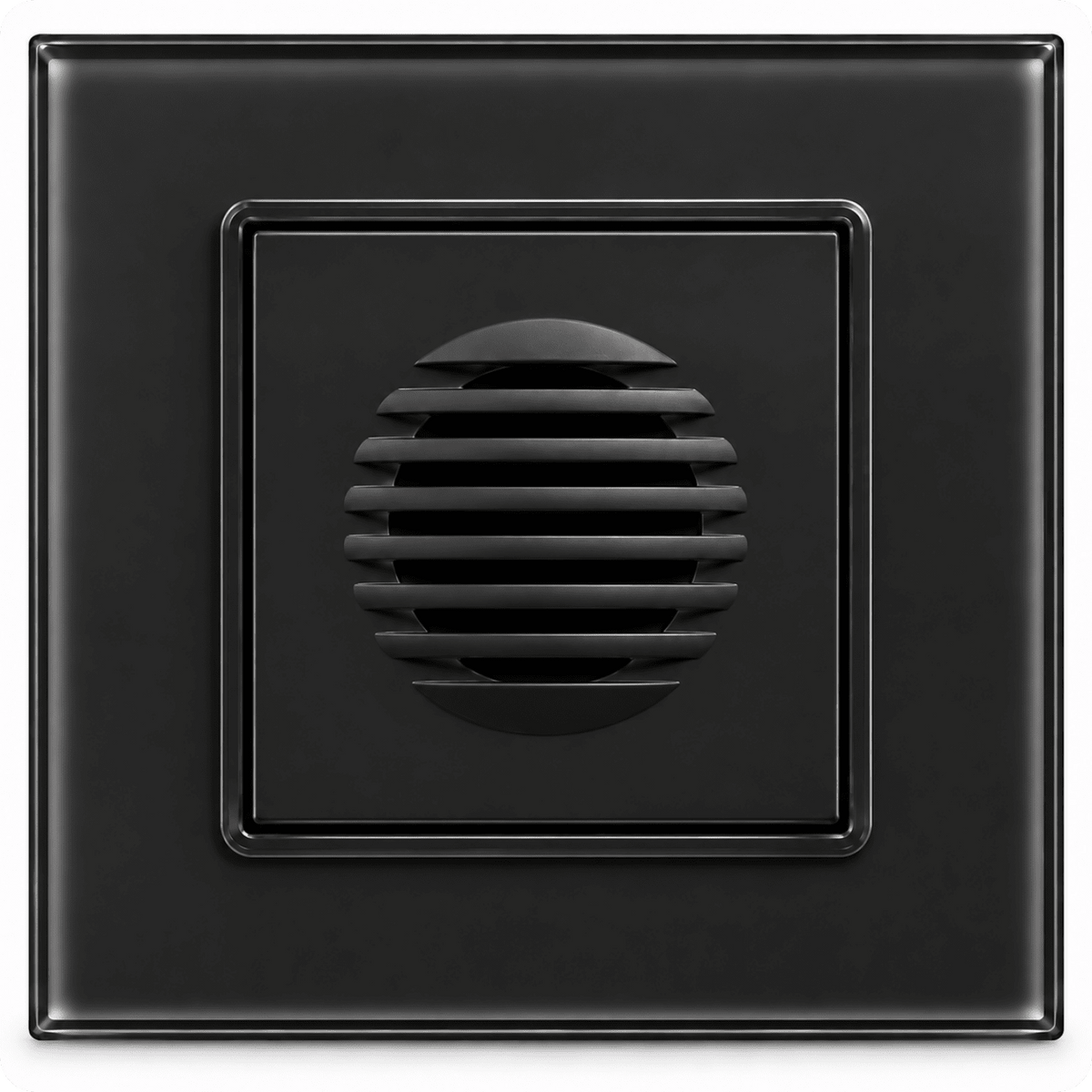

- Black

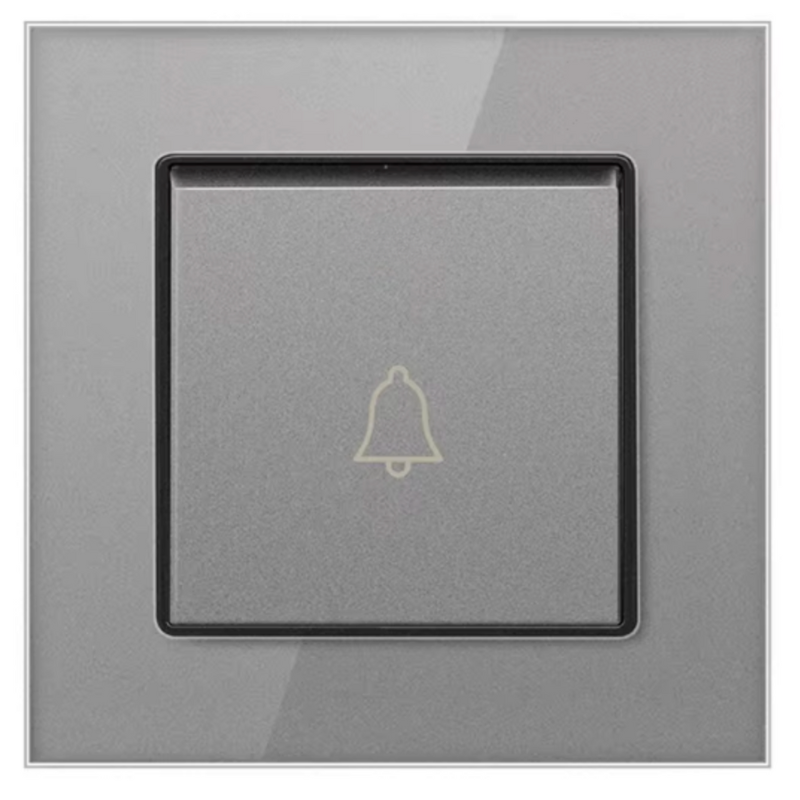

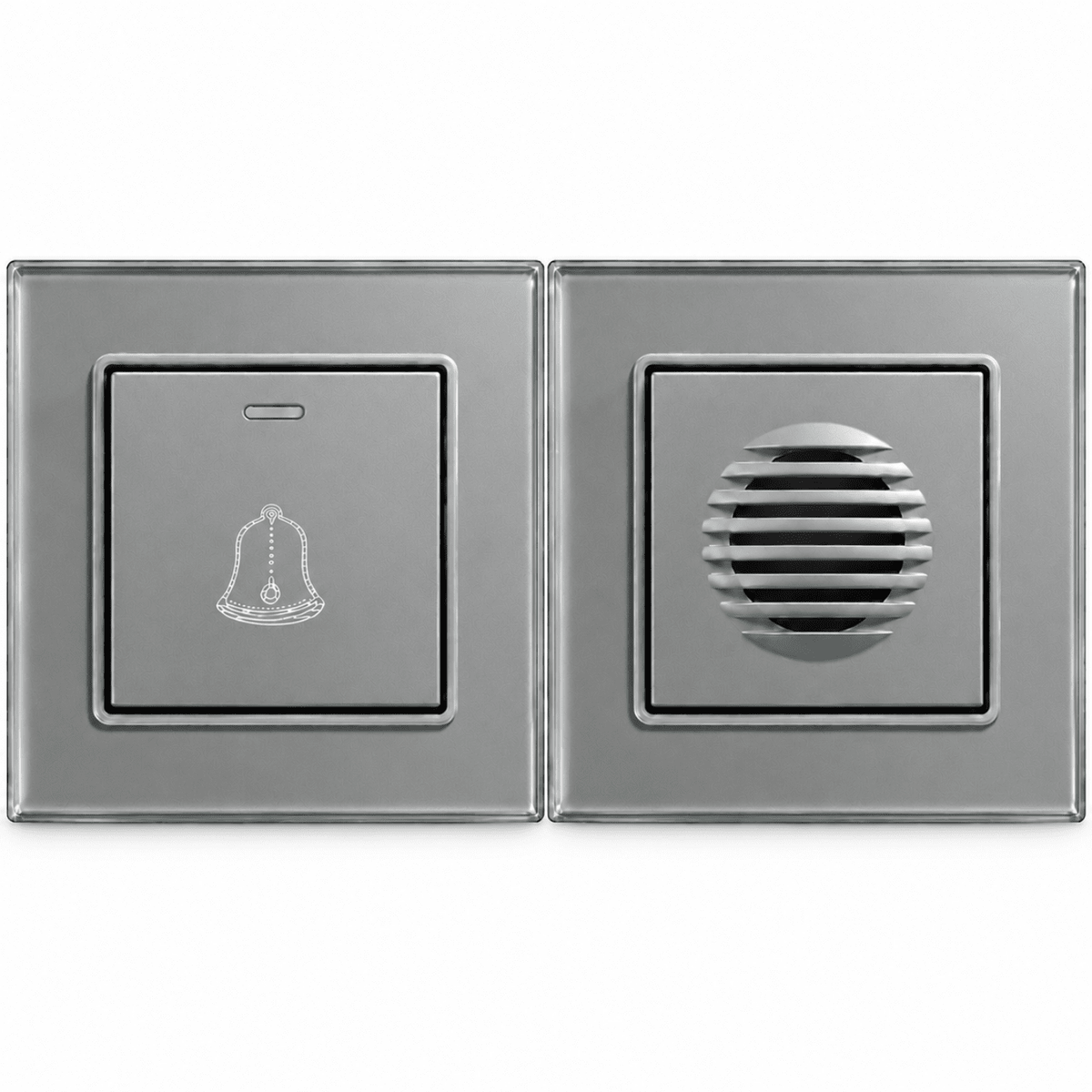

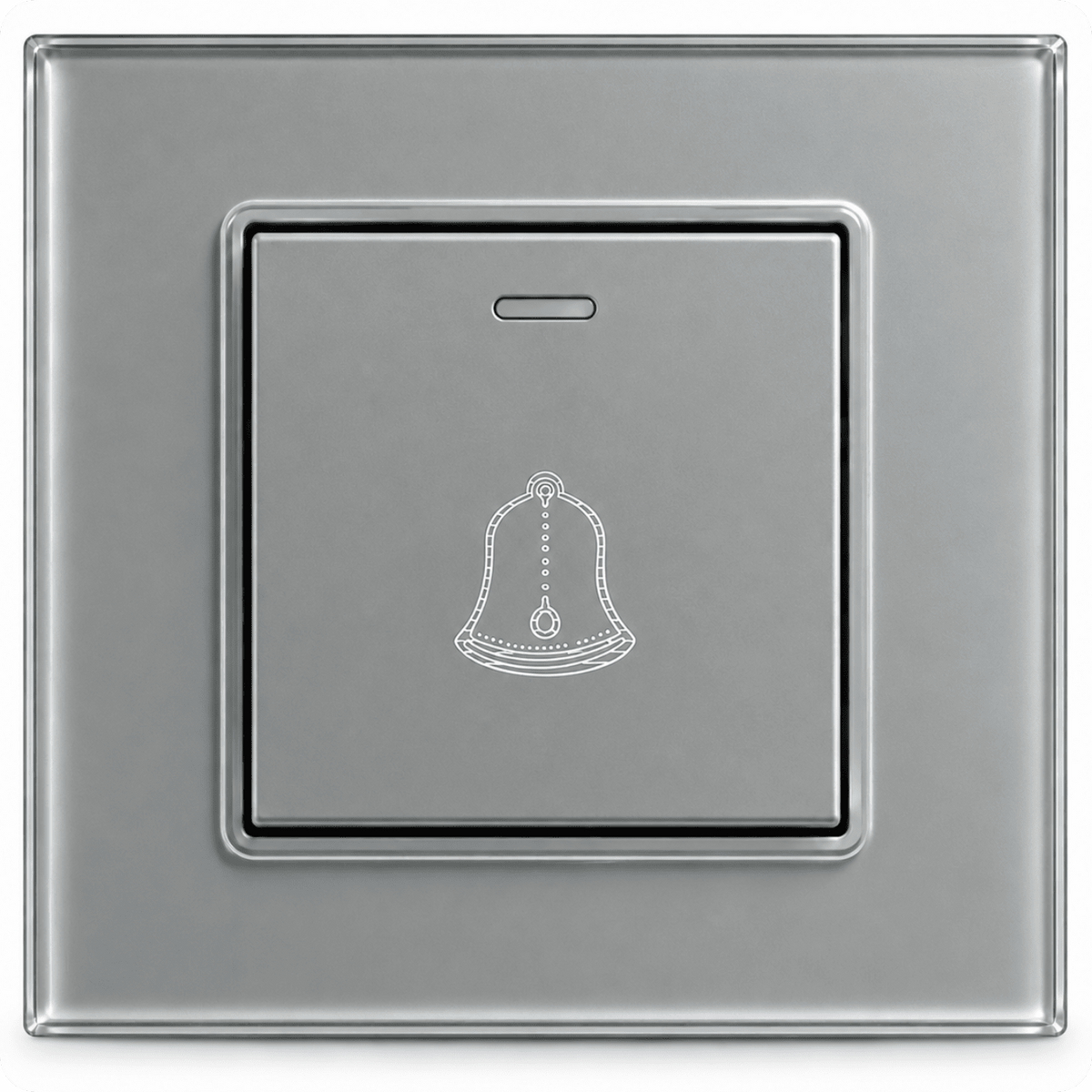

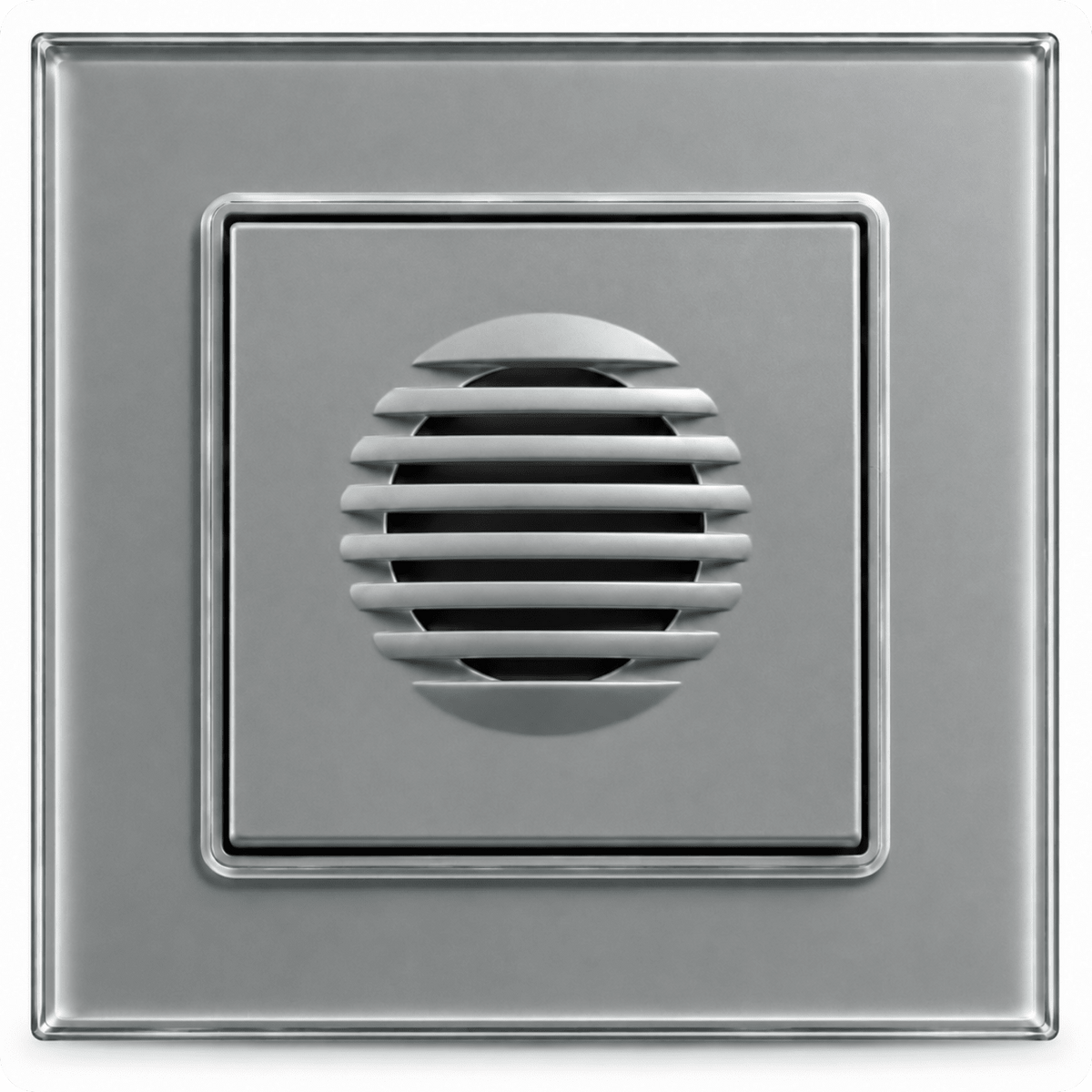

- Grey

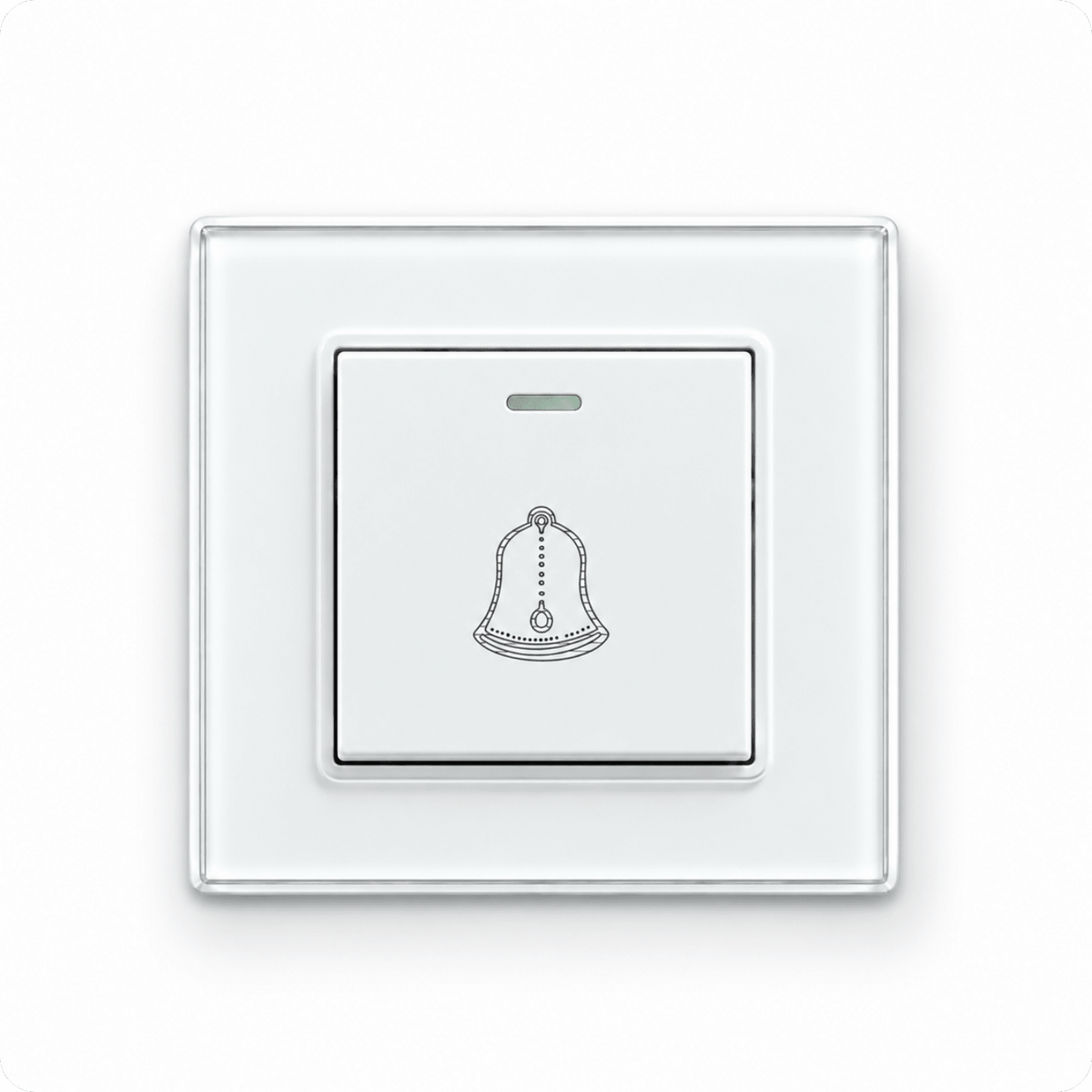

- White (currently selected)
Set element

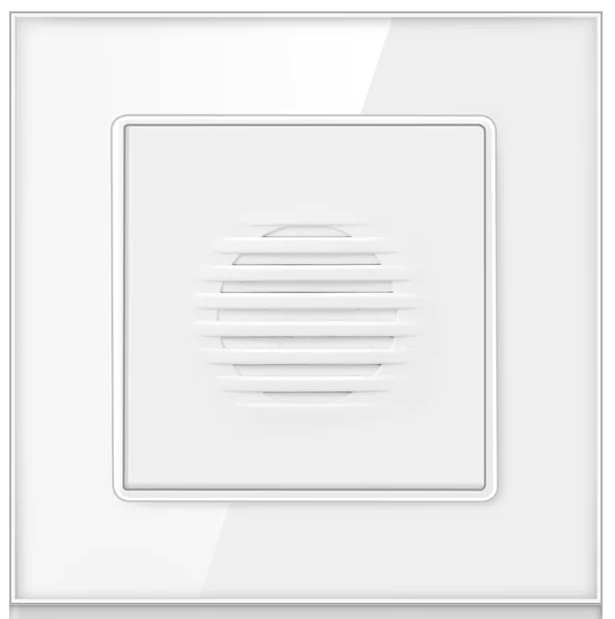

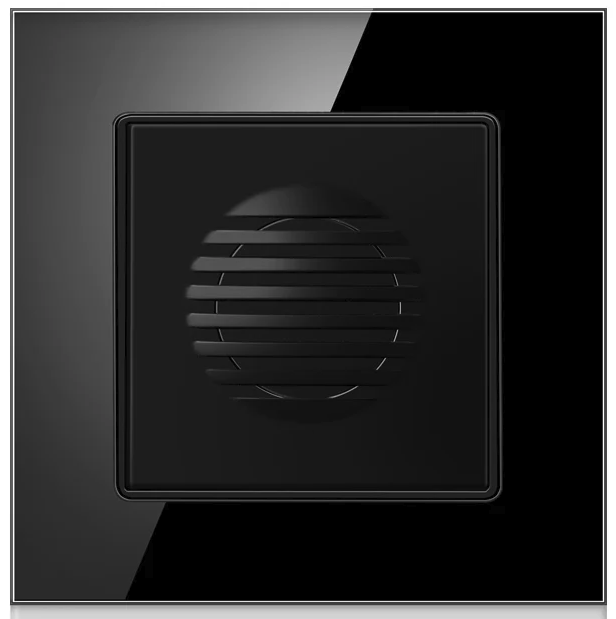

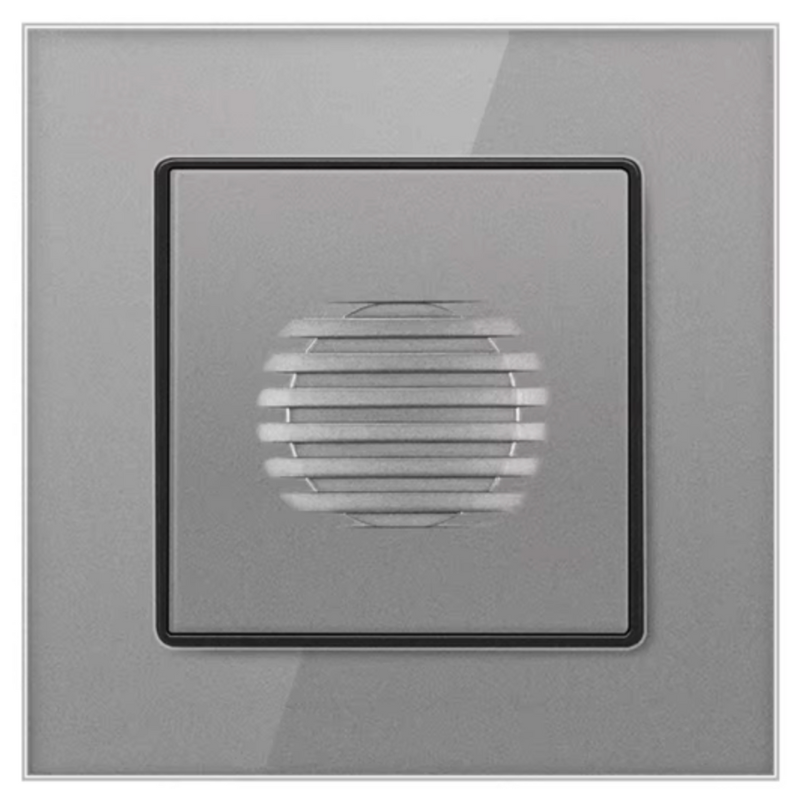

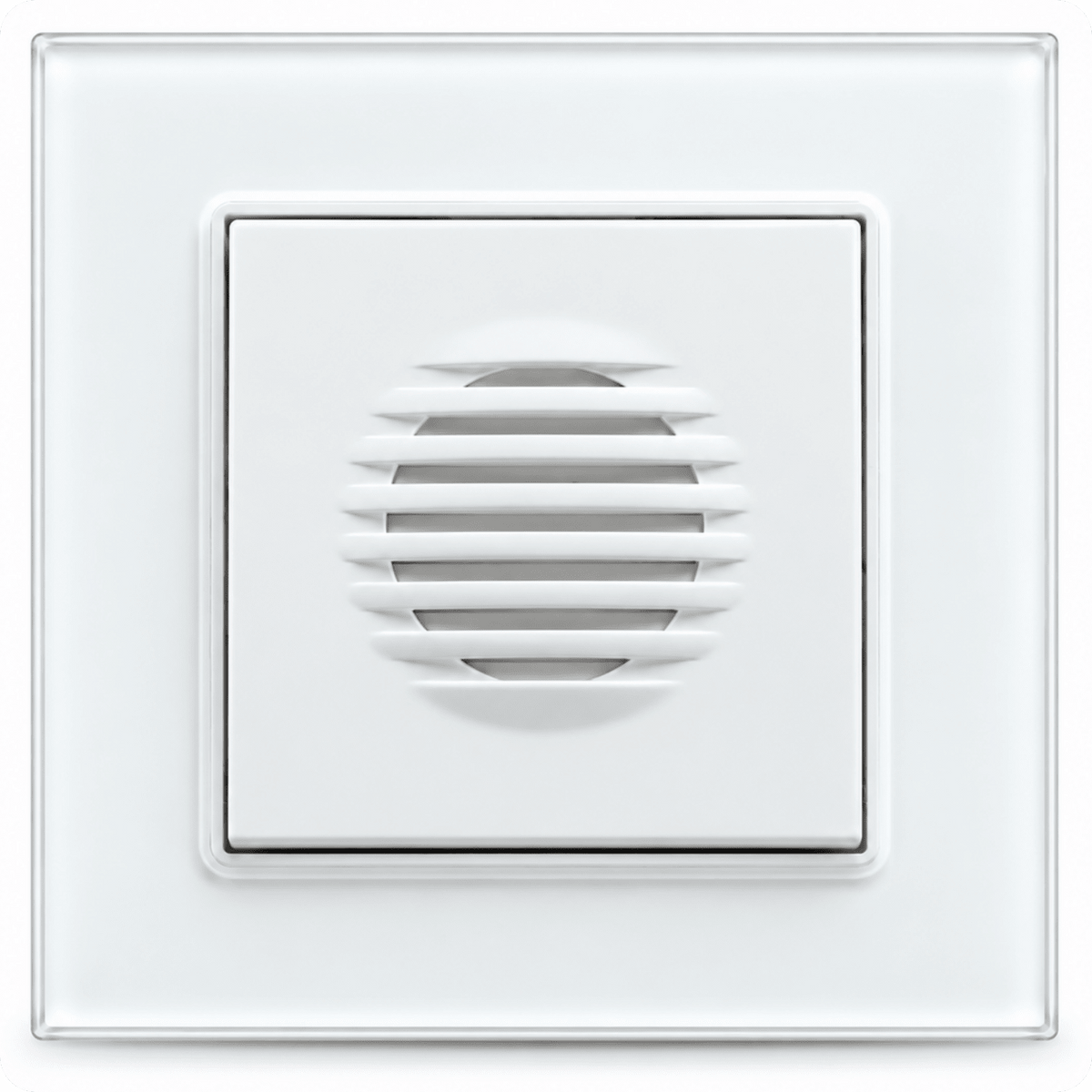

- Receiver
- Button (currently selected)
Set includes
- 1x T2-1 White Transmitter
- 1x Mounting screw set
- 1x Manual
The set can be expanded with additional buttons and receivers.
