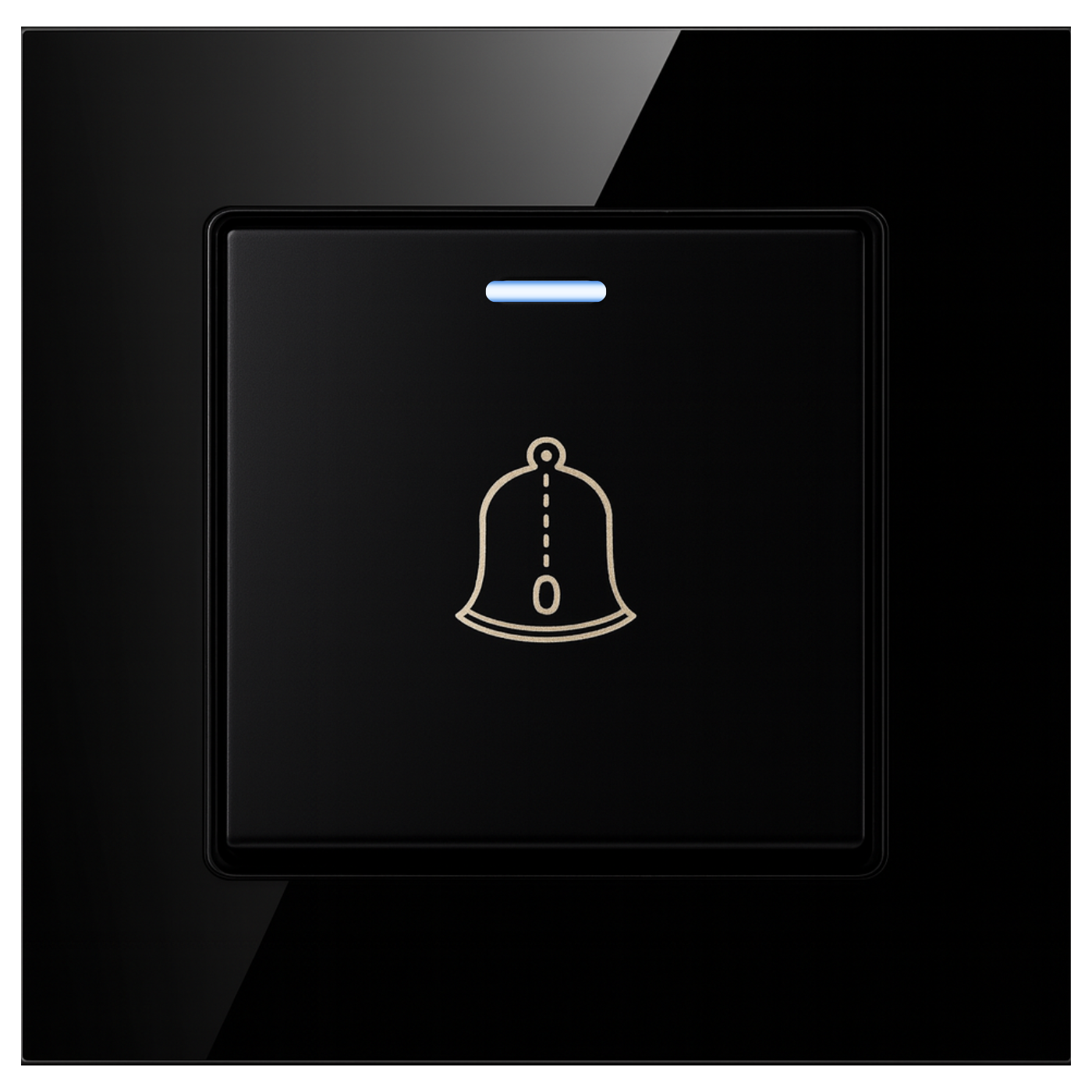

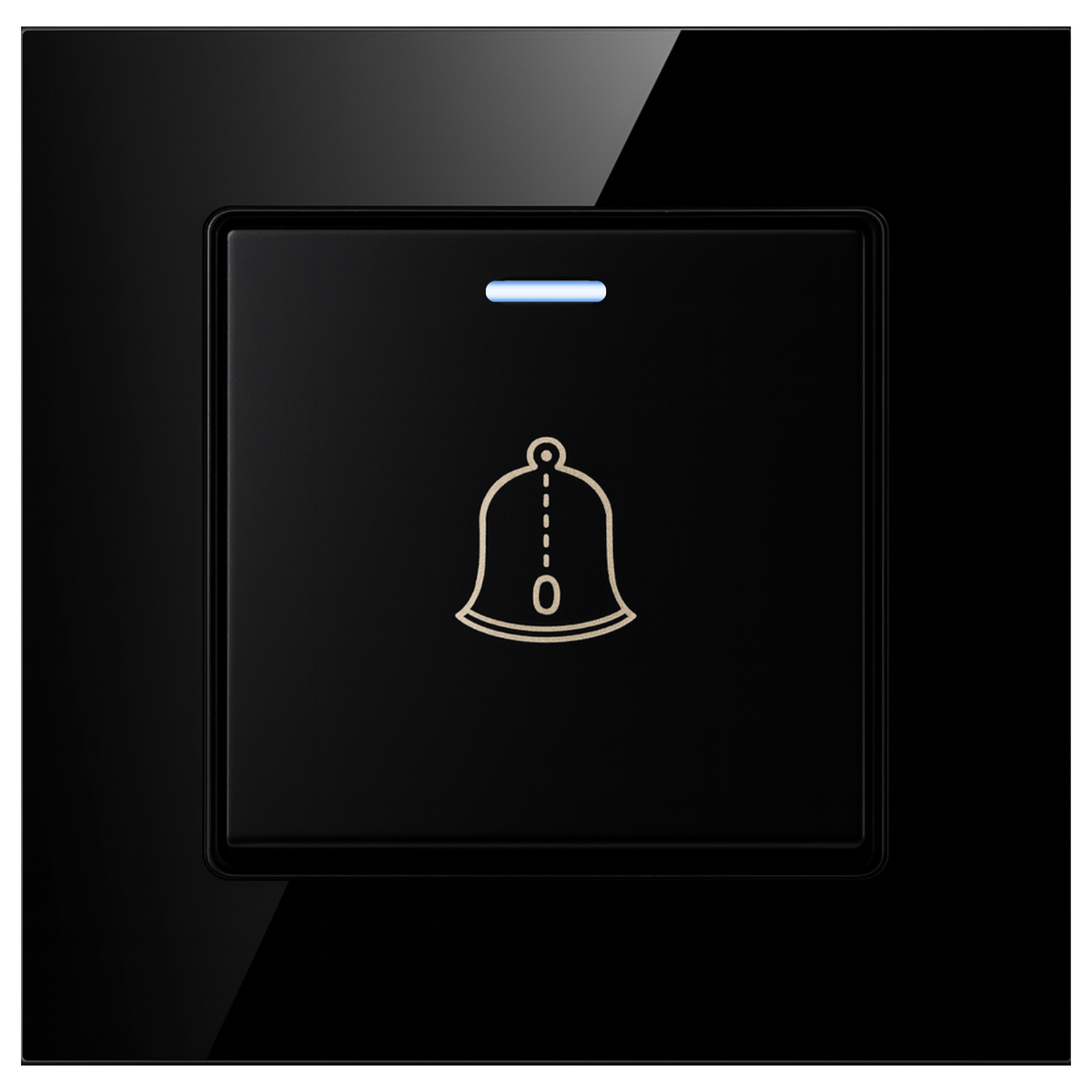

Wired doorbell receiver D02 Black
Sale price55,09 zł
The Spreest doorbell, designed with durability and aesthetics in mind, is an ideal choice for those who value both functionality and appearance.
- The doorbell has a very solid and aesthetic construction, while maintaining a trendy modern look.
- Made of reinforced glass resistant to scratches and discoloration. An additional advantage is the easy maintenance of the doorbell.

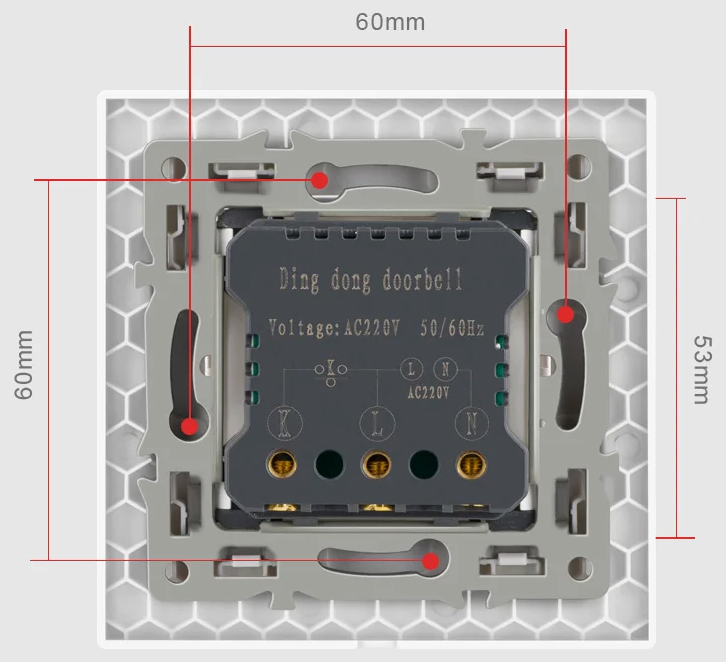

- The doorbell fits standard FI70 flush-mount boxes and FI60 boxes after adaptation; our doorbells require wiring.

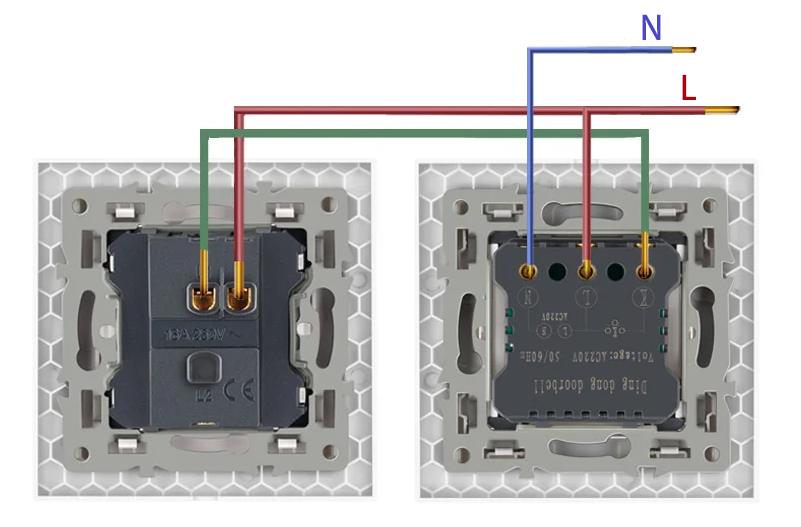

Doorbell Installation
Doorbell button (left side):
- Red wire (phase L): Connected to the bottom left terminal.
- Green wire (communication): Connected to the bottom right terminal.
Doorbell receiver (right side):
- Red wire (phase L): Connected to the bottom right terminal (marked as L).
- Blue wire (neutral N): Connected to the bottom left terminal (marked as N).
- Green wire (communication): Connected to the bottom middle terminal.
Important tips:
- Make sure all connections are securely tightened.
- Check that the wires are properly insulated to prevent short circuits.
Specification:
- Rated voltage: AC 110~250V / 50~60Hz

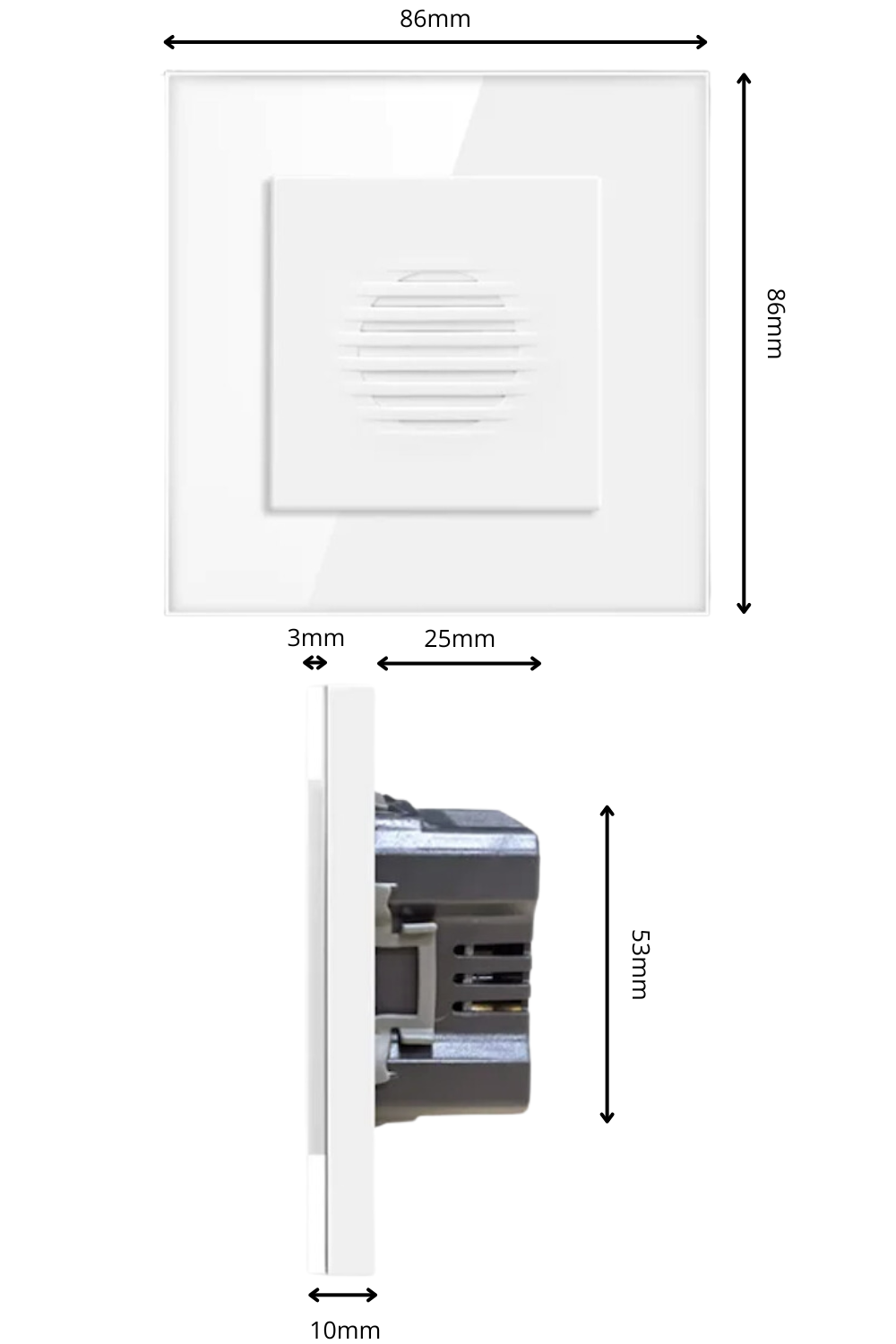

- Dimensions: 86mm x 86mm
- Mounting: Flush-mounted
- Color: Black
- Panel material: Tempered crystal glass | PC plastic
- Protection class: IP20
- Doorbell volume level: ~100dB
- Power supply type: Mains
- Type: Electromechanical
- Transmission type: Wired
Available colors
- Black (currently selected)

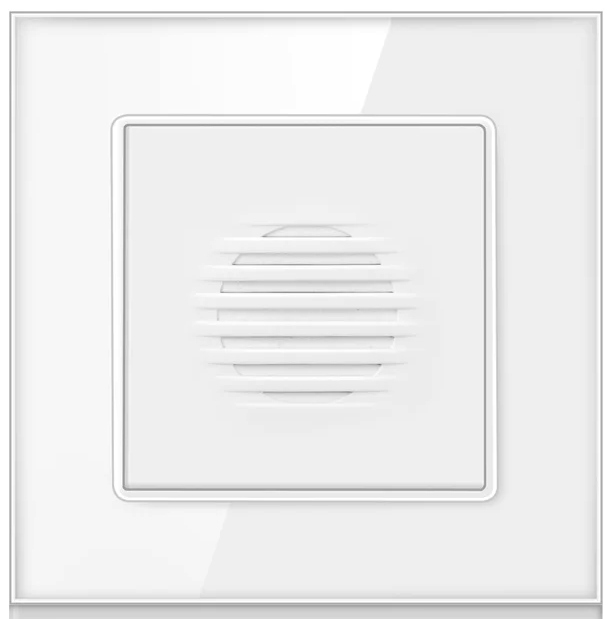

- White

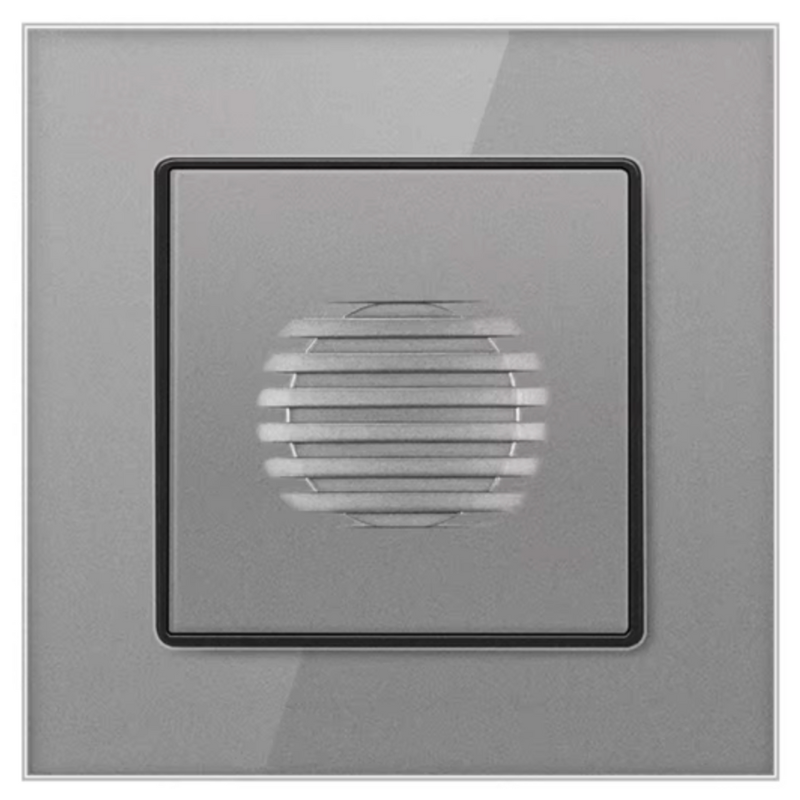

- Grey
Set components
- Receiver (currently selected)

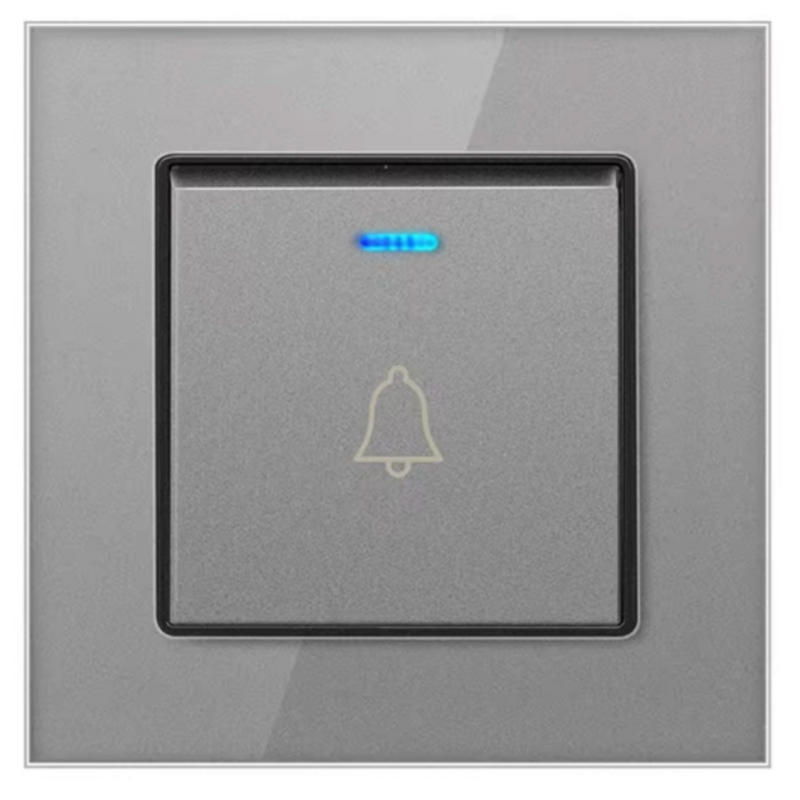

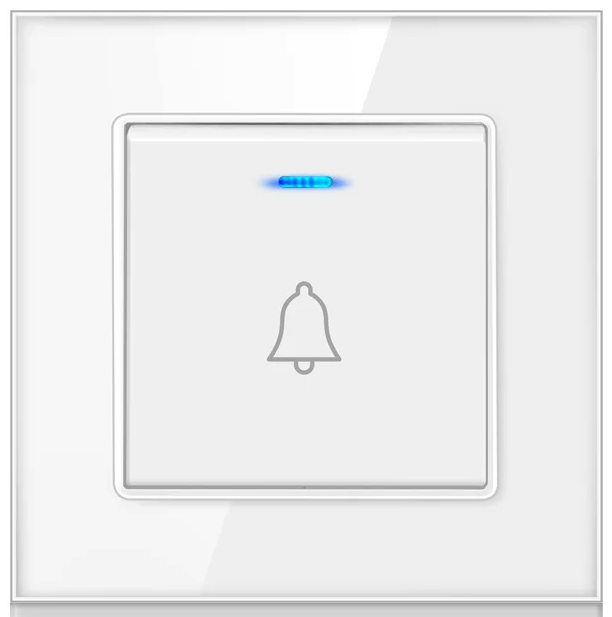

- Button
The set includes
- 1x Receiver D01 Black
- 1x Set of mounting screws
- 1x Manual
The set can be expanded with additional buttons and receivers.
