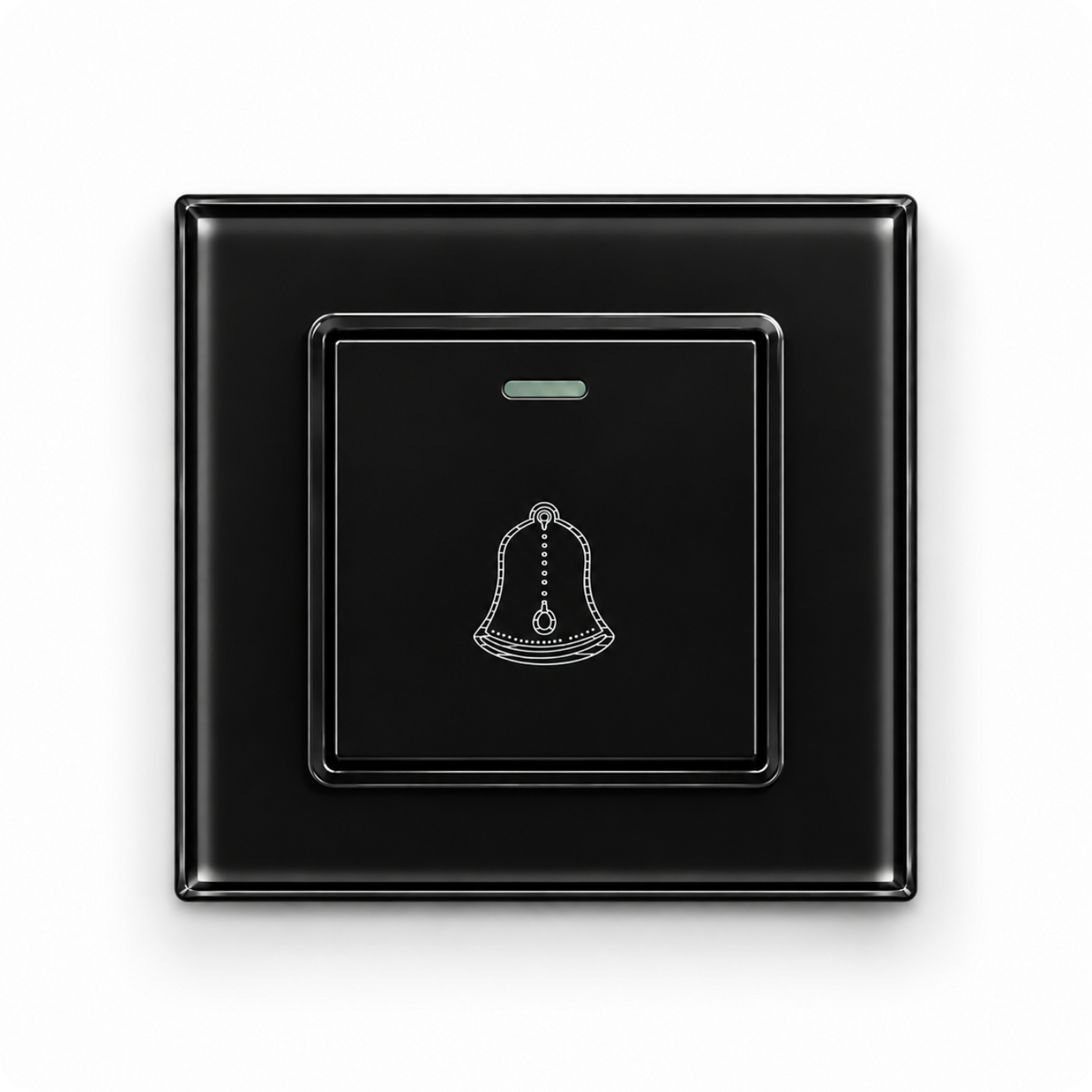

Wired doorbell button D01 Black
Sale price39,09 zł
Regular price40,09 zł
The Spreest brand doorbell, designed with durability and aesthetics in mind, is an ideal choice for those who value both functionality and appearance.
- The doorbell has a very solid and aesthetic construction, while maintaining a modern, fashionable look.

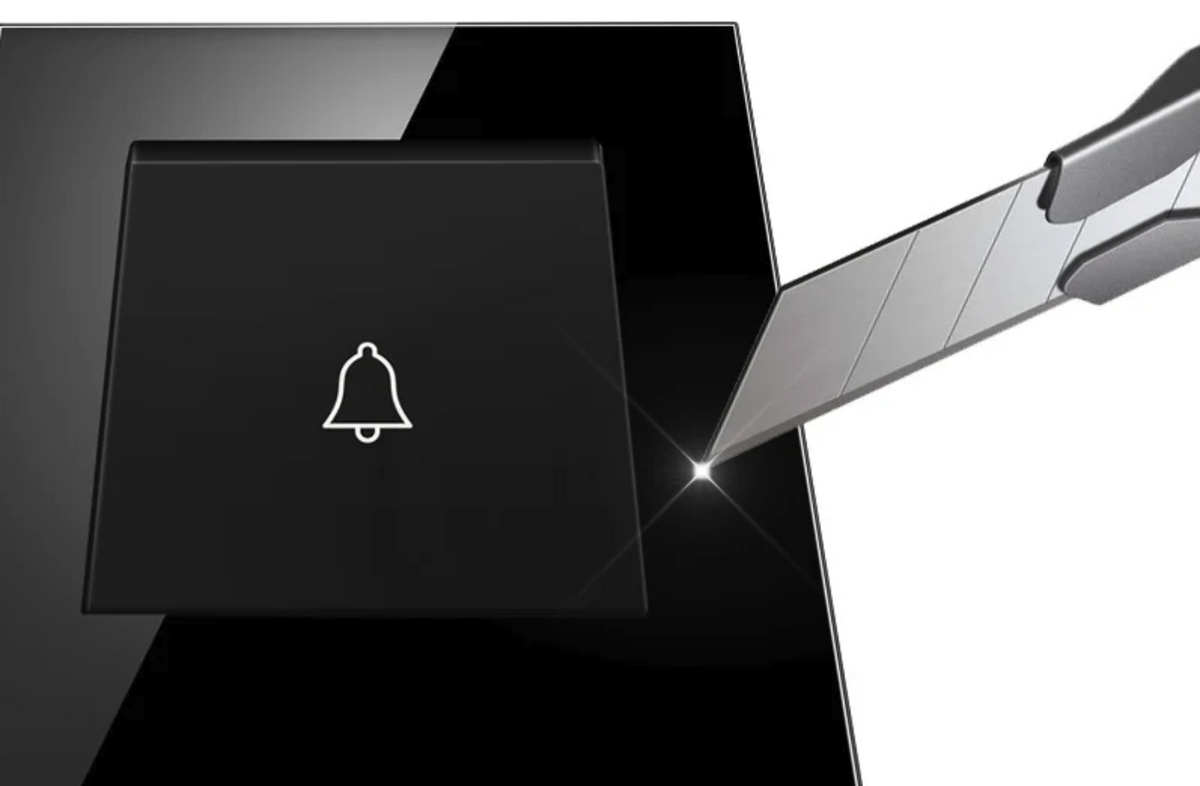

- Made of reinforced glass resistant to scratches and discoloration. An additional advantage is the easy maintenance of the doorbell.
- The doorbell fits standard FI70 flush boxes and FI60 after adjustment. Our doorbells require wiring.

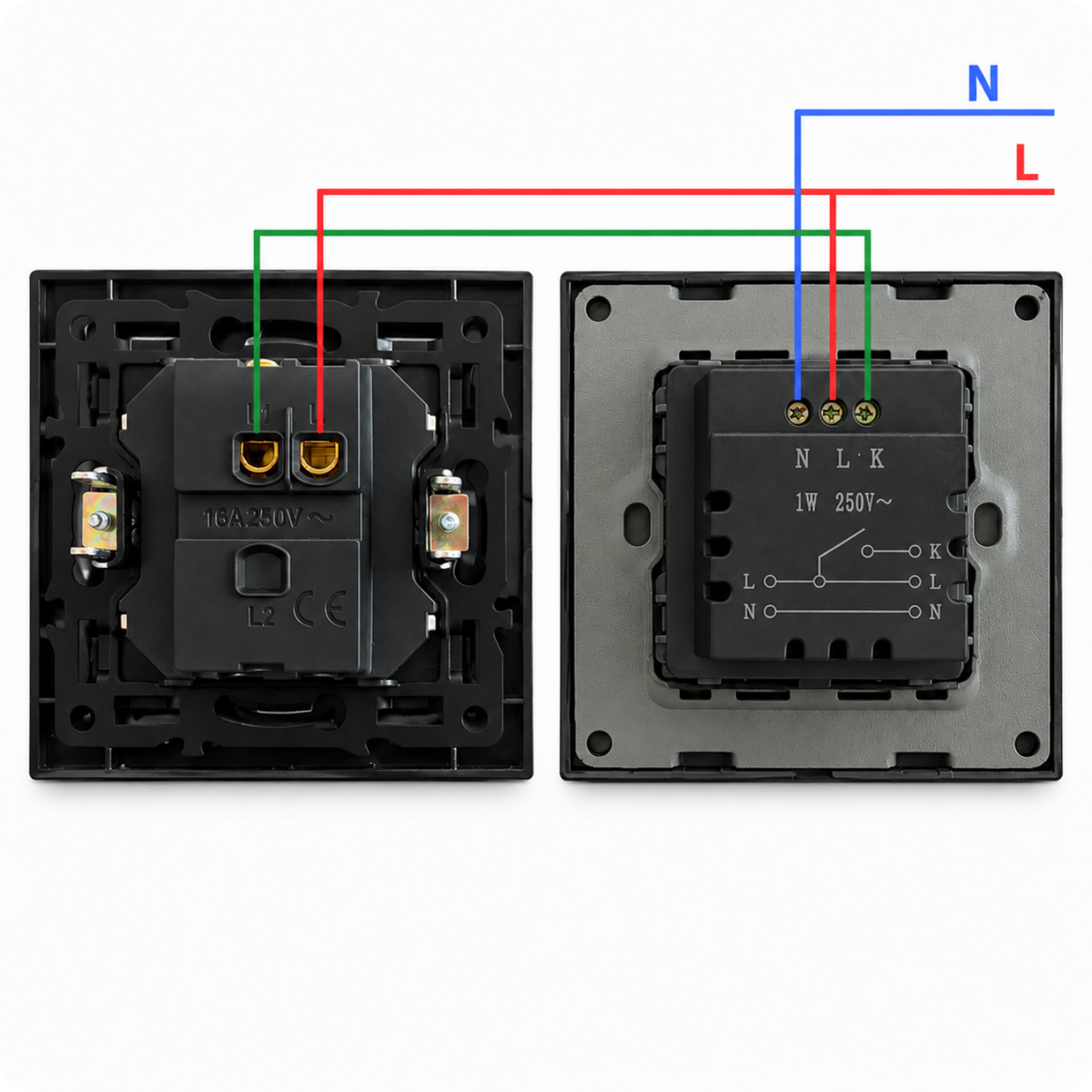

Doorbell Installation

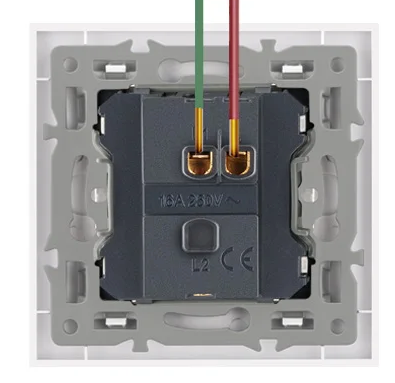

Doorbell button (left side):
- Red wire (phase L): Connected to the bottom left terminal.
- Green wire (communication): Connected to the bottom right terminal.

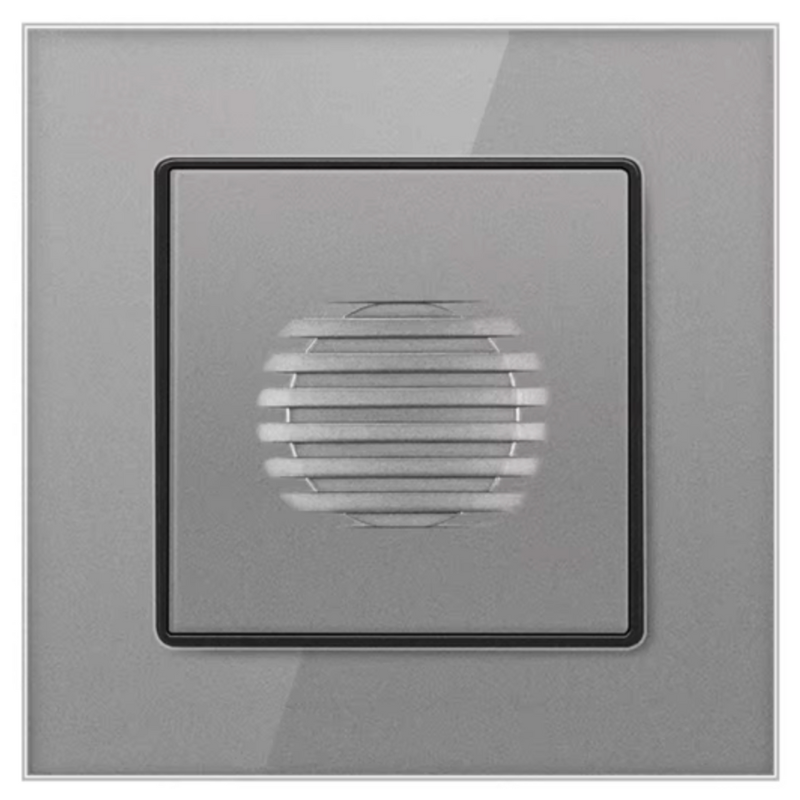

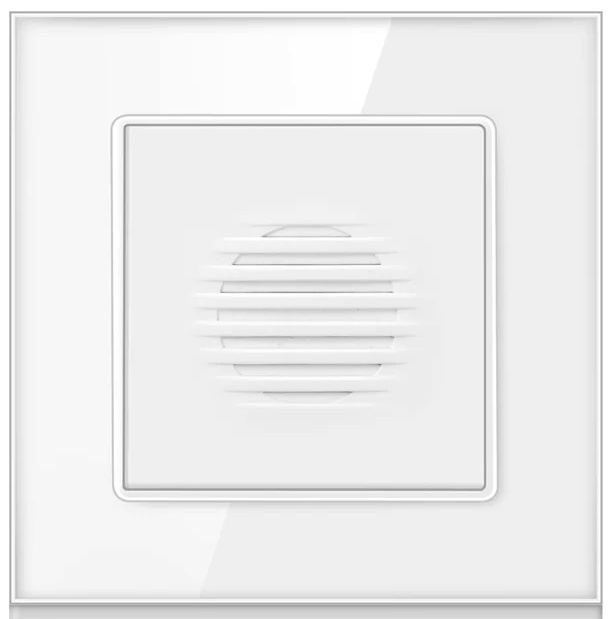

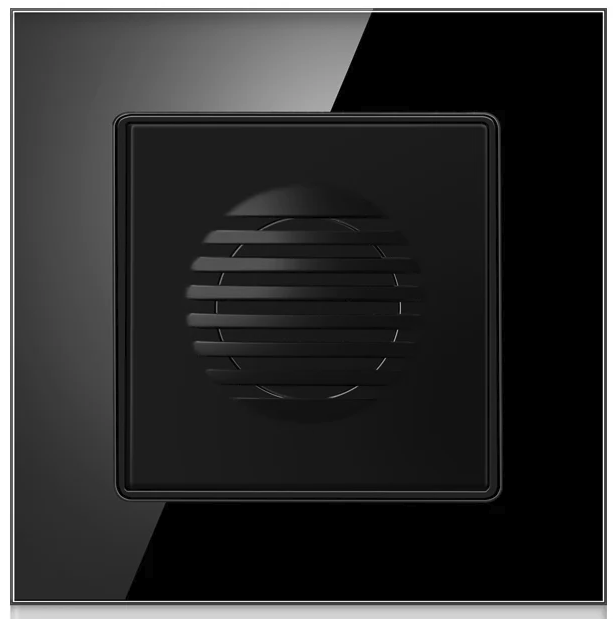

Doorbell receiver (right side):
- Red wire (phase L): Connected to the bottom right terminal (marked L).
- Blue wire (neutral N): Connected to the bottom left terminal (marked N).
- Green wire (communication): Connected to the bottom central terminal.
Important tips:
- Make sure all connections are securely tightened.
- Check that the wires are properly insulated to prevent short circuits.
Specification:
- Rated voltage: AC 110~250V / 50~60Hz

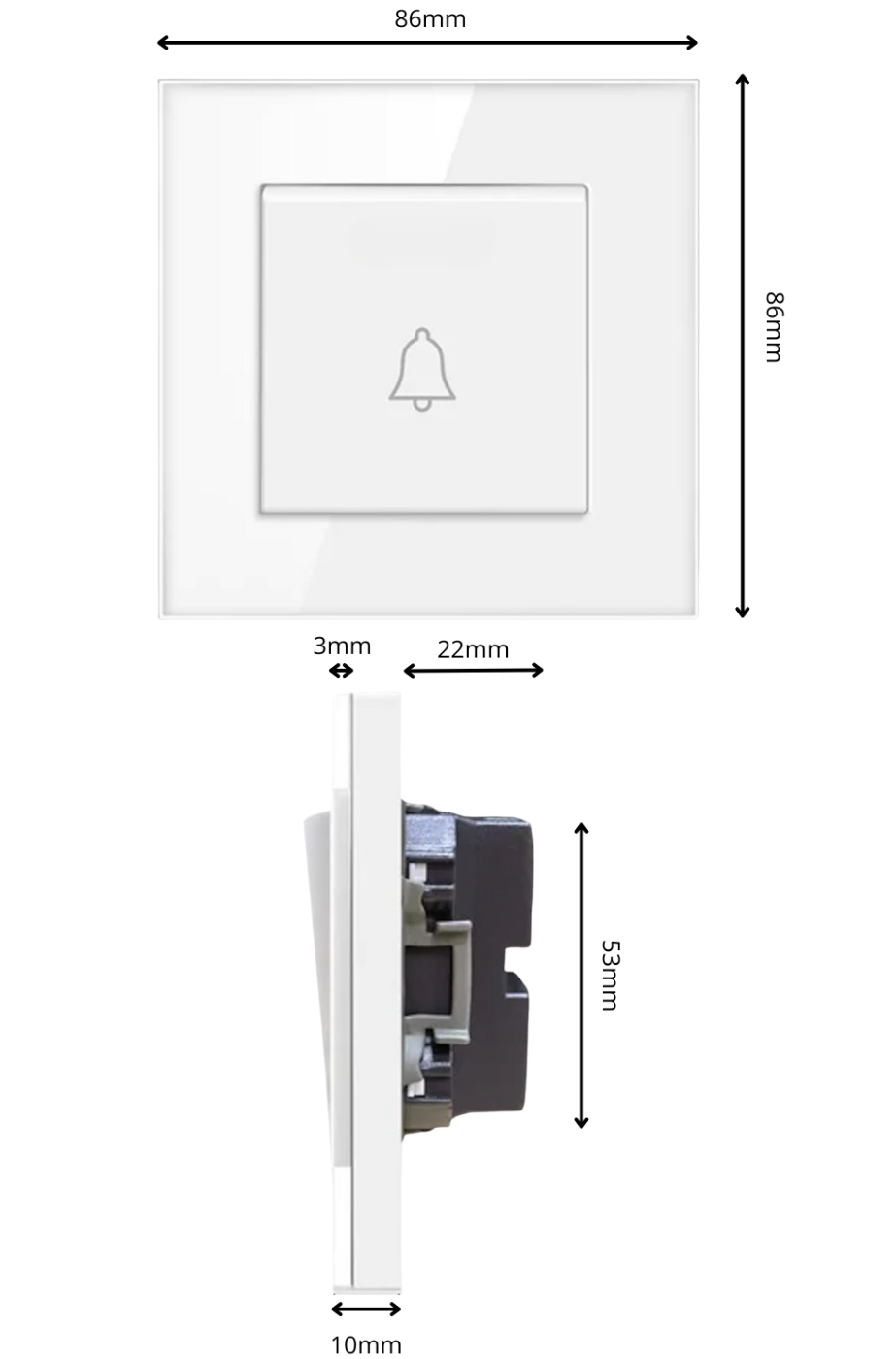

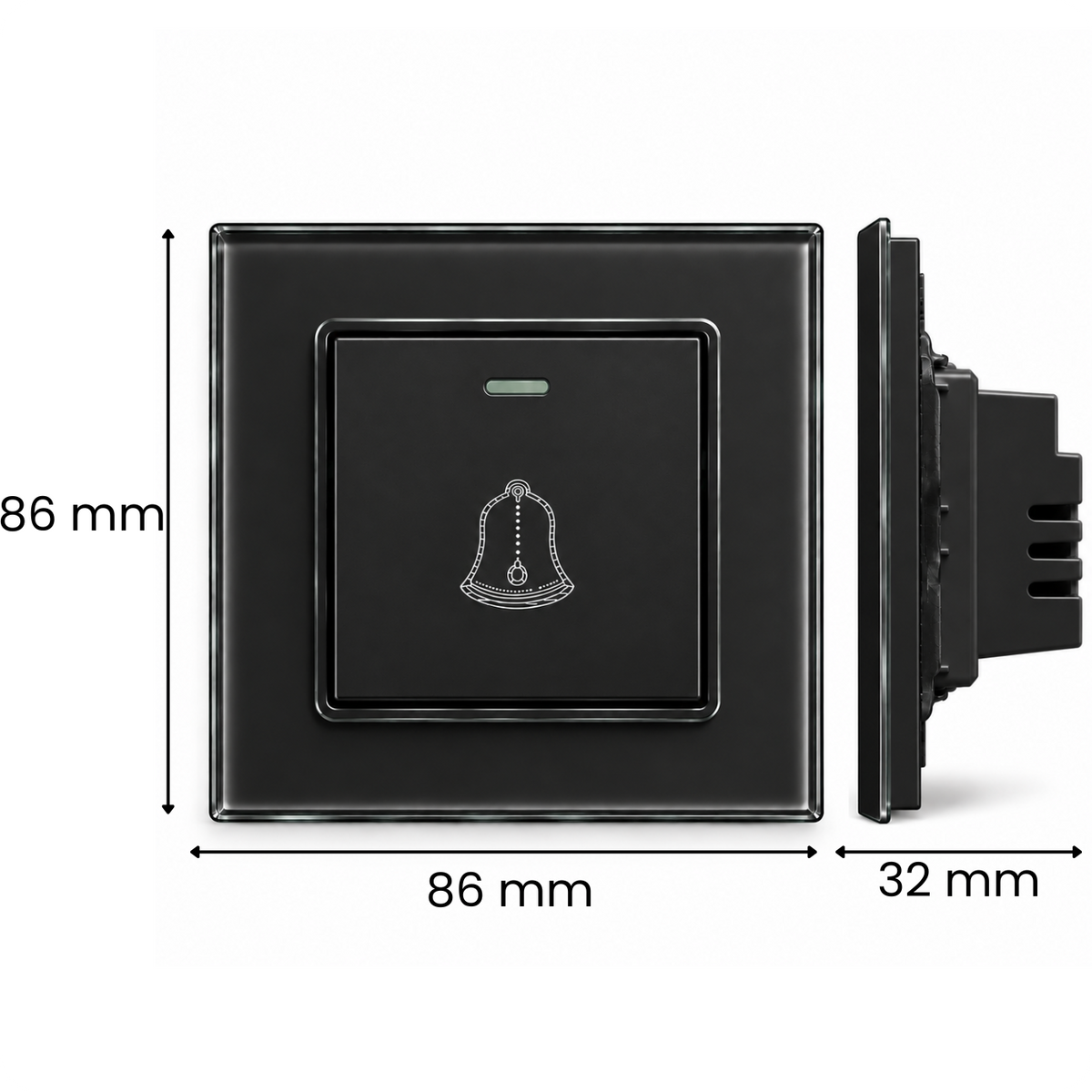

- Dimensions: 86mm x 86mm
- Mounting: Flush-mounted
- Colour: Black
- Panel material: Tempered crystal glass | PC plastic
- Protection class: IP20
- Power supply type: Mains
- Type: Electromechanical
- Transmission type: Wired

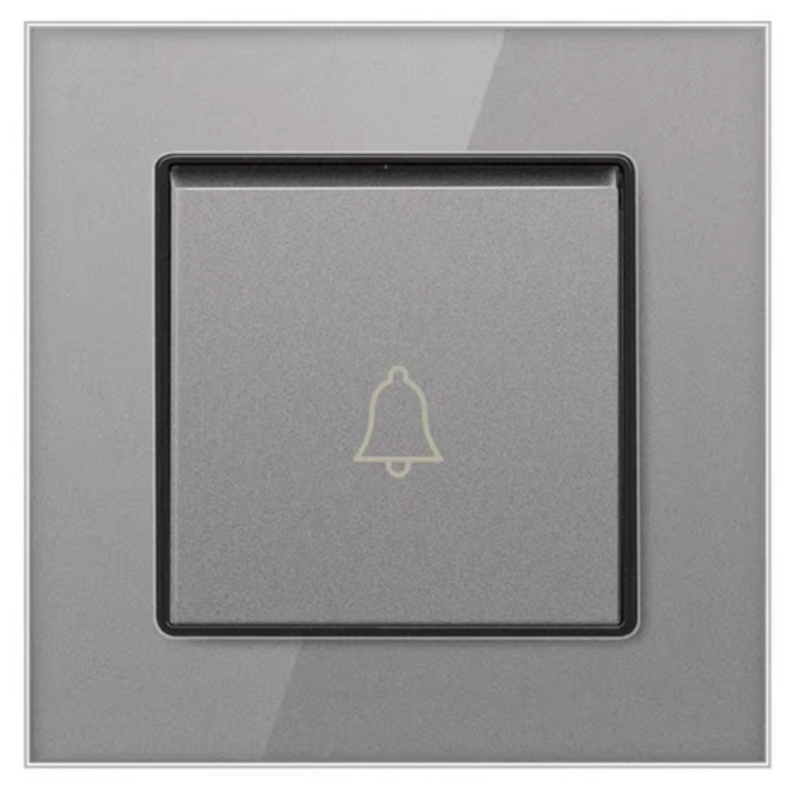

Available colours
- Black (currently selected)

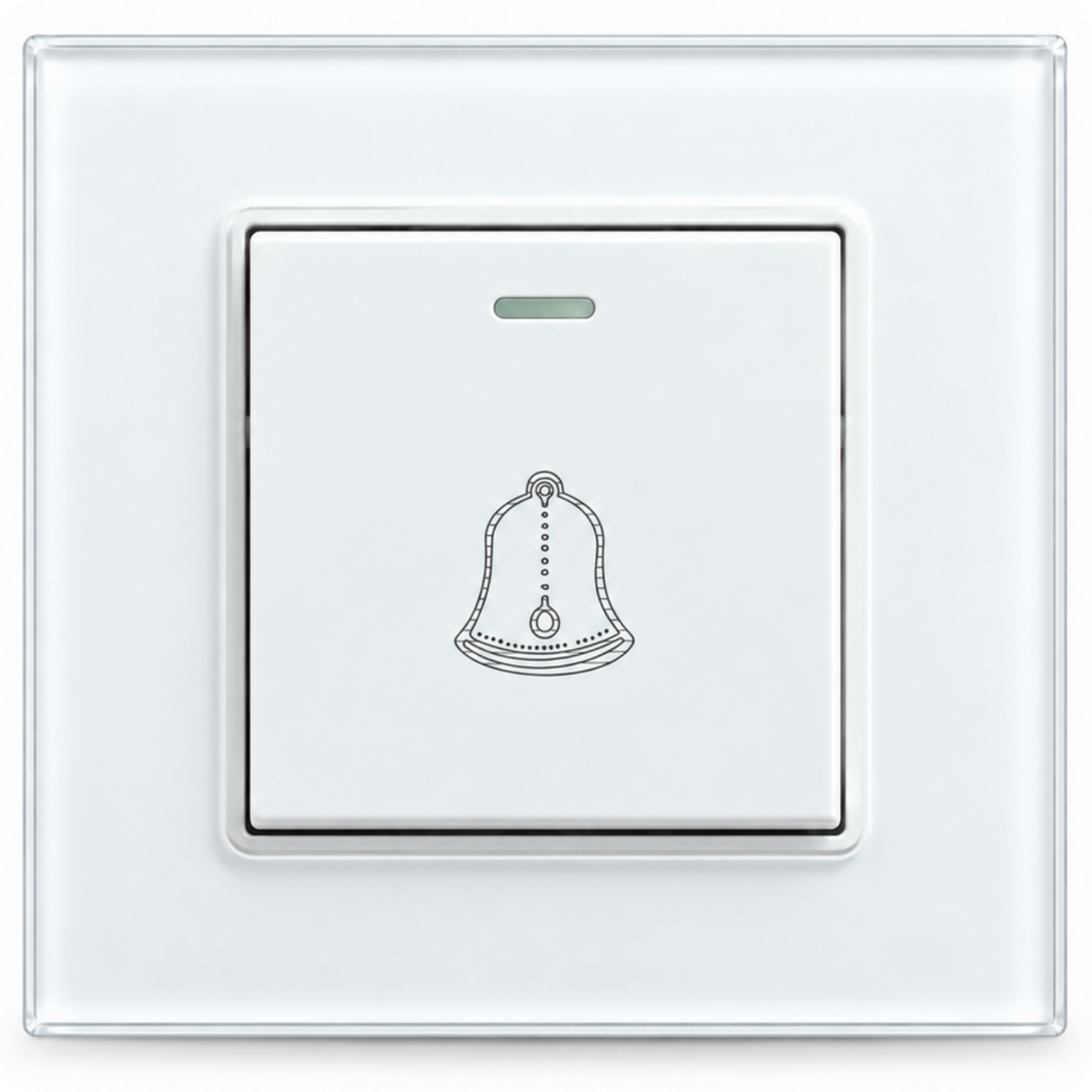

- White

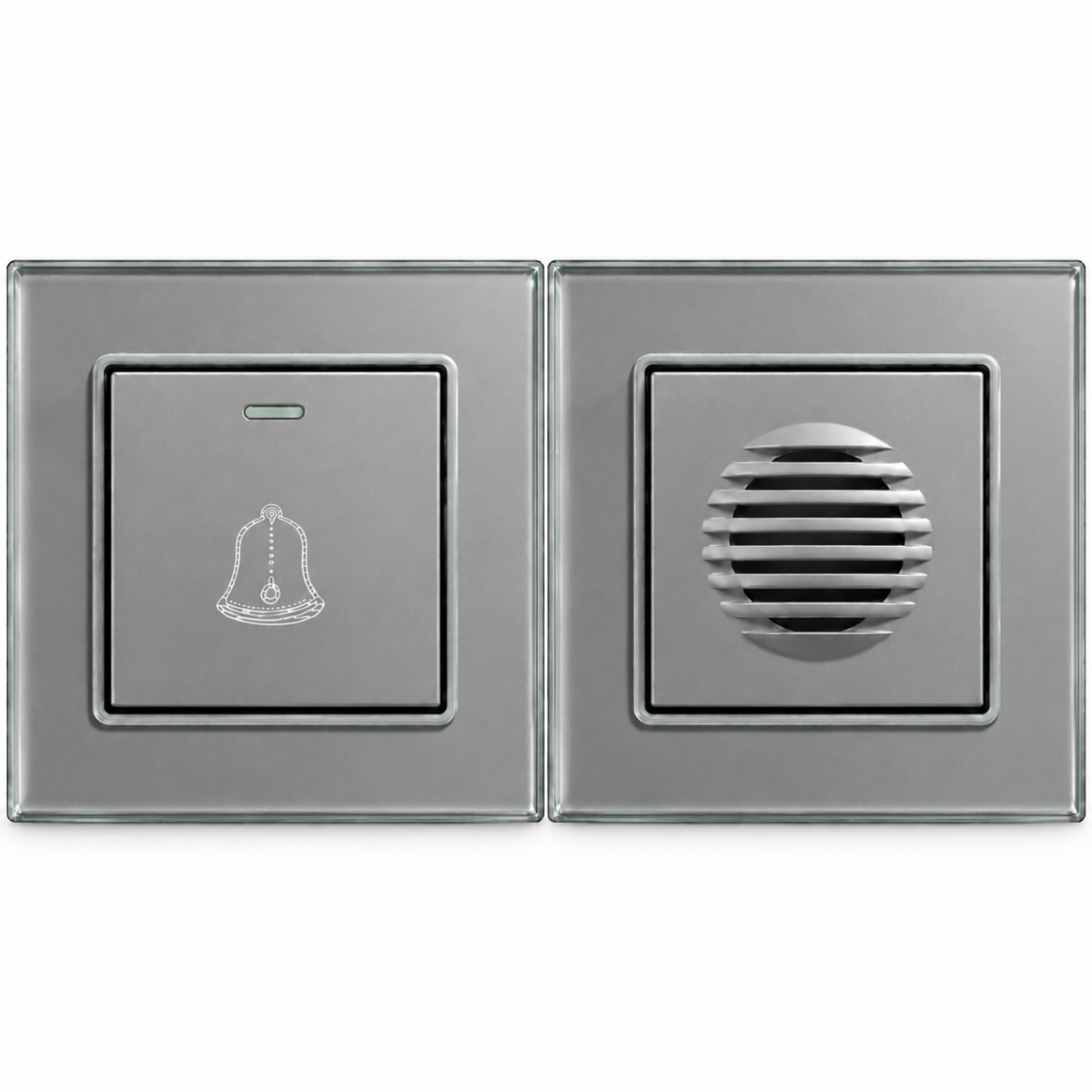

- Grey

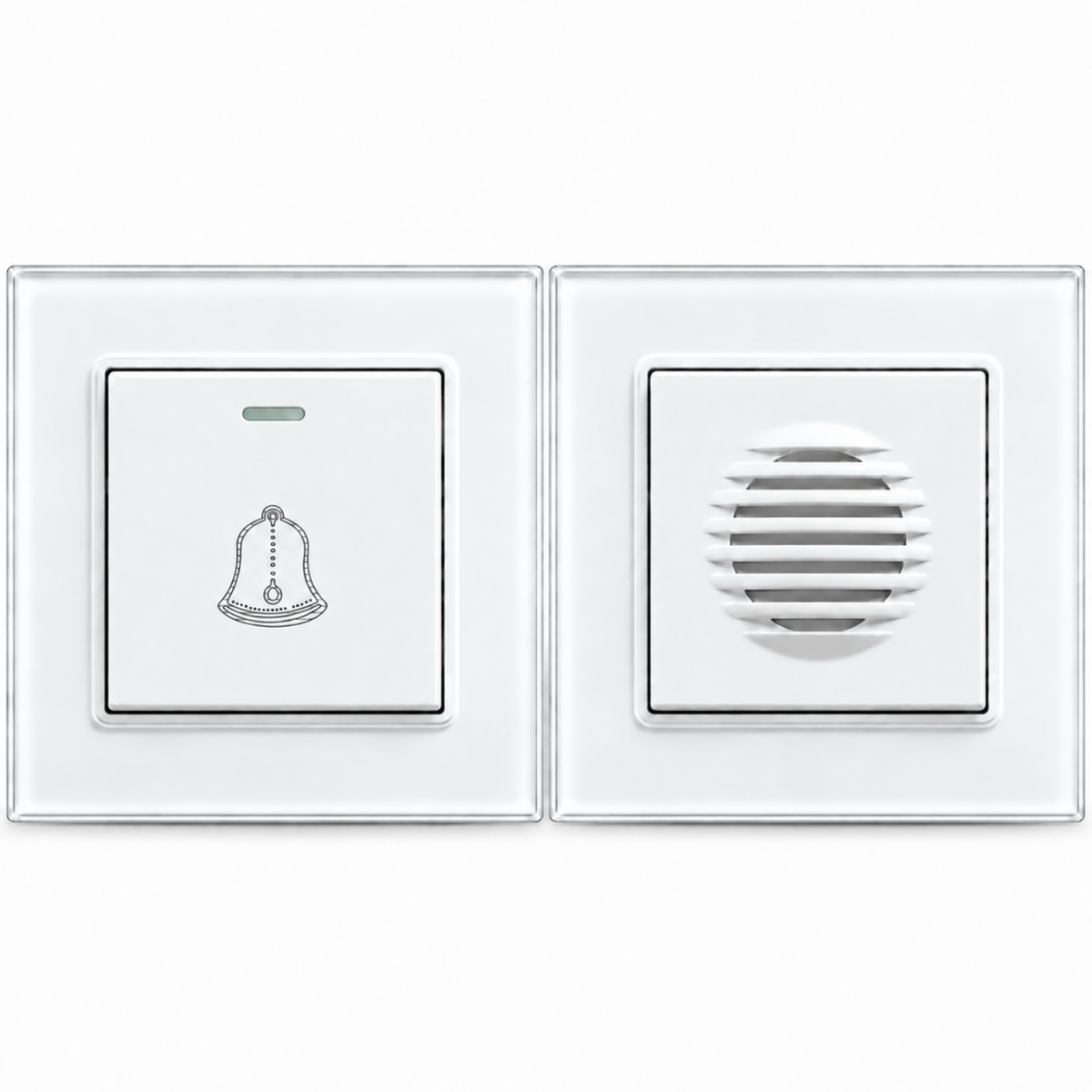

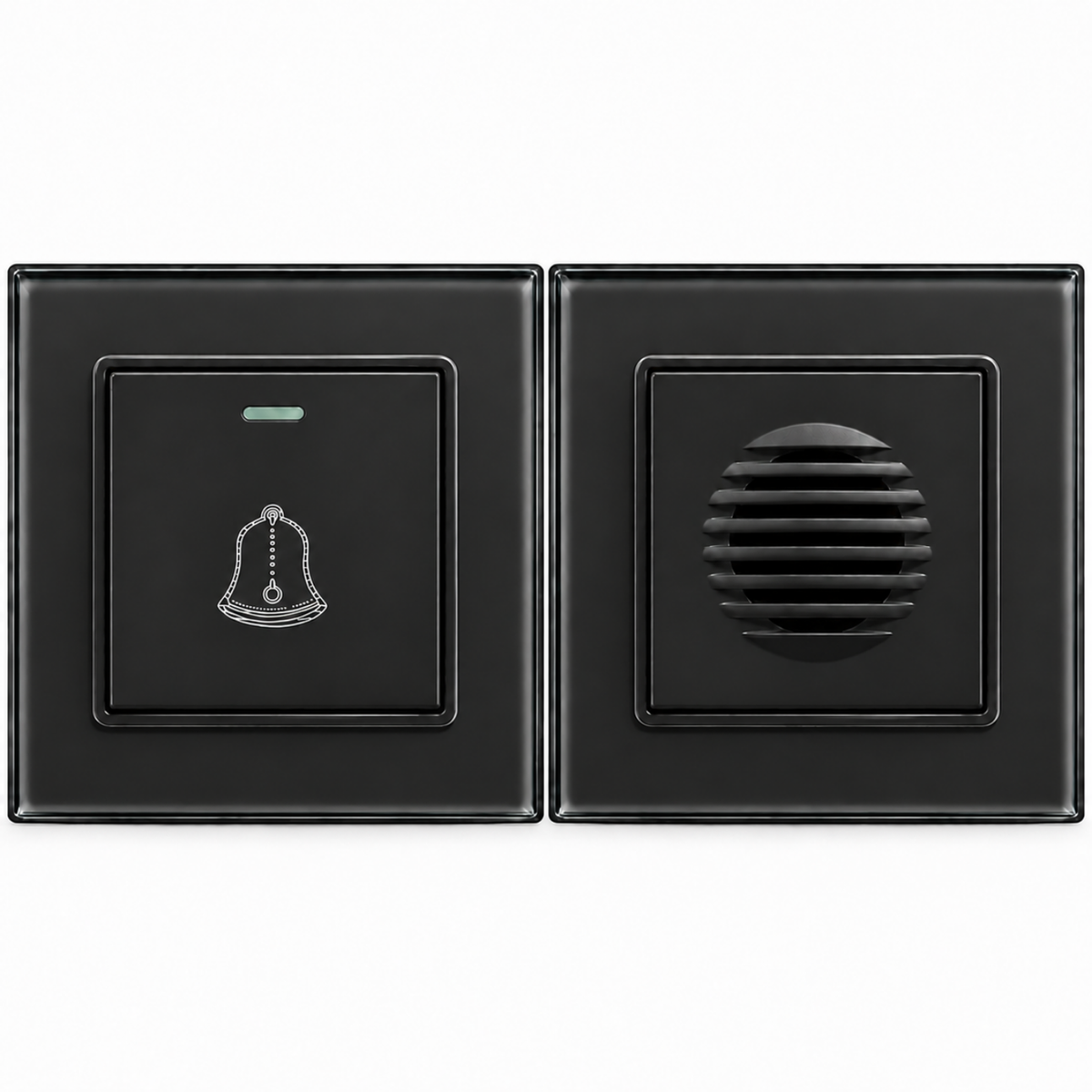

Set components
- Receiver
- Button (currently selected)
Set includes
- 1x Wired Doorbell Button D01 Black
- 1x Set of mounting screws
- 1x Manual
The set can be expanded with additional buttons and receivers.
