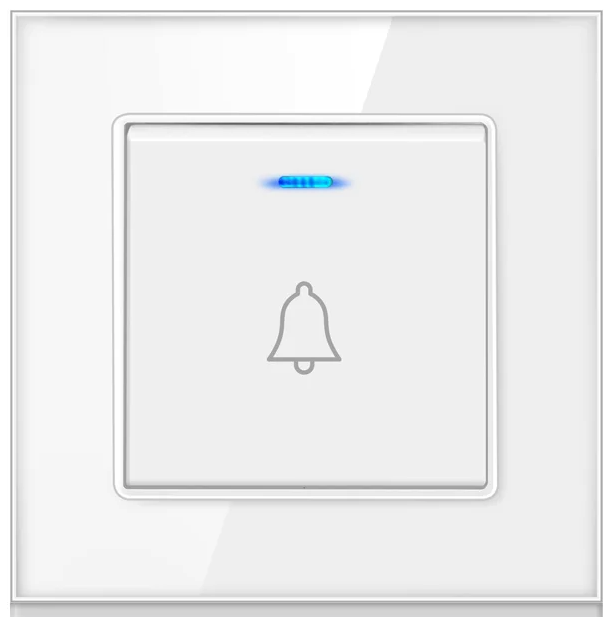

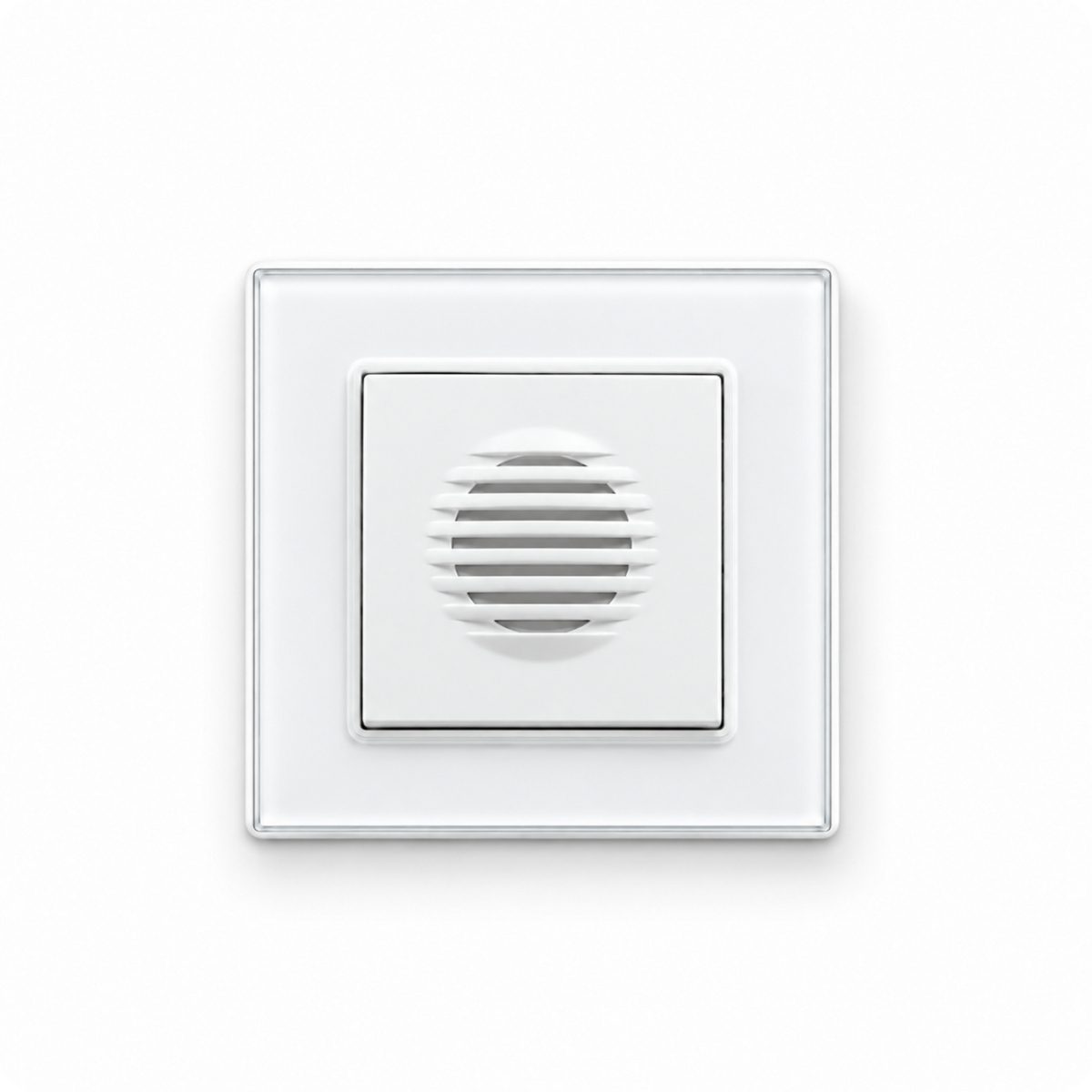

Wired doorbell receiver D02 White
Sale price48,09 zł
The Spreest doorbell, designed with durability and aesthetics in mind, is an ideal choice for those who value both functionality and appearance.
- The doorbell has a very solid and aesthetic construction, while maintaining a fashionable modern look.
- Made of reinforced glass resistant to scratches and discoloration. An additional advantage is the easy maintenance of the doorbell.

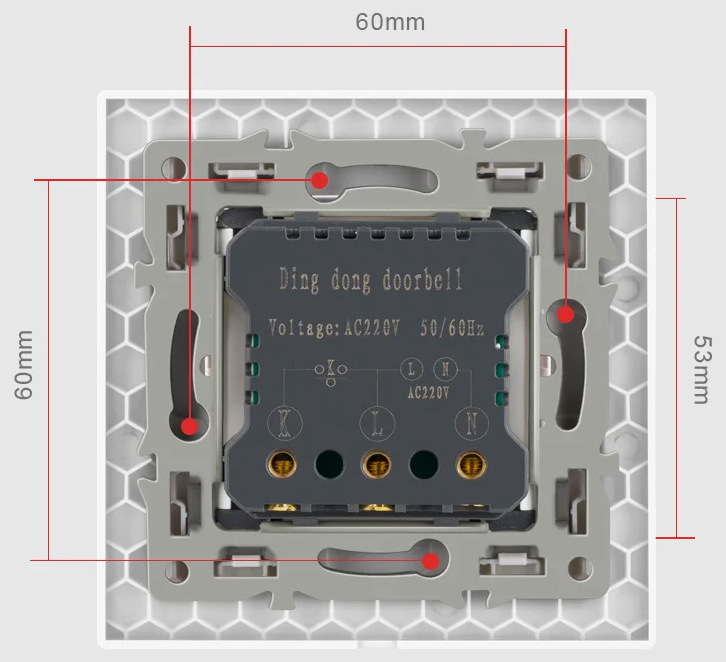

- The doorbell fits standard FI70 junction boxes and FI60 after adaptation; our doorbells require connection.

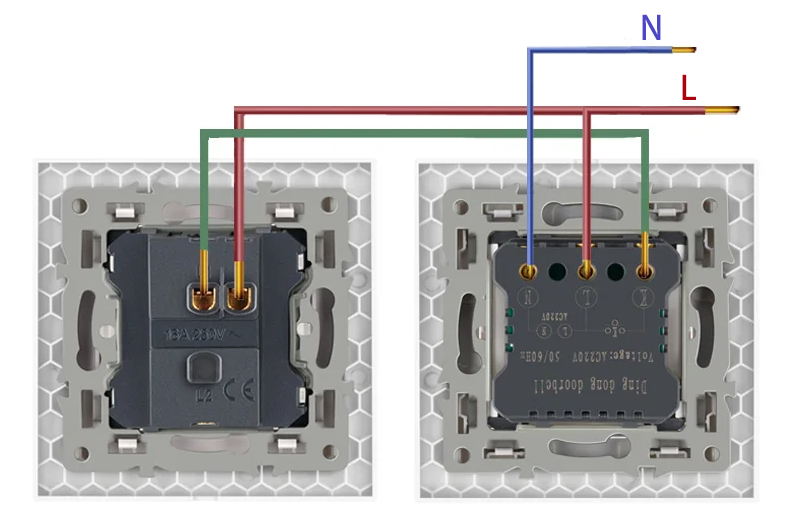

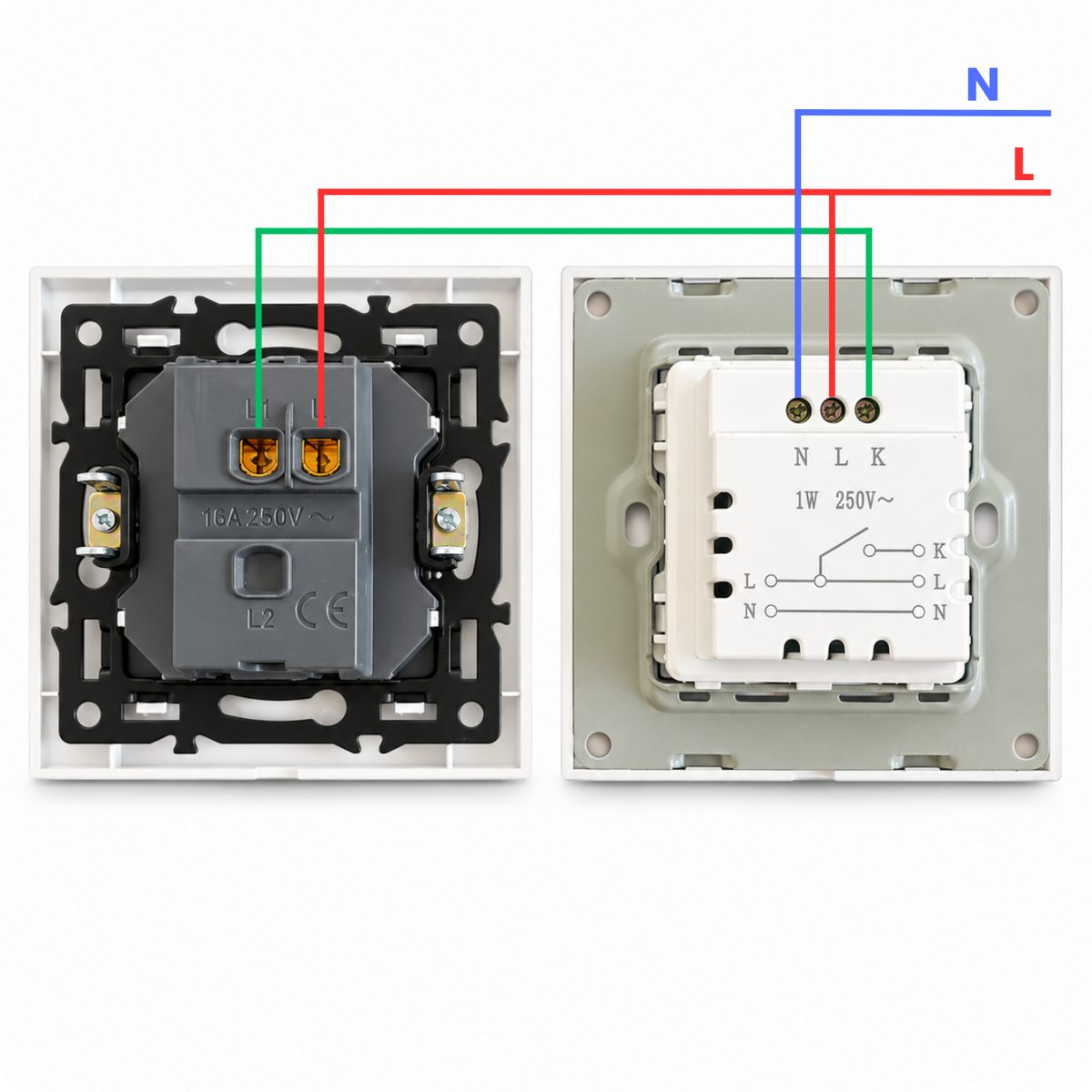

Doorbell Installation

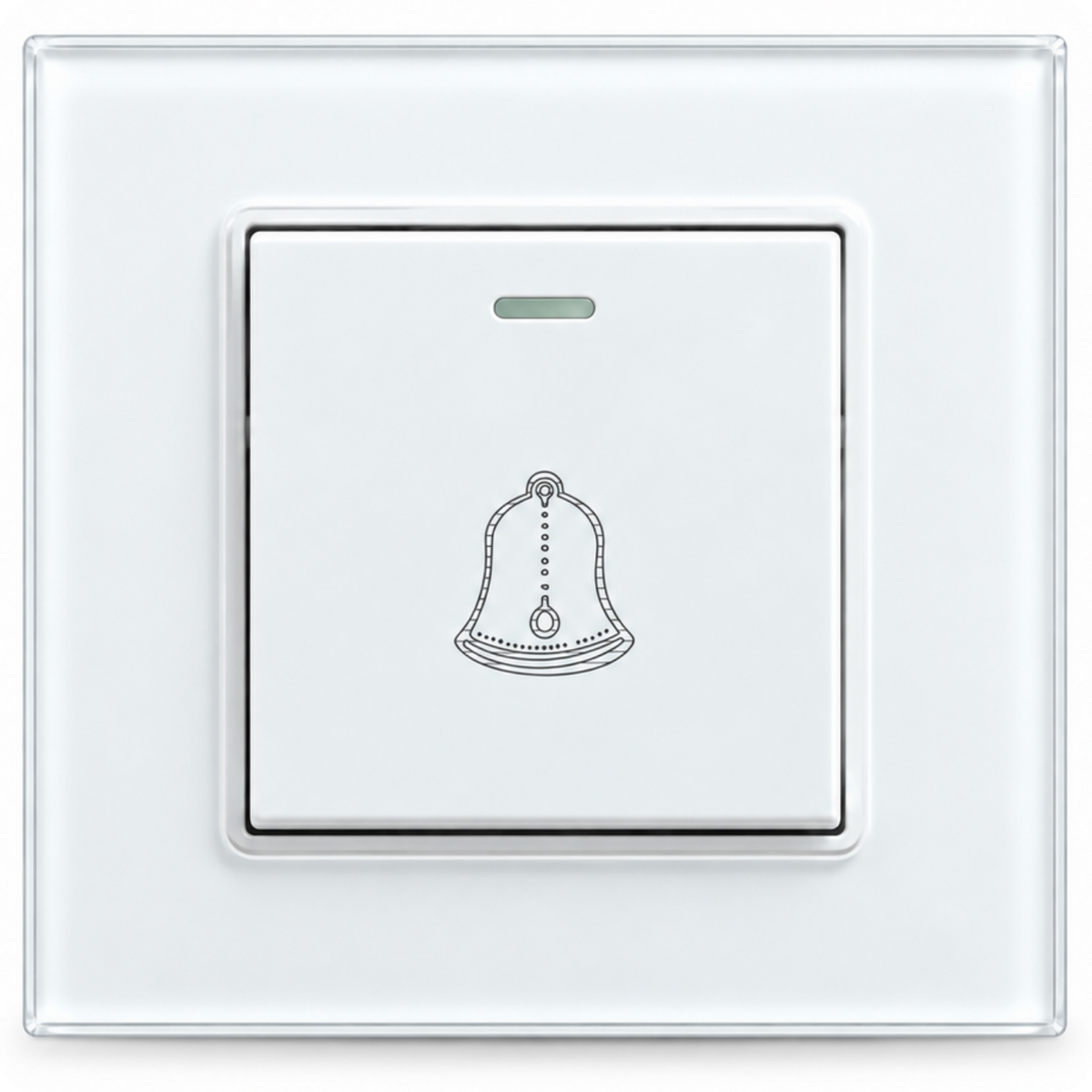

Doorbell button (left side):
- Red wire (phase L): Connected to the lower left terminal.
- Green wire (communication): Connected to the lower right terminal.
Doorbell receiver (right side):
- Red wire (phase L): Connected to the lower right terminal (marked L).
- Blue wire (neutral N): Connected to the lower left terminal (marked N).
- Green wire (communication): Connected to the lower middle terminal.
Important tips:
- Ensure all connections are securely tightened.
- Check that the wires are properly insulated to prevent short circuits.
Specification:
- Rated voltage: AC 110~250V / 50~60Hz

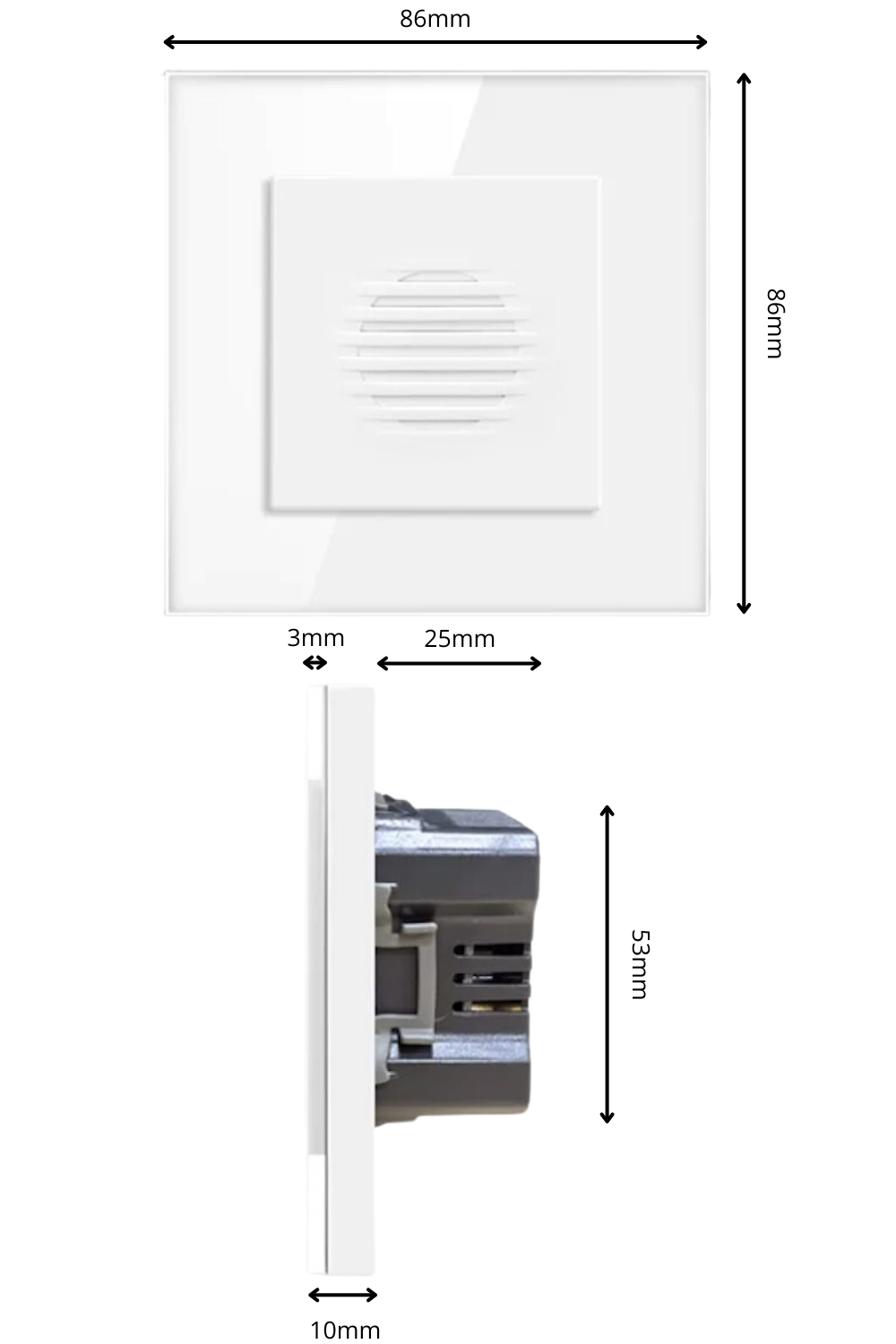

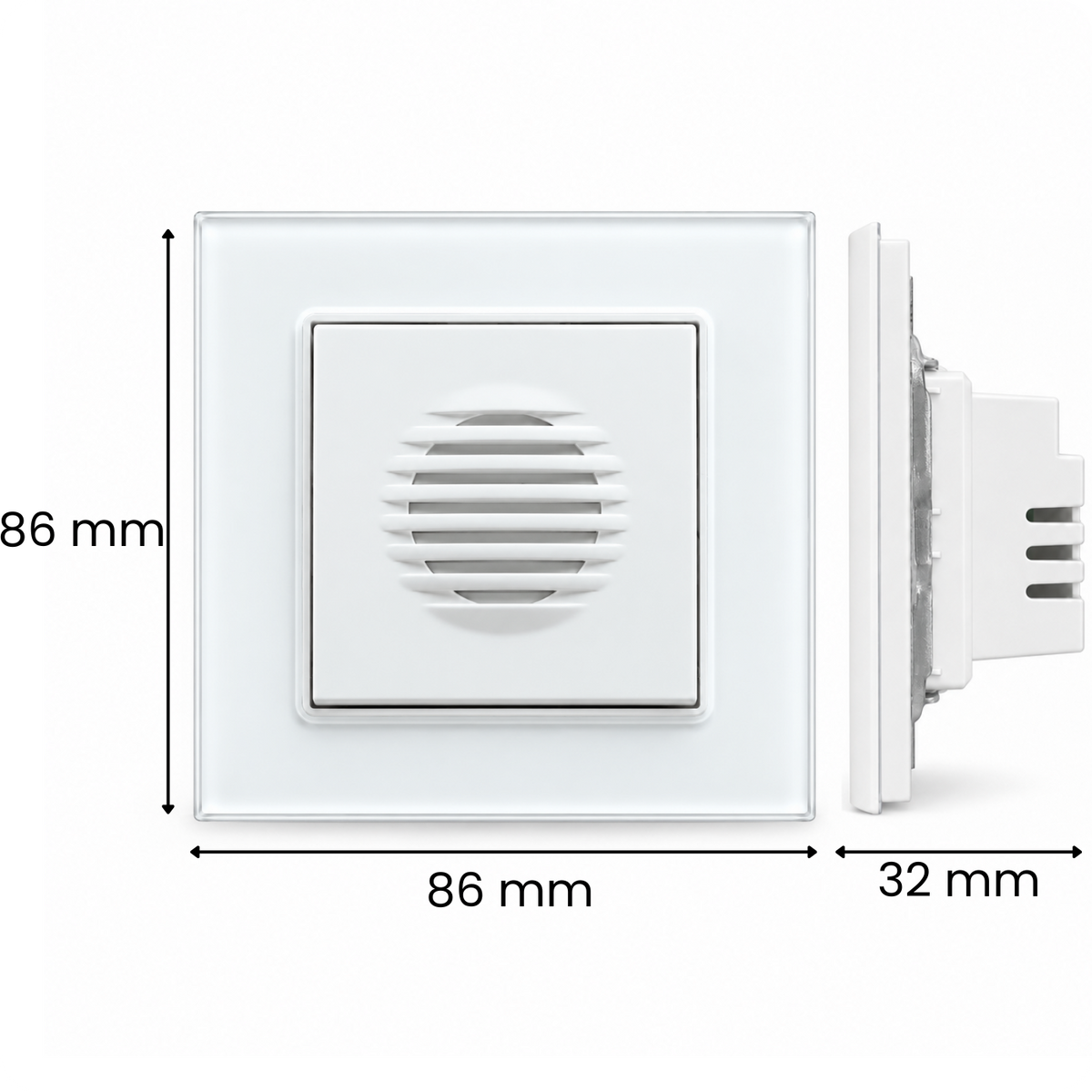

- Dimensions: 86mm x 86mm
- Mounting: Flush-mounted
- Color: White
- Panel material: Toughened crystal glass | PC plastic
- Protection rating: IP20
- Doorbell volume level: ~100dB
- Power supply type: Mains
- Type: Electromechanical
- Transmission type: Wired

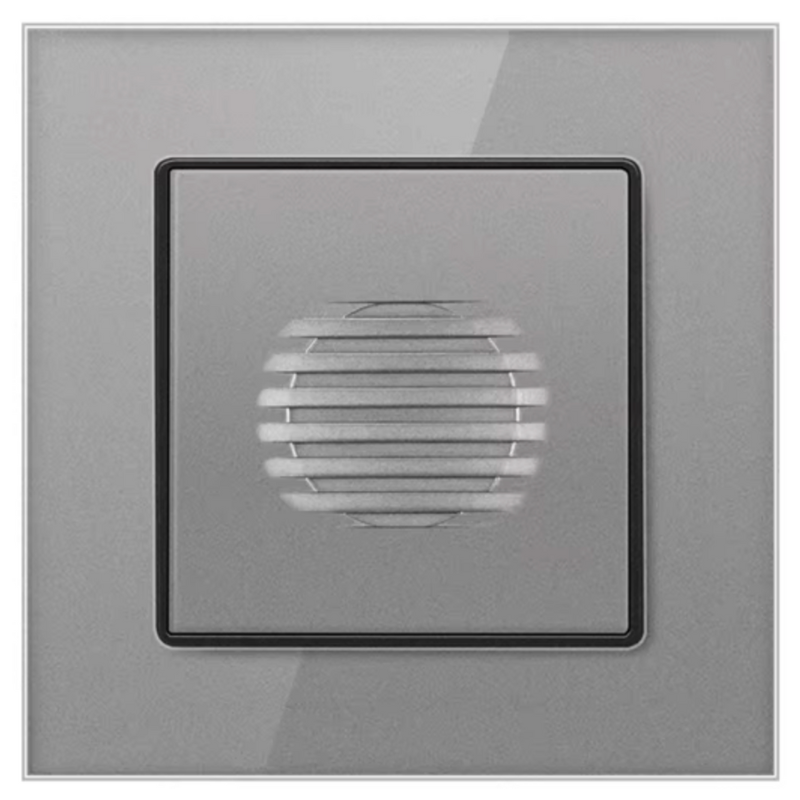

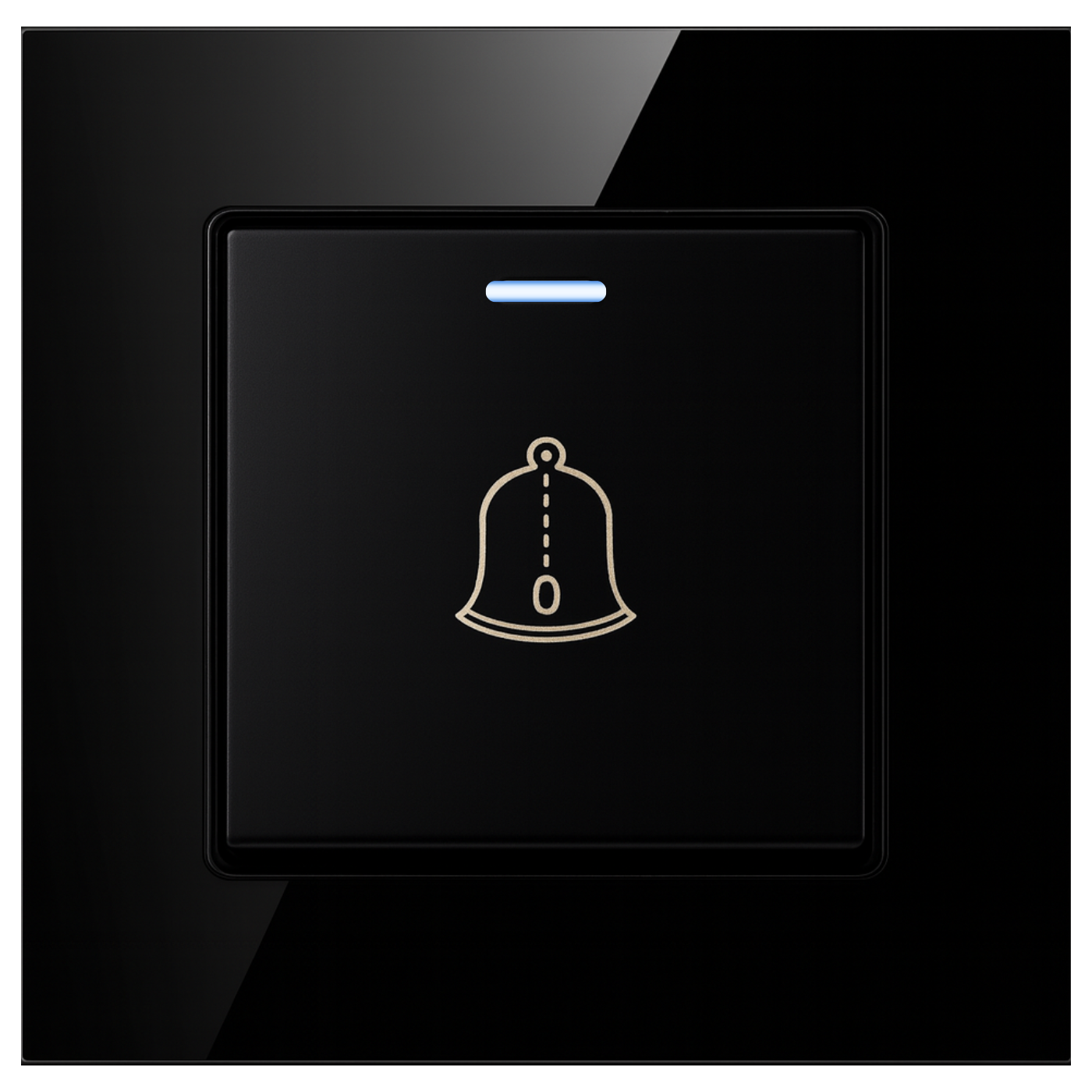

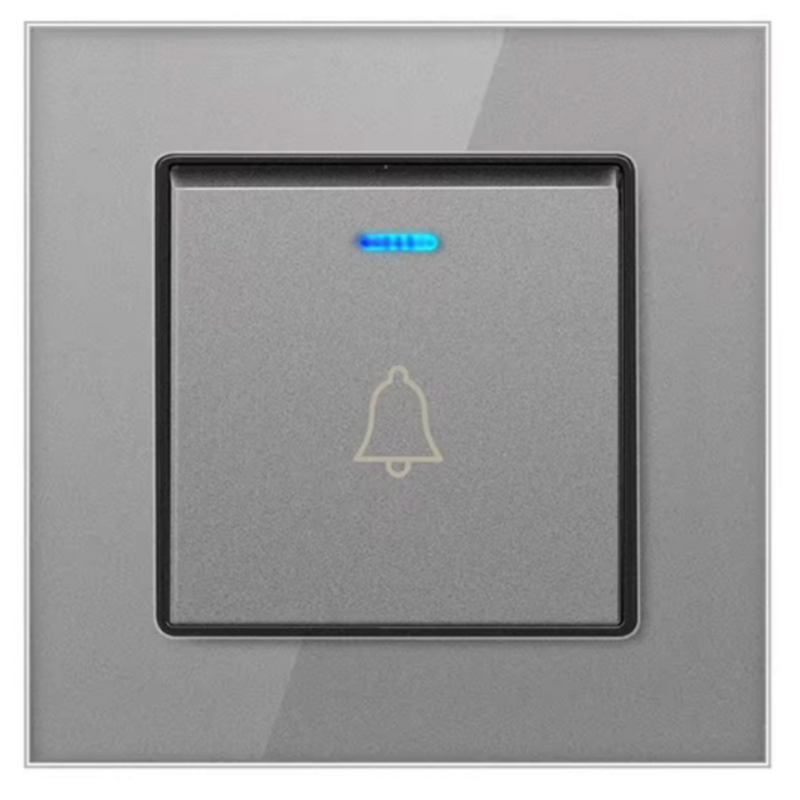

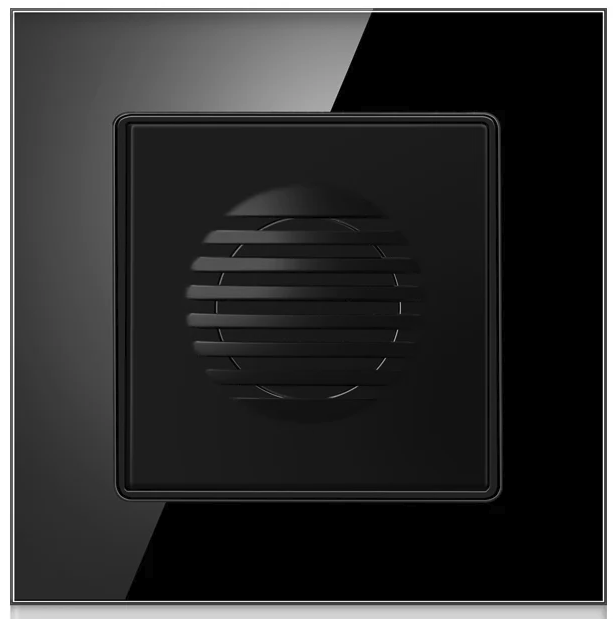

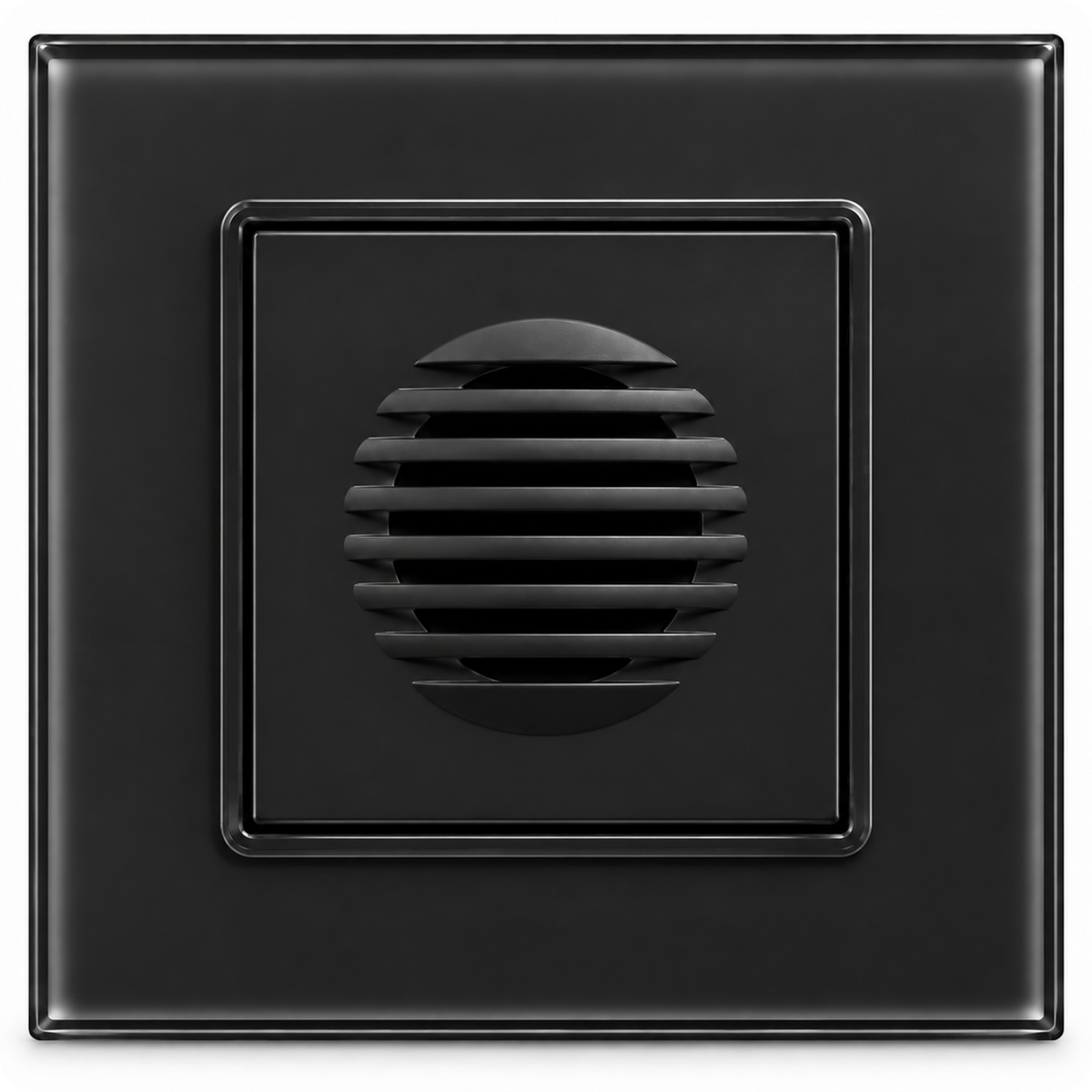

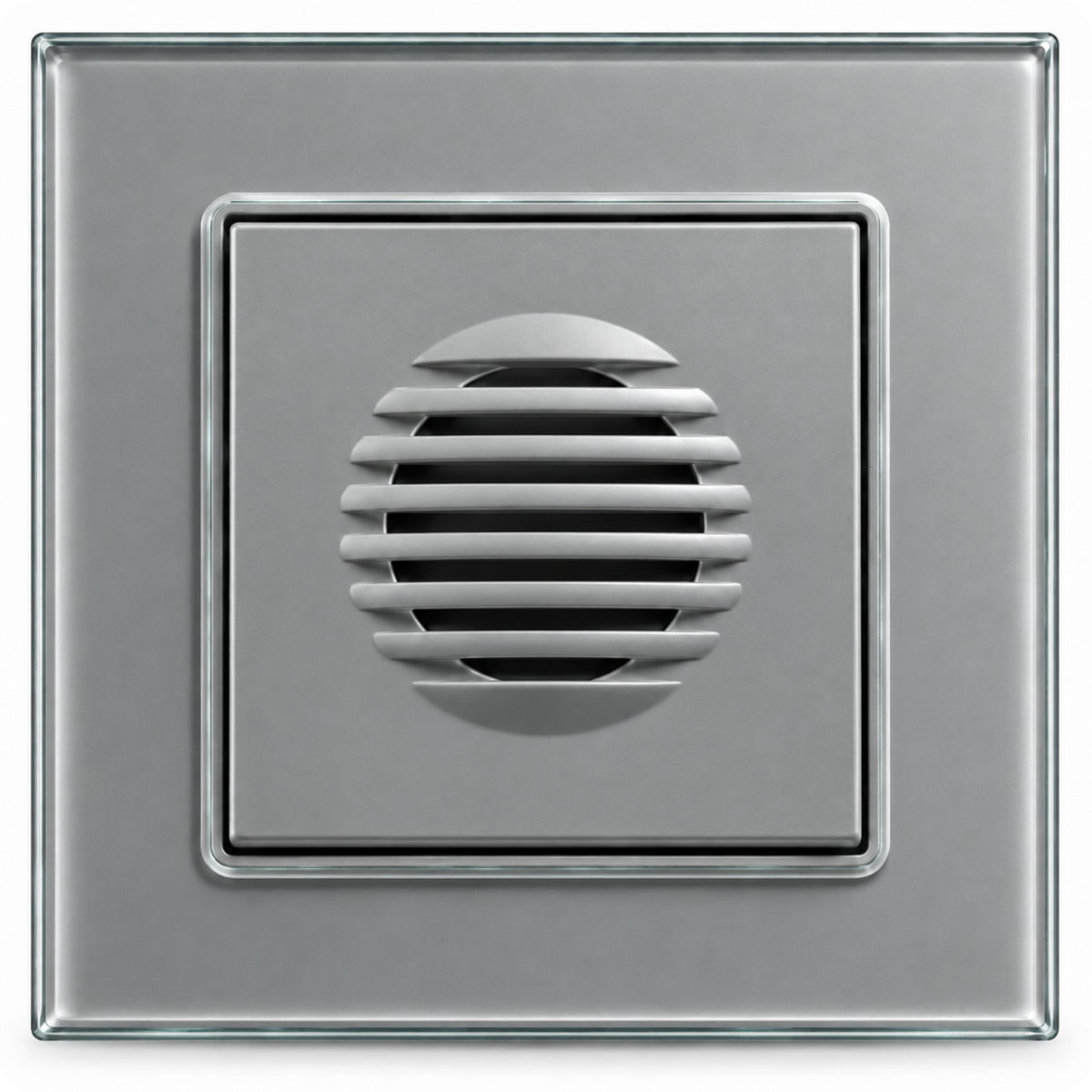

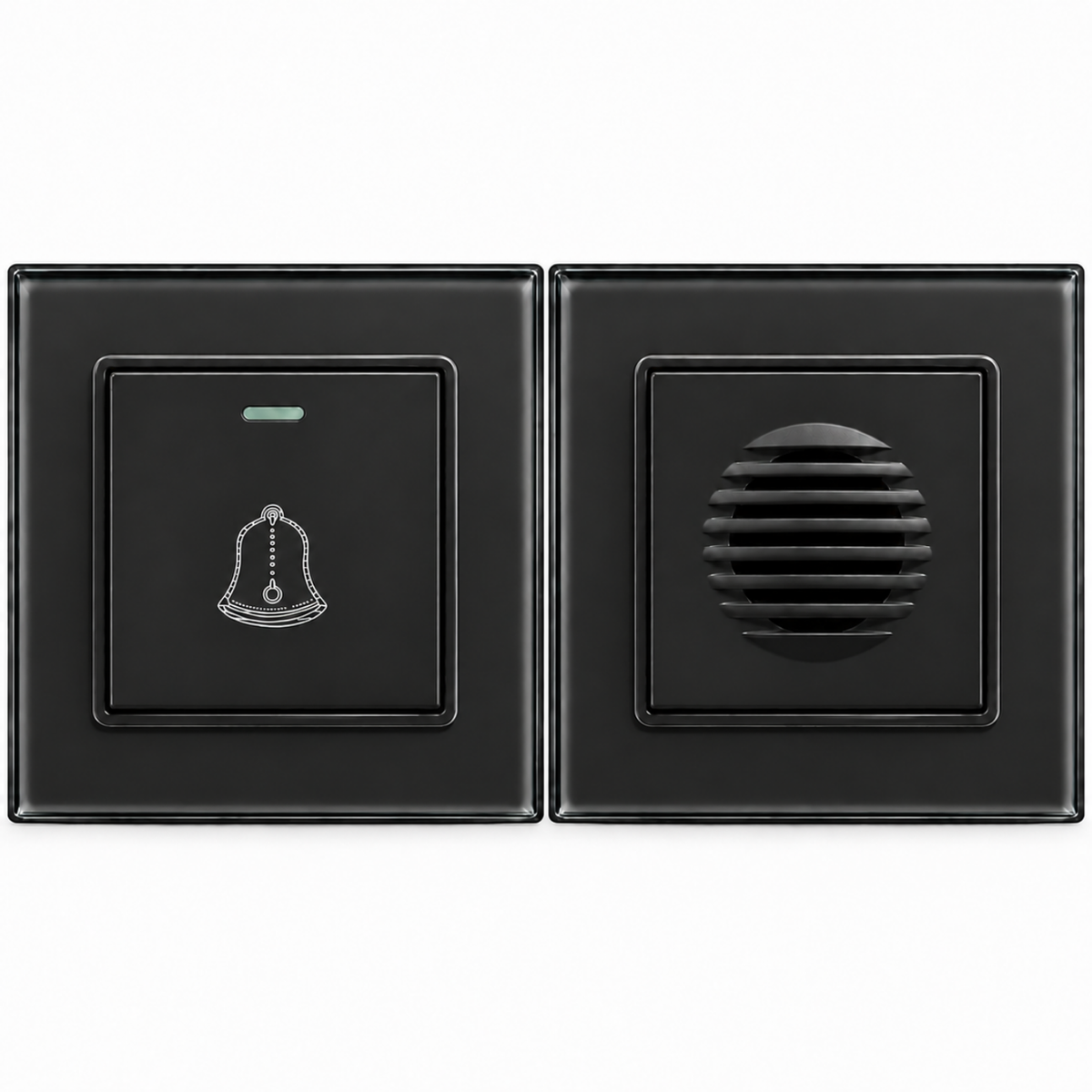

Available colors
- Black
- Grey
- White (currently selected)
Set element
- Receiver (currently selected)

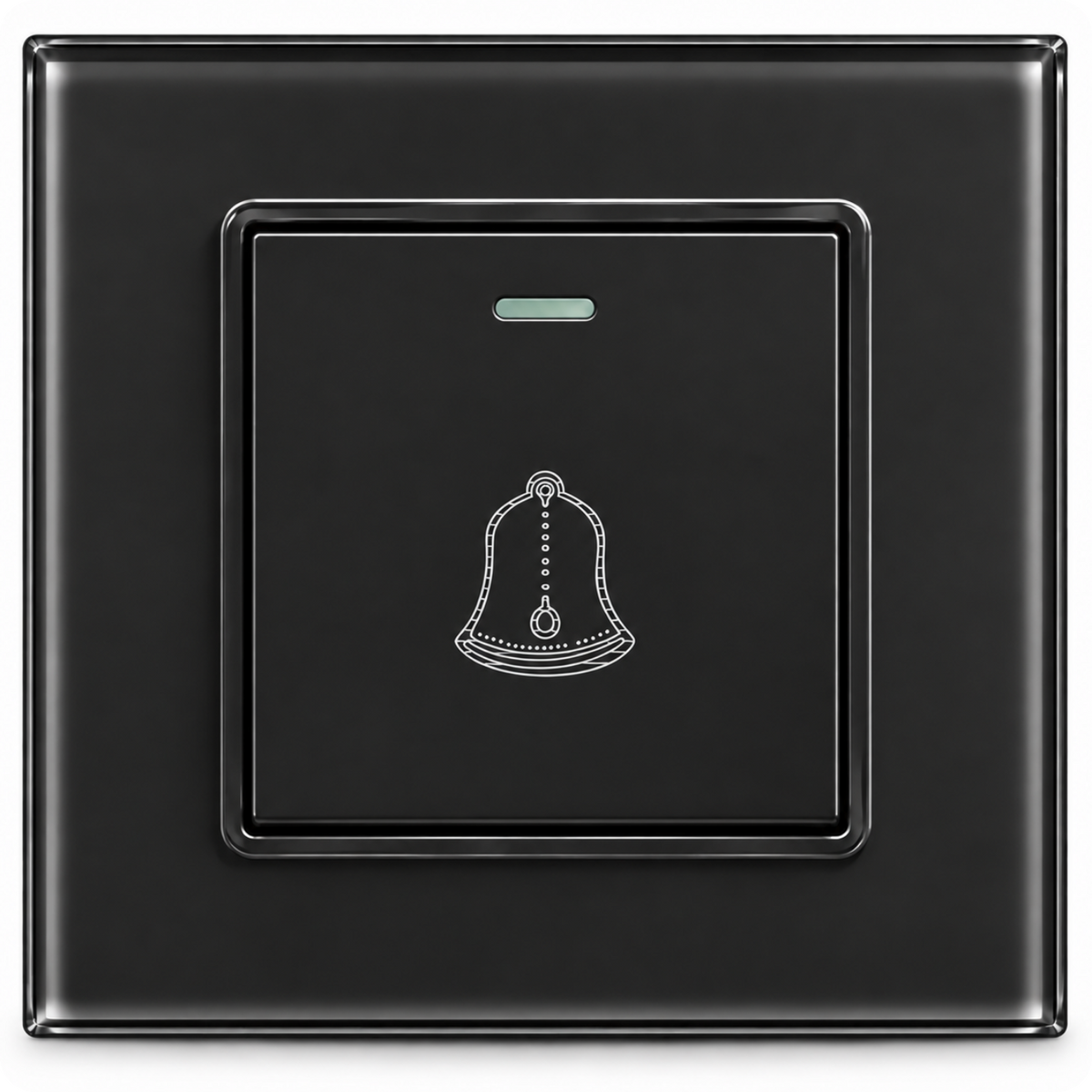

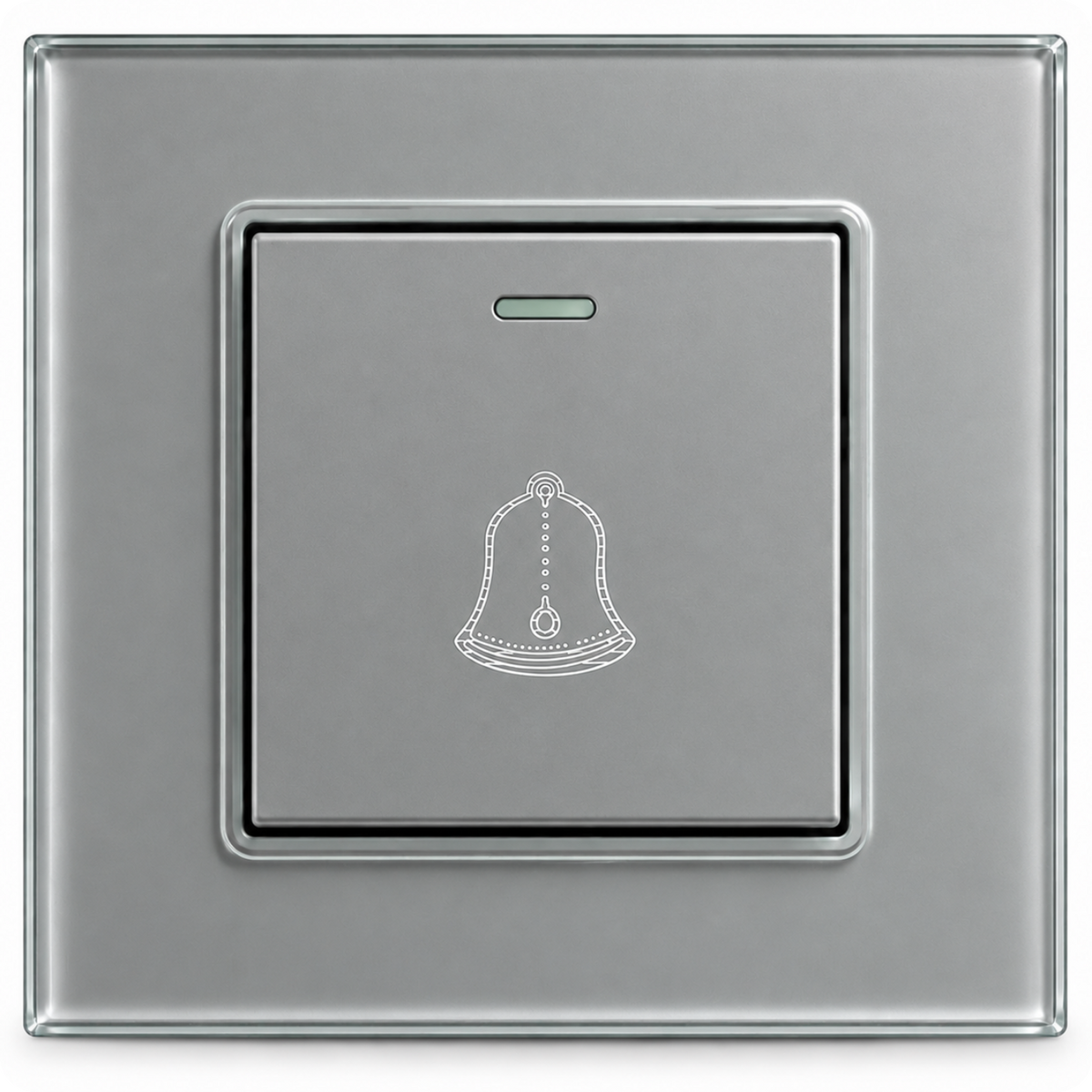

- Button
Set includes
- 1x T1-1 White Receiver
- 1x Mounting screw set
- 1x Manual
The set can be expanded with additional buttons and receivers.
