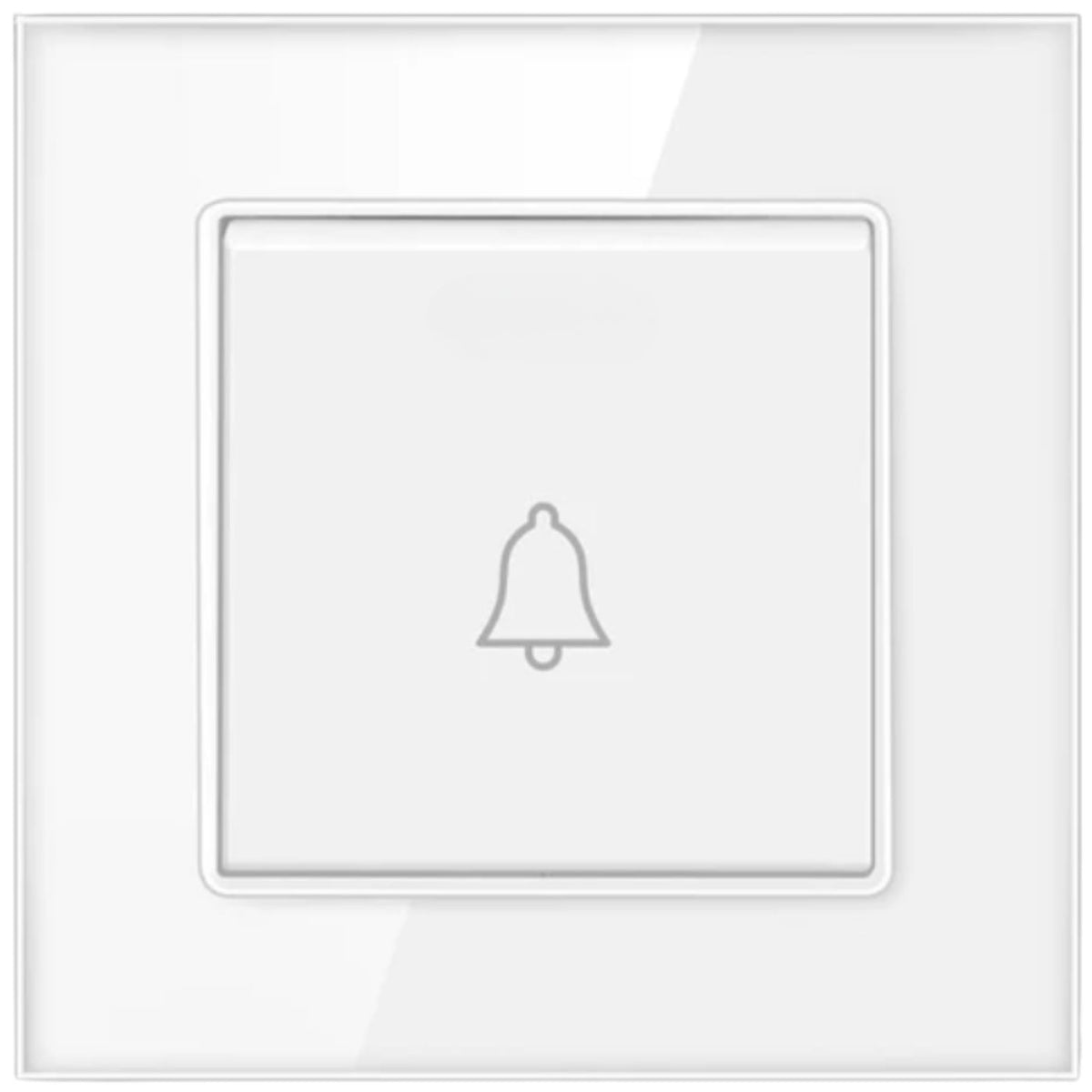

Wired doorbell button D01 Gray
Phone order
10:30–17:00
Call us if you'd like to place an order or have questions.
Wired doorbell button D01 Gray
Sale price47,99 zł
The Spreest doorbell is designed with durability and aesthetics in mind, making it the ideal choice for those who value both functionality and appearance.
- The doorbell has a very solid and aesthetic construction, while maintaining a fashionable, modern look.

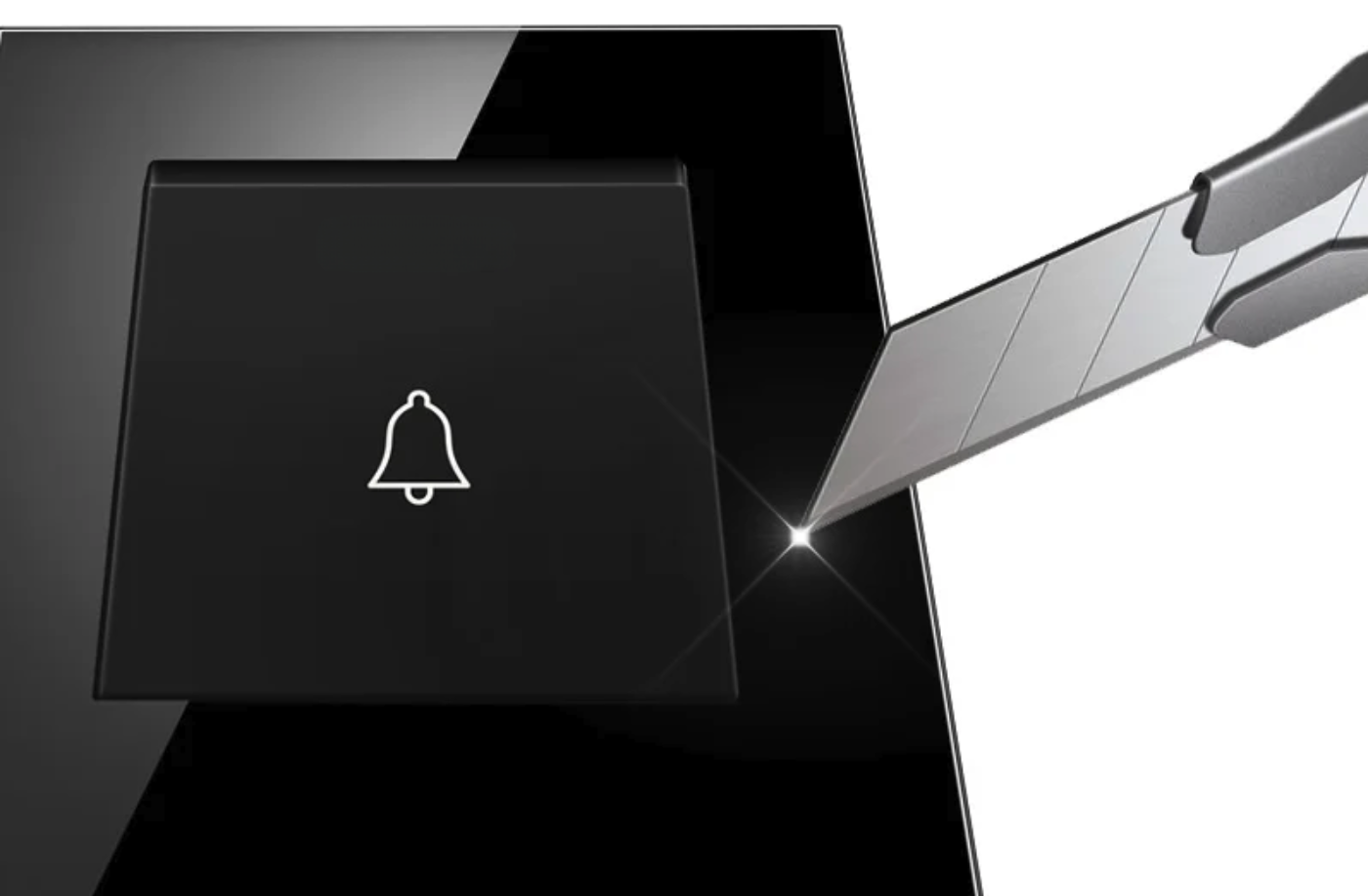

- Made of reinforced glass, resistant to scratches and discoloration. An additional advantage is the easy maintenance of the doorbell.
- The doorbell fits standard FI70 boxes and FI60 after adaptation. Our doorbells require wiring.
Doorbell installation

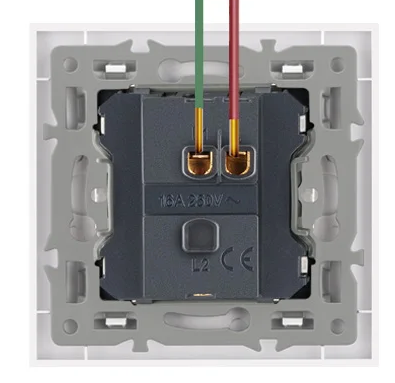

Doorbell button (left side):
- Red wire (phase L): Connected to the lower left terminal.
- Green wire (communication): Connected to the lower right terminal.

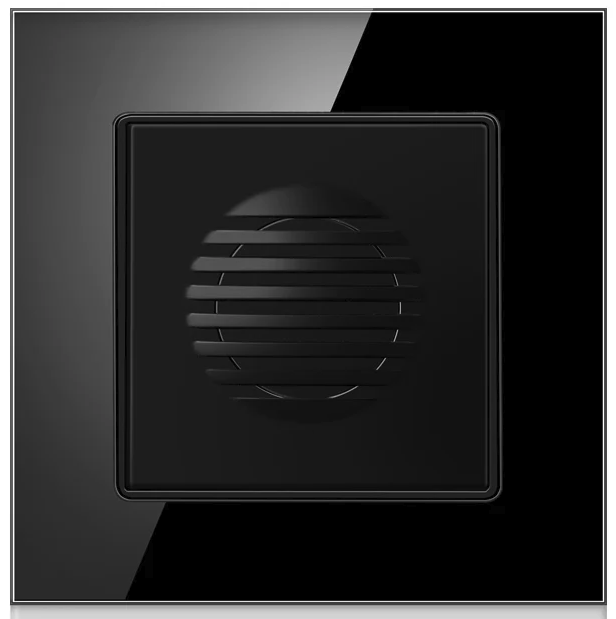

Doorbell receiver (right side):
- Red wire (phase L): Connected to the lower right terminal (marked L).
- Blue wire (neutral N): Connected to the lower left terminal (marked N).
- Green wire (communication): Connected to the lower middle terminal.
Important tips:
- Make sure all connections are tightly secured.
- Check that the wires are properly insulated to prevent short circuits.
Specification:
- Rated voltage: AC 110~250V / 50~60Hz

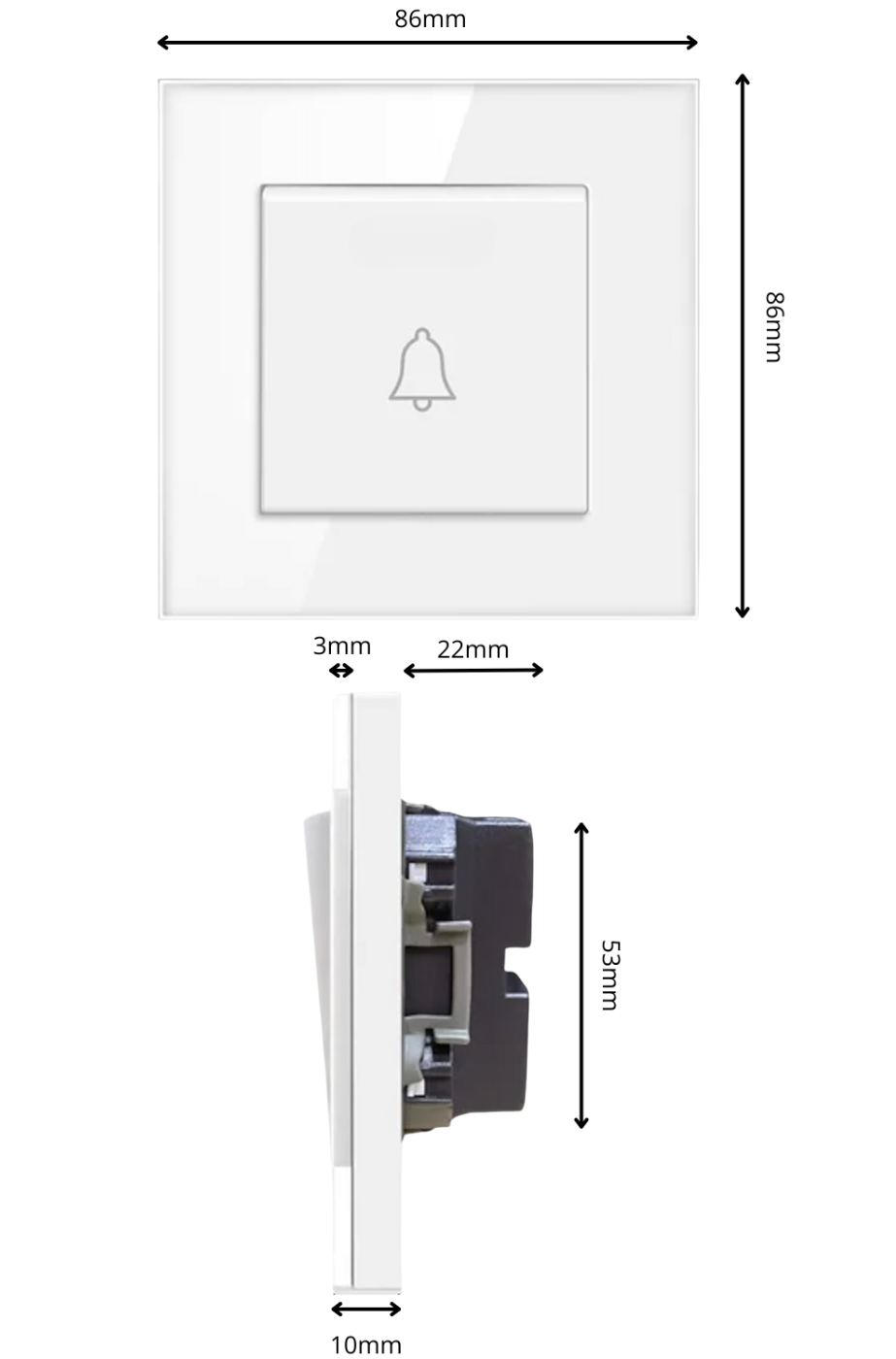

- Dimensions: 86mm x 86mm
- Mounting: Flush-mounted
- Color: Grey
- Panel material: Tempered crystal glass | PC plastic
- Protection class: IP20
- Power supply type: Mains
- Type: Electromechanical
- Transmission type: Wired
Available colors
- Grey (currently selected)

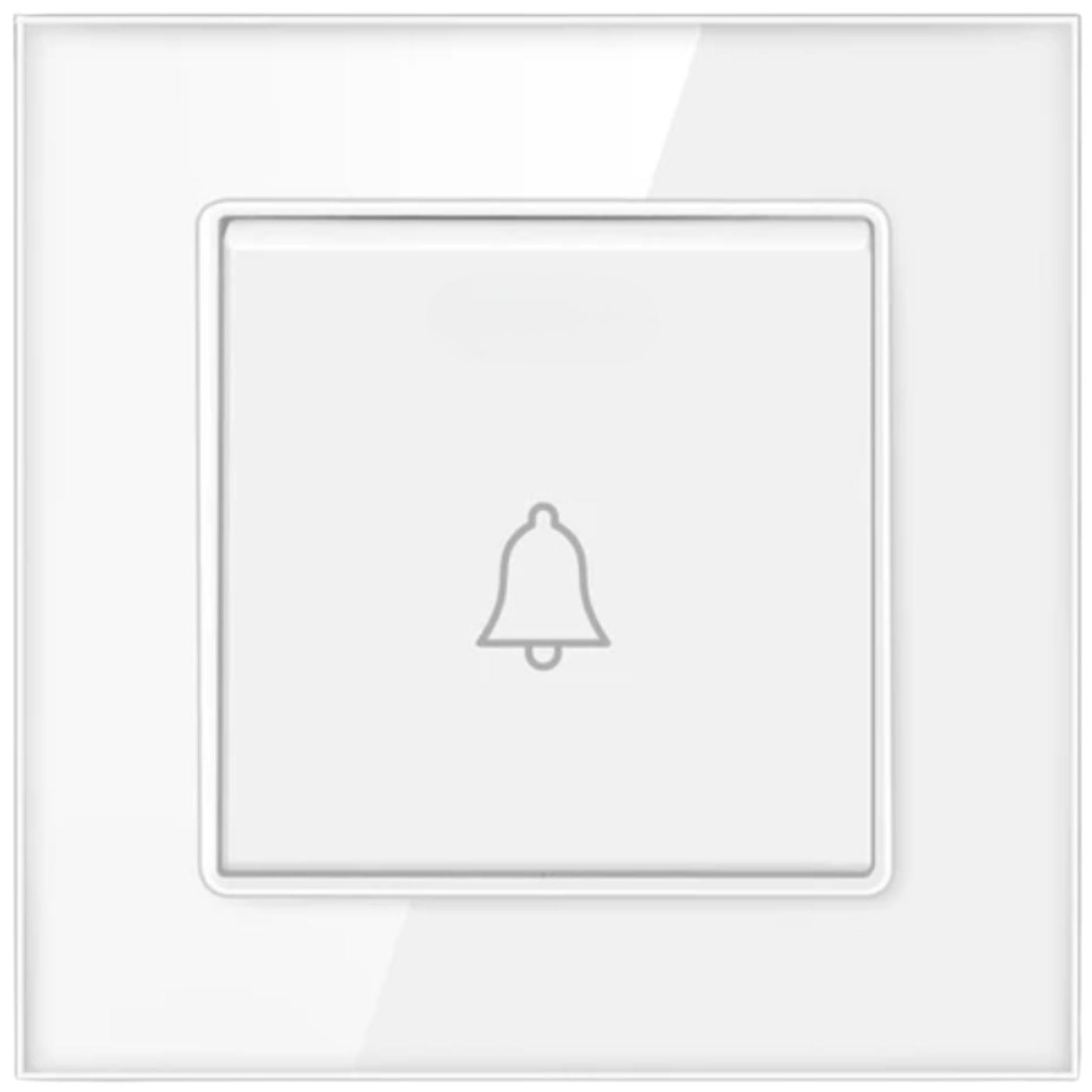

- White

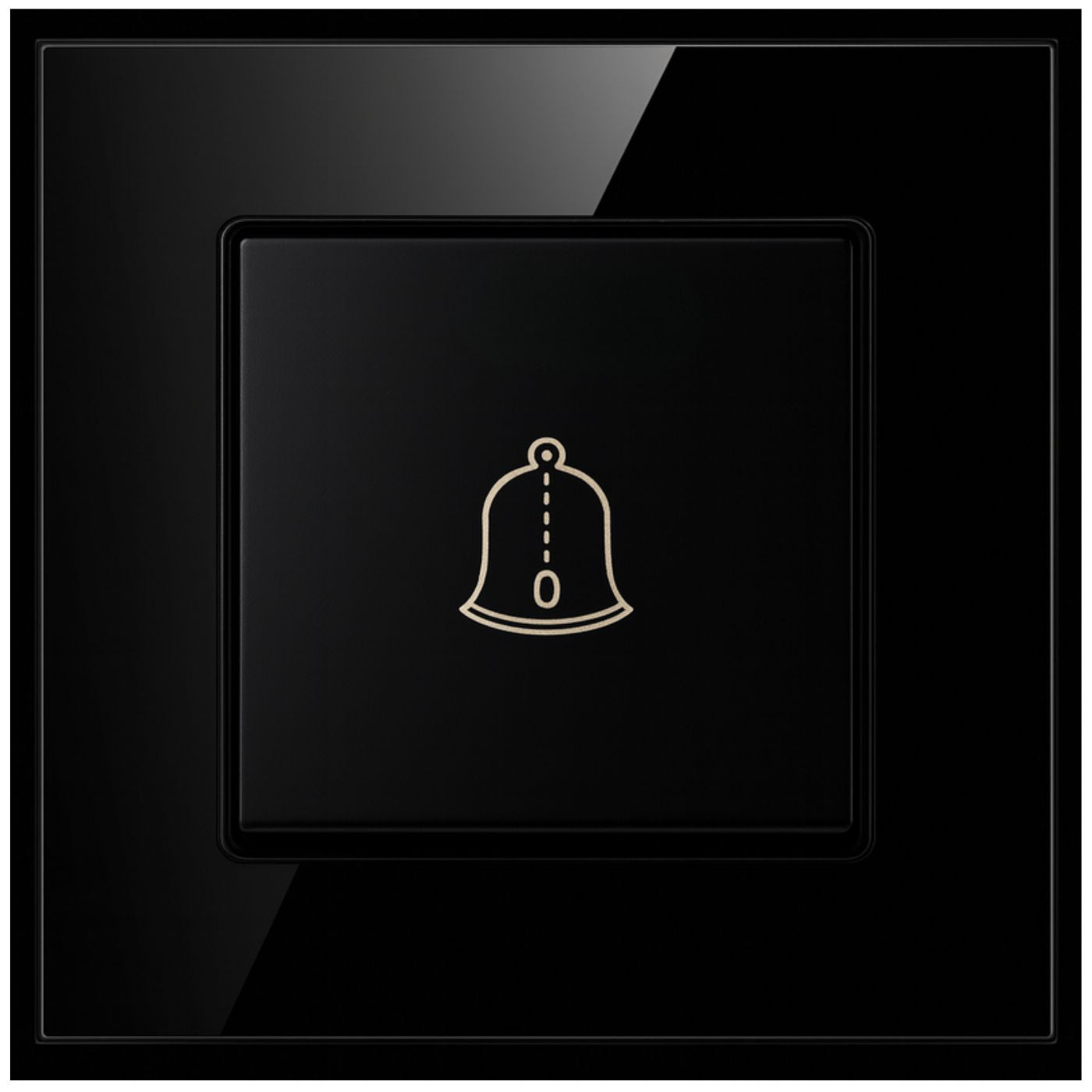

- Black
Set components

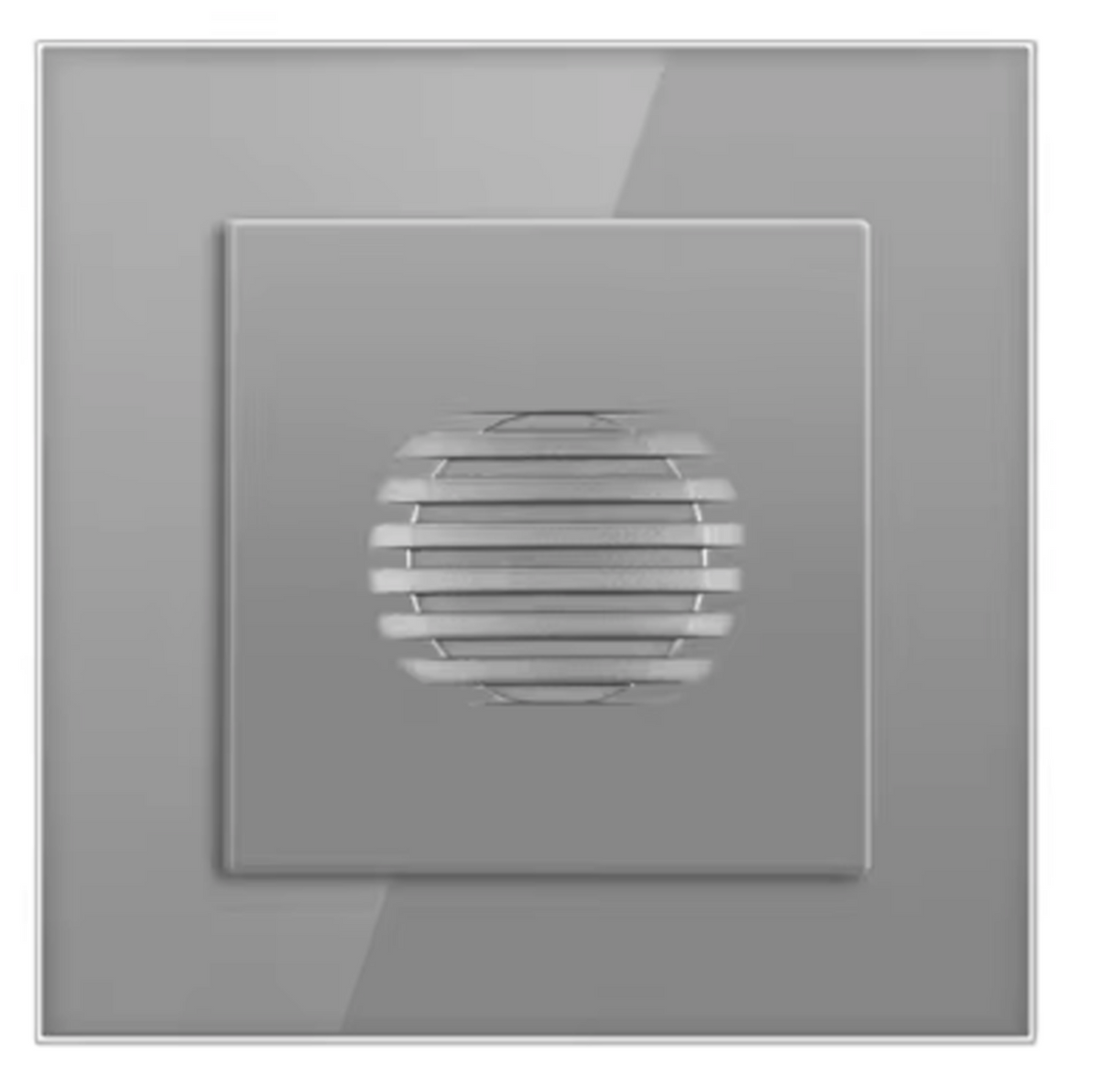

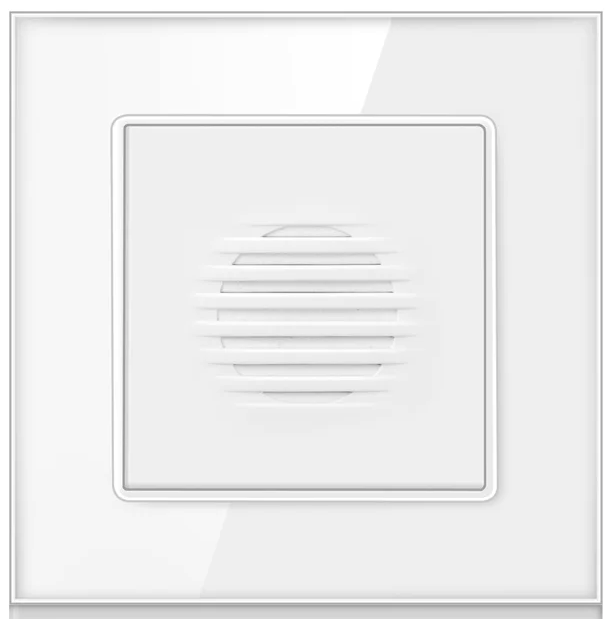

- Receiver
- Button (currently selected)
The set includes
- 1x D01 Grey Button
- 1x Set of mounting screws
- 1x Manual
The set can be expanded with additional buttons and receivers.
