Dictaphone EL-AR09

Key Features

1. Mobile App Control with CamSC Pro – Full control from your smartphone: live audio preview, recording settings, and memory management.

2. High-Quality Recording – Ideal for meetings, interviews, lectures, and voice notes.

3. Real-Time Audio Streaming – Listen live from anywhere via Wi-Fi.

4. Motion or Sound Activated Recording – Automatic recording activation at the right moment, saving memory and energy.

5. Push Notifications to Phone – Instant information about detected sound or low battery.

6. Long Operating and Standby Time – Flexible power supply via USB port (from mains / power bank) or via JST connector rechargeable batteries (18650 / lithium polymer).

7. Flexible Operating Modes – Continuous recording or energy saving (modes A and B) depending on user needs.

8. Two Ways to Store Recordings – MicroSD card (up to 128GB) and optional cloud, providing greater archiving flexibility.

9. Built-in Mounting Magnet – Quick and convenient device attachment anywhere.

10. Compact and Discreet Design – Small dimensions make the device easy to hide and always at hand.

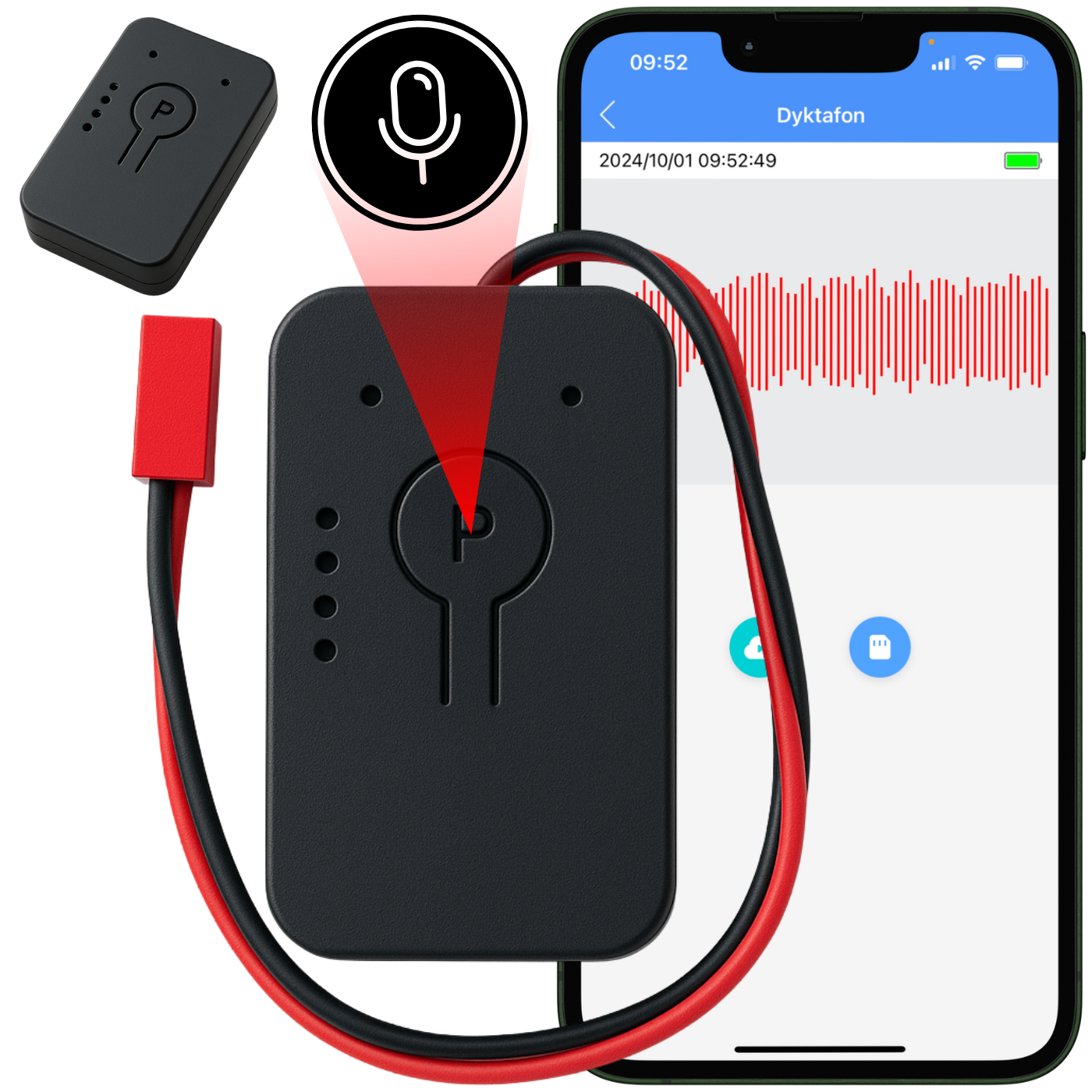

Mobile Application

With the dedicated CamSC Pro application, you gain full control over the voice recorder directly from your smartphone. It is not just a convenient tool, but a true recording management center that opens up completely new possibilities:

• Remote Control – Start and stop recording with a single tap on your phone.
• Live Preview – Listen in real-time to what the device is recording.
• Flexible Recording Settings – Choose continuous mode, sound-activated recording, or energy saving.
• Push Notifications – Receive instant alerts for detected sound or low battery.

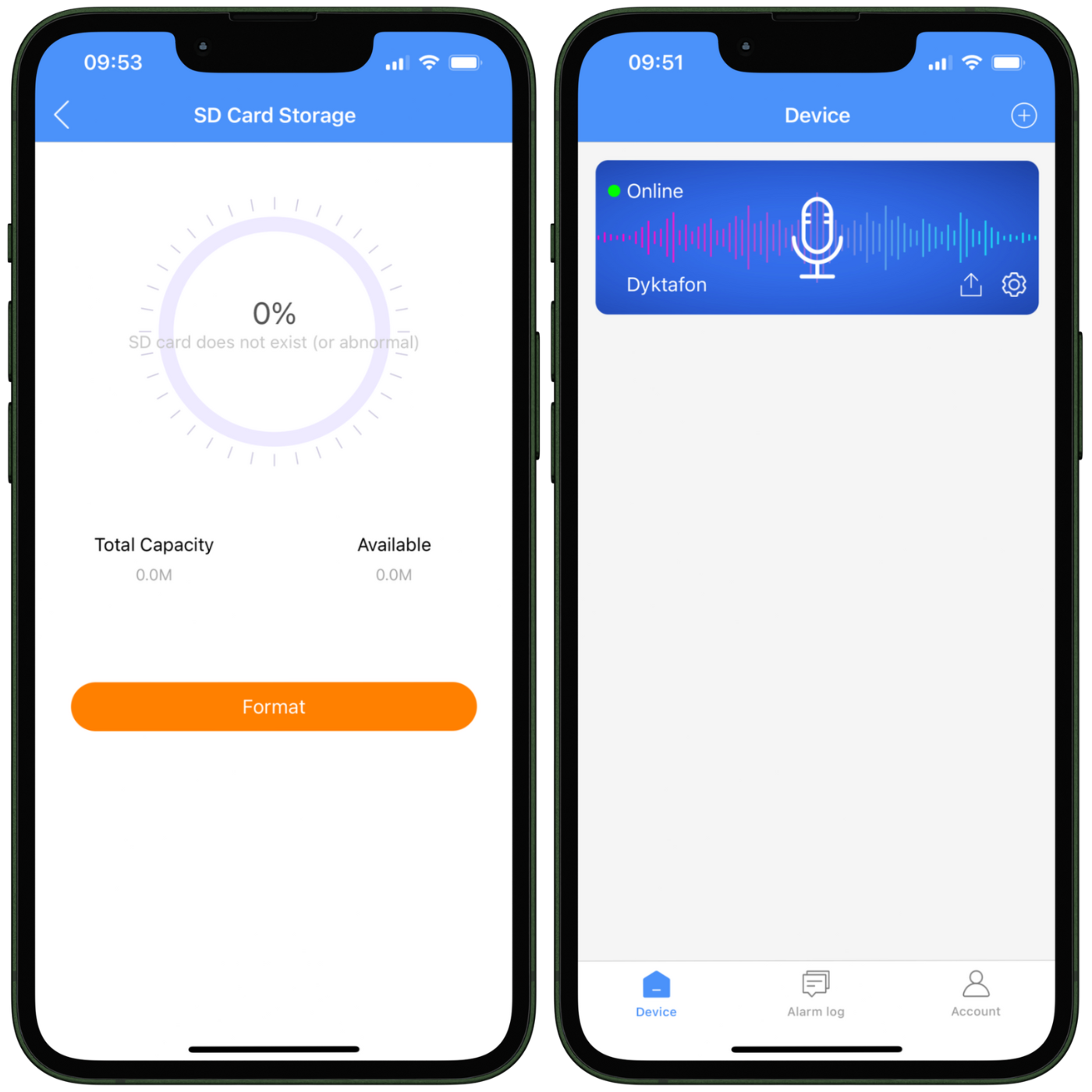

• Memory Management – Check available space on the microSD card, format it remotely, and archive recordings in the cloud (additional paid option) + requires a minimum 8 GB microSD card to operate.
• Device Sharing – Share access to the voice recorder with others (e.g., colleagues) via account or QR code.
• Personalized Settings – Give the device a custom name (e.g., "Office" or "Conference Room") for easier identification.

Technical Specification

• Application: CamSC Pro
• Connectivity: Wi-Fi (2.4G, 5G not supported)
• Power Supply: external rechargeable battery (type 18650, lithium polymer) with JST connector or power from USB port (mains / power bank)
• Batteries not included, must be purchased separately
• Charging Current: 200 mA/h
• Power Consumption in Continuous Operation: 80 mA/h
• Continuous Recording Time: approx. 1 day (with a single 18650 2500 mAh battery)
• Economy Mode A: consumption 1.6 mA/h, standby up to approx. 59 days (with a single 18650 2500 mAh battery)
• Economy Mode B: consumption 1 mA/h, standby up to approx. 94 days (with a single 18650 2500 mAh battery)
• Maximum Standby Time: up to 18 months (with 6 × 18650 2500 mAh)
• Notifications: push (for sound, motion, low battery)
• Recording Storage: microSD card or optional cloud (additional charge) + requires a minimum 8 GB microSD card to operate
• MicroSD Card: up to 128 GB (not included)
• Recording Functions: continuous, sound/motion activation, loop recording

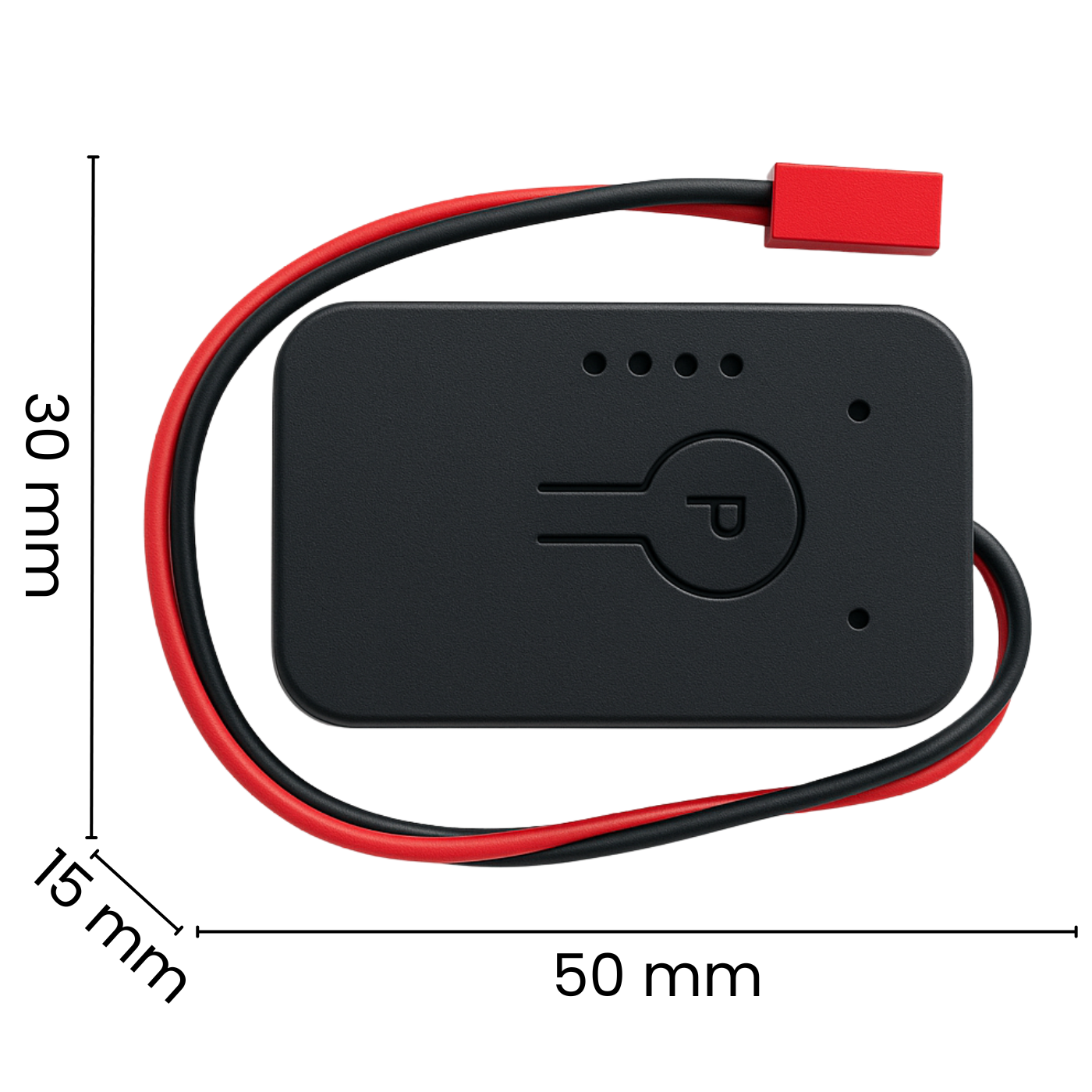

• Dimensions: 50 × 30 × 15 mm
• Weight: 18g

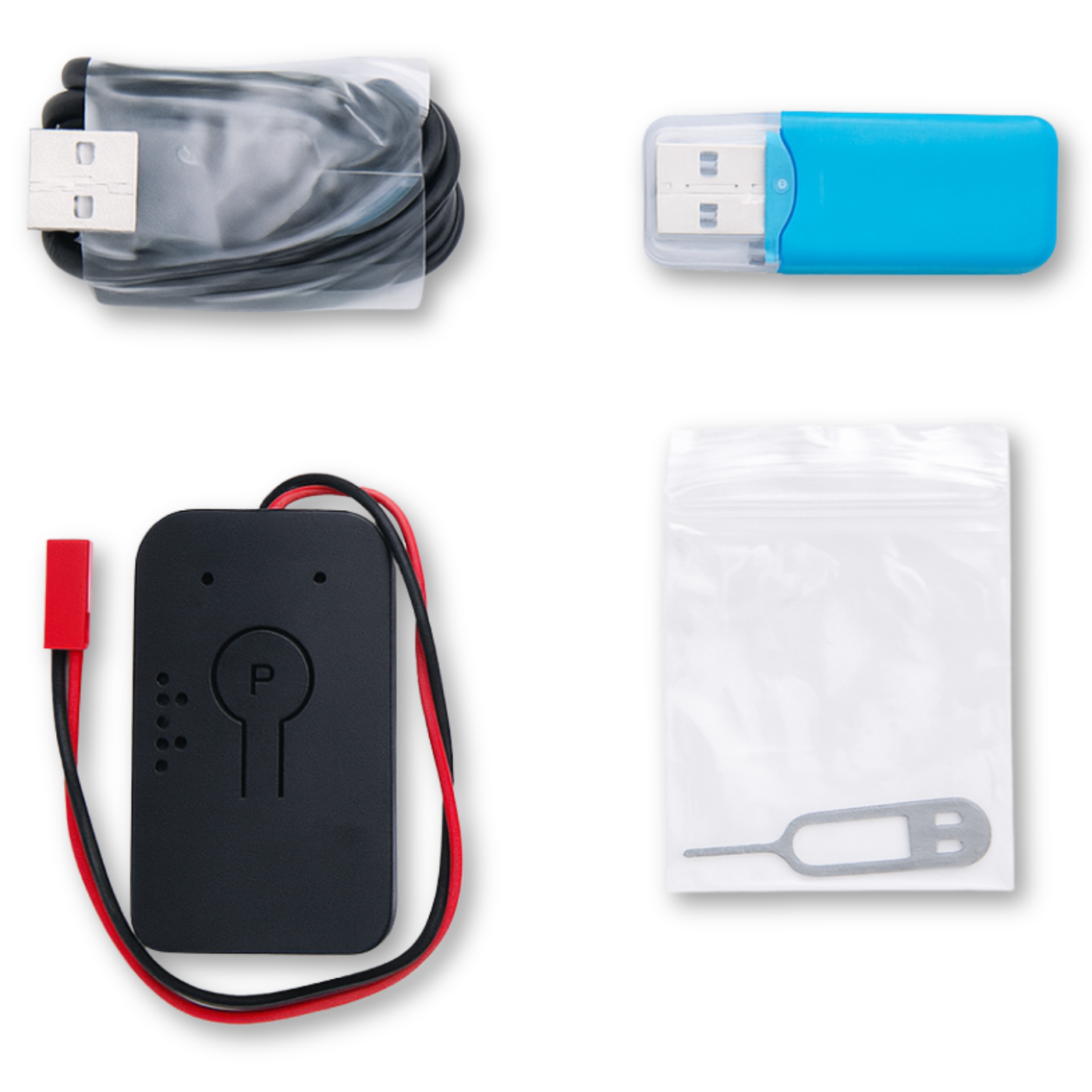

Set Includes

• 1x EL-AR09 Voice Recorder
• 1x USB-C Cable
• 1x MicroSD Card Reader
• 1x Reset Key
• 1x User Manual

Manual in Polish in electronic version available as a downloadable attachment. You can find it below or above our product description.
