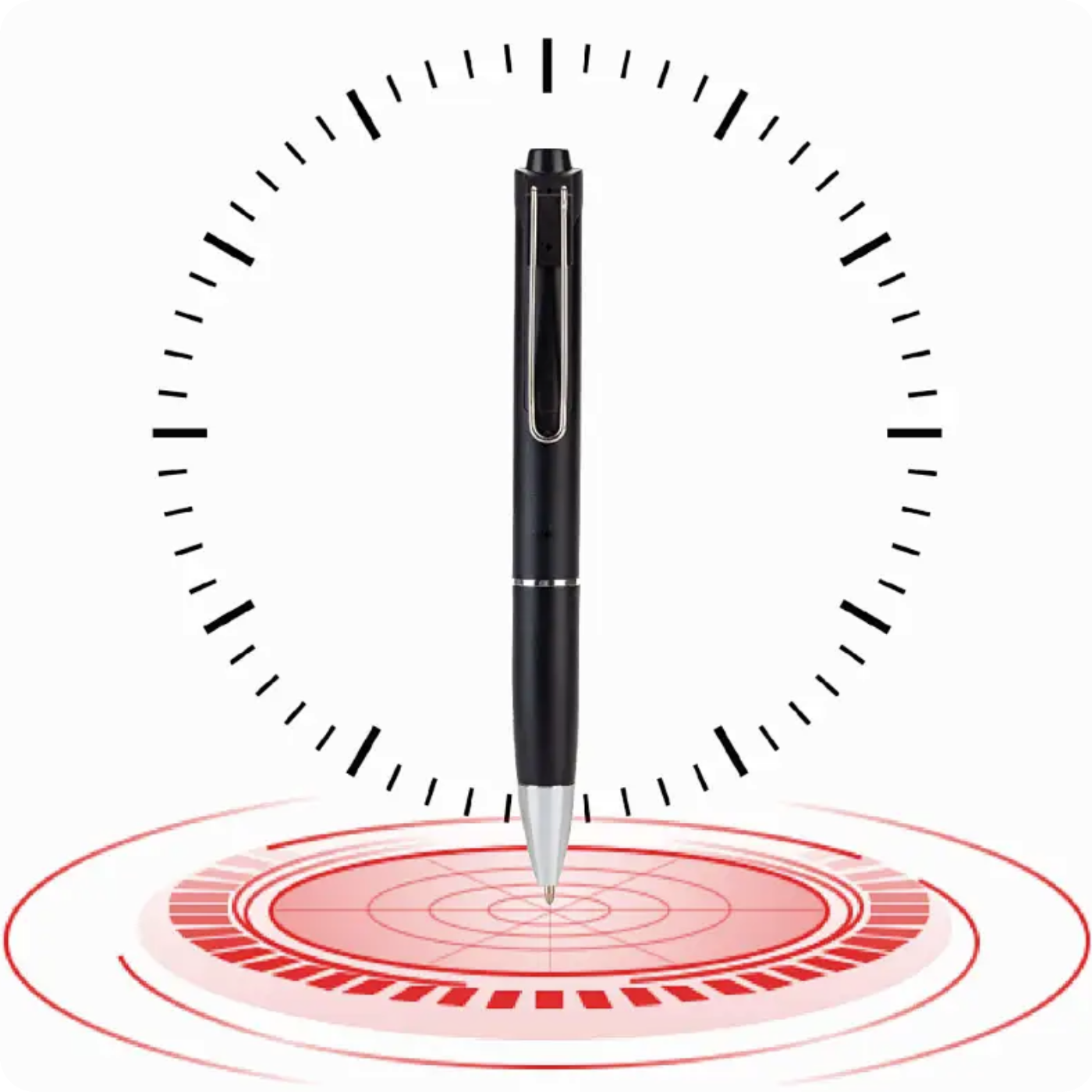

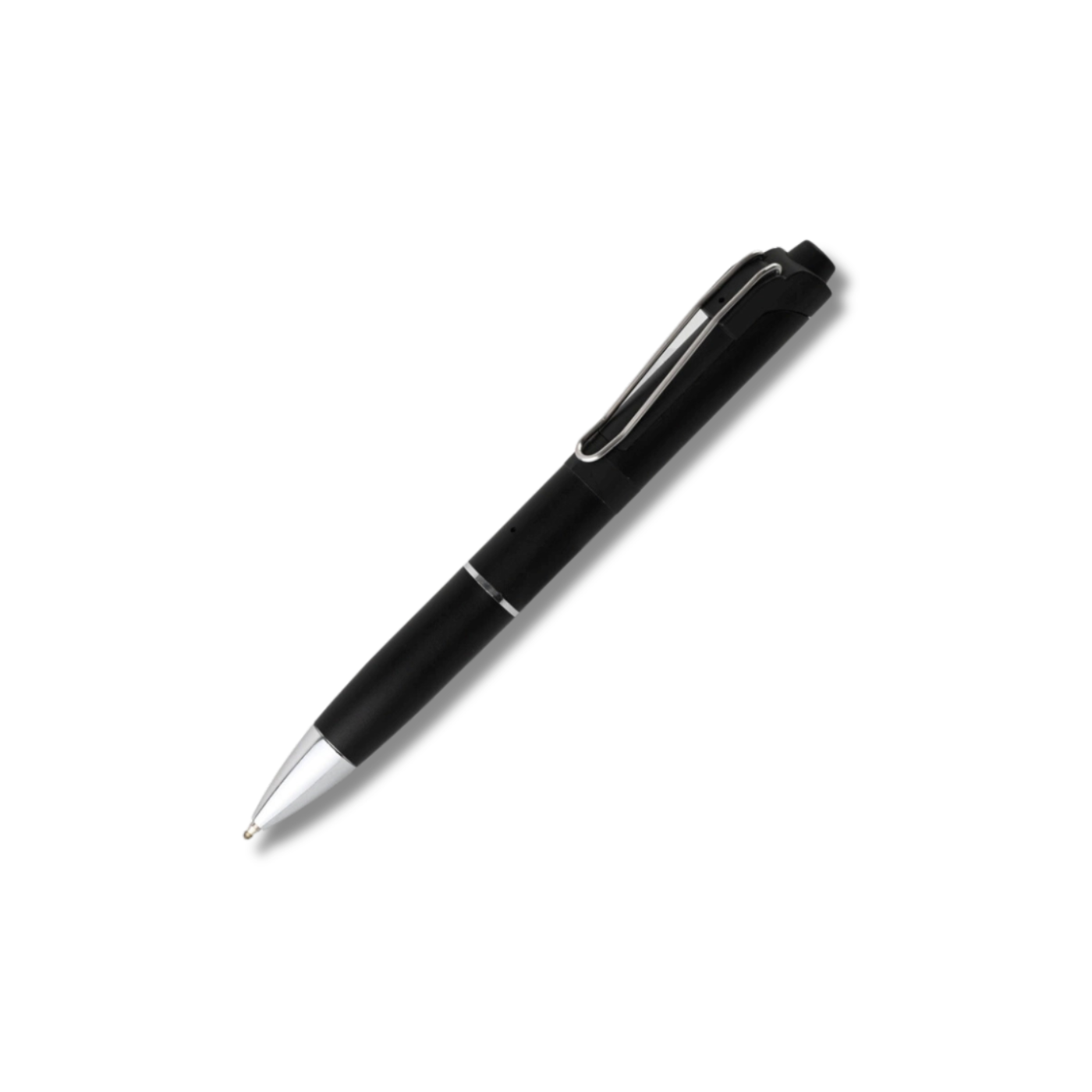

WiFi Voice Recorder EL-AR05

Key Features

1. Dedicated CamSC Pro app: The app provides full control of the device from your smartphone.

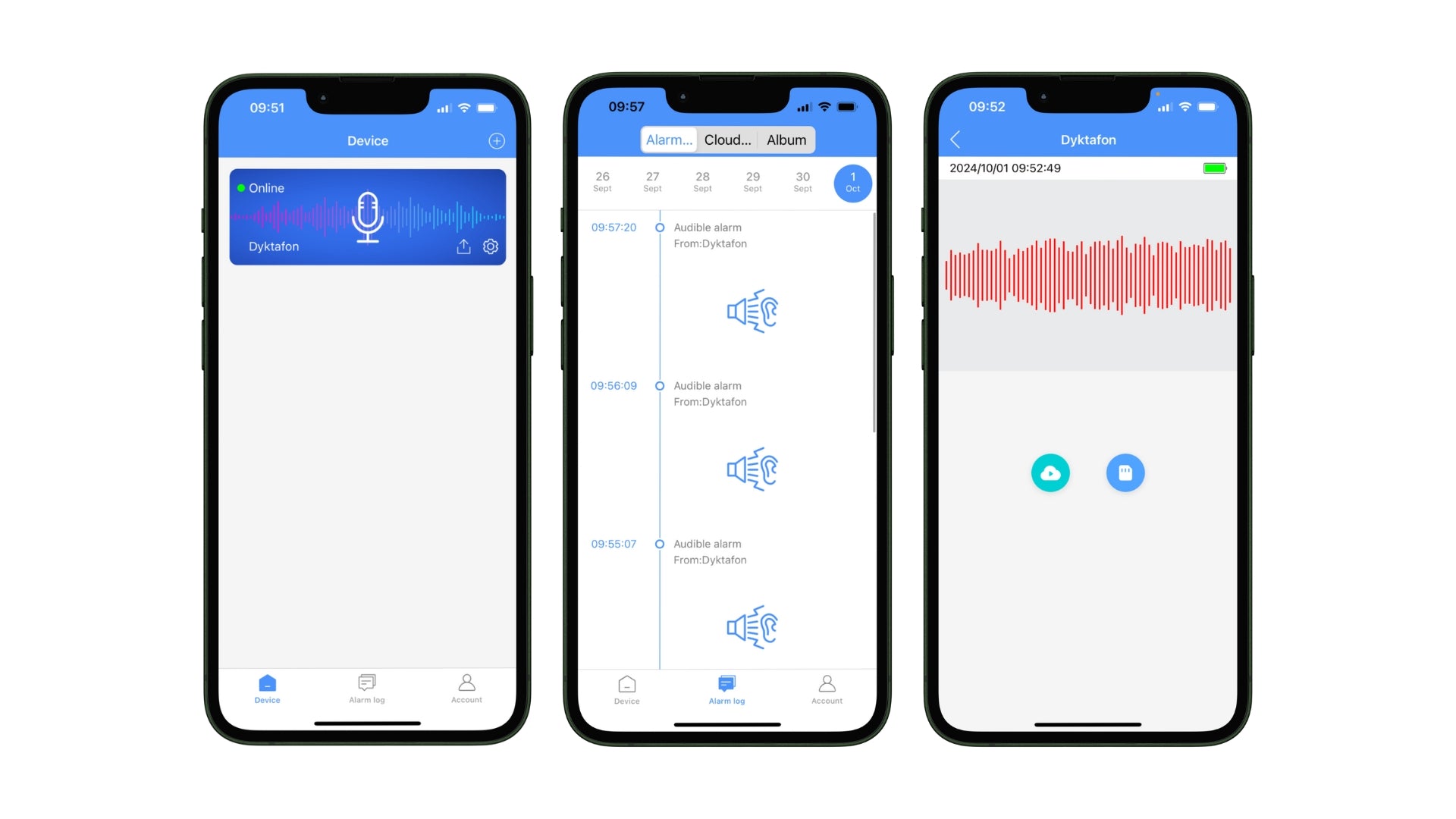

2. Real-time monitoring: Thanks to the application, you can listen to the sounds recorded by the device in real time.

3. Two ways to store recordings: Secure recording on a microSD card (up to 128GB) and the ability to use the cloud (additional paid service and a minimum of 8GB of microSD card required) .

4. High-performance battery: Equipped with a high-capacity battery that allows you to record up to 2.5 hours of continuous recording on a single full charge.

5. Various recording modes: The device offers three recording modes:

• Continuous mode: Records audio non-stop and saves it in a loop , overwriting older recordings.
• Power Saving Mode A: Starts recording when sound is detected , providing live listening while consuming less power.
• Power Saving Mode B: The most energy-efficient mode, it only activates when sound is detected , and live listening is possible for one minute after activation.

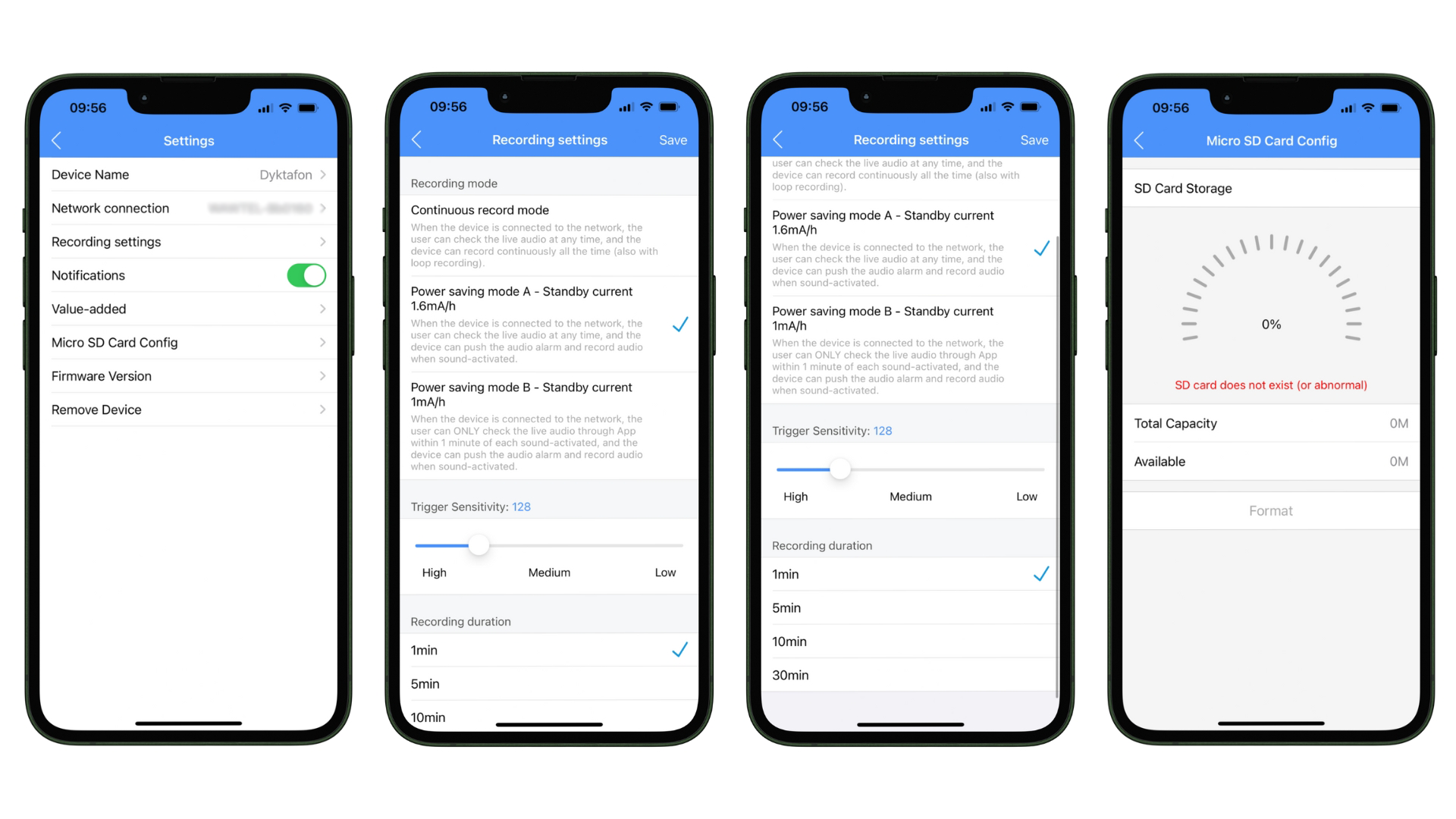

6. Advanced recording management: From the app, you can adjust sound detection sensitivity and select recording duration from 1 to 5 minutes. You have full control over how and when the recorder records sounds, ensuring flexibility and customization to your needs.

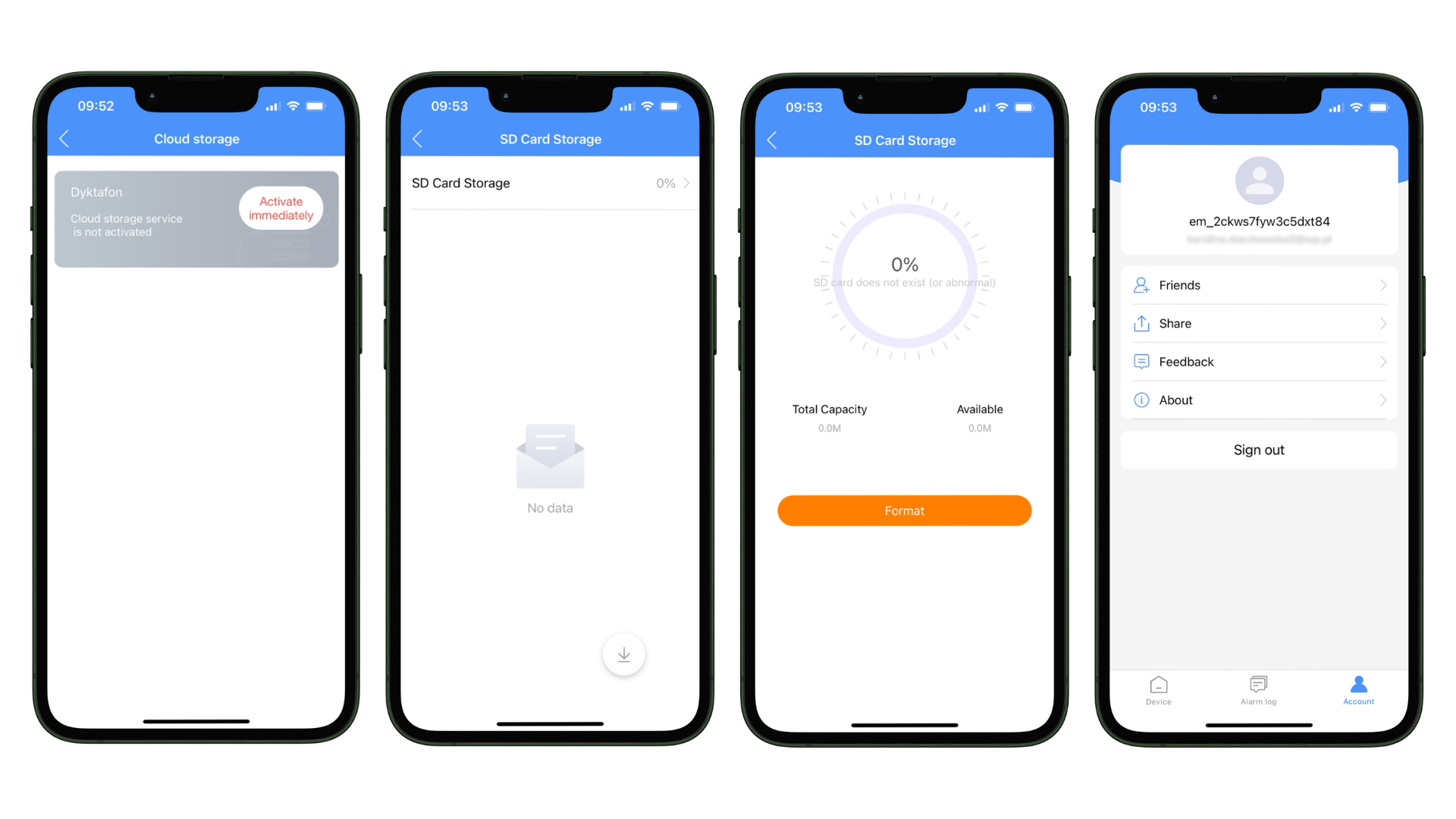

7. Hassle-free memory card management: The app allows you to monitor the status of your microSD card , including available space and capacity . For your convenience, the card can be formatted directly from the app, making it easier to manage your recordings.

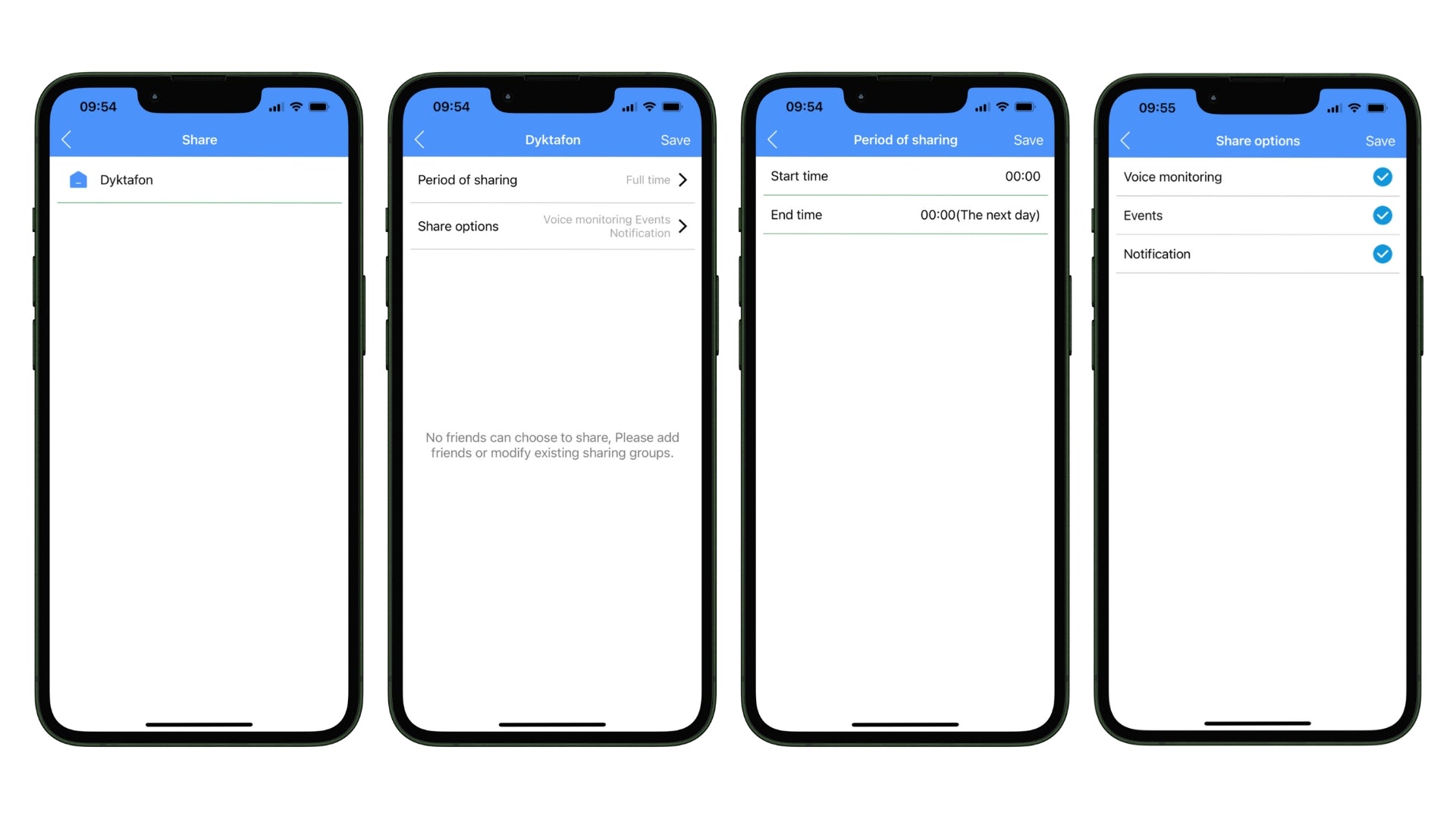

8. Ability to share recordings and devices: The recorder offers the ability to share recordings with other users. You can precisely define which data will be available (voice monitoring, notifications, events) , as well as set the time period during which the recordings will be shared.

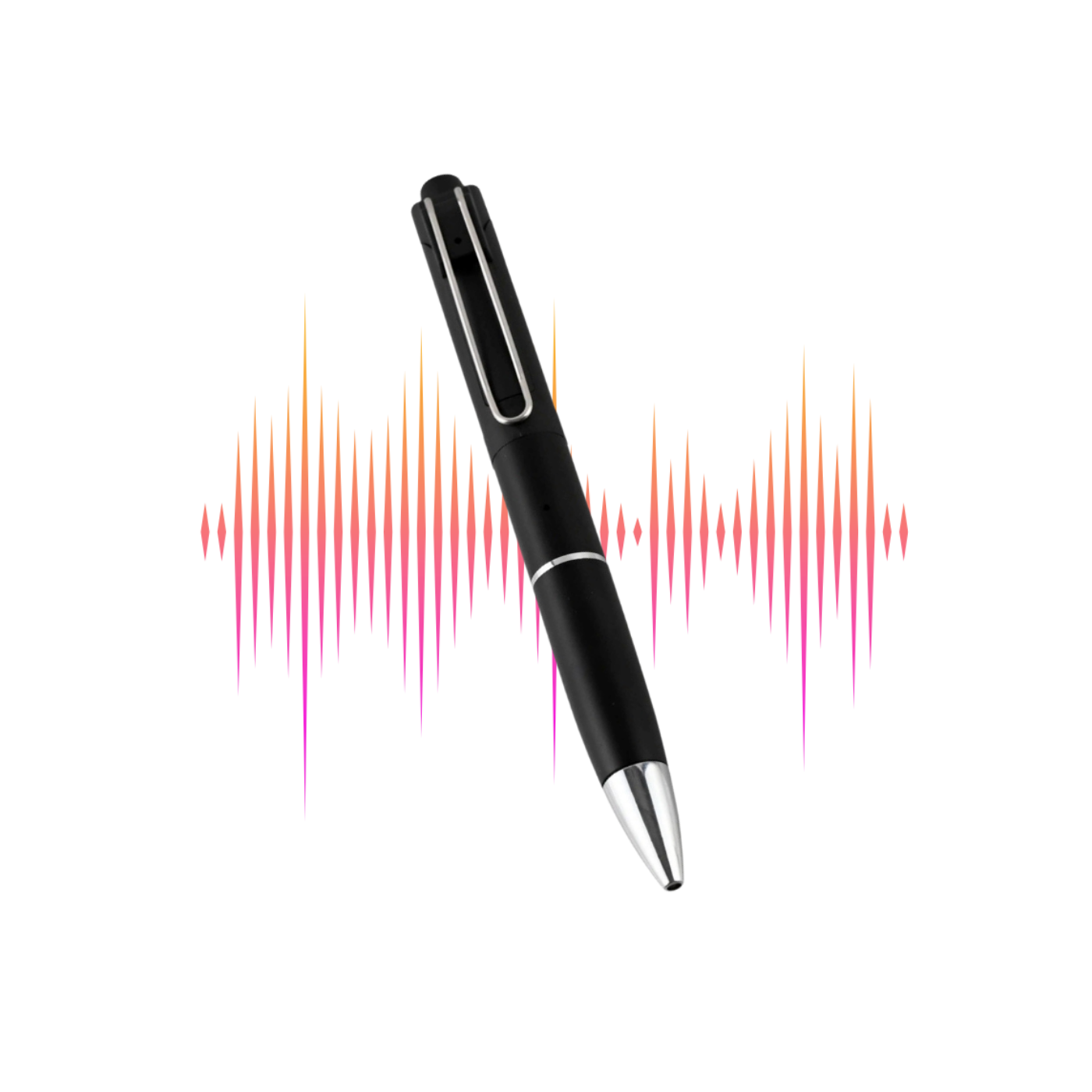

9. Multifunctionality and discretion: This pen combines the functions of a sound recorder with those of a classic ballpoint pen , allowing for discreet use in any situation. A built-in microphone ensures high-quality recordings , and an indicator light indicates the recorder's operating status, making it practical and convenient for everyday use.

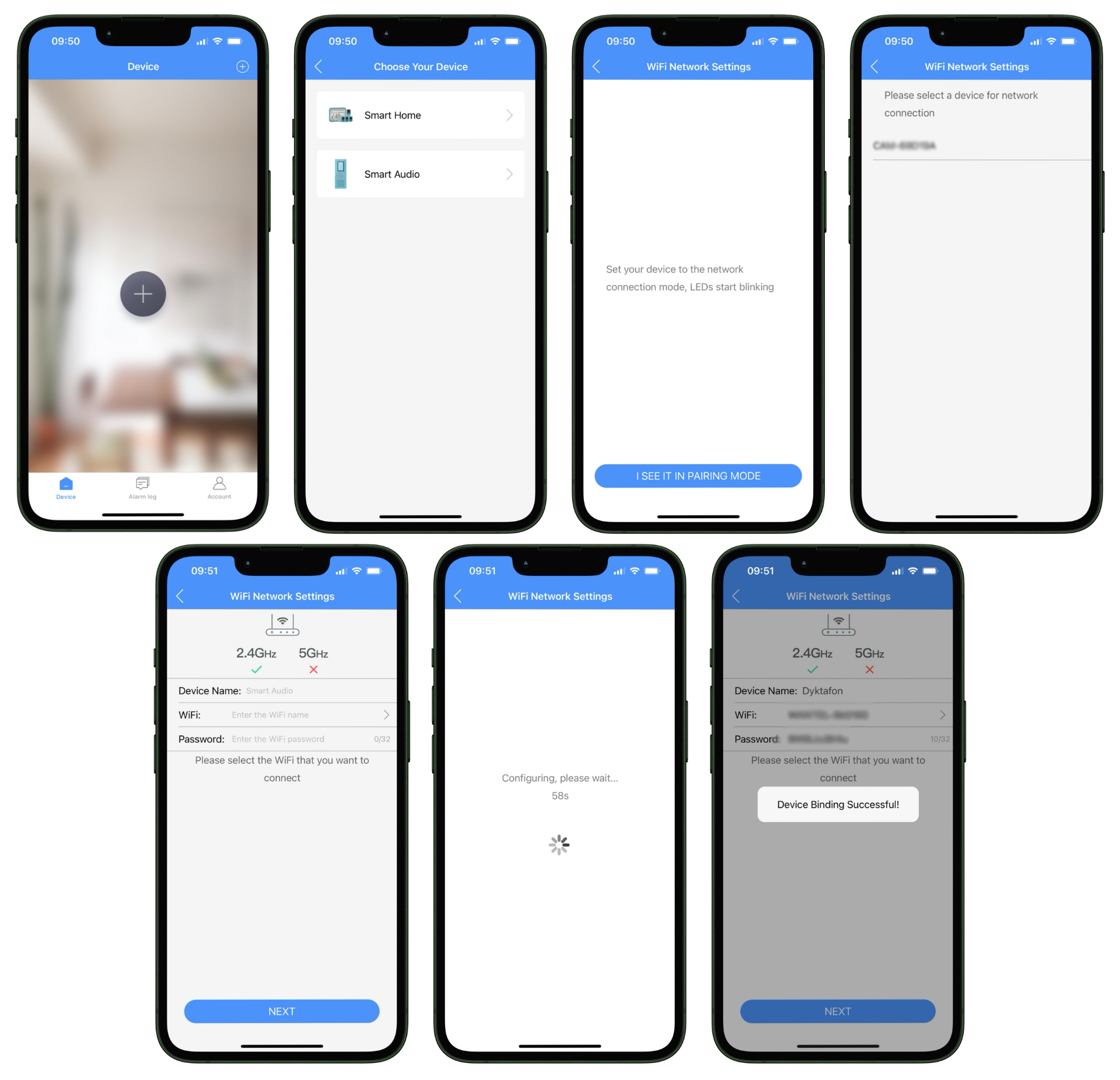

To add a device to the app, follow the steps below:

1. Open the application on your smartphone and select the option to add a new device by clicking on the "+" icon.

2. Select the "Smart Audio" device category.

3. Put your device into pairing mode – make sure the LEDs on your device start flashing .

4. Select your Wi-Fi network – remember that the device supports 2.4 GHz networks .

5. Enter your Wi-Fi password and then click "Next" to continue.

6. Wait for the setup to complete – it may take a few seconds.

7. Once the process is complete, a message will appear saying that the device has been successfully added ("Device Binding Successful") .

Your device is now ready for use.

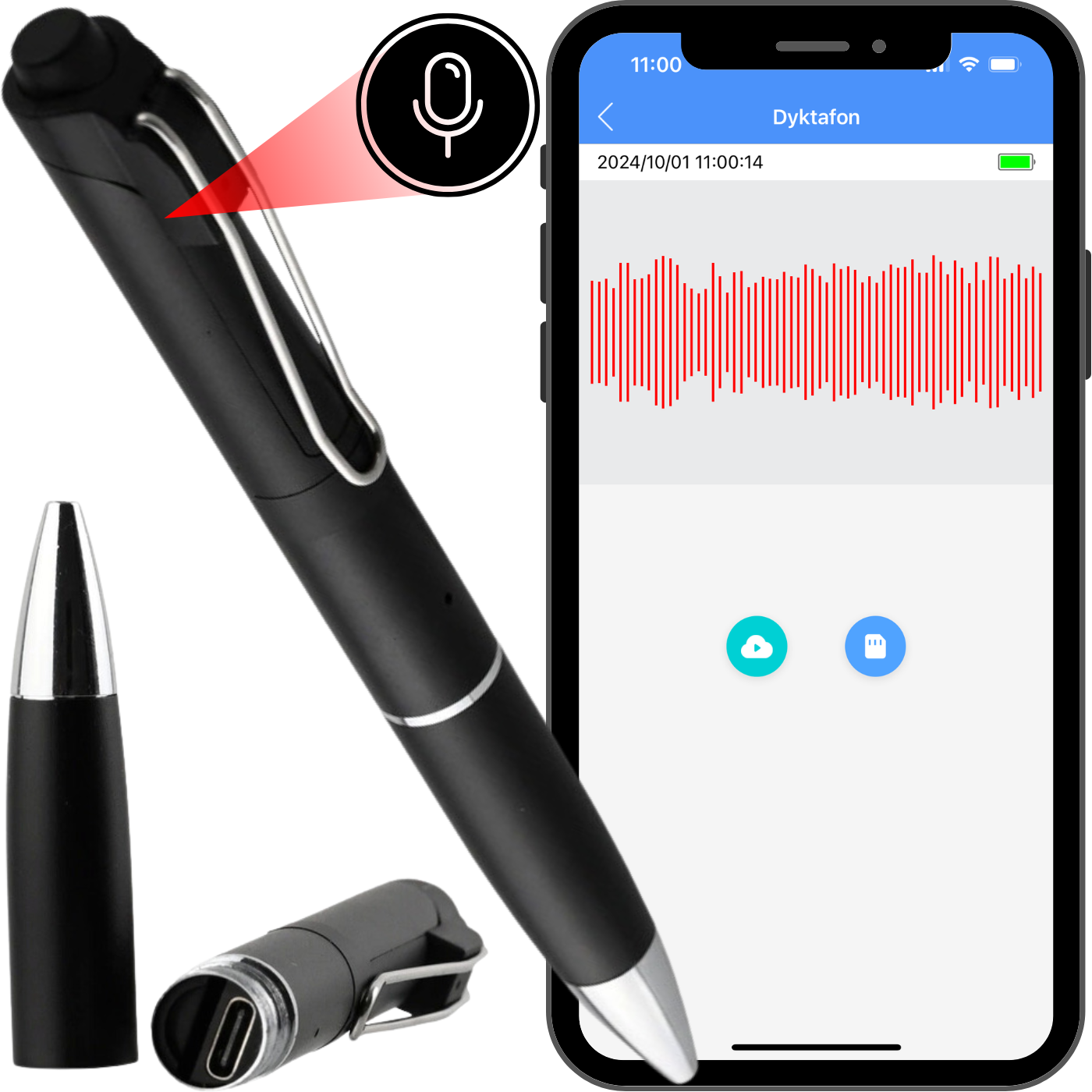

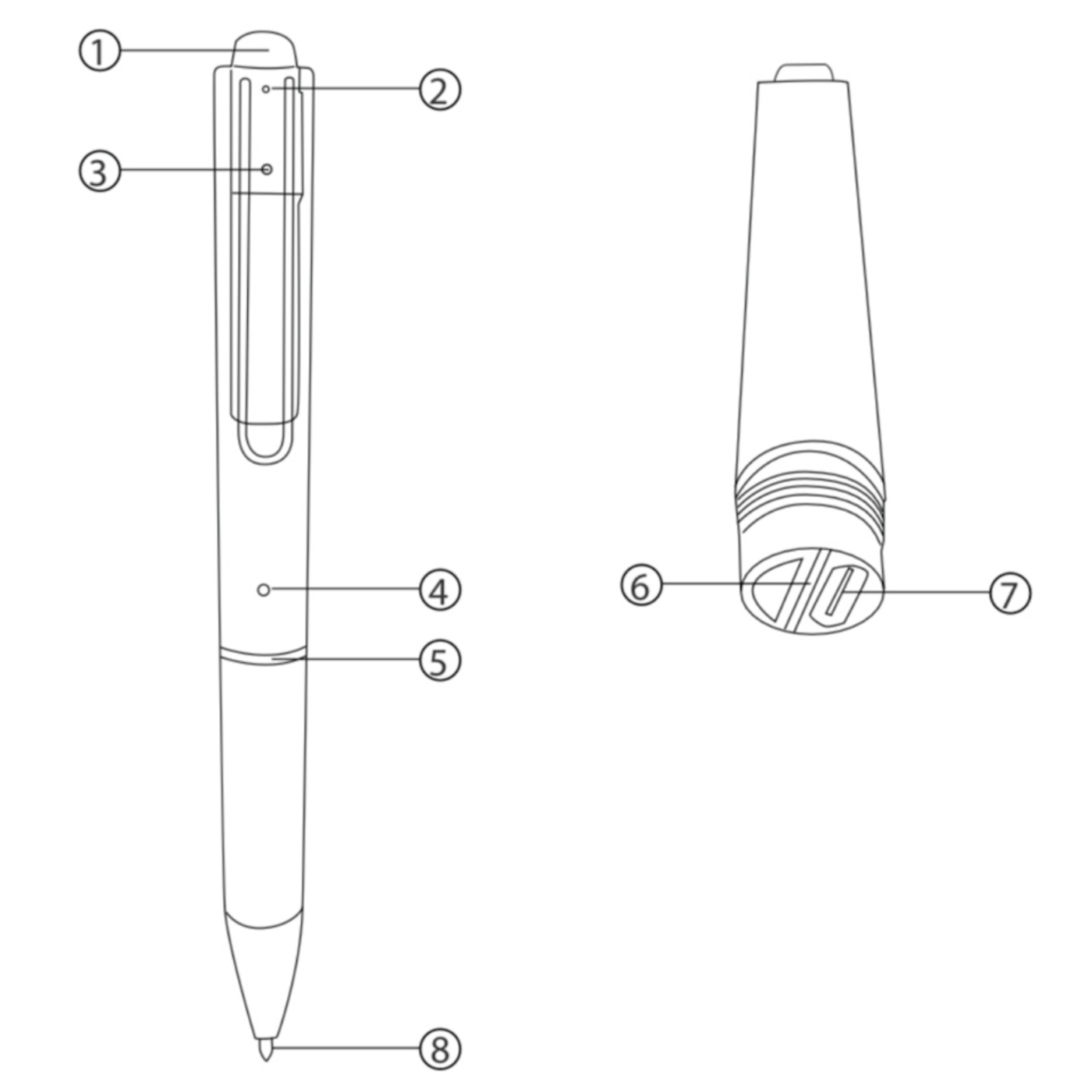

Pen components

1. ON/OFF switch – used to turn the device on and off.
2. Light indicator – informs about the operating status of the device.
3. Microphone – built-in microphone for recording sound.
4. Reset Hole/Charging Indicator – Used to reset the device and indicates the charging process.
5. Twist mechanism to open and charge – by twisting the bottom of the pen, you can open it and connect it to charge.
6. MicroSD card slot – Place to insert a microSD card for recording and storing data. (Card not included)
7. USB port (Type-C) – port for charging and data transfer.
8. Rotary writing mechanism – allows you to use the pen as a writing tool.

Technical specifications

• Storage media type: supports SD cards with a capacity of 8 to 128 GB
• Battery capacity: 250 mA
• Charging time: Approximately 1.5 hours
• Power consumption during operation: 80 mA
• Power supply: USB-C, 5V
• Working time in continuous recording mode: About 2.5 hours
• Standby current:
• - Power saving mode A: 1.6 mA/h - Standby time: About 5 days (In sound detection mode)
• - Power saving mode B: 1 mA/h - Standby time: About 9 days (In sound detection mode)
• Weight: 29 g

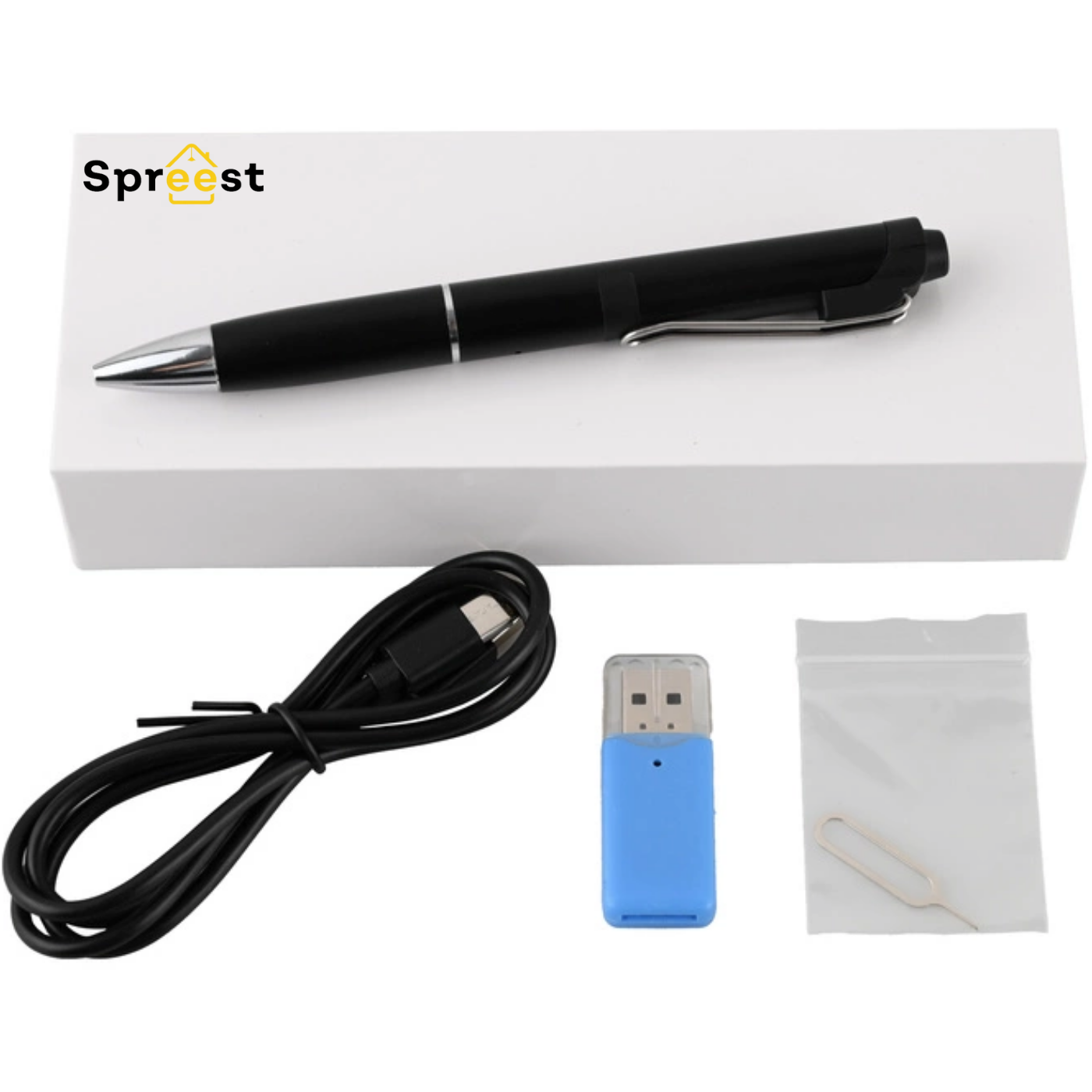

The set includes

• 1x WiFi Voice Recorder EL-AR05
• 1x microSD card reader
• 1X USB-C Cable
• 1x Reset key
• 1x User Manual

The Polish manual is available as an electronic download in the attachment. You'll find it below our product description .
