WiFi Voice Recorder EL-AR02

Key Features

1. Dedicated CamSC Pro app: The app provides full control of the device from your smartphone. It's intuitive and easy to use, so setting up the recorder takes just a few moments .

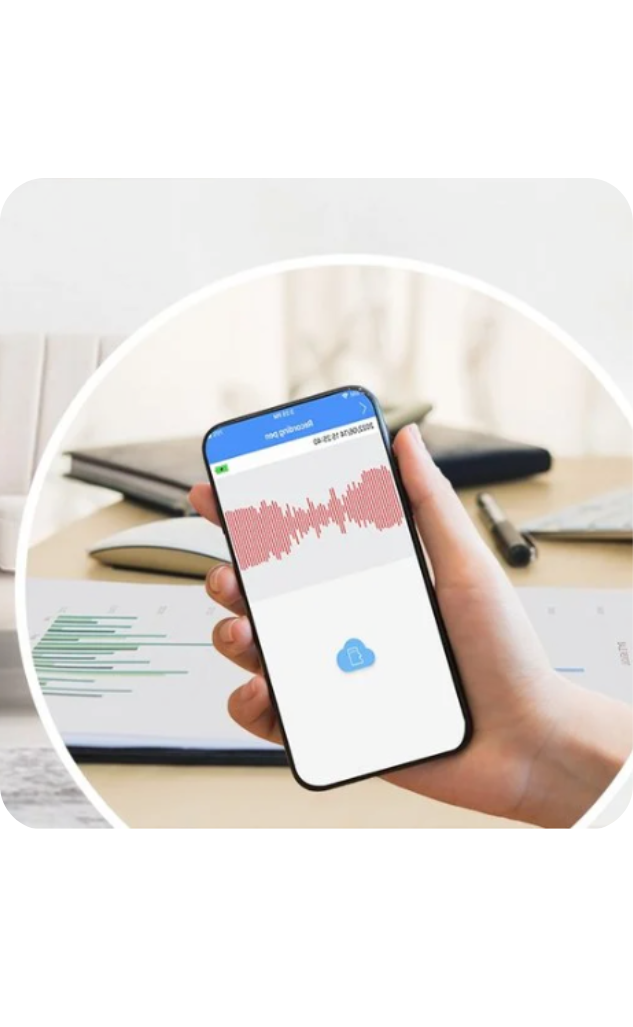

2. Real-time monitoring: Thanks to the application, you can listen to the sounds recorded by the device in real time, which allows you to react immediately .

3. Automatic sound alerts: These will notify you when sound is detected , making the device ideal for monitoring your office, home or other places that require constant supervision .

4. Long-term storage of recordings: The voice recorder offers flexibility in storing recordings – you can choose to save them in the cloud (an additionally paid service and requires a minimum of 8GB of microSD card) or only on a microSD card up to 128GB, which allows for 1600 hours of recordings .

5. High-performance battery: Equipped with a high-capacity battery that allows for up to 37.5 hours of recording on a single full charge . It also features a low-battery notification function and the ability to record while charging .

6. Various recording modes: The device offers three recording modes:

• Continuous mode: The device records audio continuously and stores it in a loop, overwriting older recordings . This allows for approximately 37.5 hours of continuous recording .
• Power Saving Mode A: Starts recording when sound is detected , providing live listening while consuming less power . It allows for approximately 78 days of standby time.
• Power Saving Mode B: The most energy-efficient mode, it only activates when sound is detected and live listening is possible for one minute after activation. It allows for approximately 125 days of standby time.

7. Advanced recording management: From the app, you can adjust sound detection sensitivity and select recording duration from 1 to 5 minutes. You have full control over how and when the recorder records sounds, ensuring flexibility and customization to your needs.

8. Hassle-free memory card management: The app allows you to monitor the status of your microSD card , including available space and capacity . For your convenience, the card can be formatted directly from the app, making it easier to manage your recordings.

9. High-quality audio recording: The device is equipped with a high-quality microphone that ensures clear and crisp recordings . The ability to connect an external microphone further increases the quality and range of recorded audio .

10. Ability to share recordings and devices: The voice recorder offers the ability to share recordings with other users. You can precisely define which data will be available (voice monitoring, notifications, events) , as well as set the time period during which recordings will be shared.

11. One-button operation: Intuitive and easy to use – allows you to turn the device on and off with a single button. This makes using the device extremely convenient and quick in situations requiring an immediate response .

12. Discreet mounting: Its small size and elegant design make the recorder easy to conceal and unobtrusive. Additionally, the included magnet with mounting tape allows you to attach the device to metal surfaces, ensuring even greater discretion and stability during monitoring .

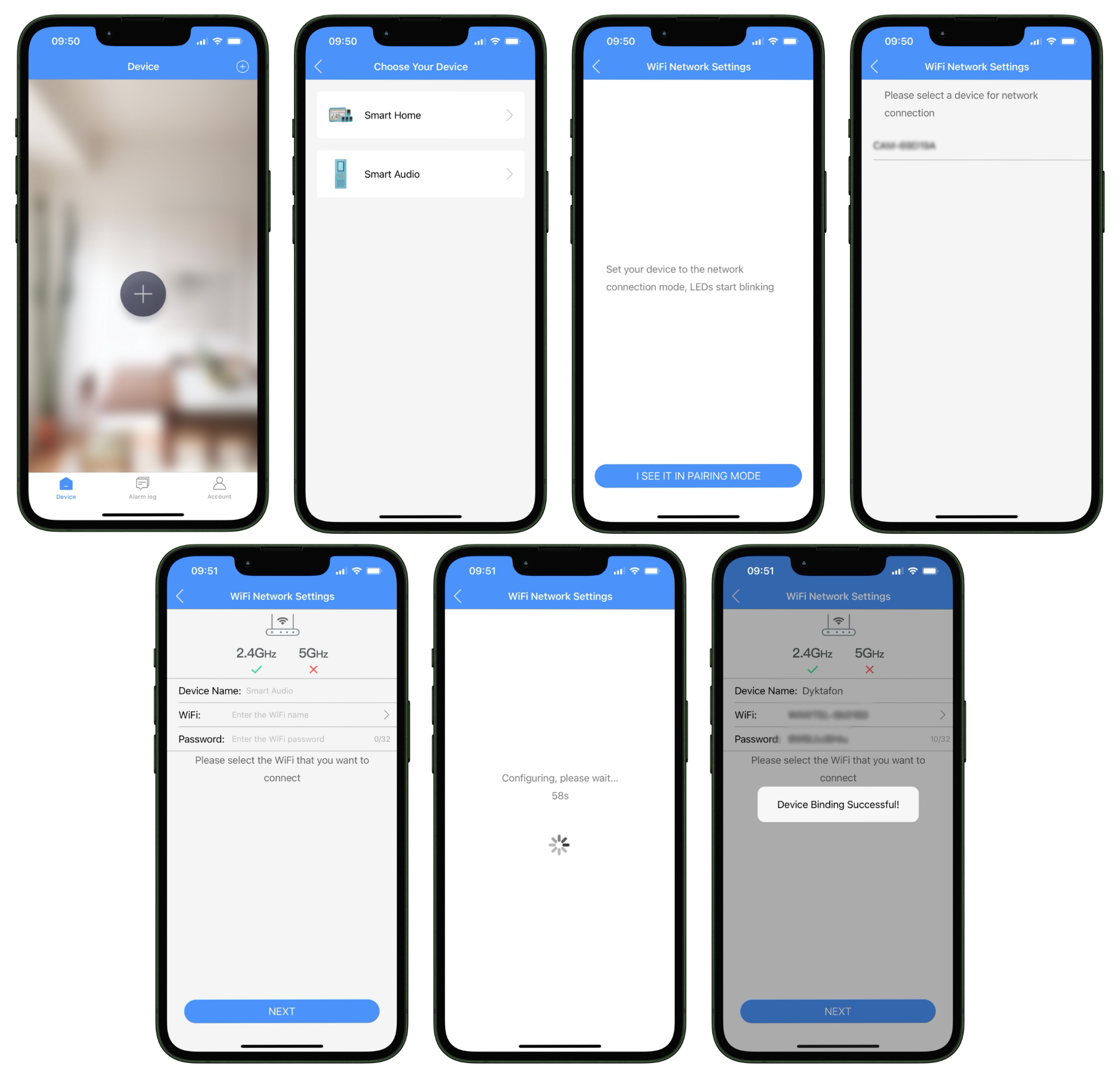

To add a device to the app, follow the steps below:

1. Open the application on your smartphone and select the option to add a new device by clicking on the "+" icon.

2. Select the "Smart Audio" device category.

3. Put your device into pairing mode – make sure the LEDs on your device start flashing .

4. Select your Wi-Fi network – remember that the device supports 2.4 GHz networks .

5. Enter your Wi-Fi password and then click "Next" to continue.

6. Wait for the setup to complete – it may take a few seconds.

7. Once the process is complete, a message will appear saying that the device has been successfully added ("Device Binding Successful") .

Your device is now ready for use.

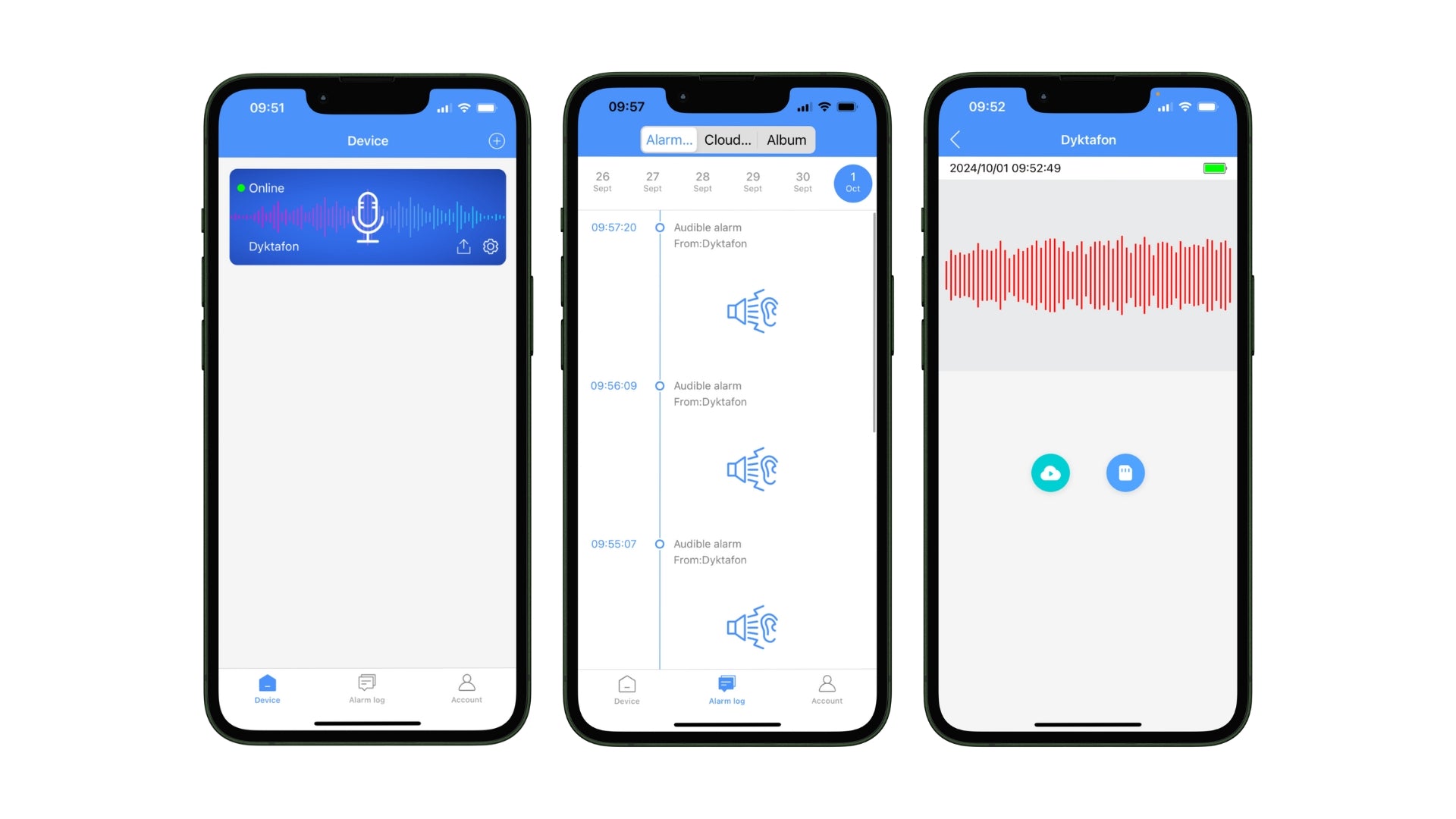

To use the device panel and sound monitoring features in the app, follow these steps:

1. Added Devices Panel – On the app's main screen, you'll find all your connected devices . Simply click on a device to access its features.

2. Sound Detection Alerts – The app automatically generates alerts when it detects sound. You can view these alerts in the event log , allowing you to easily monitor any activity in your surroundings.

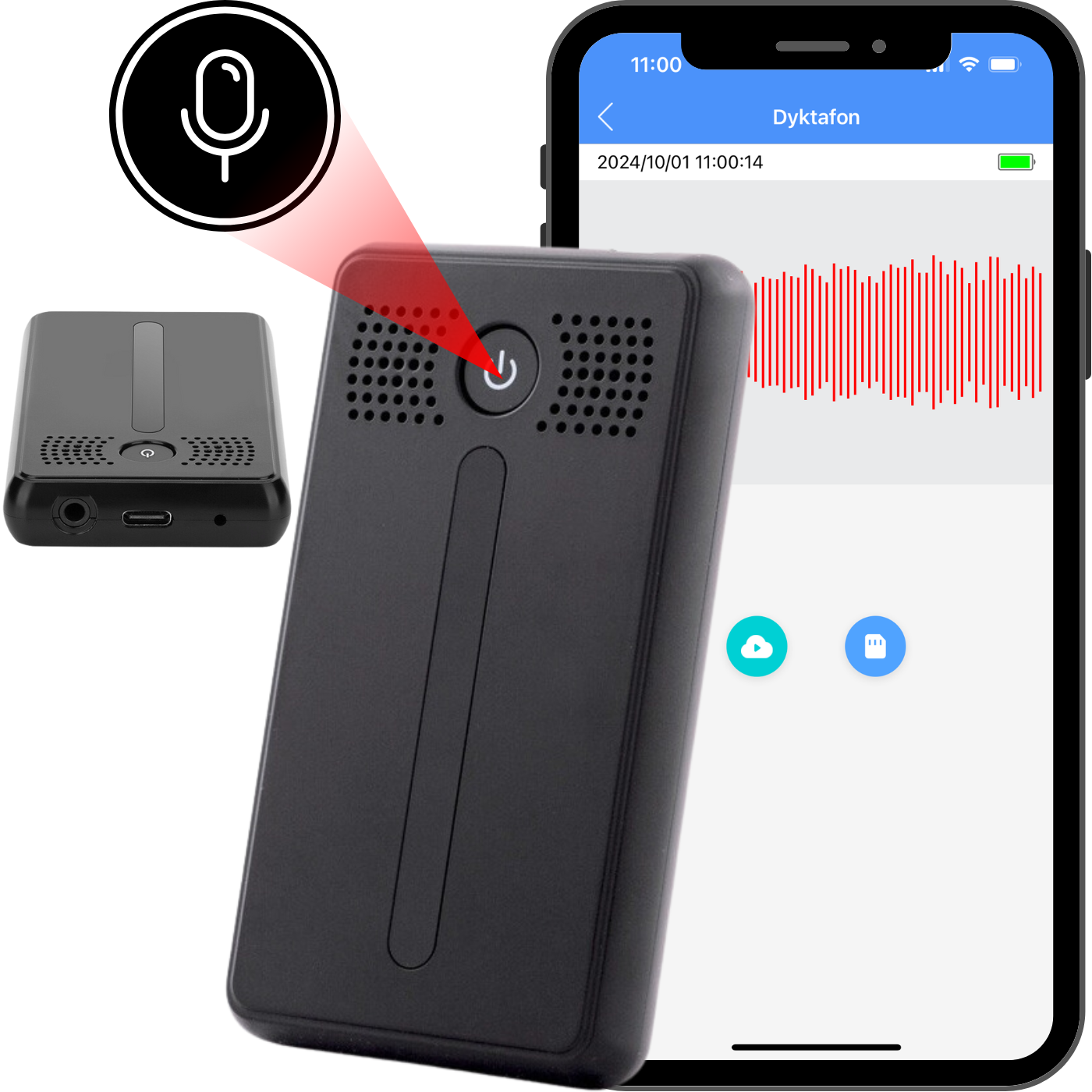

3. Real-time listening – This feature allows you to listen to the sounds being recorded by the device live . Simply click the voice recorder icon in the app to instantly begin listening .

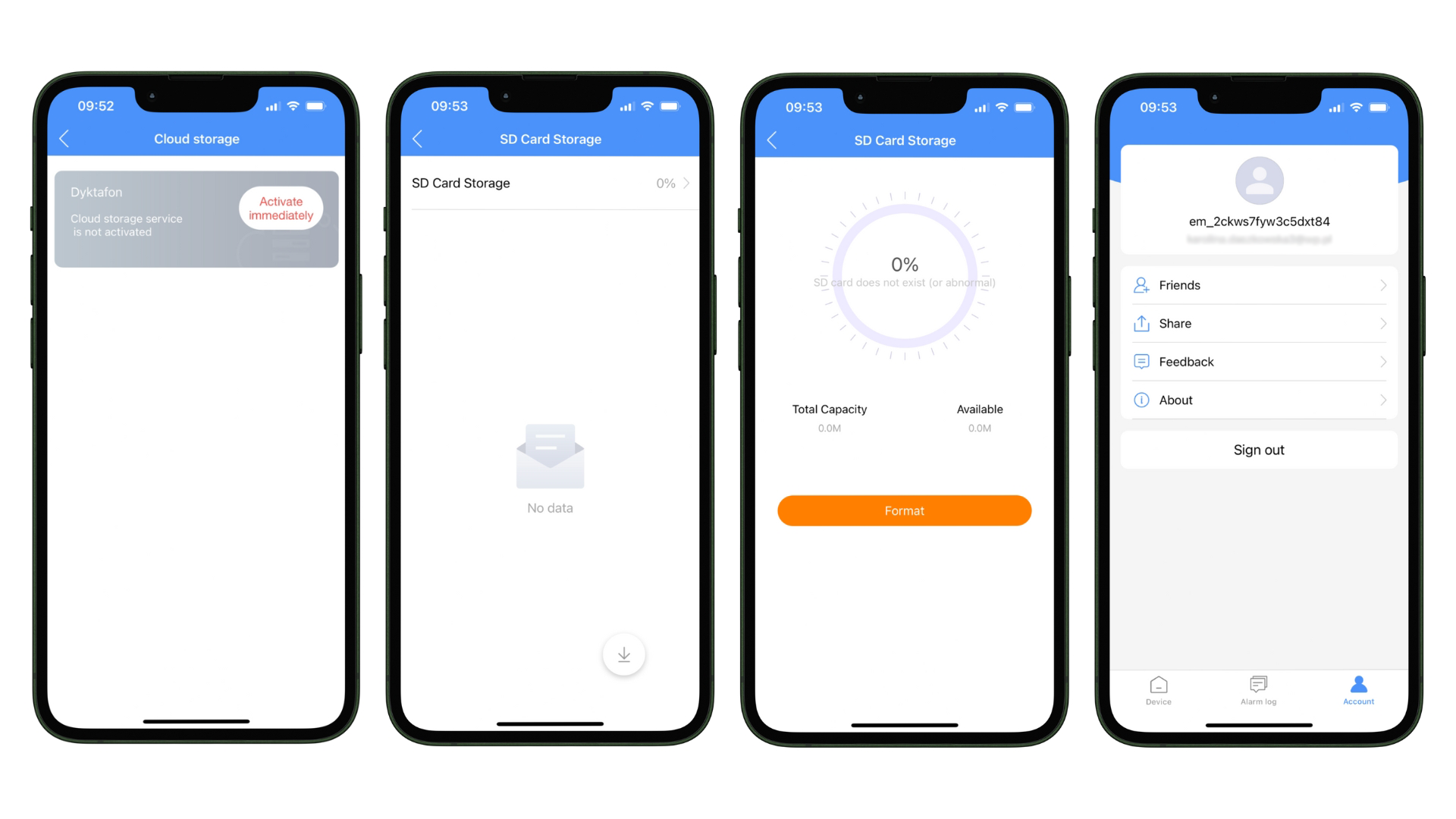

To manage your audio files and account in the app, you have several options:

1. Cloud storage – The app offers the ability to store recordings in the cloud, providing easy access to your data from anywhere . This is an additional fee-based service that you can activate directly in the app. To activate cloud storage, you need a minimum 8 GB microSD card.

2. Storage on a memory card – If you don't want to use the cloud, you can save your files on an SD memory card .

3. Memory card management – ​​The application provides detailed information about the status of the memory card , including capacity , available space and the ability to format the card to prepare it for writing new data.

4. Account Management – ​​The app allows you to share recordings and devices with other users . You can add friends to give them access to your device and its features, and easily share saved recordings with them.

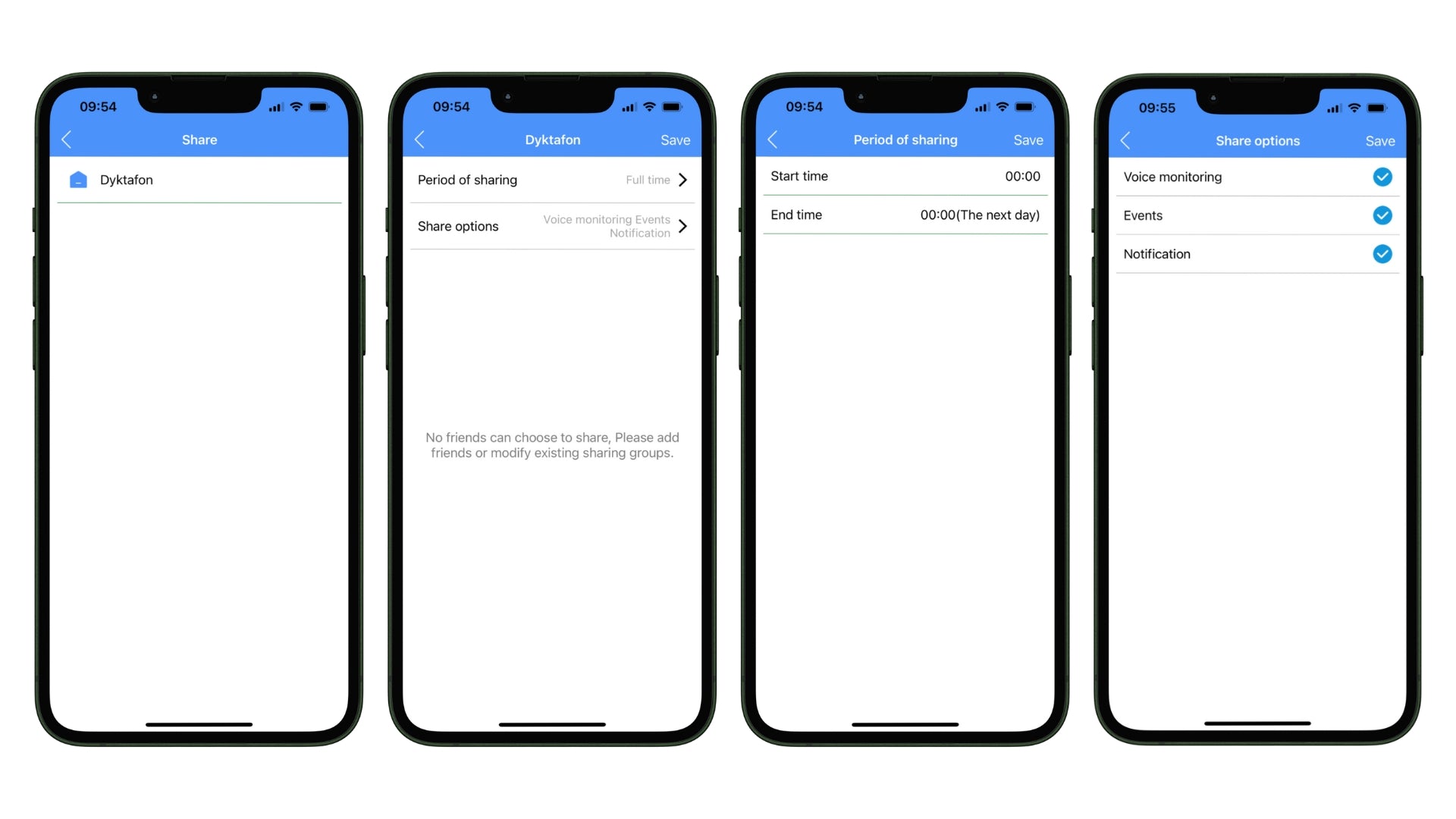

You can precisely share recordings and other data from a selected device. You can easily configure:

1. Sharing Period – Select a specific time period during which you want others to have access to your device and recordings. You can set both a start and end time .

2. Data Scope – Specify what data you want to share. Options include voice monitoring, notifications, and events . You can select options to share only what's important to you.

3. Sharing a selected device – You have the option to share selected recordings from a specific device , so that other users will only have access to the data you assign to them.

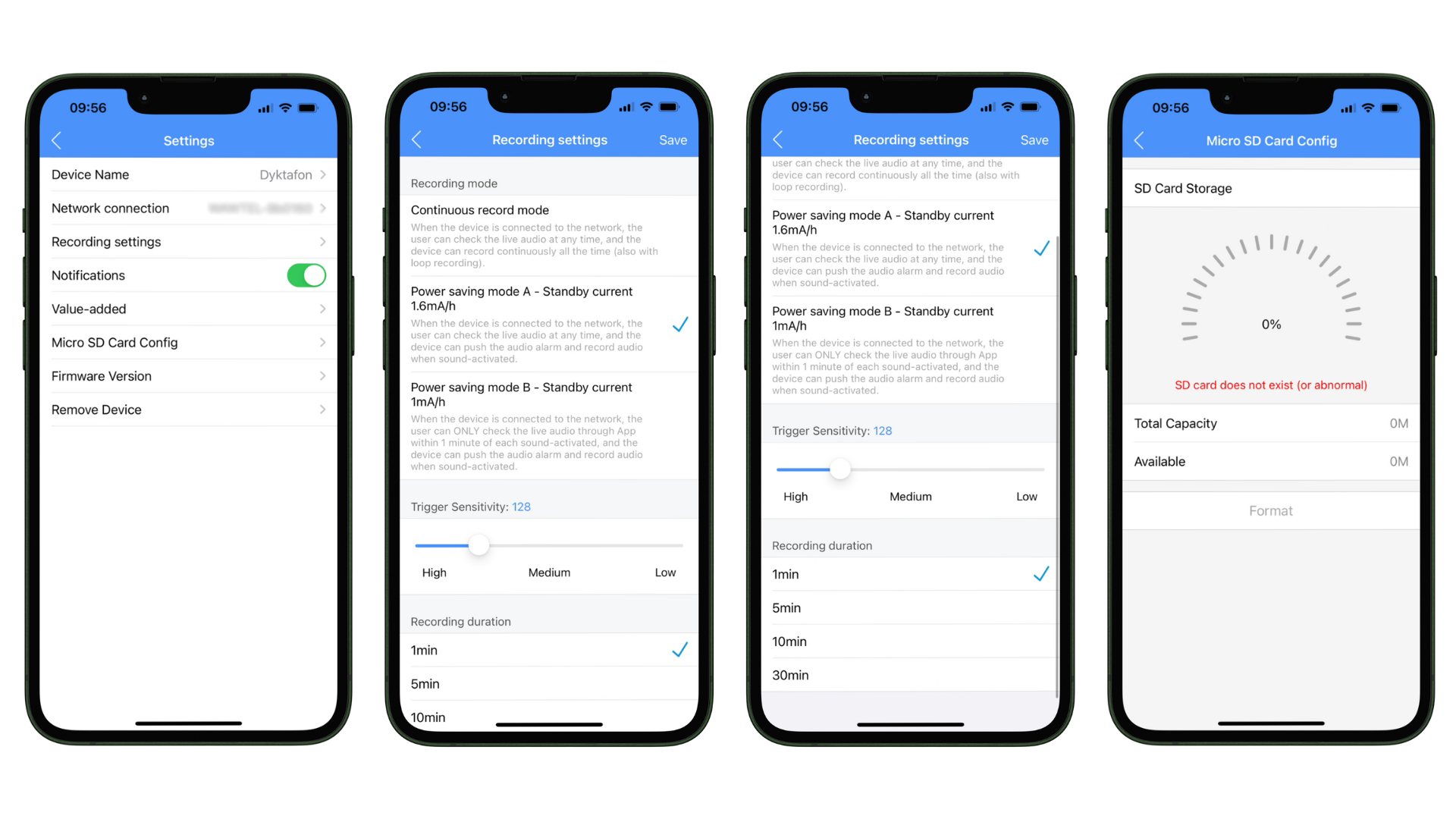

You can fully manage your device by adjusting various parameters to your needs:

1. Notifications – Turn notifications on or off to receive real-time event information. This will keep you up to date with all device activity.

2. Sensitivity Settings – You can adjust the sound detection sensitivity using the slider, choosing between high, medium, and low sensitivity . This allows you to adapt the device to different conditions and needs.

3. Recording Duration Settings – Specify how long a single recording should last. Options range from 1 minute to 30 minutes , giving you great flexibility in managing your recording space.

4. Recording Modes – There are various recording modes available in the app, including:

• Continuous Recording Mode – The device records non-stop , allowing for live listening and loop recording , meaning that when memory runs out , older recordings are overwritten by new ones . This allows for approximately 37.5 hours of continuous recording .
• Power Saving Mode A – The device wakes up when it detects sound , allows live listening, and sends audible alerts while using less power (1.6 mA/h) . It allows for approximately 78 days of standby time.
• Power saving mode B – The most energy-saving mode (1 mA/h) , activates recording when sound is detected , live listening is only available for one minute after activation . It allows for approximately 125 days of standby time.

5. Memory Card Management – ​​Easily check the status of your memory card, including its capacity and available space. If necessary, you can also format the card directly from the app.

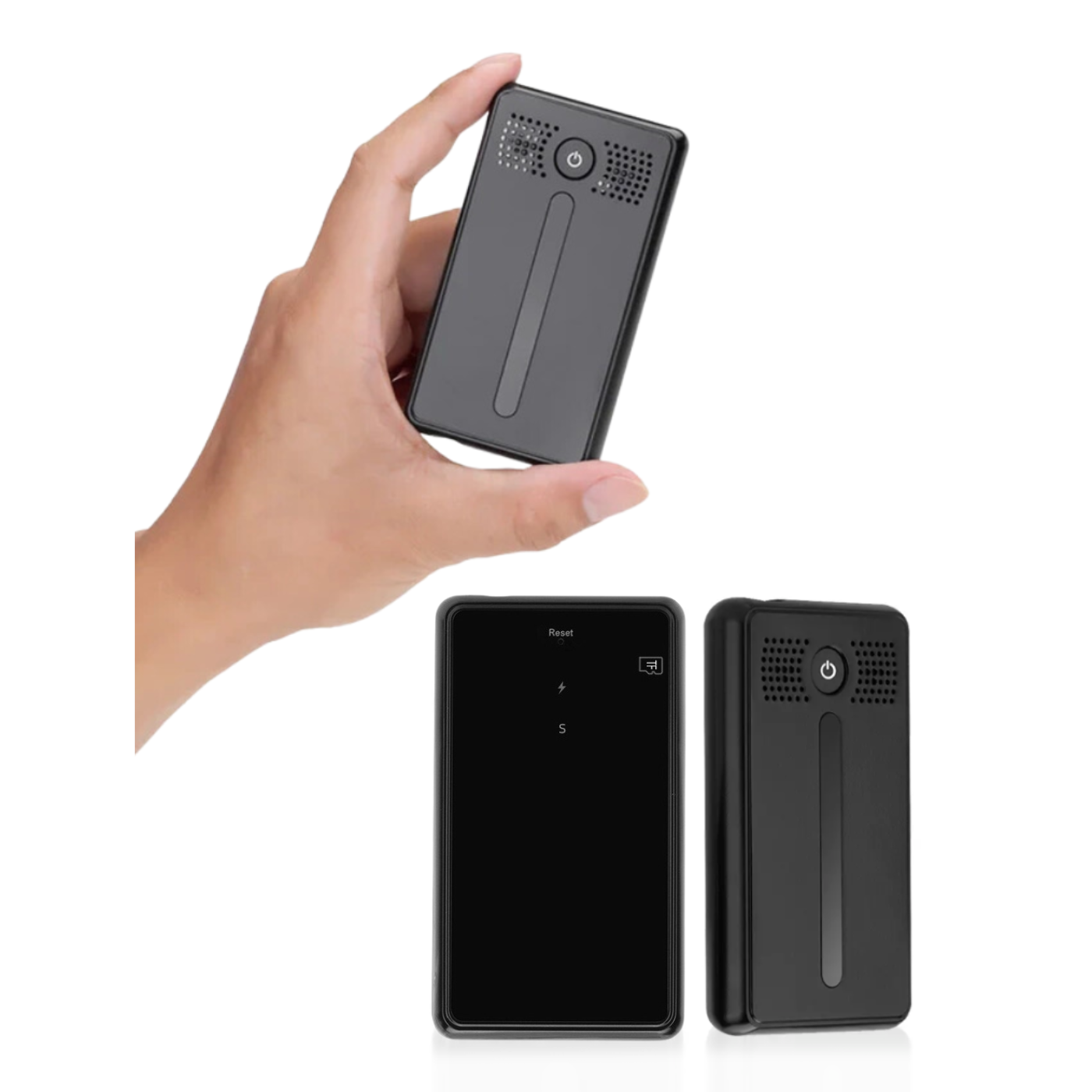

Discreet, mobile and easy to install

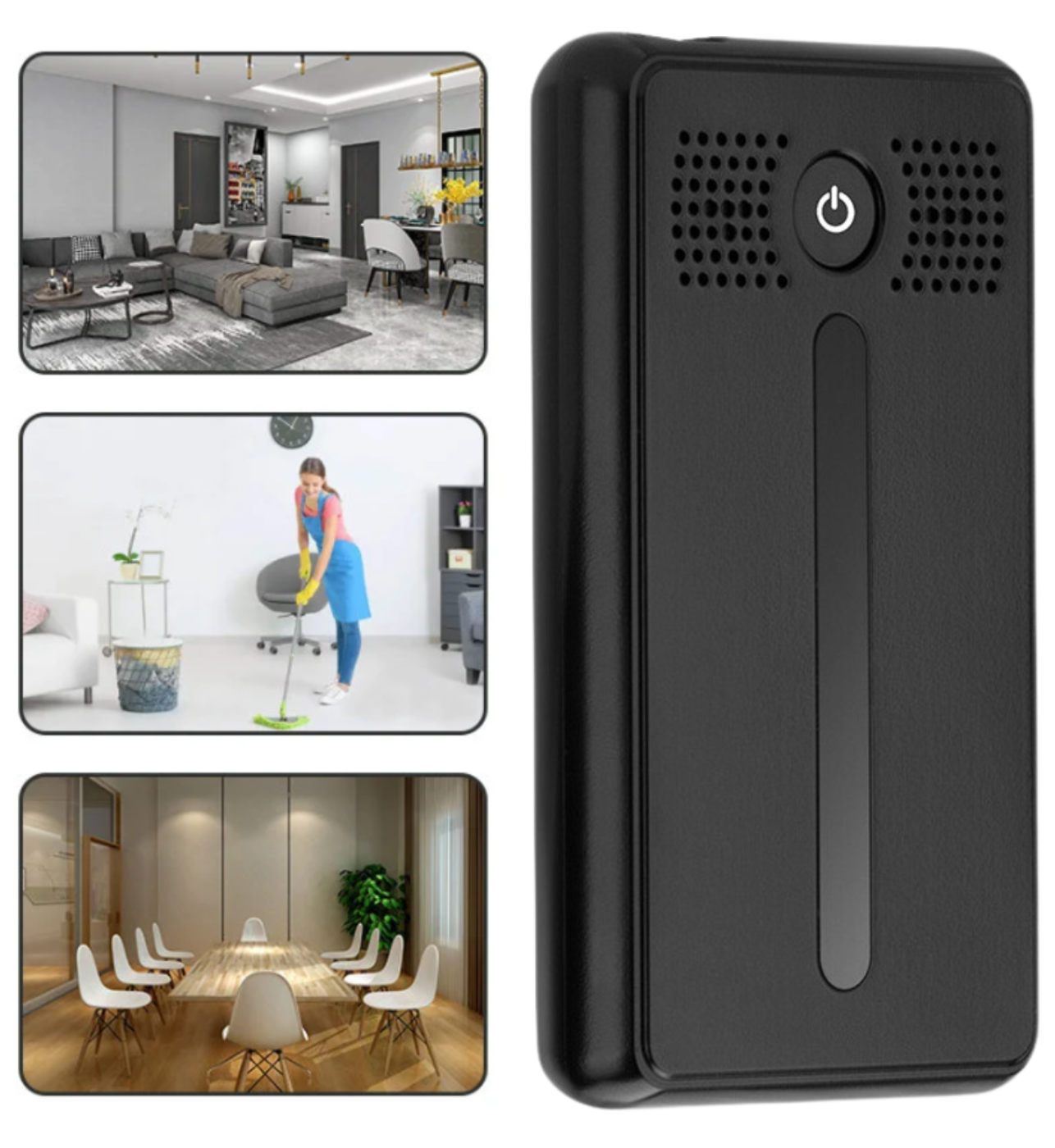

This voice recorder is perfect for many situations requiring discreet audio recording. Its compact size and the ability to connect an external microphone enhance recording range and sound quality . It's an ideal solution for monitoring spaces such as offices and homes, as well as for monitoring everyday activities .

An additional microphone, which can be connected via a dedicated jack , increases flexibility, enabling recording in hard-to-reach places . A clip located next to the microphone allows for convenient mounting on clothing or other surfaces , making it invaluable in situations requiring mobility .

Moreover, the kit includes a magnet with mounting tape , allowing the recorder to be easily placed on metal surfaces , providing additional discretion and stability. This allows the device to be even better tailored to specific user needs, offering a variety of mounting and concealment options .

Long-lasting battery

The device has a built-in 3000mAh battery that allows for up to 37.5 hours of recording on a single full charge. Charging the device is incredibly simple and is done using the included USB-C cable . Simply connect the recorder to a computer or other power source, and the battery will be fully charged in approximately 6 hours .

Thanks to its long battery life, it is an ideal solution for people who need a reliable device that will be ready to work at any time, without the need for frequent charging .

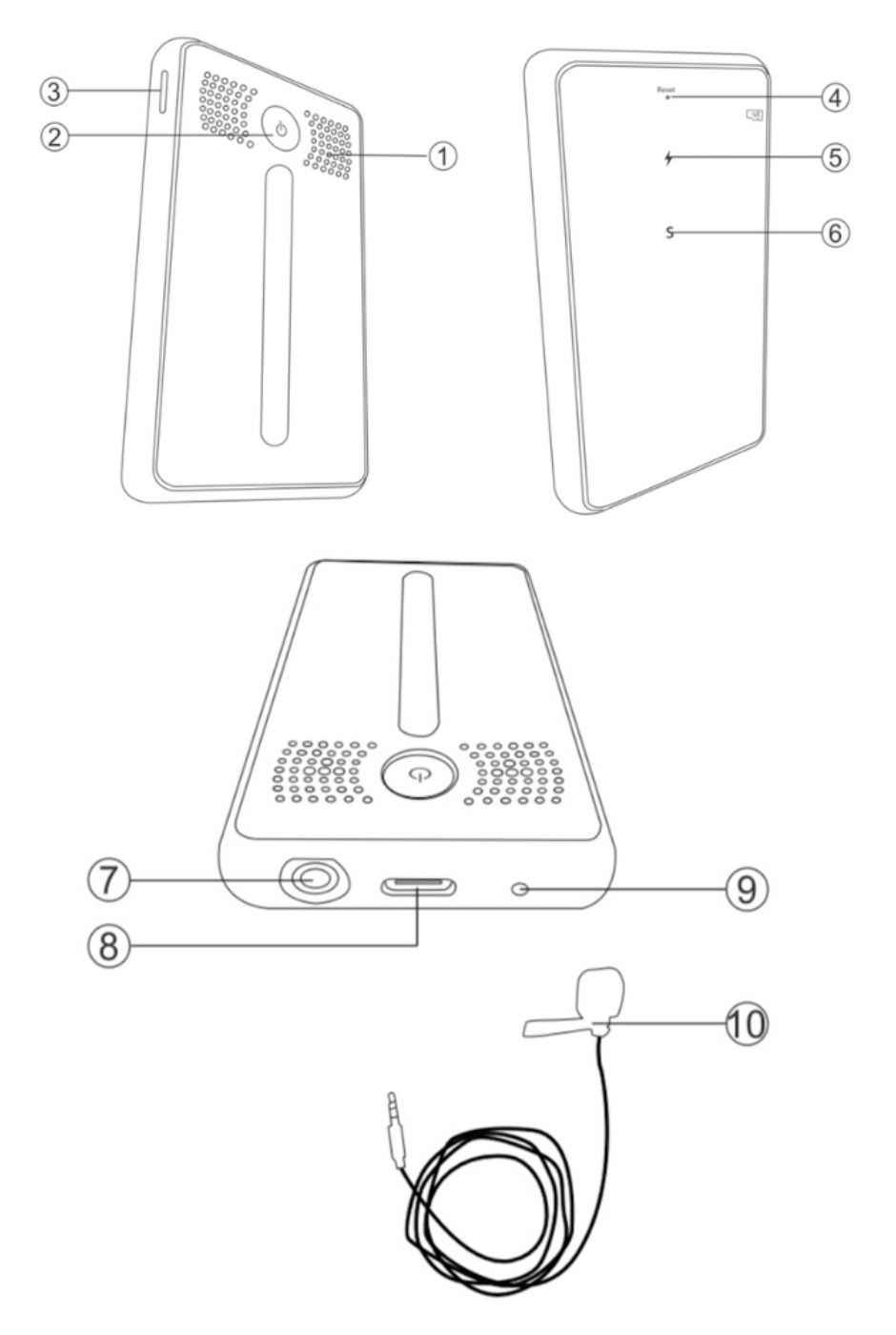

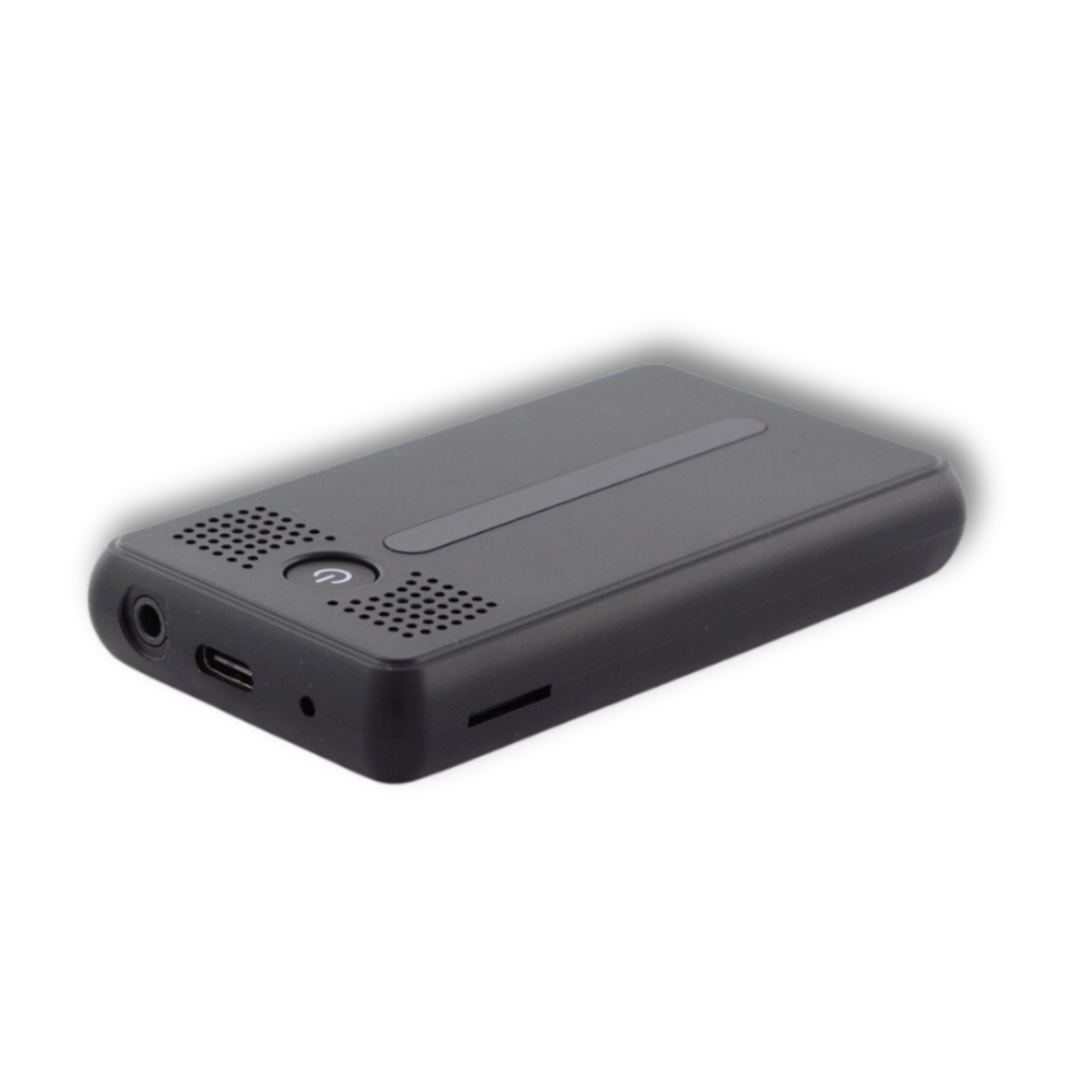

Dictaphone components

1. Microphone – Built-in microphone for audio recording.

2. ON/OFF switch – Turns the device on and off.

3. microSD card slot – Used to insert a memory card on which recordings will be saved (not included) .

4. Reset button – Used to reset the device to factory settings (included in the kit) .

5. Charging indicator – Indicates the device is charging.

6. Operation indicator – Indicates whether the device is active and working.

7. External Microphone Input – Allows you to connect an external microphone if you require better sound quality or increased recording range.

8. USB Port (Type-C) – Used to charge the device and transfer data.

9. External Power Socket – Optional socket for connecting an external power source to extend operating time.

10. External microphone – An additional external microphone that can be connected to increase the sound recording range (included in the kit) .

Technical specifications

• Battery: 3000 mAh
• Storage Type : Supports SD cards from 8 to 128 GB (Not included)
• Charging time: Approximately 6 hours
• Power consumption during operation: 80 mA
• Continuous recording time: Approximately 37.5 hours
• Standby current in energy saving mode A: 1.6 mA/h
• Standby time in power saving mode A: About 78 days
• Standby current in energy saving mode B: 1 mA/h
• Standby time in power saving mode B: About 125 days
• Wifi Connection: Yes
• Possibility of operation on DC power: Yes
• Possibility to connect an external microphone: Jack 3.5
• Power supply: USB-C, 5V
• Charging current: 200mA

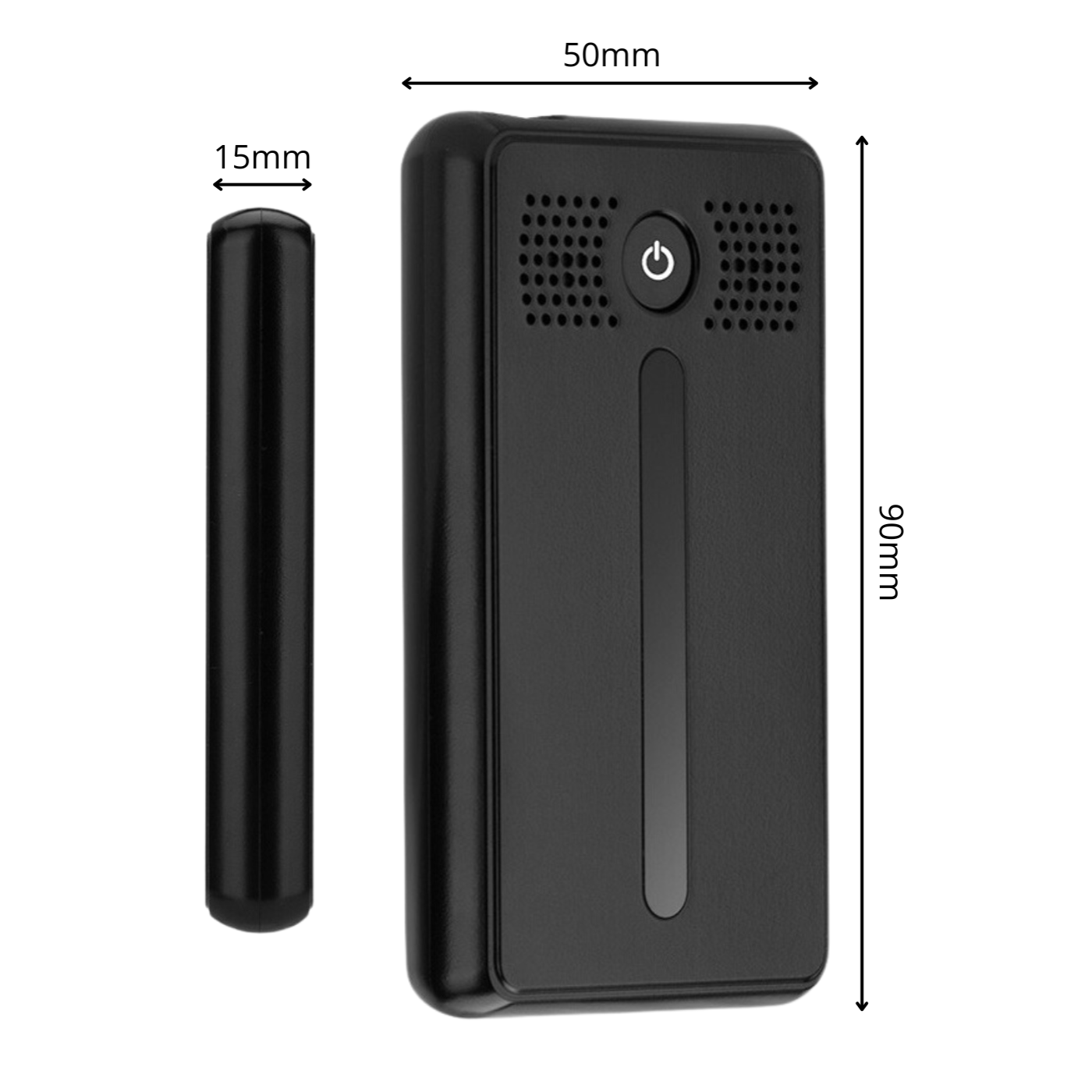

• Dimensions: 9 cm x 5 cm x 1.5 cm
• Weight: 74g

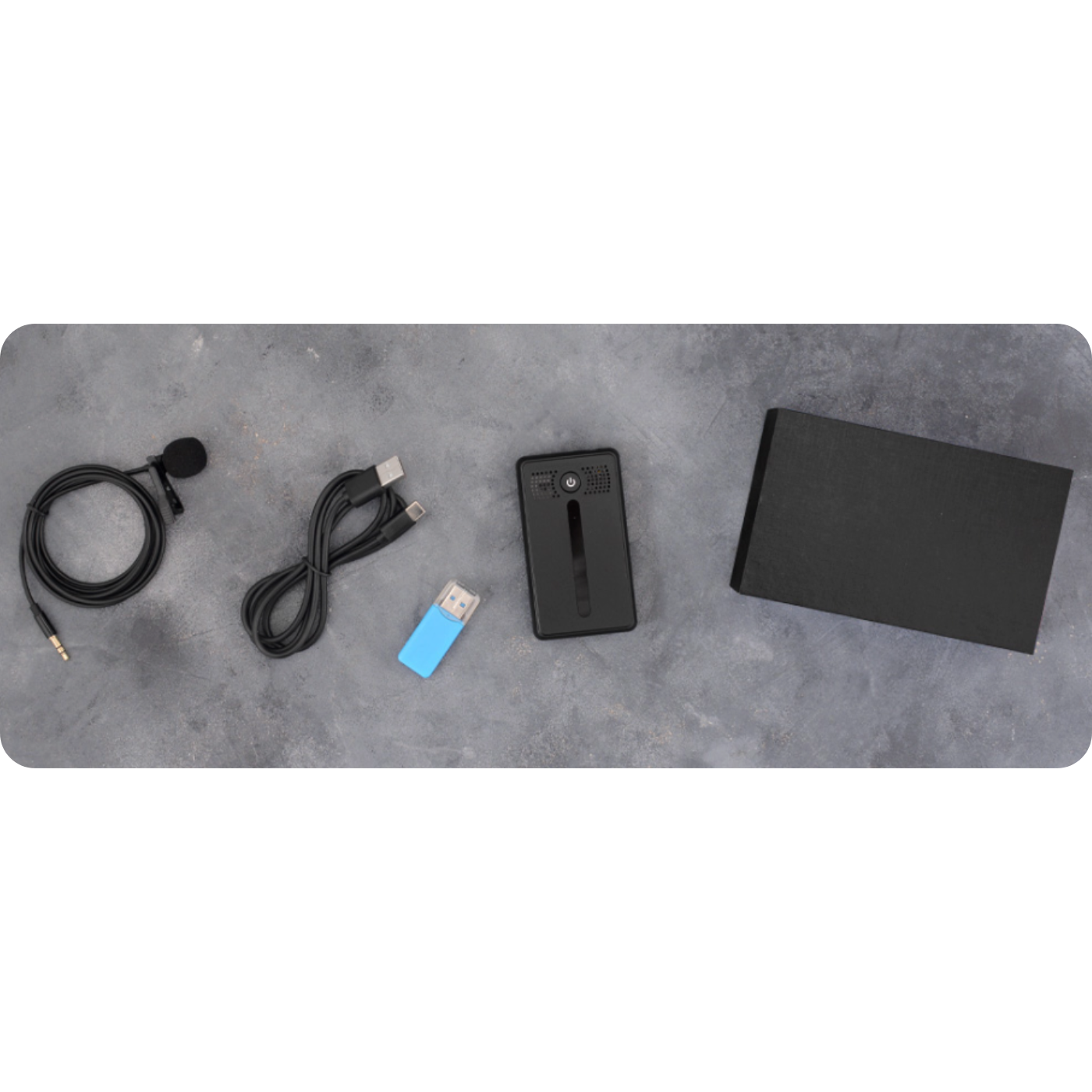

The set includes

• 1x WiFi Voice Recorder EL-AR02
• 1x microSD card reader
• 1x USB-C cable
• 1x User Manual
• 1x Reset Key
• 1x External microphone
• 2x Magnet with mounting tape

The Polish manual is available as an electronic download in the attachment. You'll find it below our product description .
