Electronic viewfinder JD-550A

Key Features

1. Built-in PIR motion sensor : Automatically detects movement in front of the door and allows you to take a photo or record a 10-second video clip.

2. Huge 4.3" color LCD display : Allows you to conveniently view the camera image without having to bend down.

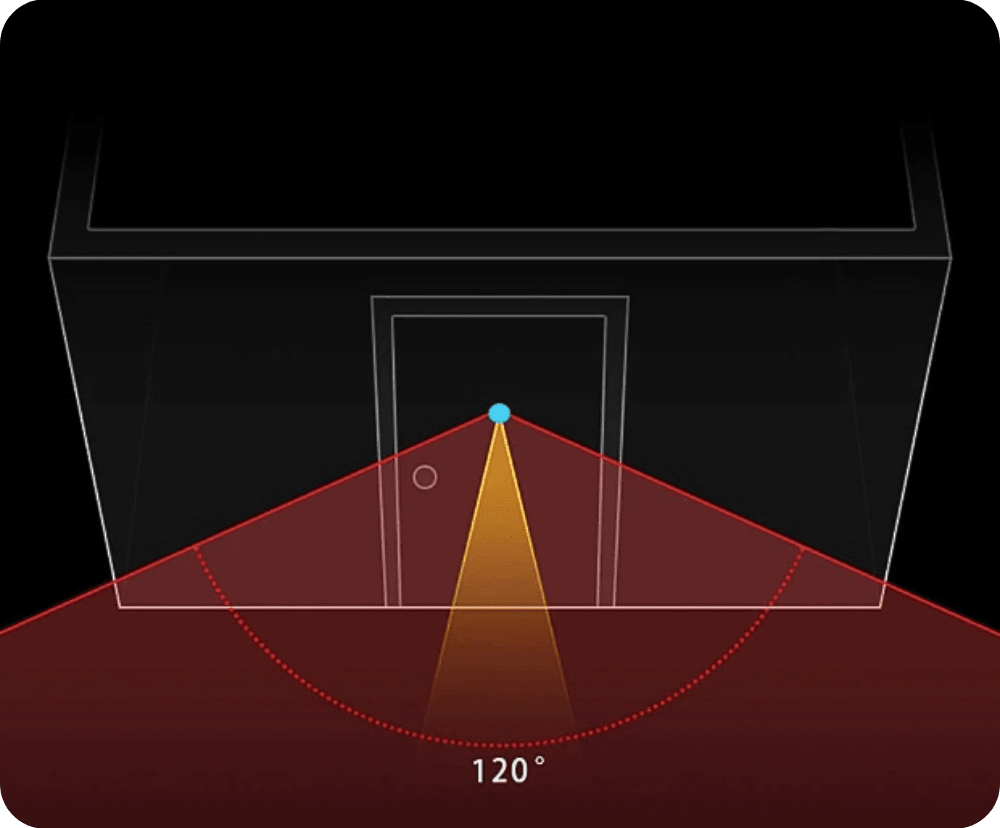

3. 120° Wide Viewing Angle : Provides a complete picture of what's happening in front of your door.

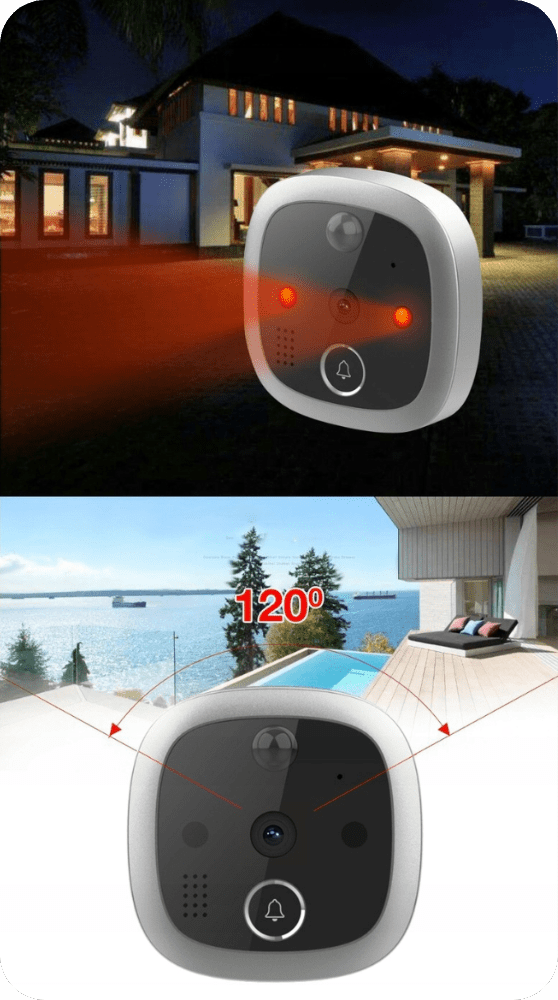

4. Night mode : Built-in two IR LEDs enable visibility in complete darkness up to 5 meters.

5. Doorbell function : When you press the doorbell button, you will hear a pleasant signal and the device will automatically take a photo or record a 10-second video.

6. Supports microSD cards up to 64GB : Allows you to store a large amount of data. When the memory is full, the oldest recordings are automatically overwritten.

7. Long battery life : Built-in 2400 mAh battery provides up to 120 days of operation on a single charge.

8. Simple and non-invasive installation : Fits 99% of doors with a thickness of 35-120 mm and holes with a diameter of 14-22 mm.

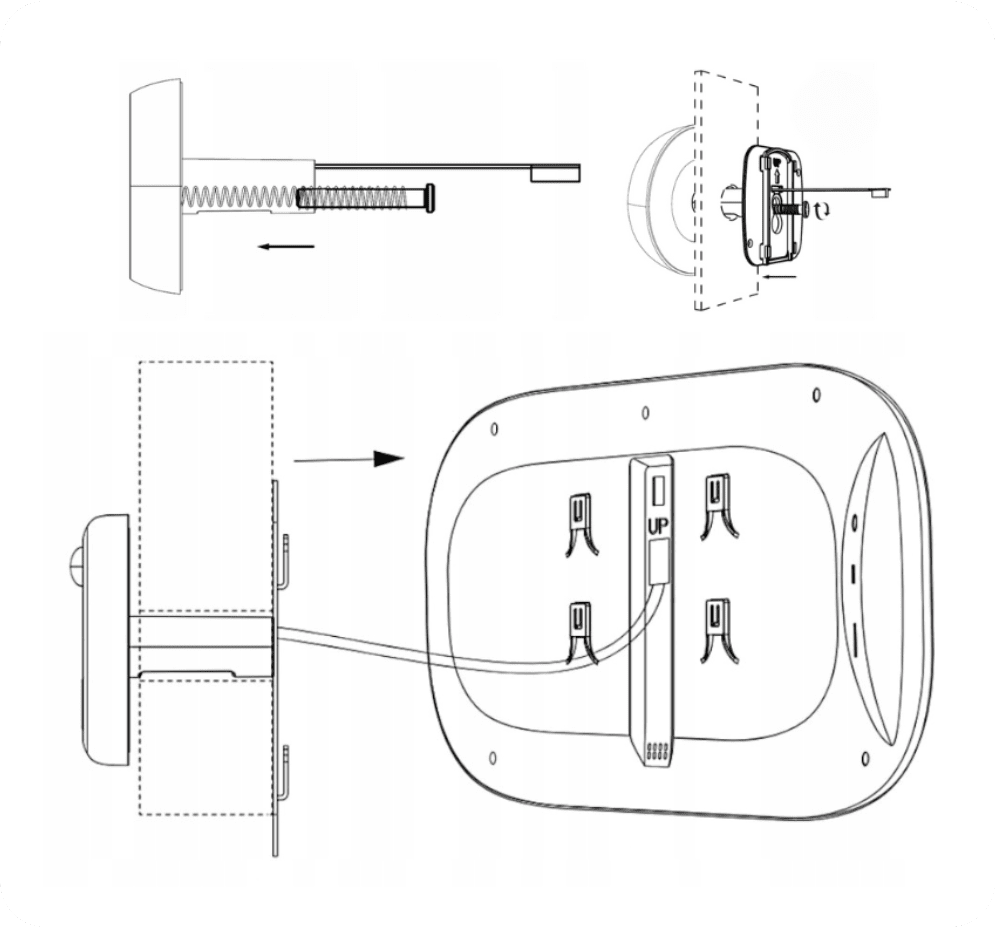

Ease of installation

The device is very easy to install and can be installed in four quick steps:

1. Preparing the peephole : Select a screw the length appropriate to the thickness of your door and screw it into the hole on the back of the peephole. Place the peephole into the door opening, making sure the signal wire and screws are sticking out the other side.
2. Attaching the bezel : Insert the signal tape through the top slot and the screws through the bottom slot of the metal bezel. Slide the bezel up so that the screws are in the narrower part of the holes. Make sure the arrow on the bezel points up.
3. Stabilization : Mount the frame on the door and tighten the screws to stabilize the viewfinder and frame.
4. Connecting the display : Plug the signal connector into the socket on the display and slide the display onto the door frame.

Safety and comfort

An electronic peephole makes it easy to check who's at your door every day. Motion detection with a PIR sensor automatically records unusual behavior, increasing the security of your home. You can also manually take a photo while viewing the situation outside your door.

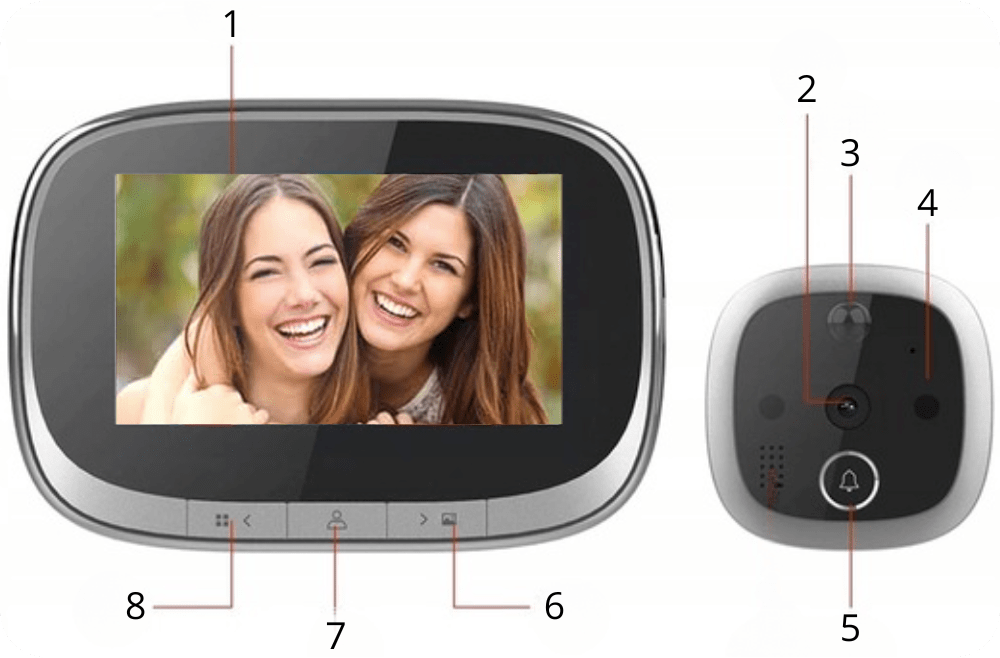

Viewfinder and bell elements

1. Large 4.3-inch color LCD display – provides a clear live image and the ability to view saved photos and recordings, making it easier to identify people at the door.

2. Color camera lens – the high-quality camera captures a clear image, allowing you to identify people standing in front of the door.

3. PIR motion sensor – automatically detects movement in front of the door, activating the camera and recording, which increases the level of security.

4. Built-in IR LEDs – enable night vision, ensuring protection and monitoring even after dark.

5. Bell button – allows guests to easily notify household members of their presence.

6. Right browse button – allows quick access to the gallery of photos or clips stored on your device.

7. Preview button – allows you to quickly check the current camera image without having to enter the menu.

8. Menu button and left button – allows you to activate the menu and navigate through the configuration options.

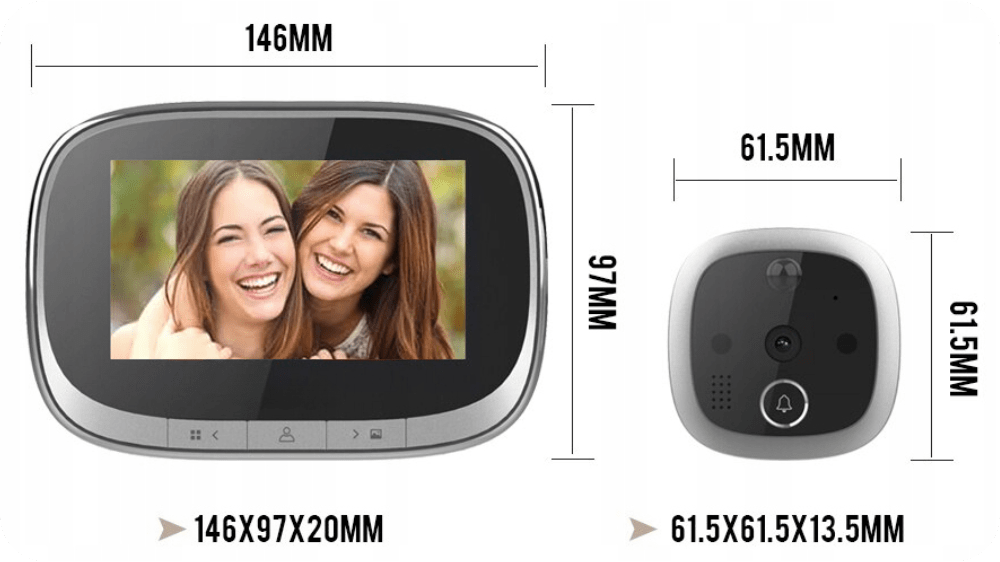

Technical specifications

• Display : Color LCD 4.3" (1280x720 px)
• Camera : Color CCD camera with 120° wide-angle lens
• Motion sensor : PIR
• Night mode : 2 IR LEDs, visibility up to 5 m
• Door Thickness : Fits doors 35-120mm thick
• Mounting hole : Can be installed in holes with a diameter of 14-22 mm
• Power supply : Built-in 2400 mAh battery (up to 120 days of operation)
• Ring function : Yes
• Photo function : Yes (automatically after pressing the doorbell or manually during preview)
• Video recording function : Yes (10-second clips when motion is detected or doorbell is pressed)
• Memory card support : microSD up to 64GB (not included)
• Auto on/off : Yes (turns on when motion is detected or doorbell is pressed, turns off after 15-25 seconds)
• Memory formatting option : Yes

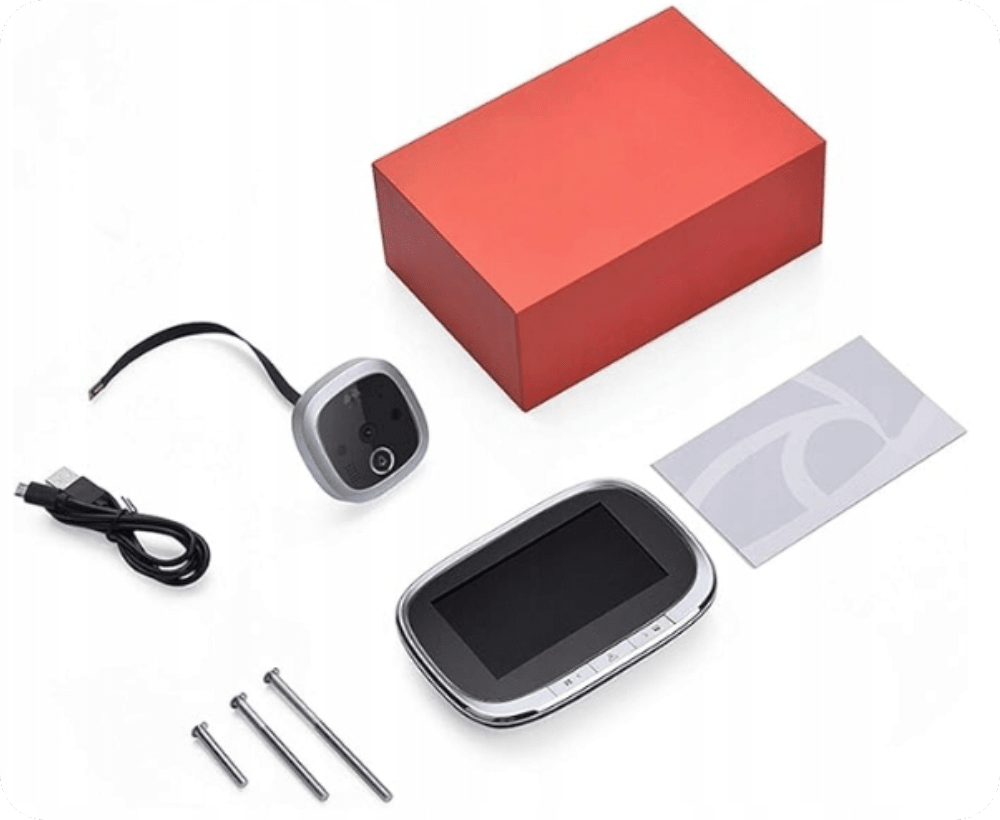

The set includes

• 1x Electronic Viewfinder 550A
• 1x Bell
• 1x Mounting accessories
• 1x microUSB charging cable
• 1x User Manual

The Polish manual is available as an electronic download in the attachment. You'll find it below our product description .
