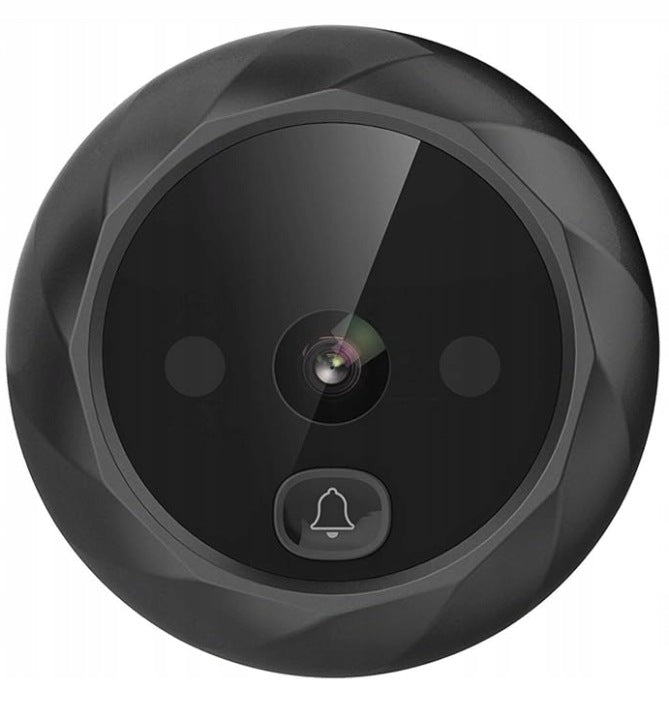

DD3 electronic viewfinder

Introducing the electronic door viewer with photo function —a modern device that will enhance the comfort and security of your home, apartment, or office. Thanks to it, you no longer have to bend down to look through a traditional peephole, gaining a full view of what's happening outside your door .

Additionally, the device functions as a doorbell and allows you to register visitors . The built-in memory can store up to 40 photos , and when it's full, the oldest photos are automatically overwritten. This is the only model on the market with a built-in battery that can operate for up to 120 days on a single charge.

Key Features

1. Excellent workmanship and modern design : The elegant appearance makes the device fit perfectly into any interior.

2. 2.4" color LCD display : Large and readable screen ensures ease of use.

3. 90° Wide Viewing Angle : Super wide lens allows you to see more.

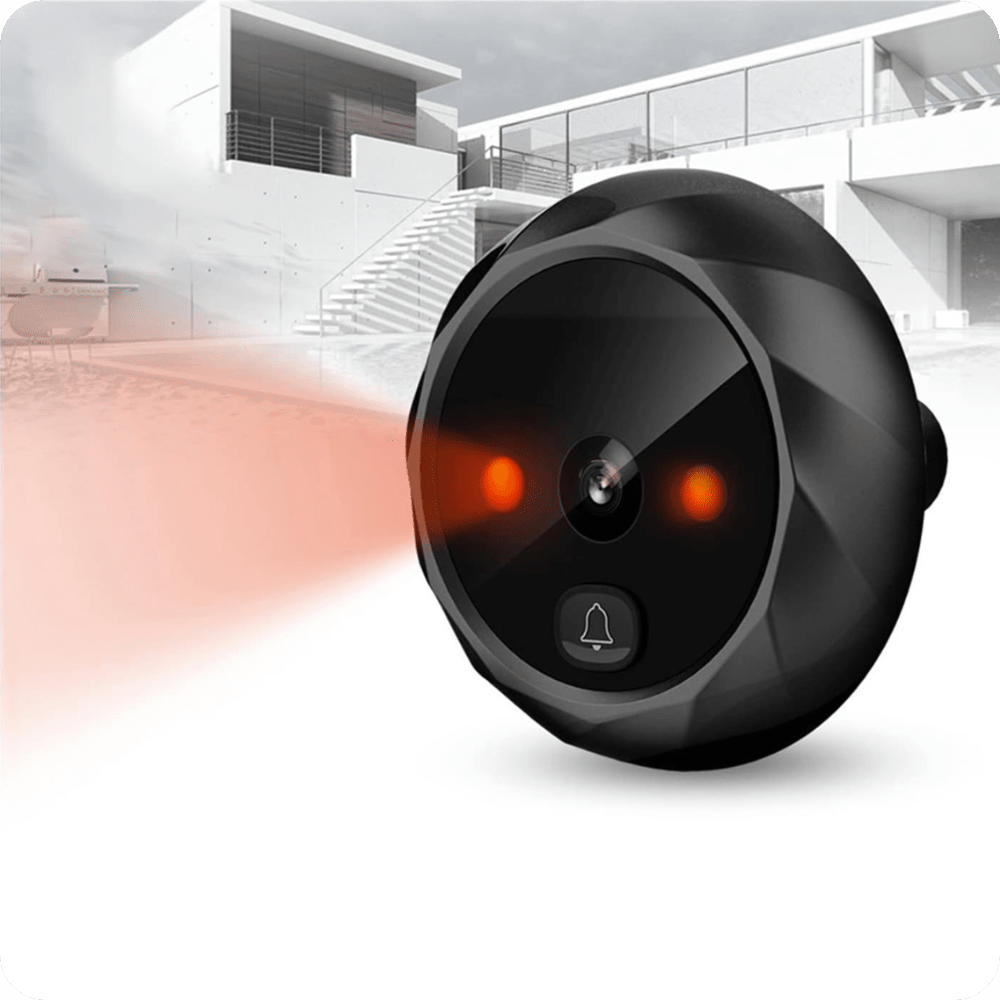

4. Night mode : Built-in 2 infrared LEDs allow you to see in complete darkness up to 5 meters.

5. Ringing function : When you press the ringing button, you will hear a pleasant sound and the viewfinder will take and save a photo in the device's memory.

6. Built-in memory for 40 photos : Automatically overwrites the oldest photos when the memory is full.

7. Built-in 600mAh battery : Long-lasting operation without the need for frequent charging (charging cable included).

8. Versatile installation : Fits 99% of available doors with a thickness of 35-120 mm.

9. Simple and non-invasive installation : Quick installation without the need for specialized tools.

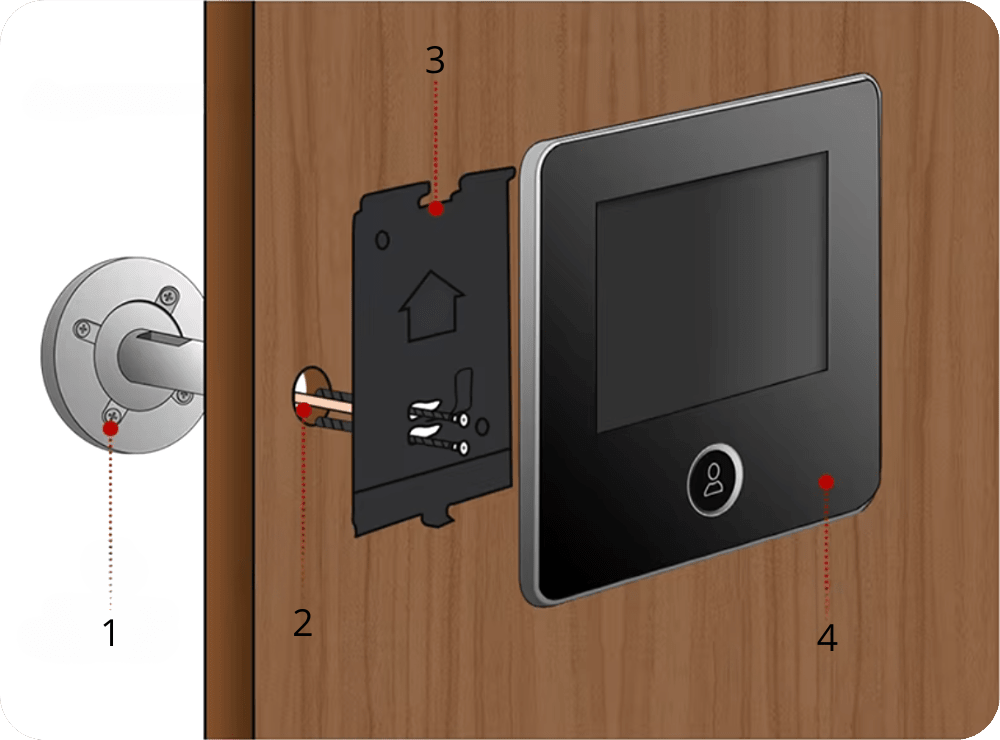

Easy assembly in 4 steps

1. Prepare the peephole : Select a screw that is the same length as the door thickness and screw it into the hole at the back of the peephole.
2. Place the peephole in the door : Insert the peephole into the hole in the door, making sure the signal wire and screws are sticking out the other side.
3. Attach the frame : Insert the signal tape through the top slot and the screws through the bottom slot of the metal frame. Tighten the screws to stabilize the viewfinder and frame.
4. Connect the display : Plug the signal connector into the socket on the display and slide the display onto the door frame.

Safety and comfort

An electronic peephole makes it easier to see who's at your door every day. You no longer have to bend down and peer into a traditional peephole.

The device automatically saves photos of people who ring your doorbell , so you'll know who's visiting even when you're away. Additionally, you can manually take a photo of the situation outside your door while viewing the preview.

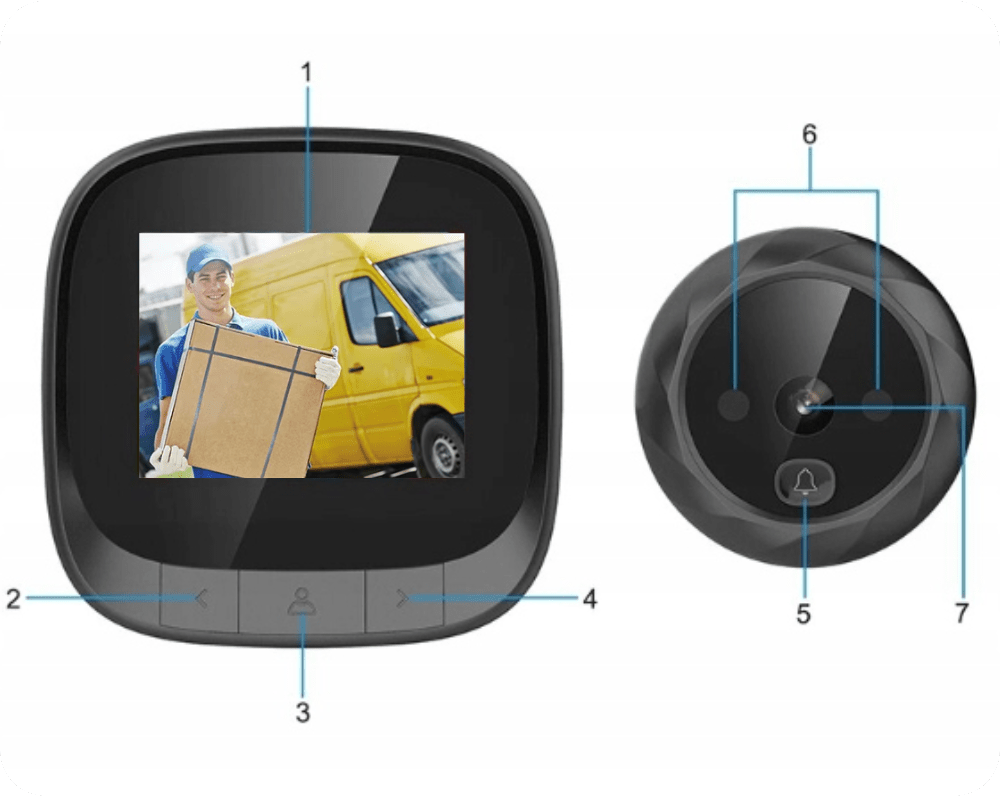

Viewfinder and bell elements

1. LCD display – a clear screen allows you to easily view the camera image and browse saved photos.

2. Left button – allows you to browse photos to the left and navigate the device menu.

3. Power/Capture Button – Allows you to turn the device on and off, as well as confirm selected menu options.

4. Right button – allows you to browse photos to the right and navigate the menu.

5. Bell button – allows guests to notify residents of their presence using a bell integrated with the camera.

6. IR LEDs – built-in infrared LEDs enable night vision, ensuring security and monitoring even after dark.

7. Camera – a high-quality camera records images in real time, allowing identification of people in front of the door.

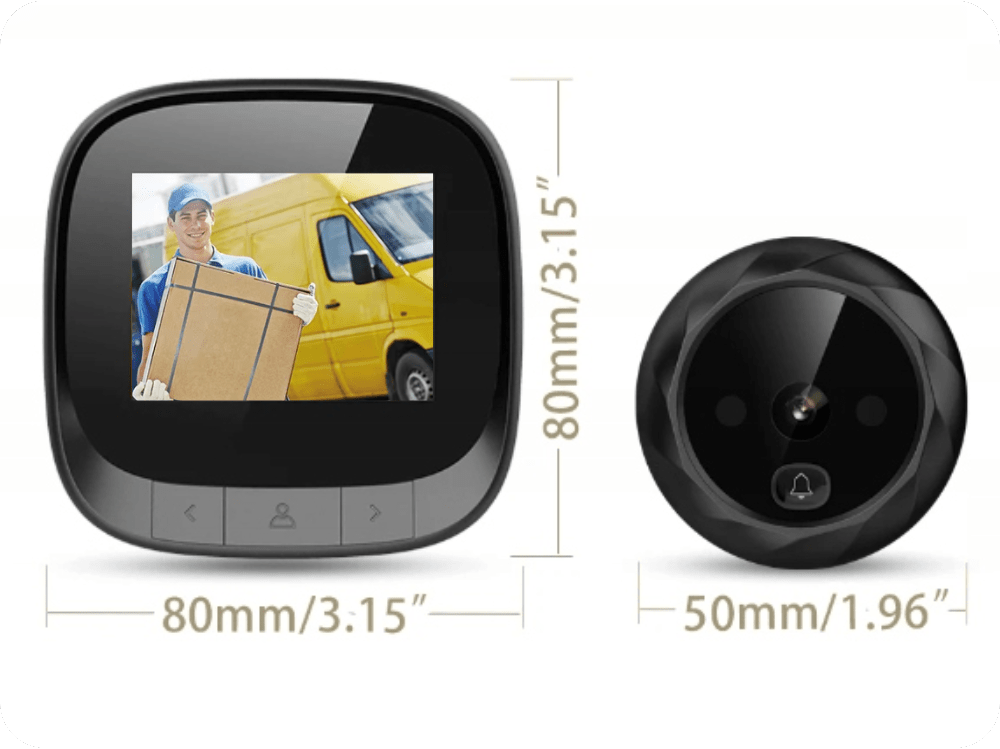

Technical specifications

• Display : 2.4-inch color LCD (320x240 px)
• Camera : Color CCD camera with 90° wide-angle lens
• Night mode : 2 IR LEDs, visibility in complete darkness up to 5 m
• Door Thickness : Fits doors 35-120mm thick
• Mounting Hole : Can be installed in holes with a diameter of 14-28 mm (ideal replacement for the old viewfinder)
• Power supply : Built-in 600 mAh battery (up to 120 days of operation on a single charge)
• Ring function : Yes
• Photo function : Yes (after pressing the bell or manually during preview)
• Built-in memory : Yes (up to 40 photos with overwrite option)
• Automatic switch-on : Yes (after pressing the doorbell or home button)
• Auto power off : Yes (after about 15-25 seconds)
• Memory formatting option : Yes

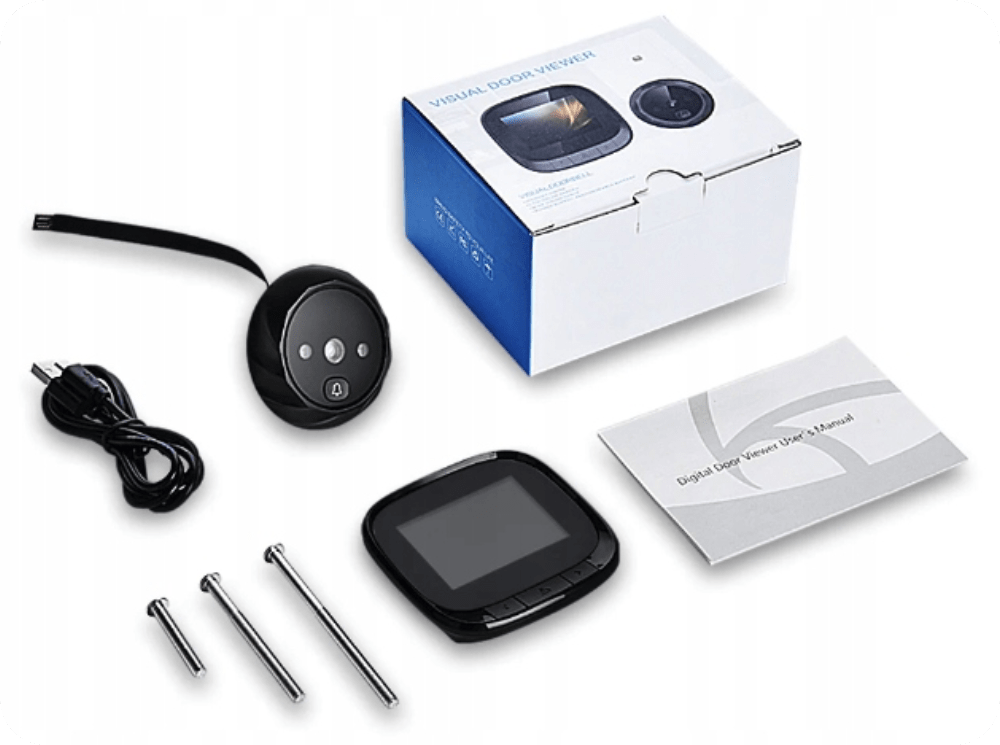

The set includes

• 1x DD3 Electronic Viewfinder
• 1x Bell
• 1x Mounting accessories
• 1x Power cable
• 1x User Manual

The Polish manual is available as an electronic download in the attachment. You'll find it below our product description .
