Wireless solar alarm siren WSR200

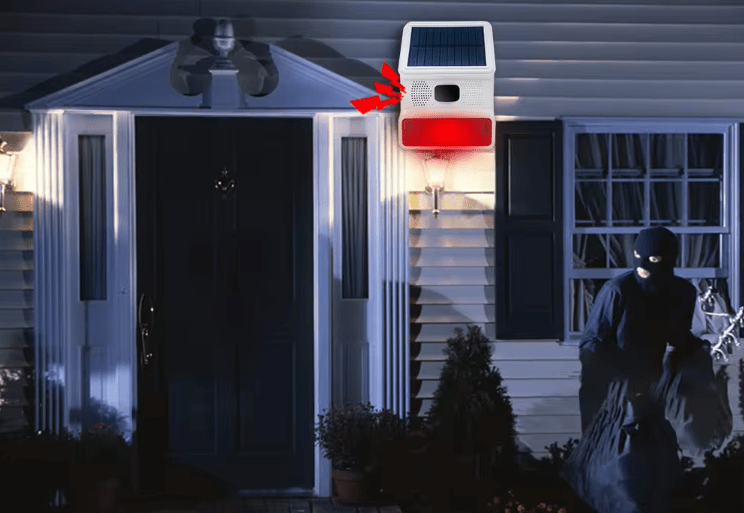

The Spreest wireless solar alarm siren is an advanced alarm device, ideal for protecting homes, shops, warehouses, and other facilities. Thanks to its built-in solar panel and wireless communication, the siren offers flexibility and ease of installation, requiring no complicated wiring.
Wireless sirens eliminate the need for cabling, making it effortless to install this siren anywhere. It works with alarm systems available in our offer, including H700, H501, and other GSM and Wi-Fi alarms operating at 433 mHz. For alarming, the siren must be wirelessly paired with the alarm system via the 433mHz frequency.
Key Features
1. Solar Power and Wireless: The siren is solar-powered, eliminating the need for traditional power sources and complicated cable installations.

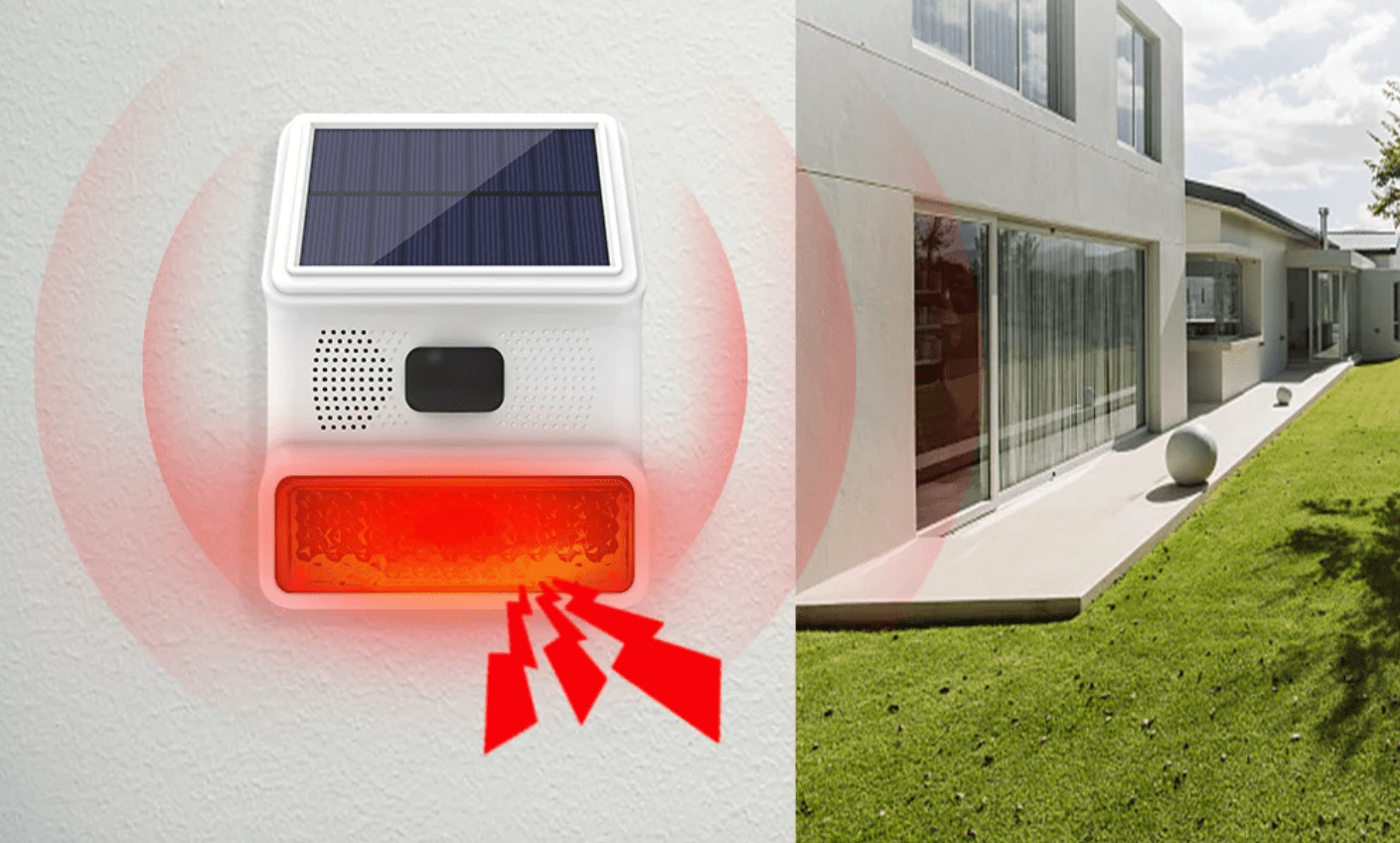

2. Bright Strobe Light: Emits a powerful and bright light that effectively attracts attention and alerts in case of a break-in or security breach. Ensures immediate response to any unauthorized activity.

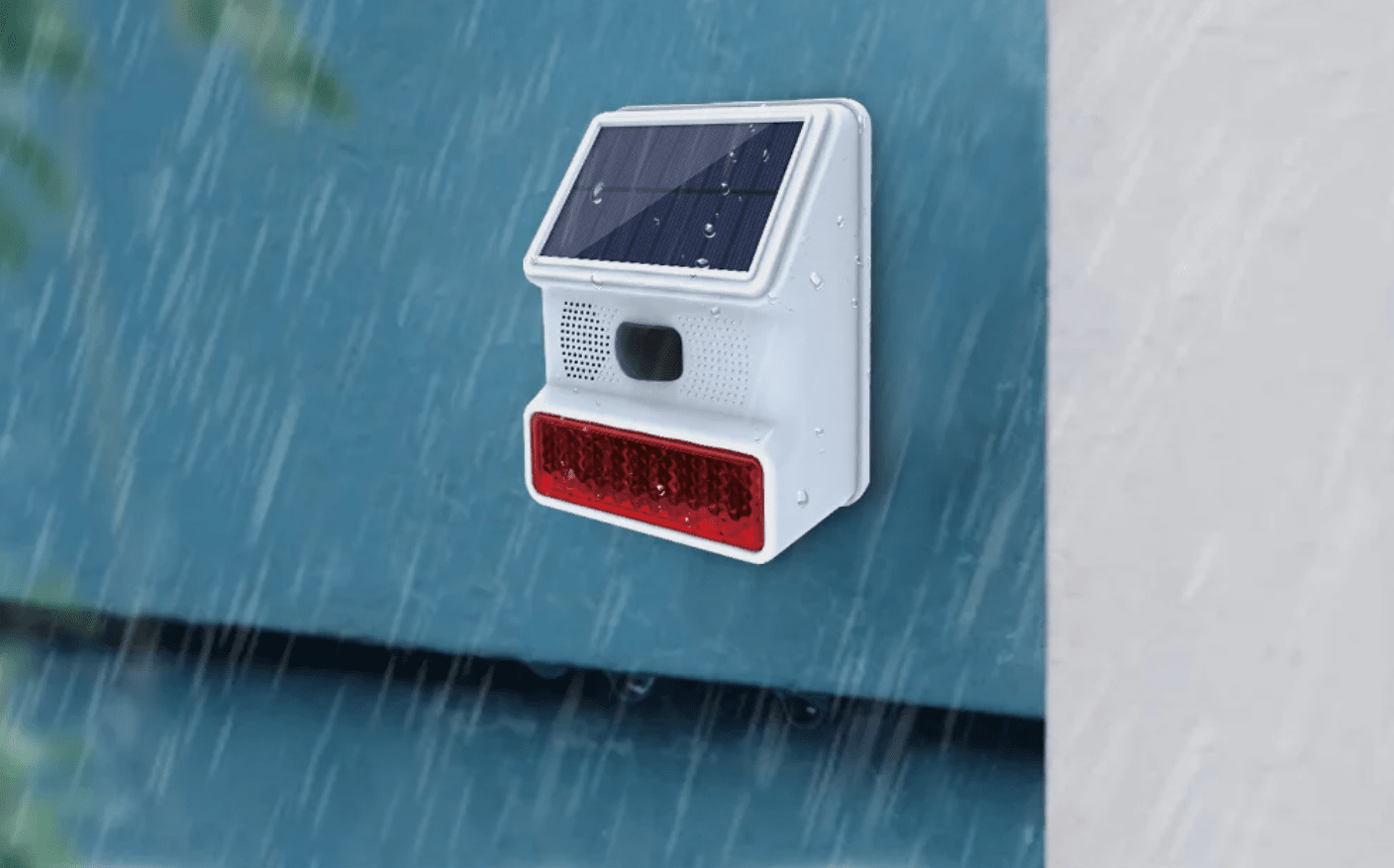

3. Weather Resistance: Built with high-quality materials, the siren is waterproof and resistant to harsh weather conditions (IP65), ensuring reliable outdoor operation.
4. Operating Distance: The siren must be located up to 100m (in open terrain) from the control panel.
5. Adjustable Alarm Duration: The siren's operating time can be adjusted to 5 minutes, 3 minutes, 1 minute, or continuous mode.
6. Anti-Tamper Protection: Additional protection against siren tampering, securing it against unauthorized attempts at removal.
7. An Alarm Everyone Will Hear: A loud 110dB siren ensures the alarm will not go unnoticed.
Installation and Settings
1. Mounting: It is recommended to mount the siren in a central location in the house or on the property for best signal reception from all wireless detectors.
• Example: Mount the siren on the house wall, facing the yard, so it can effectively receive signals from sensors installed on the gate and windows.

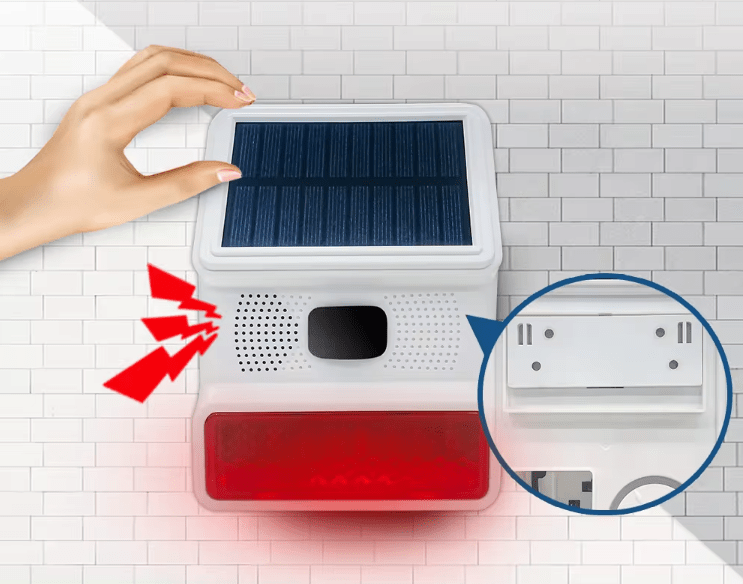

2. Ease of Installation: Screw the mounting plate to the wall using the included screws and wall plugs. Then attach the siren to the mounting plate by aligning it and sliding it downwards.
Configuration and Usage
The siren offers three main operating scenarios that can be adapted to different situations:
1. Pairing with a Remote Control: Hold the SET button until the siren beeps and flashes. Releasing the button will make the siren flash rapidly, entering pairing mode. Press any button on the remote control for the siren to learn its signal.
2. Pairing with Wired Sensors: Similar to the remote control, hold the SET button until the siren beeps and flashes. Then activate the detector for the siren to learn its signal.
3. Operating as a Wireless Siren: Press and hold the SET button until the siren beeps and flashes three times, entering pairing mode with the alarm control panel. Spreest brand alarm systems are compatible with this siren.
Technical Specification
- Alarm volume: 110dB
- External input power: DC5V/1A
- Solar panel output: 5.0V
- Standby current: <1 mA
- Alarm current: <150mA
- Wireless frequency: 433MHz
- Water resistance: IP65
- Wireless coding: EV1527/2262
- Backup battery: 3.7V 1000mA Lithium
- Operating temperature: -20°C to 55°C
- Operating humidity: 40%-80% (non-condensing)

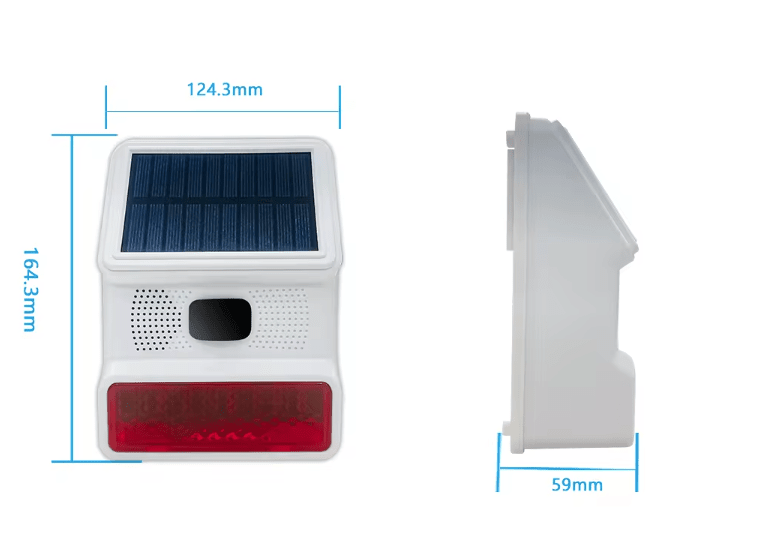

- Dimensions: 164.3 x 124.3 x 59 mm
- Wireless reception range: >100m (open space)
Siren Configuration
The siren is configured by setting the jumpers on the internal panel of the siren in a specific and preferred way.
1. Alarm Tone Selection:
• No jumper on JP2 and JP3 for police alarm
• Jumper on JP2 for fire alarm
• Jumper on JP3 for ambulance alarm
• Example: You can customize the alarm tone depending on the situation, for instance, setting a different sound for night and day to more easily recognize the type of threat.
2. Siren Duration:
• No jumper on JP1 for 5-minute duration
• Jumper on JP1 (Pins 1 and 2) for 1-minute duration
• Jumper on JP1 (Pins 2 and 3) for 3-minute duration
• Example: You can set the alarm duration according to your needs, for instance, a shorter time at night so as not to wake up neighbors for too long.
3. Infrared (IR):
• Jumper on JP5 to enable infrared
• No jumper on JP5 to disable infrared
• Example: You can enable infrared detection to increase motion detection range, which is useful in larger gardens or areas.
4. Siren Mode:
• Jumper on JP4 for acoustic and light alarm
• No jumper on JP4 for light only
• Example: You might choose to use only the strobe light at night to avoid noise that could disturb neighbors.
Wired Zone Connection
1. Wired Zone Connection:
• CN1 for wired zone 1: Z0 to GND
• CN1 for wired zone 2: Z1 to GND
• Example: You can connect additional wired sensors, such as door opening sensors, which require a more stable connection than wireless sensors.
Included
- 1x WSR200 Alarm Siren
- Set of mounting screws and wall plugs
- User Manual
