K3FW TTLock electronic lock

Key Features

1. Versatile lock unlocking - Supports up to 500 universal codes, 2000 IC cards and 100 fingerprints, allows remote opening via the TTLock application (with a gateway), adding remote controls and generating one-time and cyclical access codes.

2. Notifications - Activation of notifications when the lock is unlocked or an attempt is made to open it by force.

3. Company management function - Advanced employee management functions by assigning them access codes/RFID cards/fingerprints, which allows monitoring arrivals and departures, generating reports.

4. Automatic closing - Thanks to the auto-lock function, the lock automatically secures the door after a specified period of time.

5. Integration with rental access management systems. Particularly useful when managing multiple rooms for rentals , such as those on the AirBnb platform.

6. Emergency locking function . Once enabled, the lock will only be accessible with a physical key. This can ensure safety in emergency situations.

7. Water resistance - IP67 waterproof class, ideal for outdoor use.

8. Simple configuration - Easy process of adding new users and managing access via the TTLock application .

9. Open Door Mode - Allows you to temporarily disable the closing mechanism, which is ideal for meetings or events.

10. Smart home integration - Compatible with Amazon Alexa and Google Home for even more convenience and voice control.

11. Quiet operation - Possibility to mute the signal sounds, ensuring comfort especially at night.

12. Updates and security - Zamek allows for easy software updates, guaranteeing access to the latest features and security features.

Full access control

Thanks to the TTLock application , it offers unlocking using: fingerprint, codes, IC cards, remote controls, as well as functions of automatic locking, pass-through mode, mute sounds, notifications, software updates and integration with Amazon Alexa and Google Home .

The system allows you to generate various types of access (permanent, temporary, cyclical, one-time), manage them in the application and monitor user activity.

It is ideal for use at home, in companies or in accommodation facilities, providing full control, flexibility and a high level of security .

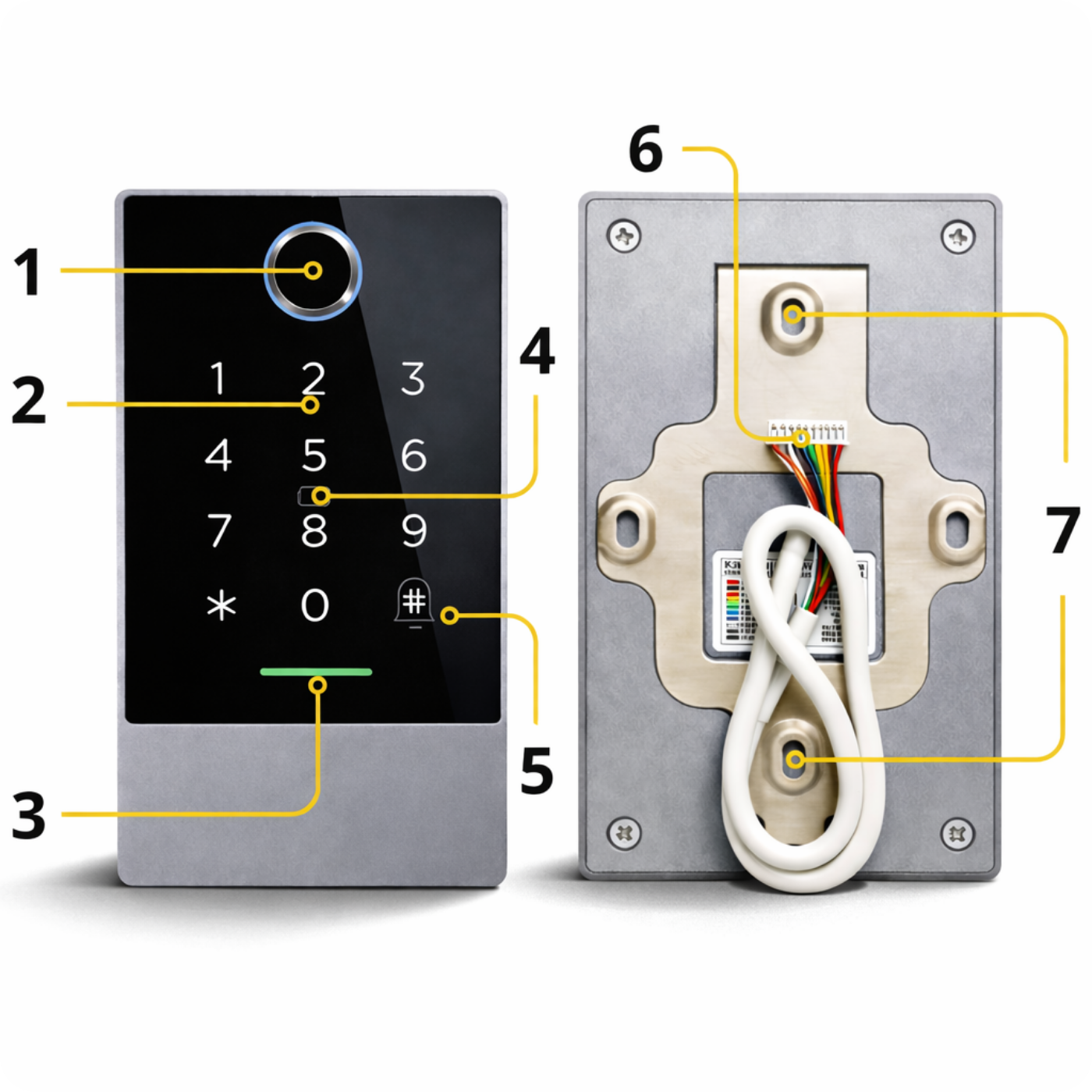

Lock components

1. Fingerprint area to unlock the lock ( indicator diode - green light - correct, red light - incorrect)

2. The place where you place the IC proximity card

3. Bell

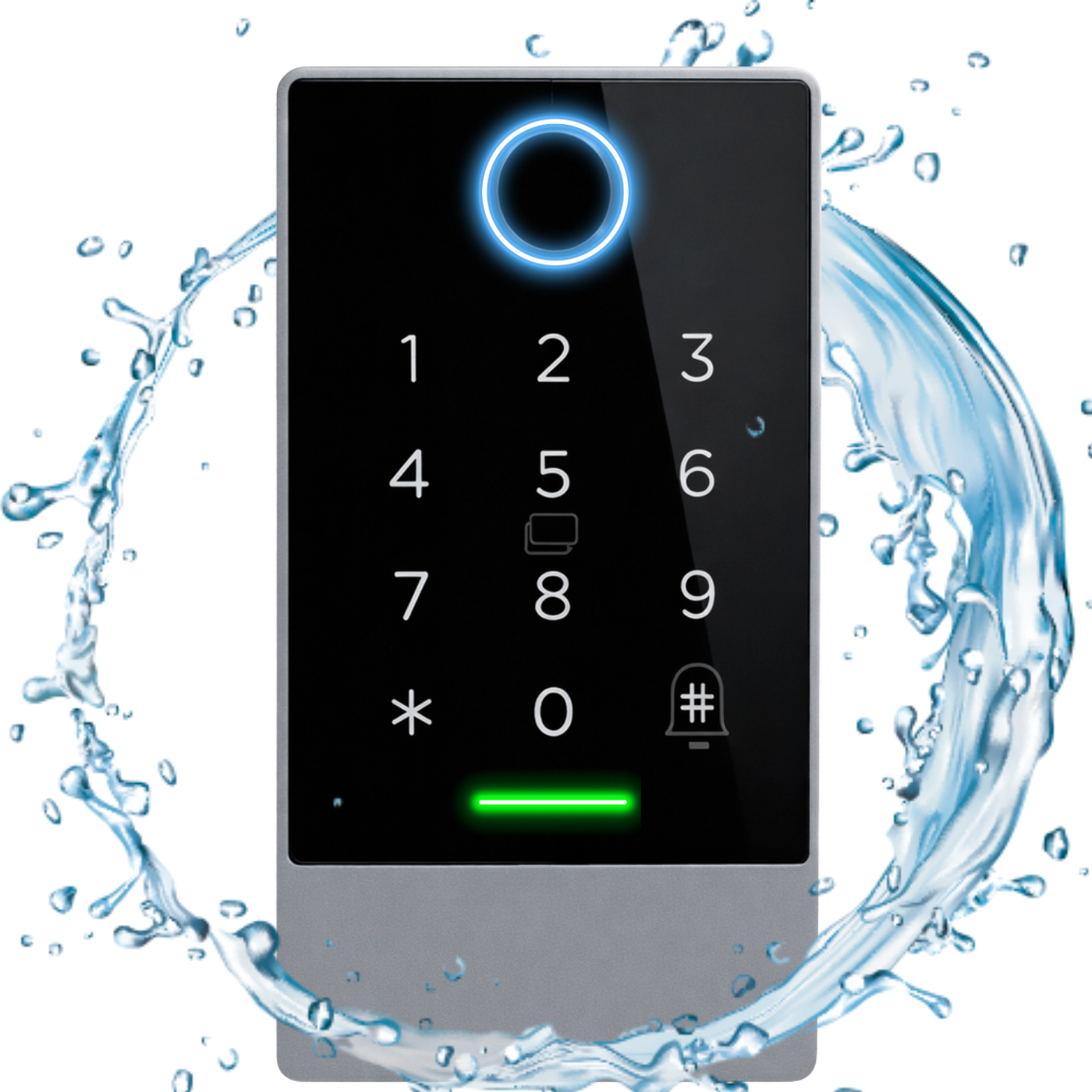

IP67 waterproof

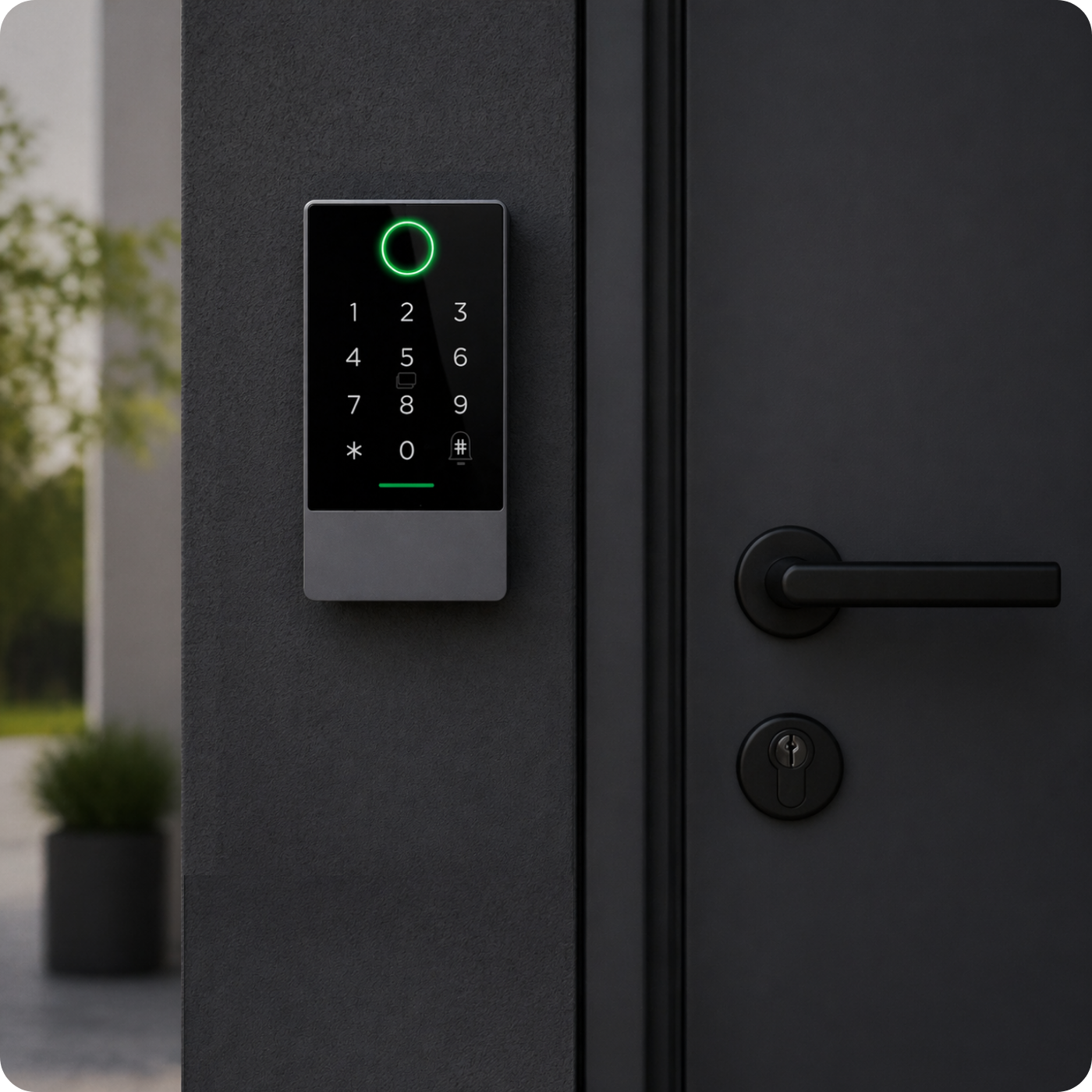

Thanks to its high waterproof rating, the lock operates effectively in all weather conditions , from rainy days to snowy winters. Whether you install it on your entrance gate, garage, or front door , you can be sure that the lock will provide reliable protection and durability for many years to come.

The perfect solution for both indoor and outdoor applications.

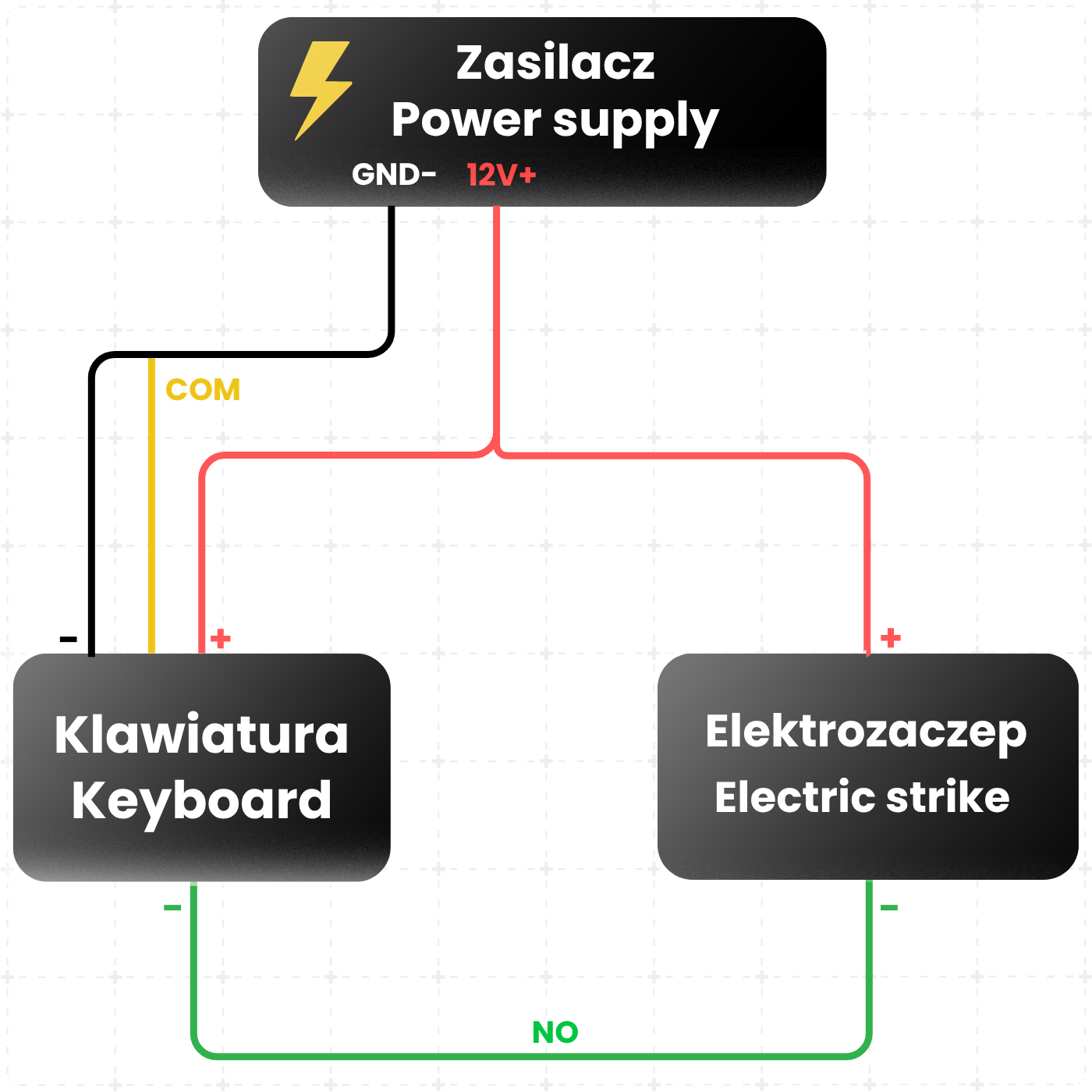

Connections and applications

• 12V (Red) – lock power supply
• GND (Black) – grounding
• NC (Orange) – Normally Closed Circuit (e.g. safety sensors)
• COM (Yellow) – Common Connection Point
• NO (Green) – Normally Open Circuit (e.g. exit buttons)
• SW (Blue) – connection to switches or triggers
• IN (Purple) – signal input (e.g. sensors, buttons)
• OUT (White) – signal output (e.g. doorbell control)
• BELL1 (Gray) – connection with the first ring
• BELL2 (Brown) – connection to the second bell

Additional system components: 12V power supply, exit button, door locking electromagnet, access controller and doorbell.

Technical specifications

• Operating voltage: DC 12V
• Lock output load: ~1A
• Standby current: 28mA
• Card capacity: 2000 users
• Password capacity: 500
• Fingerprint capacity: 100
• Lock closing delay time: default 5s (adjustable)
• Waterproof: IP67
• Material: ABS

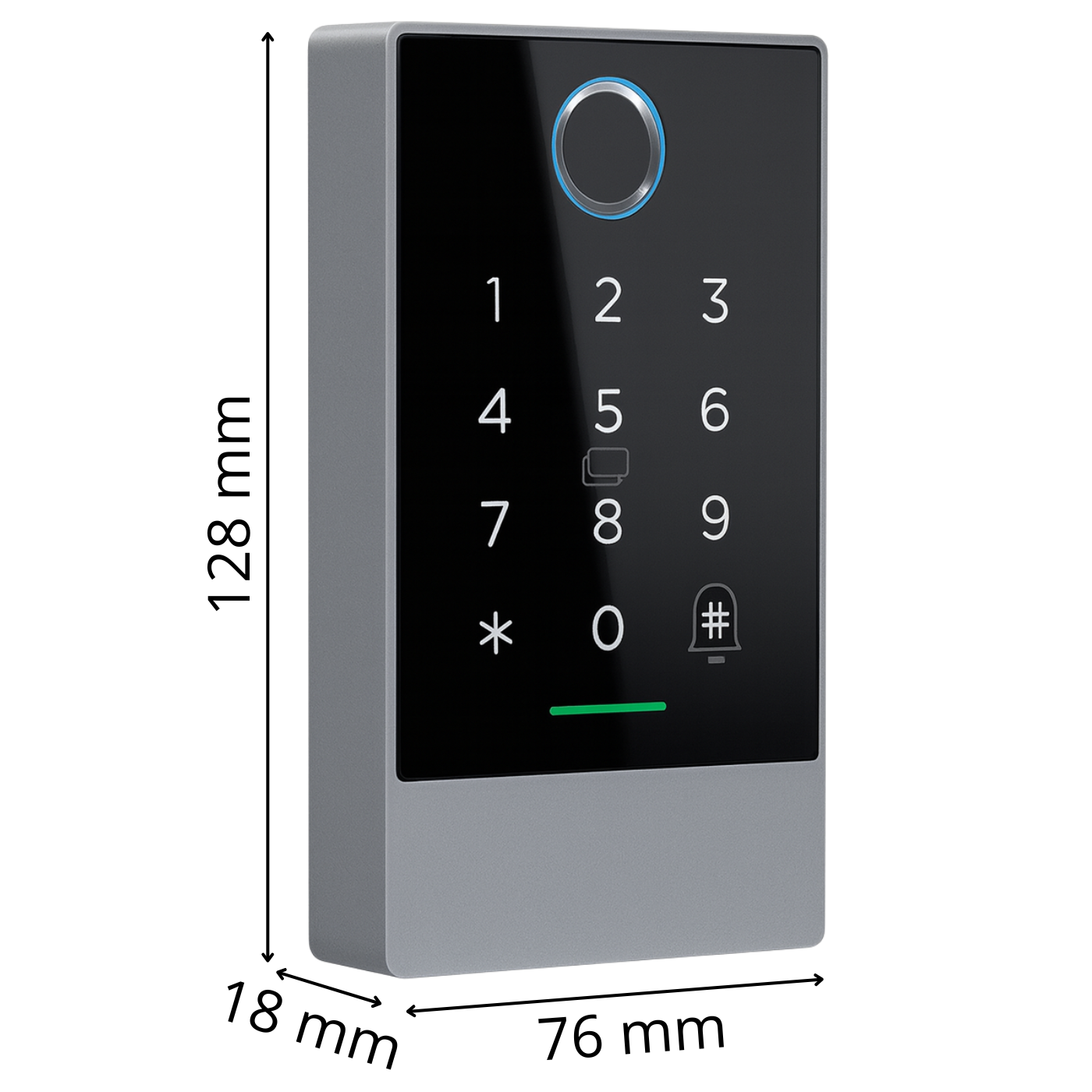

• Dimensions: 128 mm × 76 mm × 18 mm

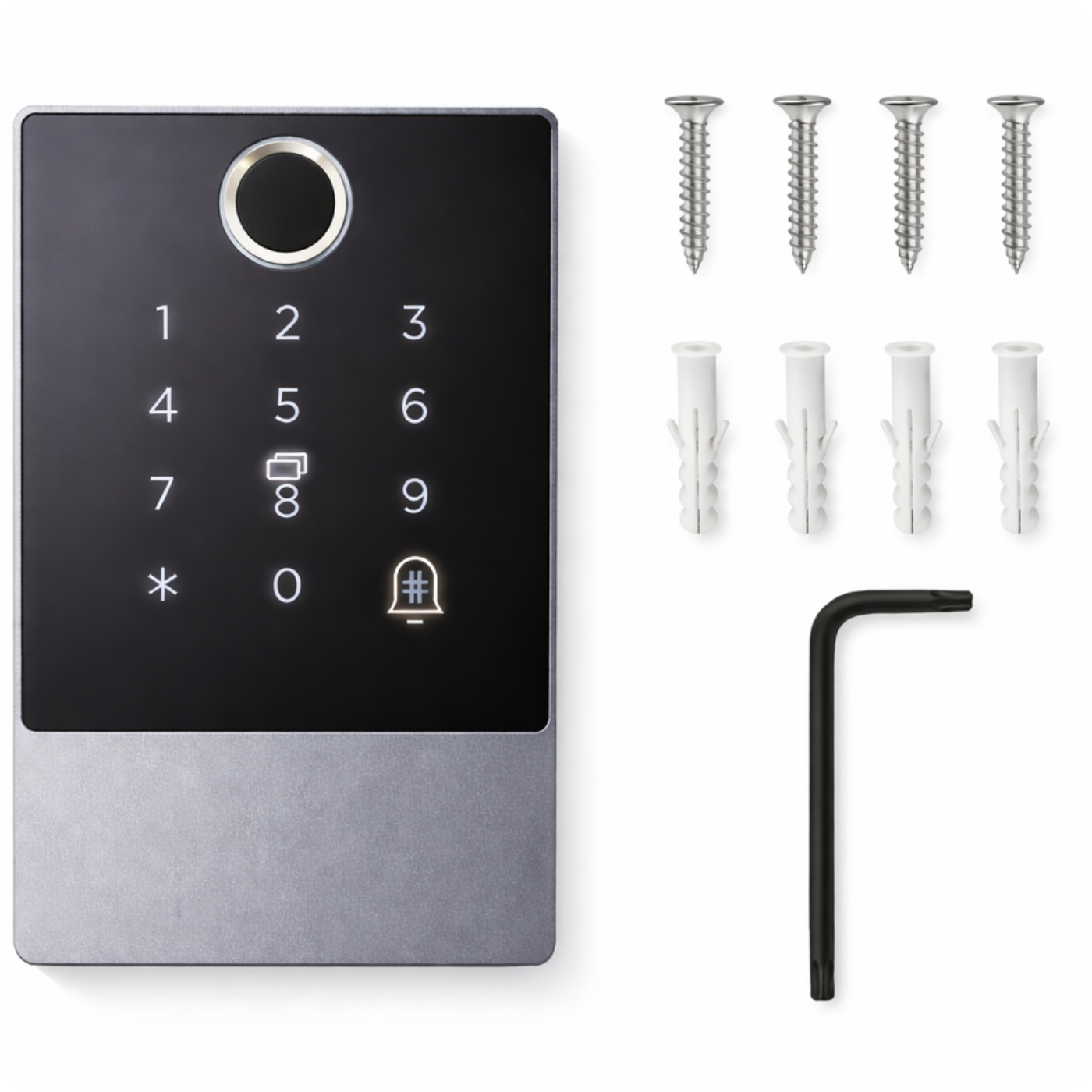

The set includes

• 1x K3FW WiFi Code Lock with Keypad
• 1x Set of mounting accessories
• 1x User Manual

The Polish manual is available as an electronic download in the attachment. You can find it above or below our product description .
