K5F TTLock electronic lock

Key Features

1. Versatile lock unlocking - The lock supports up to 500 codes, 100 face scans, 2,000 IC cards, and 100 fingerprints. It also offers remote opening via the TTLock app (using a gateway), remote control, and the ability to remotely generate one-time or recurring access codes.

2. Notifications - Activation of notifications when the lock is unlocked or an attempt is made to open it by force.

3. Company management function - Advanced employee management functions by assigning them access codes/RFID cards/fingerprints, which allows monitoring arrivals and departures, generating reports.

4. Automatic closing - Thanks to the auto-lock function, the lock automatically secures the door after a specified period of time.

5. Integration with systems for managing access to rented spaces - Particularly useful when managing multiple rooms when renting , e.g. on the AirBnb platform.

6. Emergency locking function . Once enabled, the lock will only be accessible with a physical key. This can ensure safety in emergency situations.

7. Water resistance - IP66 waterproof class, ideal for outdoor use.

8. Simple configuration - Easy process of adding new users and managing access via the TTLock application .

9. Open Door Mode - Allows you to temporarily disable the closing mechanism, which is ideal for meetings or events.

10. Smart home integration - Compatible with Amazon Alexa and Google Home for even more convenience and voice control.

11. Quiet operation - Possibility to mute the signal sounds, ensuring comfort especially at night.

12. Updates and security - Zamek allows for easy software updates, guaranteeing access to the latest features and security features.

Full access control

The TTLock app provides comprehensive and flexible lock management, combining convenience with a high level of security .

It allows for remote door opening , automatic locking after a specified time, pass-through mode, and sound muting. It supports various access methods: codes (permanent, time-based, single-use, cyclical), fingerprints, face scans, IC cards, and remote controls that can be assigned with various permissions.

The app also allows integration with Amazon Alexa and Google Home , sends notifications about unlocking, allows you to freeze the lock, import data, update firmware, and check the room status – which is especially useful in hotels or rentals.

For companies, features like creating a company profile, adding staff, monitoring activity and generating reports are available, making TTLock an effective access management tool.

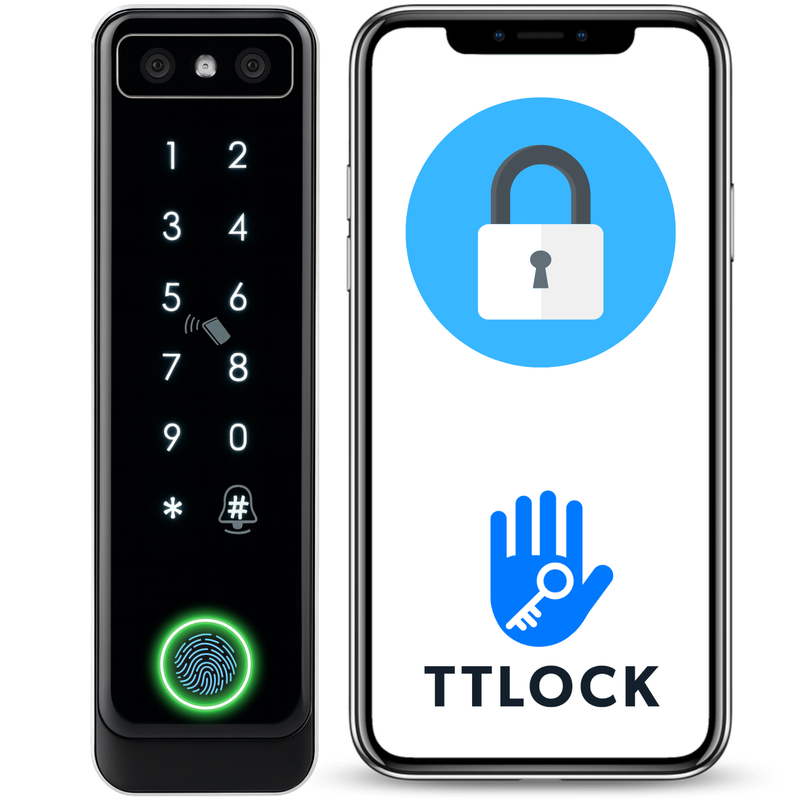

Lock components

1. Fingerprint area to unlock the lock ( indicator diode - green light - correct, red light - incorrect)

2. Camera supporting face unlocking, you need to wake up the device with a movement, then the lock automatically scans the face of the person in front of the lock ( indicator diode - green light - correct, red light - incorrect)

3. Numeric keypad for convenient unlocking using generated codes (permanent, temporary, cyclical, one-time)

4. The place where you place the IC proximity card/key fob/sticker

5. Doorbell (possibility of connecting an external wired doorbell)

IP67 waterproof

Thanks to its high waterproof rating, the lock operates effectively in all weather conditions , from rainy days to snowy winters. Whether you install it on your entrance gate, garage, or front door , you can be sure that the lock will provide reliable protection and durability for many years to come.

The perfect solution for both indoor and outdoor applications.

Connections and applications

• 12V (red) – lock power supply
• GND (black) – lock grounding
• NC (orange) – normally closed circuit, e.g. for safety sensors
• COM (yellow) – common connection point for signals
• NO (green) – normally open circuit, e.g. for exit buttons or triggers
• SW (blue) – connection to switches or other triggers
• IN (purple) – signal input, e.g. for sensors or buttons
• OUT (white) – signal output, e.g. for controlling devices (e.g. doorbell)
• BELL1 (gray) – connection to the first doorbell
• BELL2 (brown) – connection to the second doorbell

Additional schema components

• 12V Power Source – the system's power source
• Exit Button – an exit button that allows opening from the inside
• Magnetic Strike – a door locking electromagnet controlled by the lock
• Access Controller – an access controller that manages opening methods
• Door Bell – a bell signaling the arrival of guests

Technical specifications

• Bluetooth version: 5.0
• Communication: Bluetooth 5.0
• Supported systems: Android 4.3/iOS 7.0 and above
• Quiescent current: ≈ 15 mA
• Dynamic current: ≈ 1 A
• Power supply mode: 12V
• Card capacity: 1000 users
• Password capacity: 500
• Face scan capacity: 100
• Fingerprint capacity: 100
• Lock closing delay time: default 5s (adjustable)
• Waterproof: IP66
• Dimensions: 79 x 145 x 19 mm

The set includes

• 1x K5F TTLock code lock
• 1x Set of mounting accessories
• 1x User Manual

The Polish electronic manual is available as a downloadable attachment. You can find it above or below our product description .
