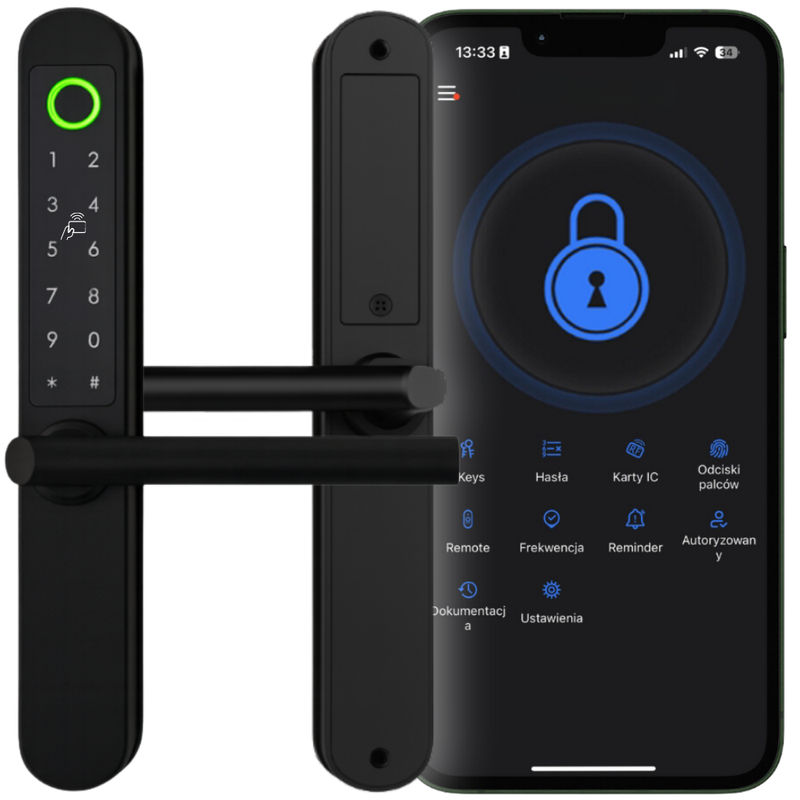

Electronic lock handle A211F 50/72 TTLock

Opening methods

1. Fingerprint – quick entry thanks to fingerprint recognition.
2. Mechanical key – a classic emergency option when the batteries are dead.
3. Contactless card or key fob – just place it on the reader and you’re done.
4. PIN code – enter your own code and enter without keys.
5. Bluetooth and app – the lock opens with one click on your phone.
6. Apple Watch

Application capabilities

• Remote control – open and configure the lock from anywhere (gateway required), without a gateway within Bluetooth range.
• Automatic locking – set the time after which the lock will close itself.
• Alerts and event log – push notifications + full opening history.
• Code profiles and eKeys – permanent, temporary, cyclical or one-time guest access.
• Card, remote and fingerprint support – add and manage in just a few clicks.
• OTA updates – wireless firmware updates.
• Voice integration – commands via Amazon Alexa and Google Assistant.
• Silent Mode – Mute lock beeps when you need silence.

Additional features for businesses

• Integration with Booking, Airbnb, Hotres – automatic assignment of codes for online bookings.
• Multi-location panel – manage multiple locks and objects in one application.
• Roles and permissions – create groups (administrator, reception, service) with different levels of access.
• Work schedules – define office opening hours and grant access only at specific times.
• Attendance reports – export check-in/check-out reports (late arrivals, early departures).
• Lock “freeze” – temporary deactivation of all electronic opening methods (e.g. alarm).
• Bulk addition of users – importing a list of employees or tenants from a CSV file.
• Wi-Fi gateway → multiple locks – economical expansion of the system in a large facility.

Installation

You can install the handle yourself in most apartments and houses, it fits doors 35–60 mm thick, both left and right , wooden, steel or aluminum.

In the box you will find three complete sets of screws and bushings dedicated to the following ranges:

1. 35–50 mm
2. 51–60 mm

The handle works with standard mortise locks – so you can install it on the existing mechanism without replacing the entire fitting .

The set includes a mortise lock with a 72/50 spacing, ready for immediate installation.

If your door is already equipped with a lock, simply reposition the pin and screw on the handle to instantly enjoy smart access.

Low battery alarm

The lock is equipped with a low battery alarm, allowing you to constantly monitor the power status . A notification will be sent to the app when the battery level is ≥20%, ≥10%, or ≥5% , and the lock itself will flash a red light (3 flashes) when it unlocks.

The device is powered by four AA batteries that can last up to 9 to 12 months.

Product elements

1. Battery box for 4x AAA batteries
2. Emergency charging port and mechanical key input
3. Handle grip (pulling the handle up locks the lock, while pulling it down opens the lock)
4. 13.56 MHz access card reader
5. Touch keyboard
6. Fingerprint reader

Specification

• Material: 304# stainless steel, ABS, acrylic
• Color: Satin Nickel / Black Nickel
• Door thickness: 35–60 mm
• Communication: Bluetooth 4.0
• Battery life: 12 months at ~30 openings per day
• Power supply: DC 6 V – 4 AAA batteries
• Quiescent current: < 45 µA
• Operating current: < 200 mA
• Waterproof: Outdoor panel IP65
• Unlock methods : fingerprint, 13.56 MHz card, password, app, mechanical key
• Unlock time: 0.5~1.5 seconds
• Operating temperature: –20 °C to +50 °C
• Operating humidity: 10% – 95%
• User capacity: 200 access cards, 150 codes, 100 fingerprints

The set includes

• 1x Electronic lock handle A211F 50/72 TTLock
• 1x Mounting accessories for different door thicknesses (35-60mm)
• 1x Mortise lock with a 50/72 spacing (you don't need to use the one in the set, you can use your existing lock)
• 2x Mechanical key
• 2x Access Card
• 1x User Manual

The Polish manual is available as an electronic download in the attachment. You can find it above or below our product description.

FAQ – frequently asked questions

1. Does the lock work without an internet gateway? - Yes. Operation is then via Bluetooth – codes can only be entered while at the door, and the event history is synchronized upon reconnection.
2. Can the handle be positioned to the right or left? - Yes, the handle direction is variable and is set during assembly.
3. What if the lock runs out of battery? - The lock warns when the battery is ~30%. Once completely discharged, you can power it with a power bank through the charging port or open it with an emergency key.
4. Does it lock the lower lock? - By default, it locks the upper latch. If the door is locked with a cylinder lock, the code will not unlock the lower lock – a mortise lock with a cylinder lock is required.
5. What is a Wi-Fi gateway used for? - It allows you to open doors and assign codes remotely. One gateway supports multiple locks within Bluetooth range.
6. Does the app work on all smartphones? - TTLock is available on iOS ≥ 11 and Android ≥ 5.1 (with Bluetooth 4.0 or later support).
7. Is it possible to limit access to specific days or hours? Yes. In the app, you can create cyclical codes or eKeys with a schedule (e.g., Mon-Fri 8am-4pm).
8. Can I export the opening logs to a file? - Yes, TTLock allows you to download the history in CSV or PDF format from the web panel.
9. How many users can I add? - Unlimited. Each can be assigned different permissions: owner, admin, reception, service.
10. Is the software paid? - No. The firmware is free and can be updated over-the-air (OTA) via Bluetooth (or remotely via a gateway).
11. What languages ​​does the app support? - Polish, English, German, Spanish, French and a dozen others.
12. What to do if your phone is lost? - Log in on another device or in the web panel and immediately remove the lost eKey account/phone from the list of authorized users.
