SA-W26 Electronic Lock with 13.56MHz Reader
Discover a robust and convenient way to effectively secure and easily control access to your doors or gates.
The electronic lock from Spreest combines high-quality craftsmanship with modern RFID 13.56MHz identification technology.
Thanks to standalone operation and Master card support, configuration and permission management are intuitive and easy for daily use.
This compact controller fits perfectly on a door frame, allowing secure entry to both home and business, warehouse, or other facility.
Key Features
1. IP44 Waterproof Casing – Resistant to moisture and splashes, it protects against foreign objects larger than 1mm and water splashes from any direction.
2. Supports 15000 Cards – Large user capacity – ideal for businesses, warehouses, or facilities with many employees or guests.
3. Administrative Card – Provides a quick and intuitive way to add or remove access permissions, without complex programming.
4. Standalone Access Control – Does not require additional control units – all settings and data are stored within the device itself.

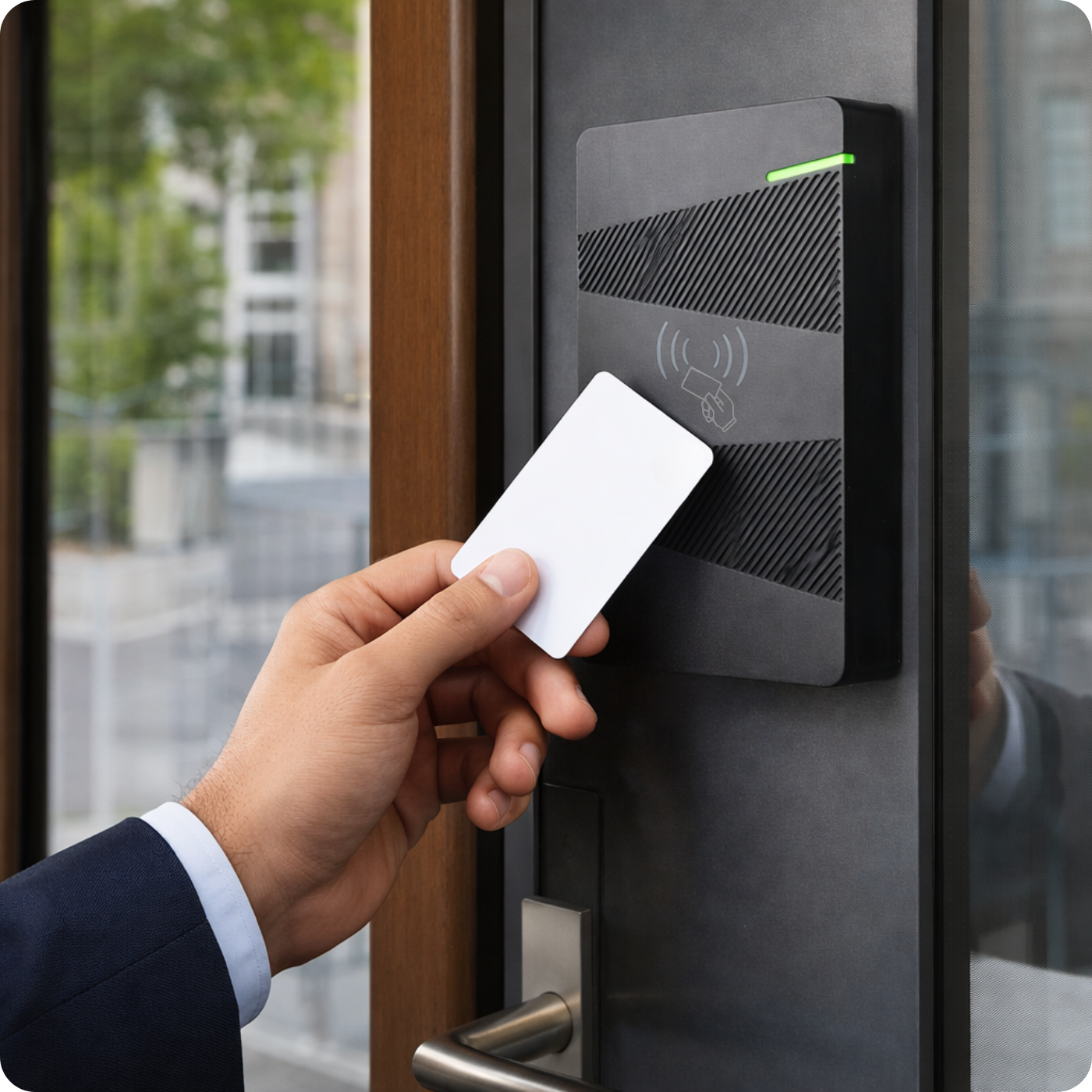

5. LED Indicator – Provides quick information about the current device status (green/blue), so you know whether the lock is locked, in programming mode, or unlocked.

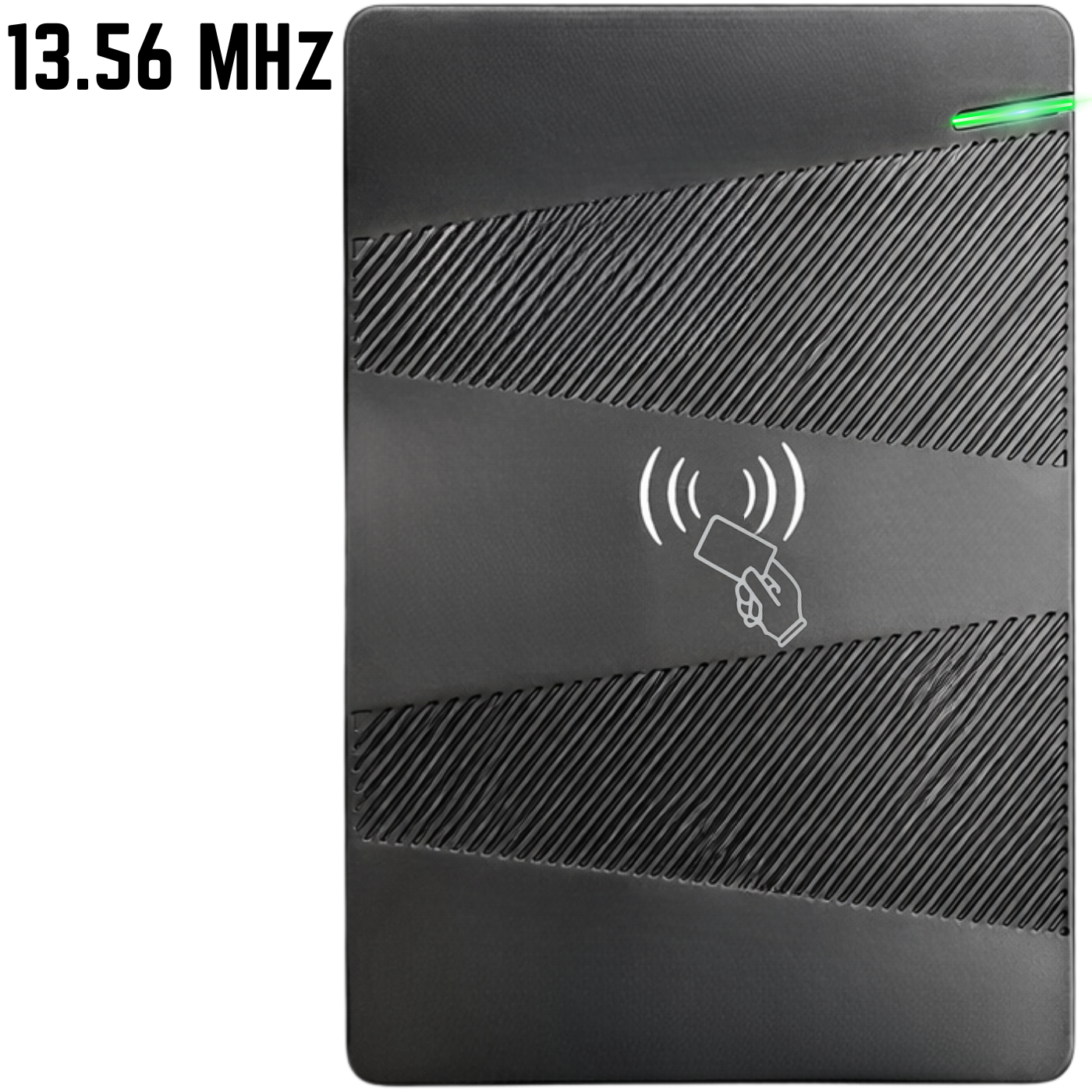

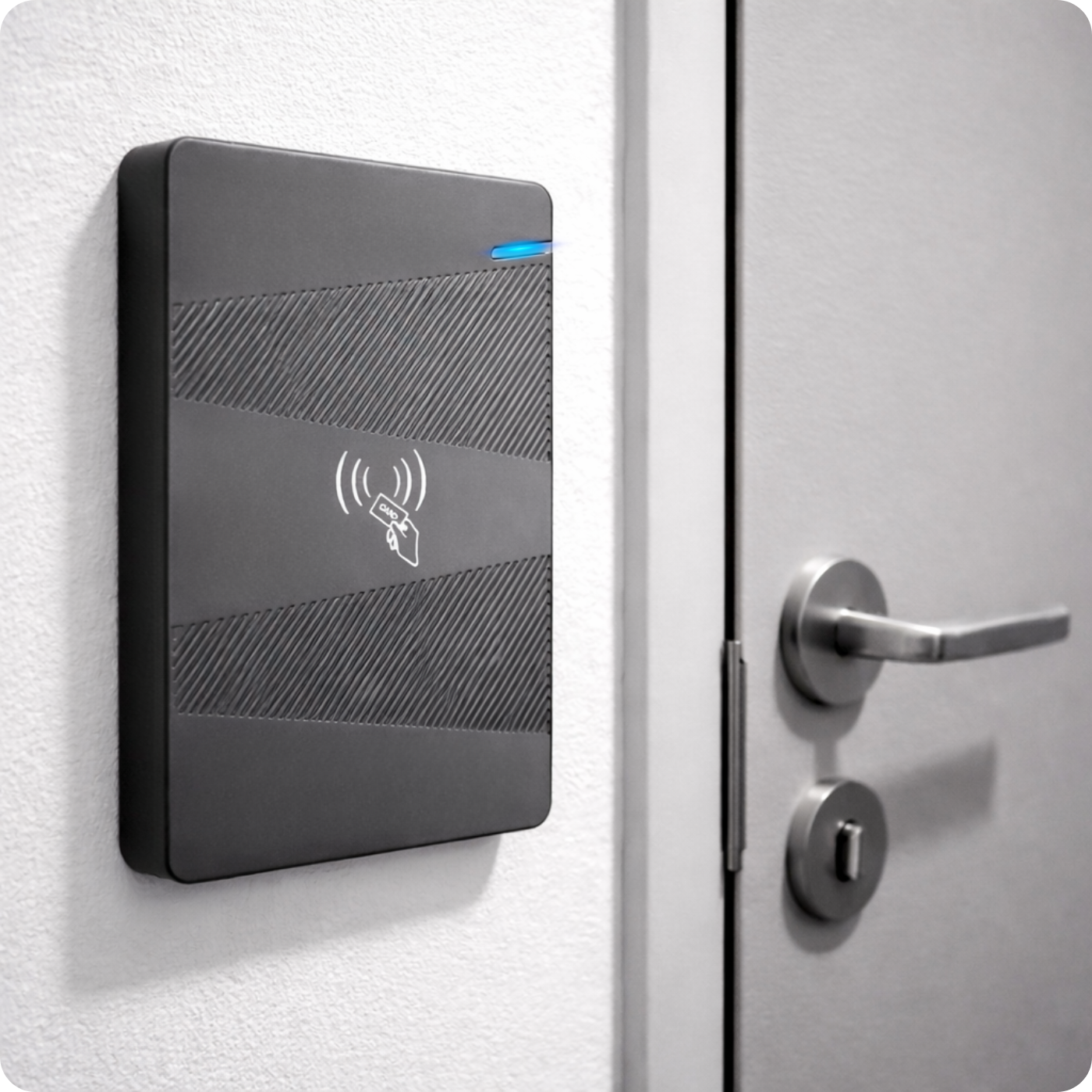

6. Modern, Compact Design – A sleek, black casing with a minimalist look and a clearly marked RFID reading area aesthetically blends with the doors of a home, office, or warehouse.

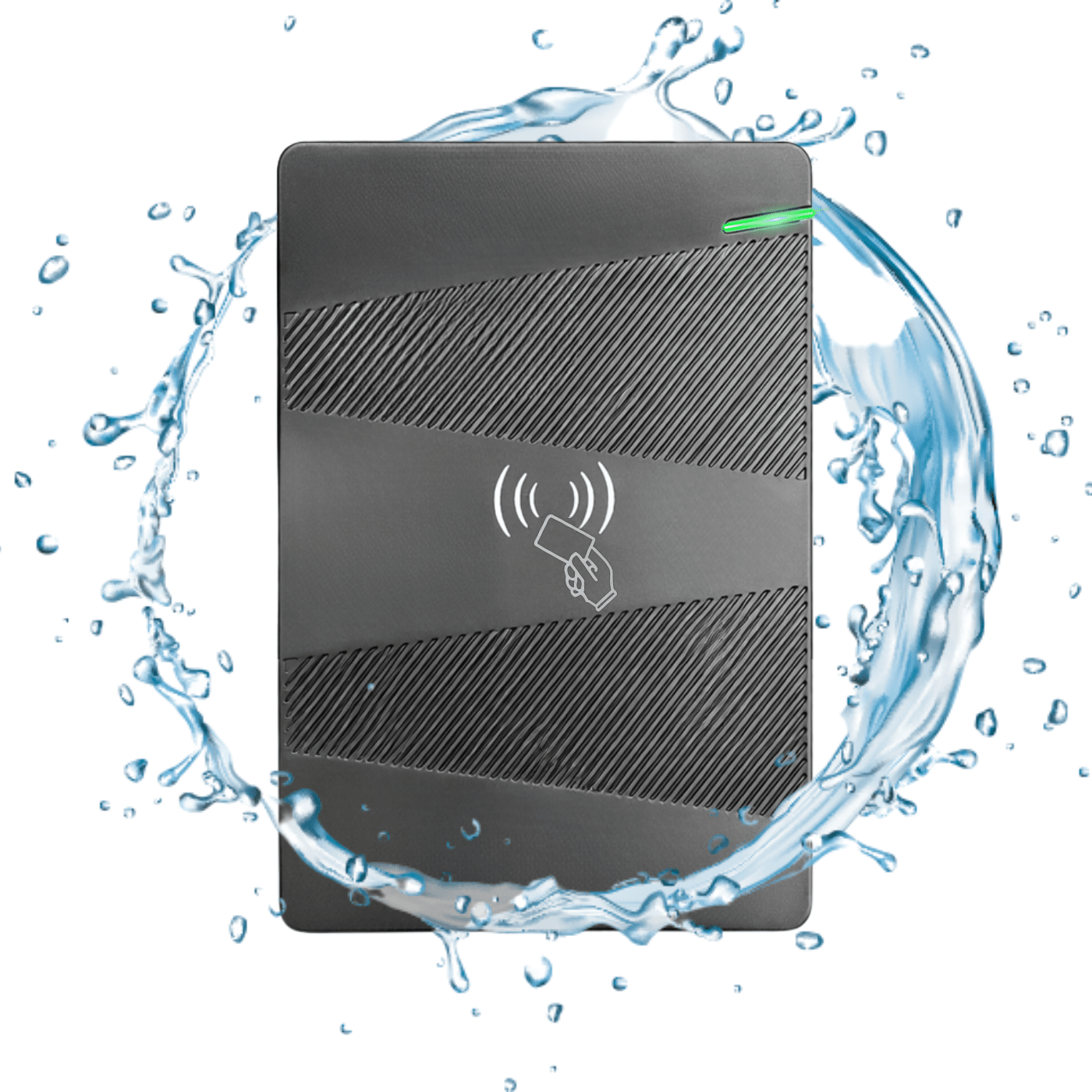

IP44 Water Resistance
The IP44 rated casing provides protection against water splashes from any direction and against the ingress of small solid objects larger than 1 mm in diameter.
This makes the device suitable for use in places exposed to moisture, such as covered entrances, stairwells, or utility rooms.
Solid construction and proper sealing protect components from splashing and dust, ensuring safe and stable operation in daily use.

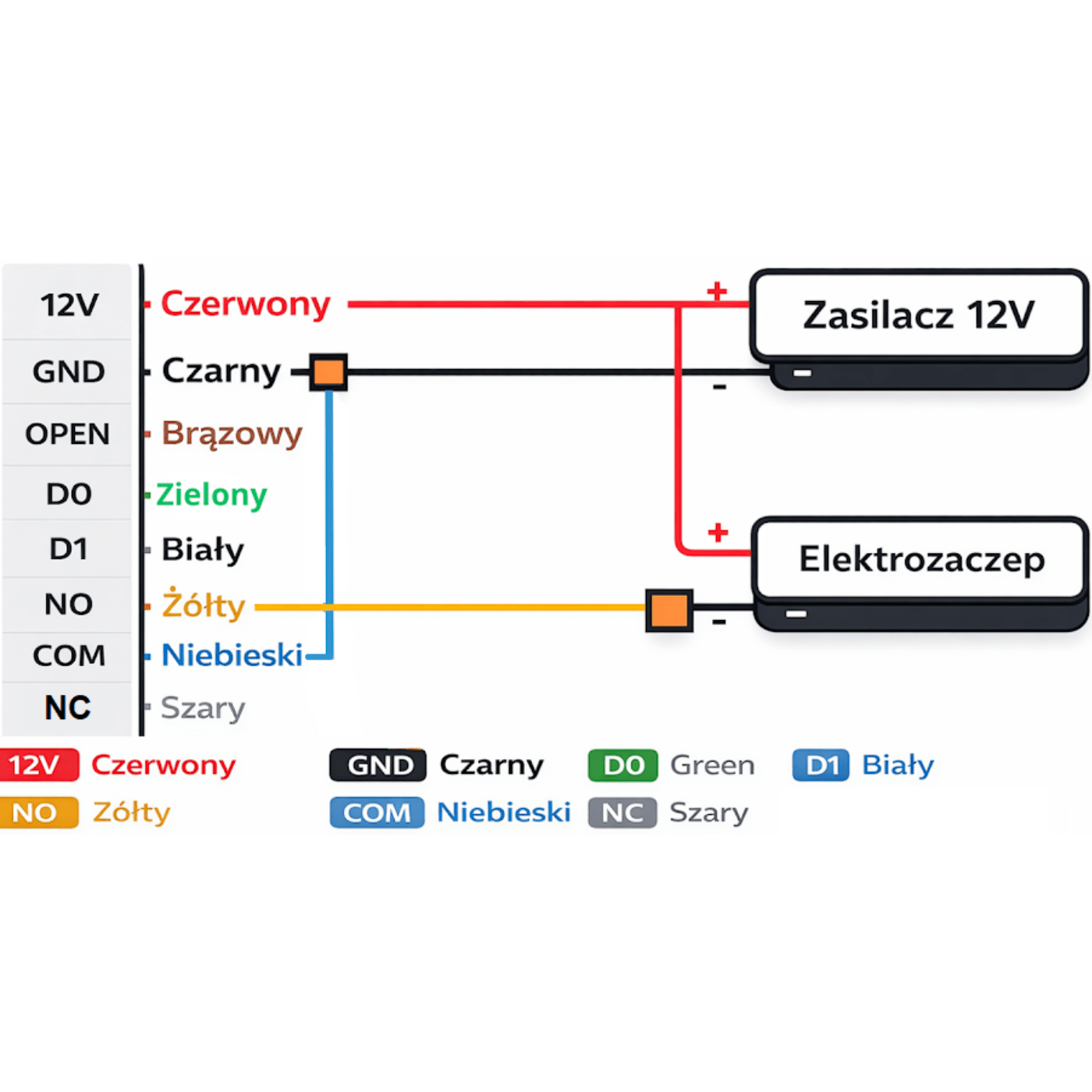

Wiring Diagram
Red — 12V Device power supply 12V DC ±10%. Connected to the "+" of the 12V power supply.
Black — GND Ground / negative power supply. Connected to the "–" of the 12V power supply. Common ground for power supply and electric strike (according to the diagram).
Brown — OPEN Exit button input (REX – Request to Exit). When shorted to GND, it opens the door from the inside.
Green — D0 Wiegand D0 data line. Used when connecting to an external access controller.
White — D1 Wiegand D1 data line. Used when connecting to an external access controller.
Yellow — NO Normally open relay contact. Used in the diagram to control a magnetic lock (closes the circuit after authorization).
Blue — COM Common relay line. Connected to ground (GND) in the presented diagram.
Grey — NC Normally closed relay contact. Used in installations requiring a closed circuit in the idle state (e.g., electric strike).

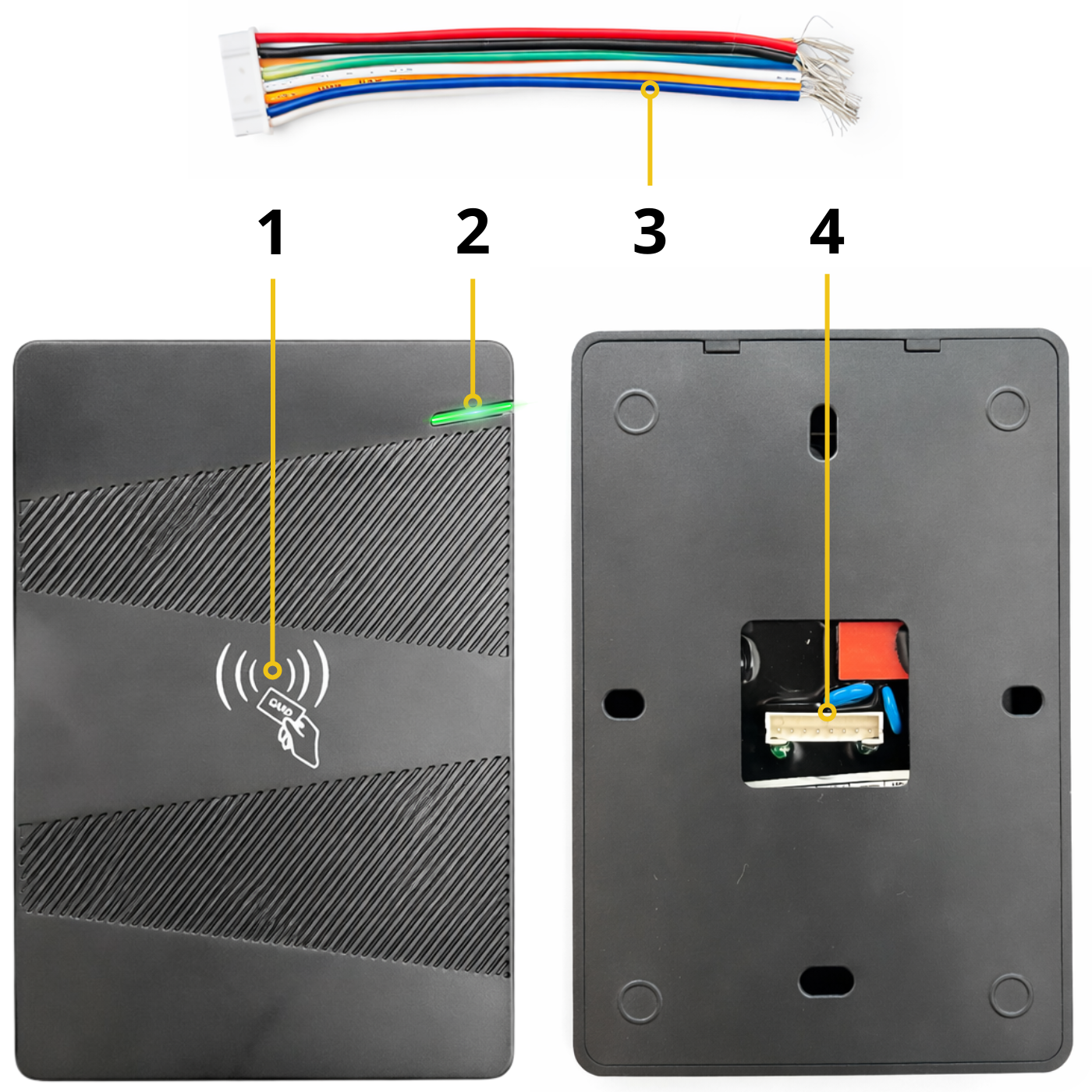

Lock Components
- Indicator LED (green – positive authorization / blue – standby mode)
- RFID card reader
- Plug connection point
- Plug
Technical Specification
- User Capacity: 15000 cards
- Power Supply: DC 12V ±10%
- Current Consumption: < 100 mA
- EM Technology: Proximity card 13.56MHz
- Reading Range: 1 - 10 cm
- Operating Temperature: -20°C to +70°C
- Waterproof Rating: IP44
- Color: Black
- Material: Plastic

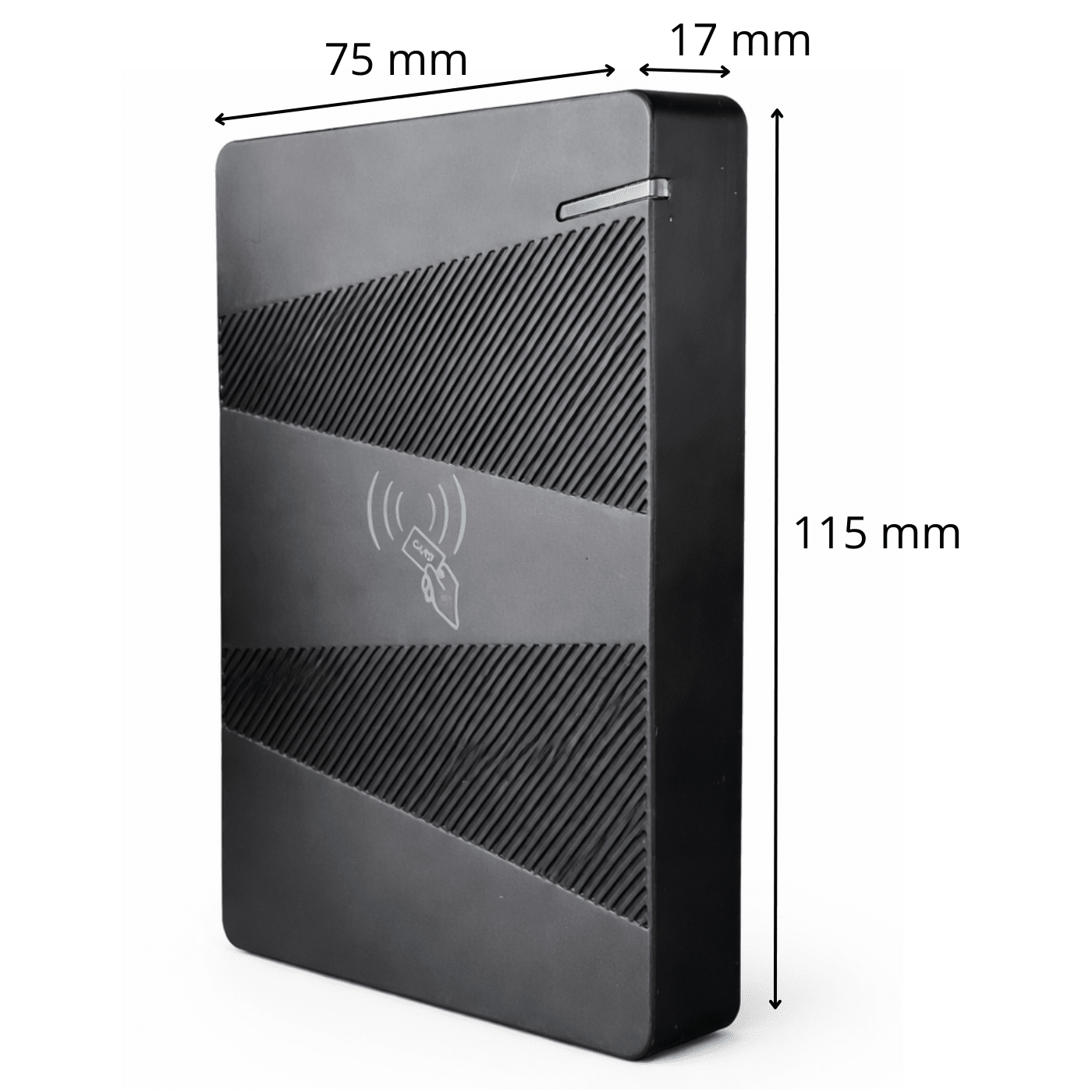

- Dimensions: 75 x 17 x 115 mm
- Weight: 105 g

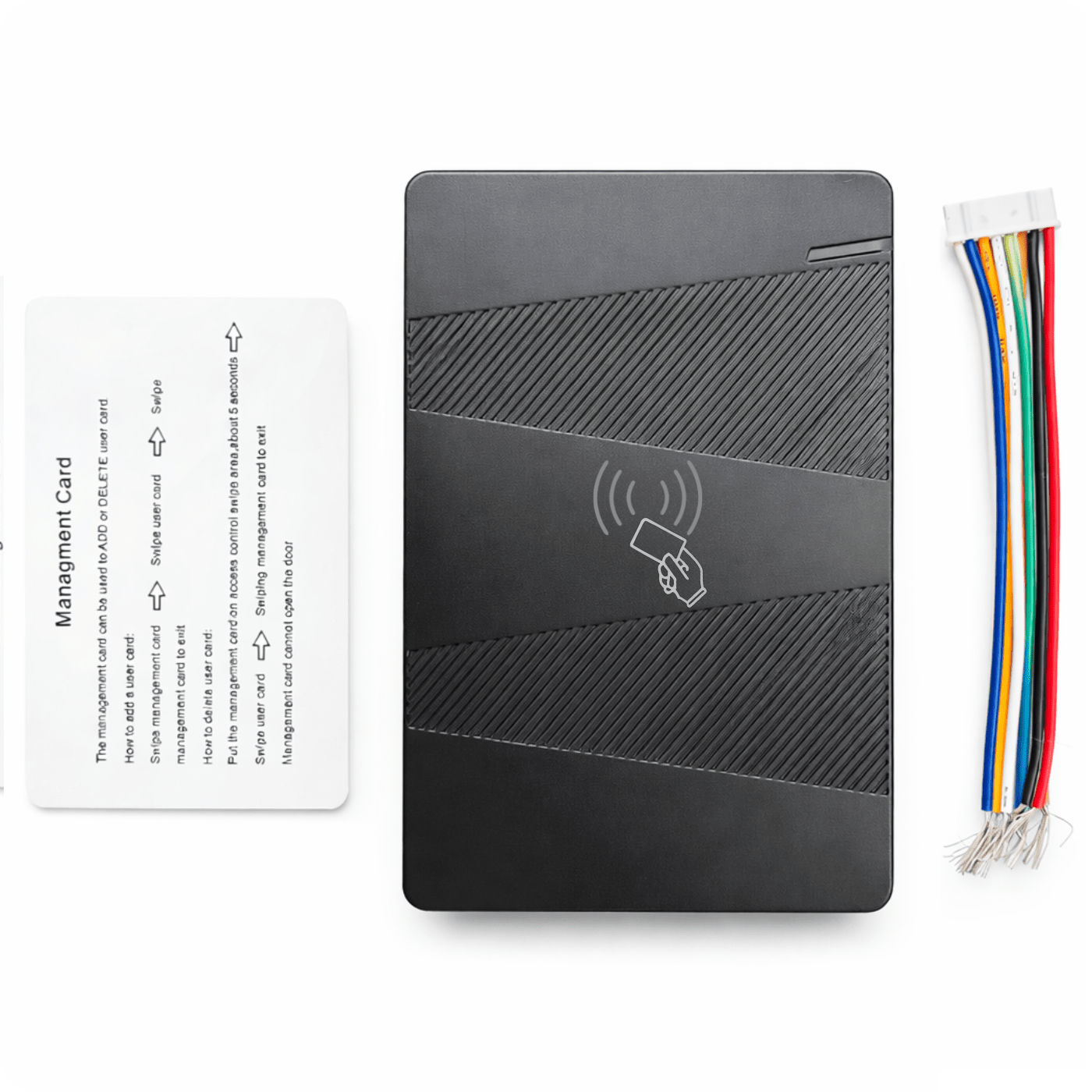

Set Includes
- 1x SA-W26 Electronic Lock
- 1x Master Card
- 1x Plug
- 1x User Manual
