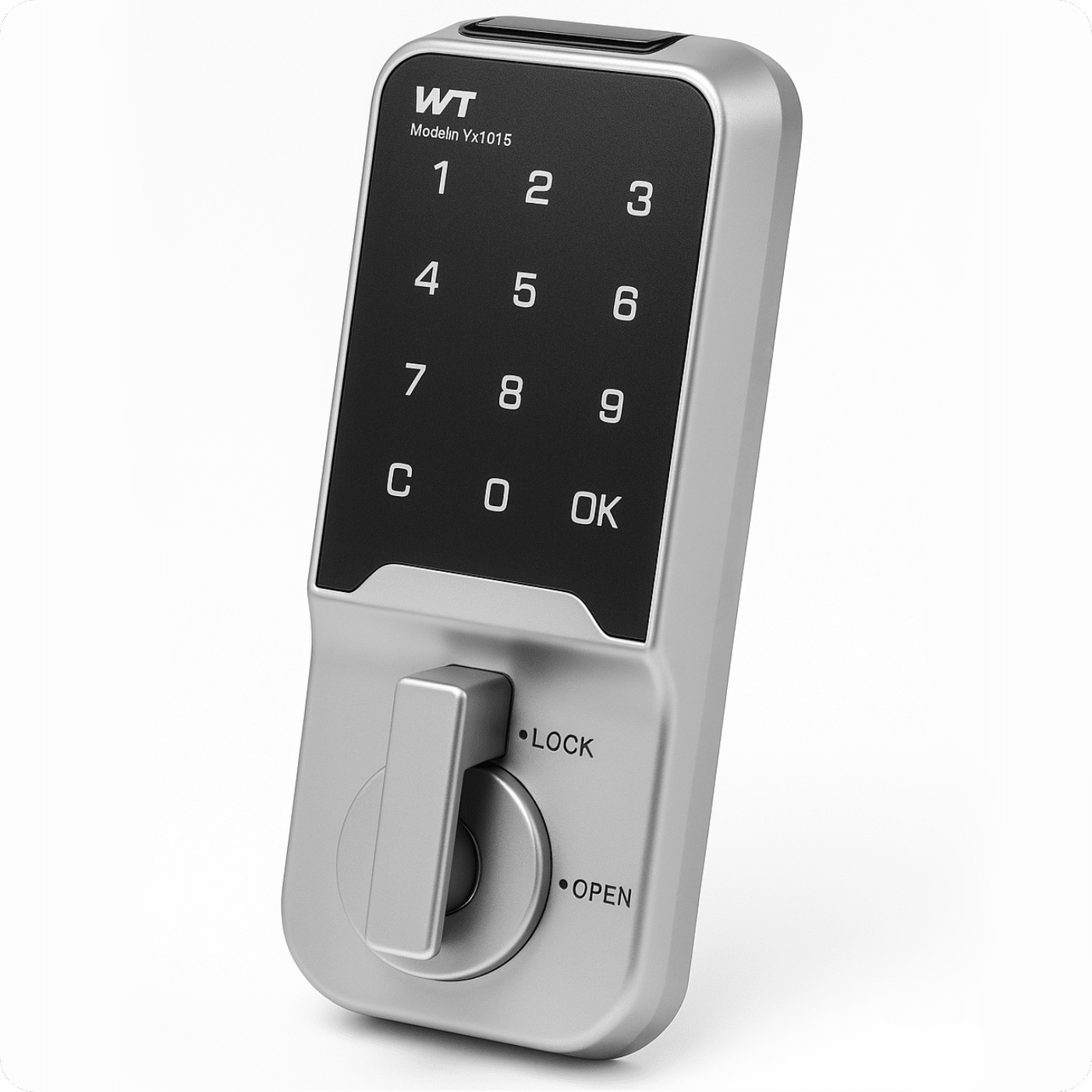

Cabinet lock M-1601S
The M-16015 cabinet lock from Spreest is a practical and solid solution designed to secure furniture and various types of built-ins.
The product has been designed with reliability, ease of use and aesthetic appearance in mind, making it suitable for both home and commercial applications, e.g. offices and gyms .
Key Features
1. Touch panel – Enables quick and convenient opening of the locker using an individual PIN code.
2. Two levels of access: user and administrator – Allows easy management of permissions and secure configuration of settings.
3. Ability to change password (4-15 digits) – Provides flexibility and security tailored to your needs.
4. Public Mode – Ideal for use in shared spaces such as offices, hotels, gyms or locker rooms where multiple users use the lock.
5. Temporary (one-time) password – A practical solution for guests or short-term access without having to reveal a permanent code.
6. Fake PIN Feature – Increases security by allowing you to enter random numbers before or after your password to protect against snooping.
7. Anti-theft function – After entering the wrong code several times, the lock locks for a specified period of time, effectively deterring unauthorized persons.
8. Low battery indication – Indicates the need to replace the power supply, minimizing the risk of unexpected loss of access.
9. Emergency power supply via USB-C port – In the event of a complete battery discharge, the lock can be temporarily powered by an external power source via the USB-C port.
10. Battery powered (2 × AAA) – Simple operation and no loss of saved passwords when replacing the batteries.
Technical specifications
- Lock type: Electronic combination lock for cabinets
- Opening method: PIN code entered on the touch panel
- Control panel: Touchscreen numeric keypad with OK button
- Password length range: 4 to 15 digits
- Number of access levels: Administrator, User
- Operating modes: Private mode, public mode (multi-user)
- Temporary password: One-time use, active only for one use
- Security features: Fake PIN, auto-alarm after 4 incorrect attempts, time lock (60 seconds)
- Signaling: Audible signals (correct/incorrect code, alarm), unlock indicator, low battery indicator
- Mechanical operating elements: Knob for manual opening and closing
- Knob rotation angle: 90°
- Time to open after correct code: Up to 3 seconds
- Power supply : 2 × AAA batteries
- Emergency power supply: USB-C
- Memory retention: Stored passwords are not erased when replacing the batteries
- Password recovery: Possible based on the identification code located on the housing
- Application: Furniture, office, hotel, cloakroom and other cabinets

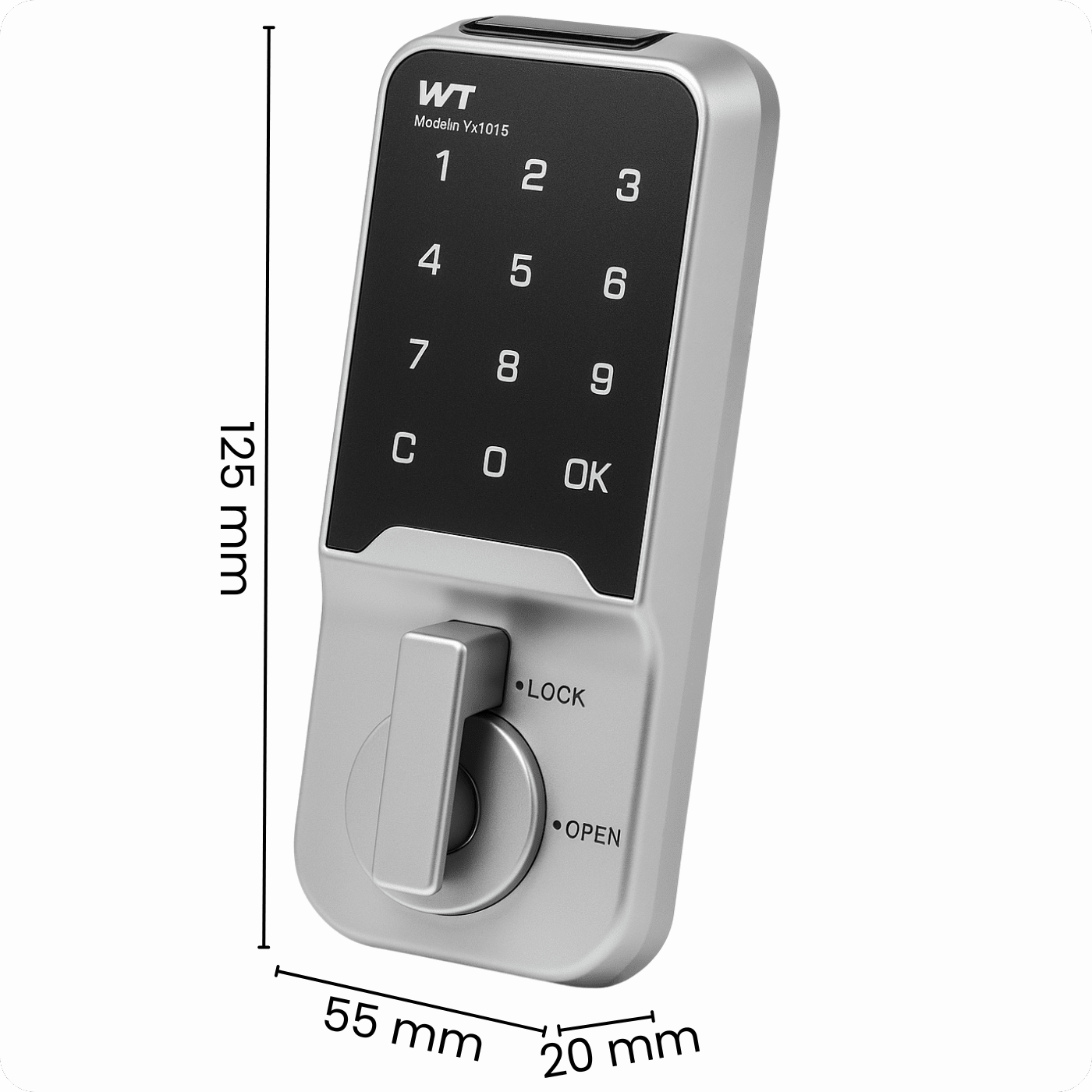

- Dimensions: 125 x 55 x 20 mm
- Weight: 200 g
The set includes
- 1x Cabinet lock M-1601S
- 1x Set of mounting accessories
- 1x User Manual
