Cabinet lock CB-A1 20mm
Discover a convenient way to secure a medicine cabinet, drawer, box, or locker without using a traditional key.

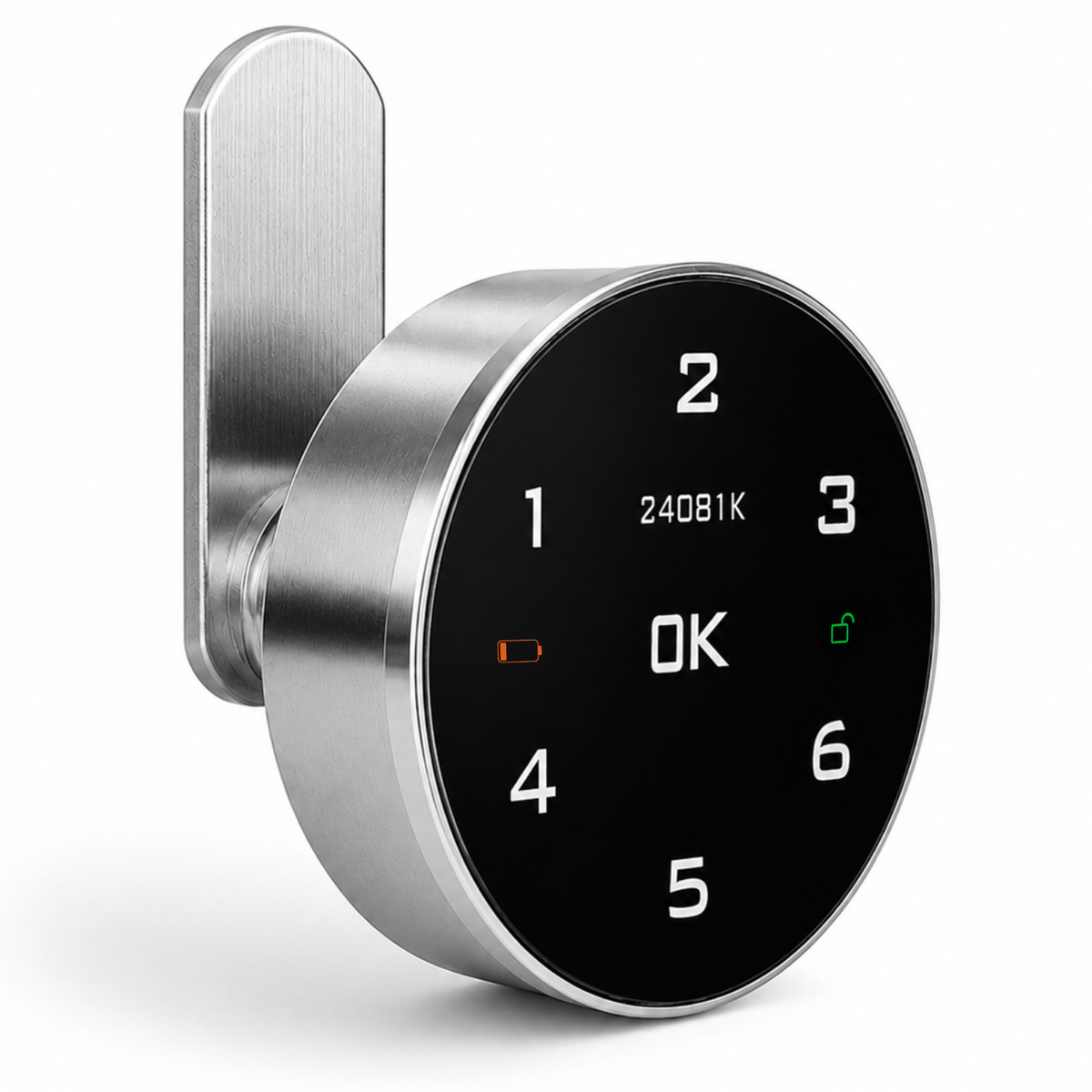

The CB-A1 cabinet lock by Spreest is an electronic lock with a PIN code, providing convenient and secure access to cabinets and furniture.

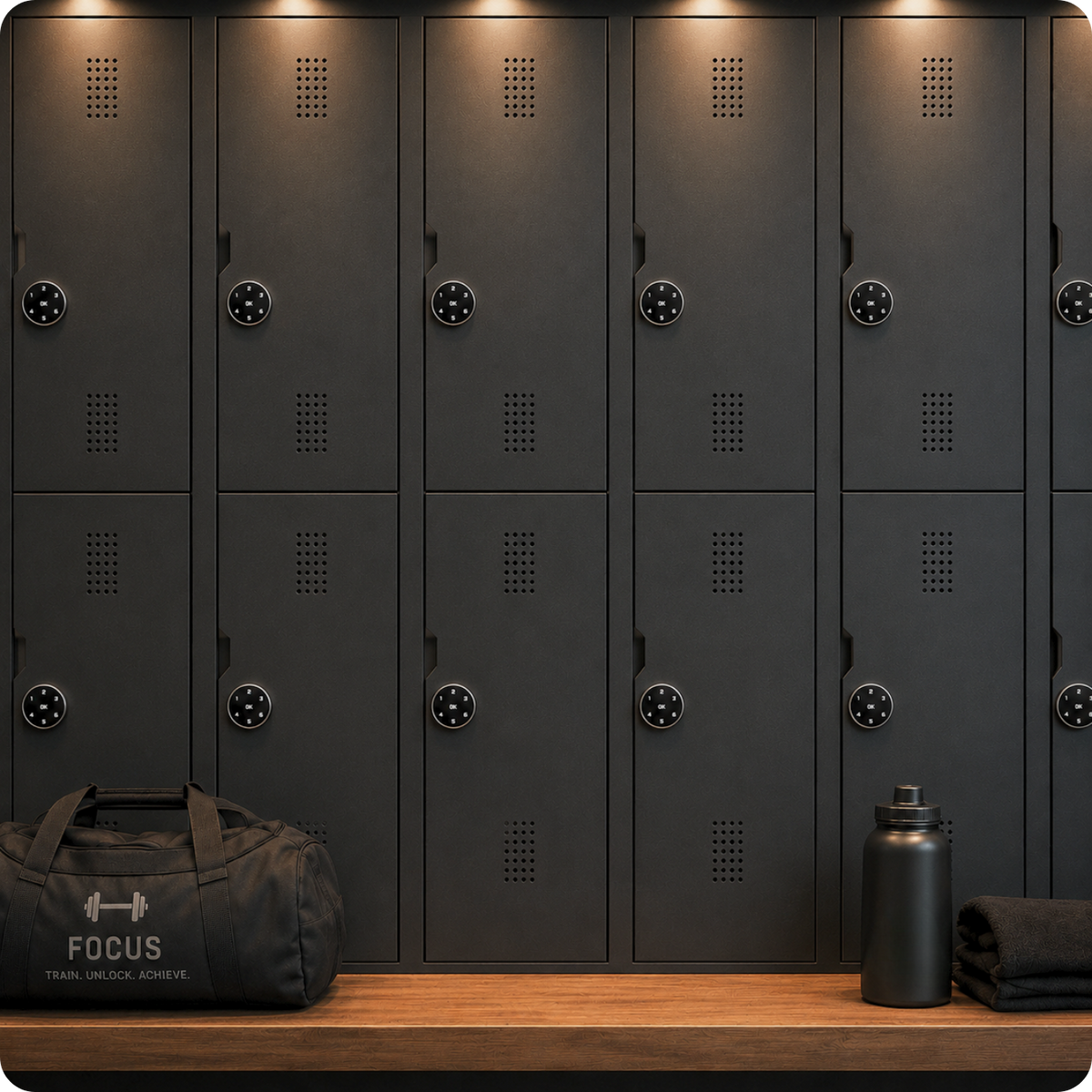

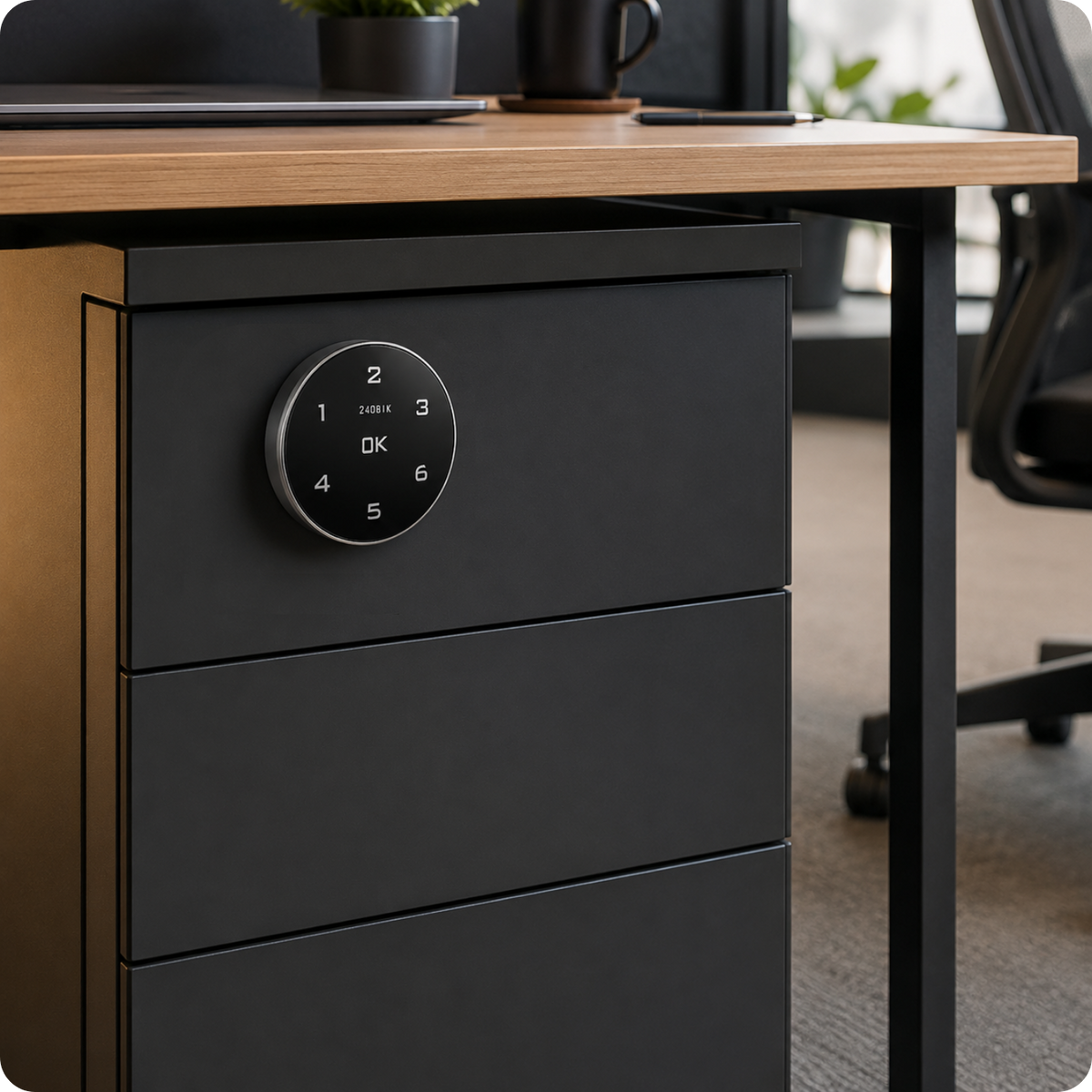

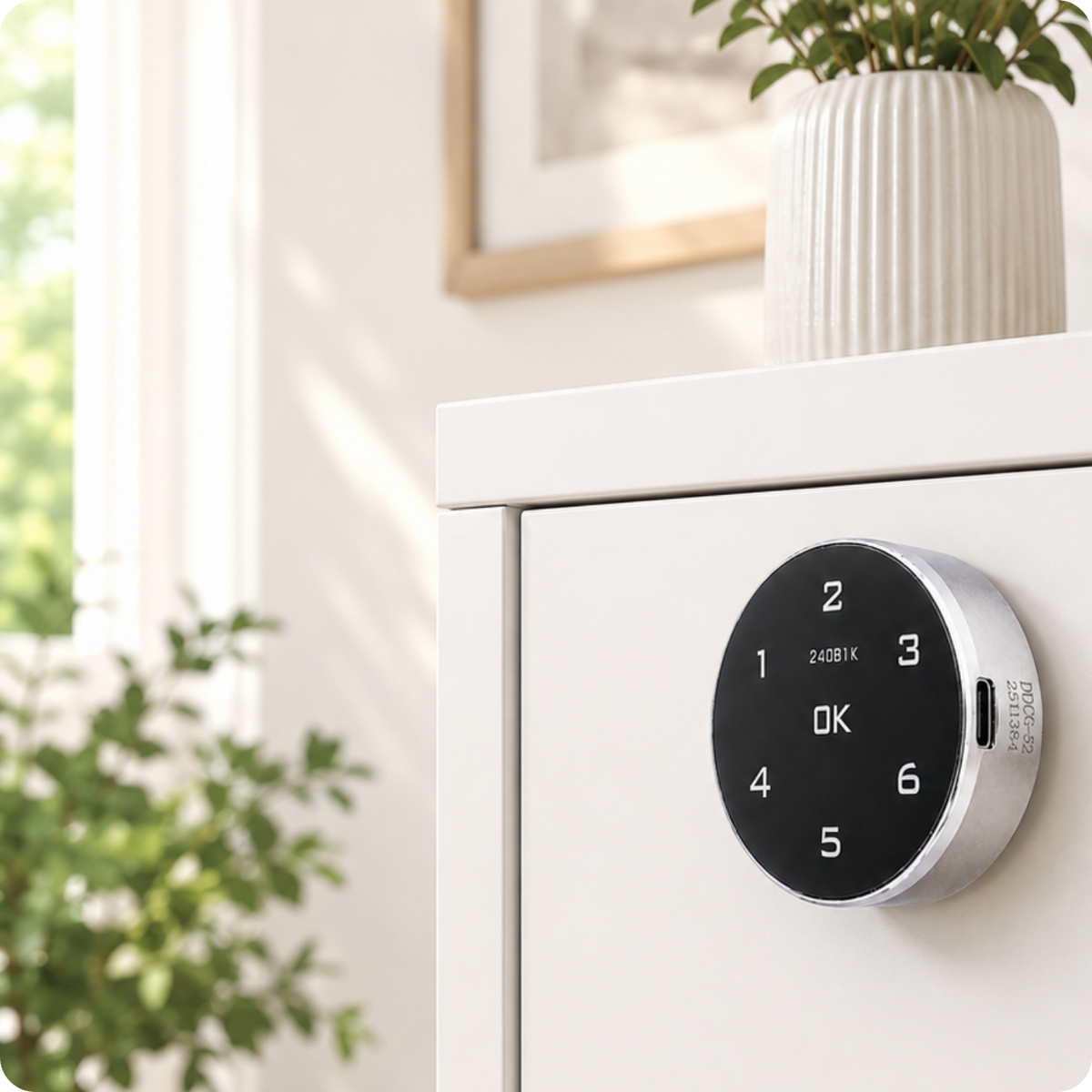

It is perfectly suited for both public facilities, such as schools, hotels, gyms, swimming pools, offices, and changing rooms – as well as for private home use to secure cabinets, drawers, and lockers.
Thanks to PIN operation, you don't have to worry about lost keys. Simply enter the correct password, confirm with the OK button, and turn the mechanism to open the lock.
Key features
1. Keyless operation – The lock is opened using a PIN code, so you don't need a physical key.
2. Ability to set your own password – Supports passwords from 4 to 16 digits long.
3. Administrator and user password – The administrator maintains control over the lock, and the user can use the assigned access.
4. Temporary password – Option to set a one-time code that expires after the first use.
5. Public mode – Ideal for lockers in gyms, schools, hotels, offices, and changing rooms. The user sets their own code for the closing period, and the password becomes invalid after opening.
6. Virtual password – You can enter any digits before and after the correct code to make it harder for unauthorized persons to guess the password.
7. Alarm and lock after incorrect attempts – After four unsuccessful password entries, the lock triggers an alarm and blocks the keypad for 50 seconds.
8. Mute option – The ability to turn off the buzzer allows the lock to operate more quietly, for example, in an office, library, or bedroom.
9. Low battery signal – A flashing indicator light informs you that the lock needs to be recharged.
10. USB 5 V charging – The lock is powered by a battery charged via a USB port, so it does not require a constant connection to the mains.
11. Ergonomic 90° rotation – Simple mechanism for transitioning from CLOSE → OPEN position.
12. Solid construction – The zinc alloy body ensures durability and resistance during daily use.
Application
- Document drawers
- Mailboxes
- Medicine cabinets
- Valuables lockers
- Office or home furniture
- Hotel or employee lockers
- School lockers
- Gym and changing room lockers
- Filing cabinets
Technical specifications
- Locking method: PIN code
- Password length range: 4–16 digits
- Password types: Administrator password, User password, Temporary password (one-time)
- Virtual password function: Yes, any digits before/after the correct code
- Keypad lock: After 4 incorrect attempts – 50-second lock + alarm
- Buzzer: Yes, with mute option
- Public mode: Yes (password becomes invalid after each use)
- Low battery signal: Flashing indicator light
- Power supply: USB-C 5 V
- Rotation angle: 90° (CLOSE → OPEN)
- Material: Zinc alloy
- Mounting: Internal

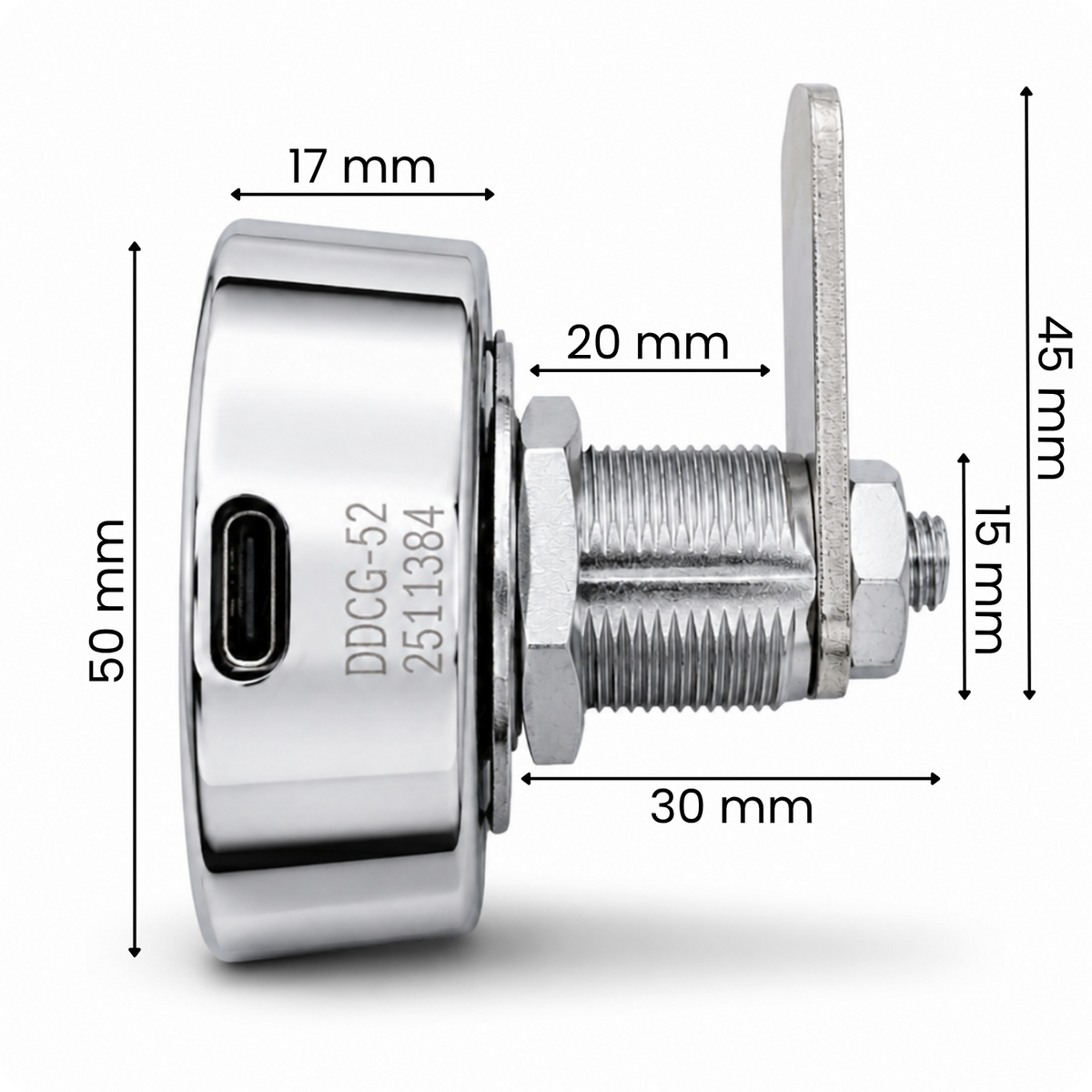

- Threaded part dimensions: 20 mm
- Lock dimensions: 50 x 17 x 50 mm
- Weight: 88 g

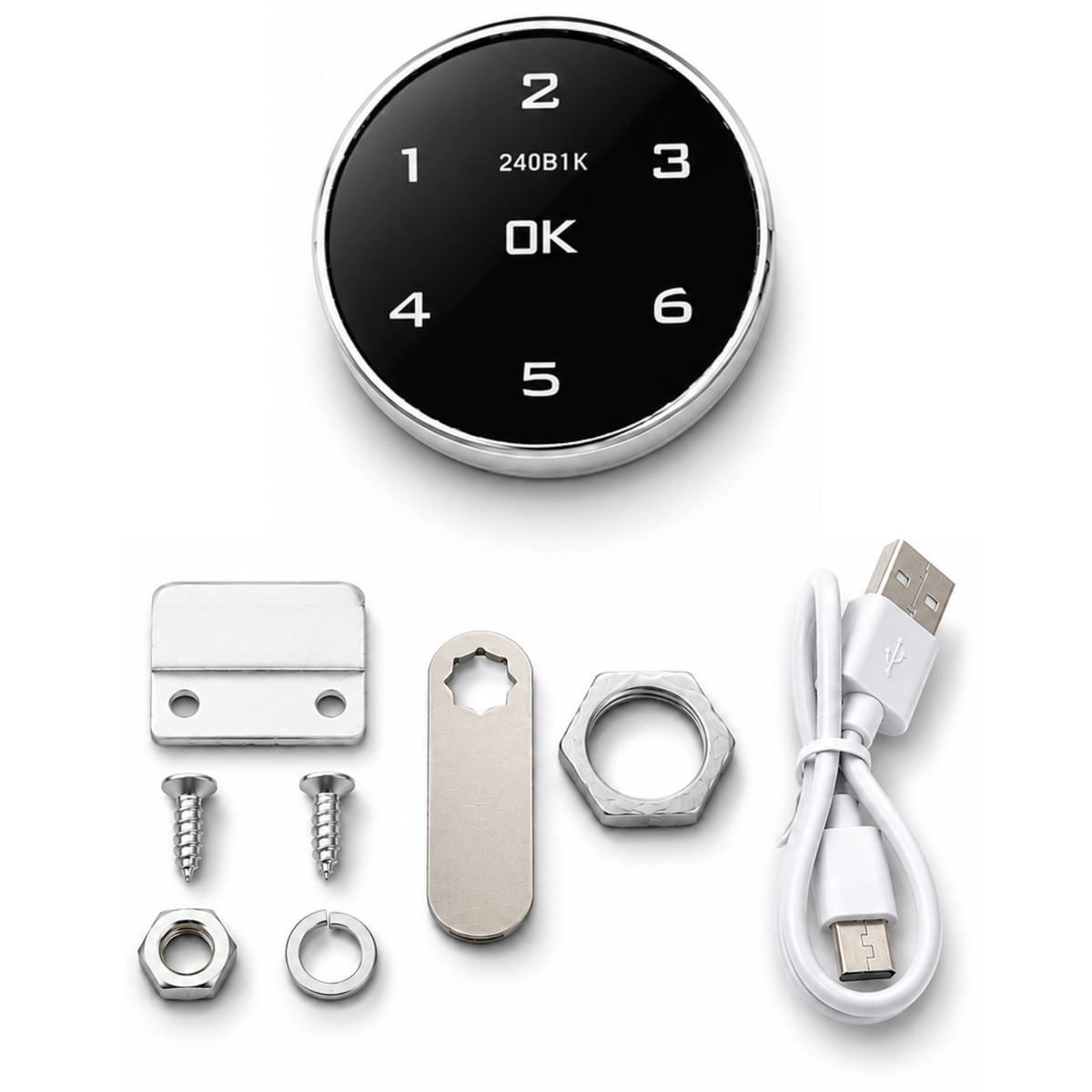

Set includes
- 1x CB-A1 20 mm cabinet lock
- 1x Mounting accessories kit
- 1x USB-C cable
- 1x User manual
