We present the Spreest video intercom – a simple and modern solution that will help you control the entrance to your home or business.
With a large, colorful and clear 7” screen and a 140° wide-angle camera , you can see the entire gate clearly, even at night .
Thanks to two-way communication , you can comfortably talk to your guests while standing at the screen.
Thanks to the Tuya Smart app , you can receive a guest remotely, directly from your phone. Additionally , you can view photos of people calling or detected by the motion sensor.
You can conveniently open the electric strike using RFID cards and key fobs – without having to use a key!
Using the screen and the phone app, you can easily open the gate and wicket.
The durable, IP55 rated outdoor station housing guarantees operation in harsh weather conditions.
Easy assembly and the ability to expand to three monitors make the set ideal for any home. The ready-made kit ensures quick installation, and the set comes with full post-purchase support .
Key Features

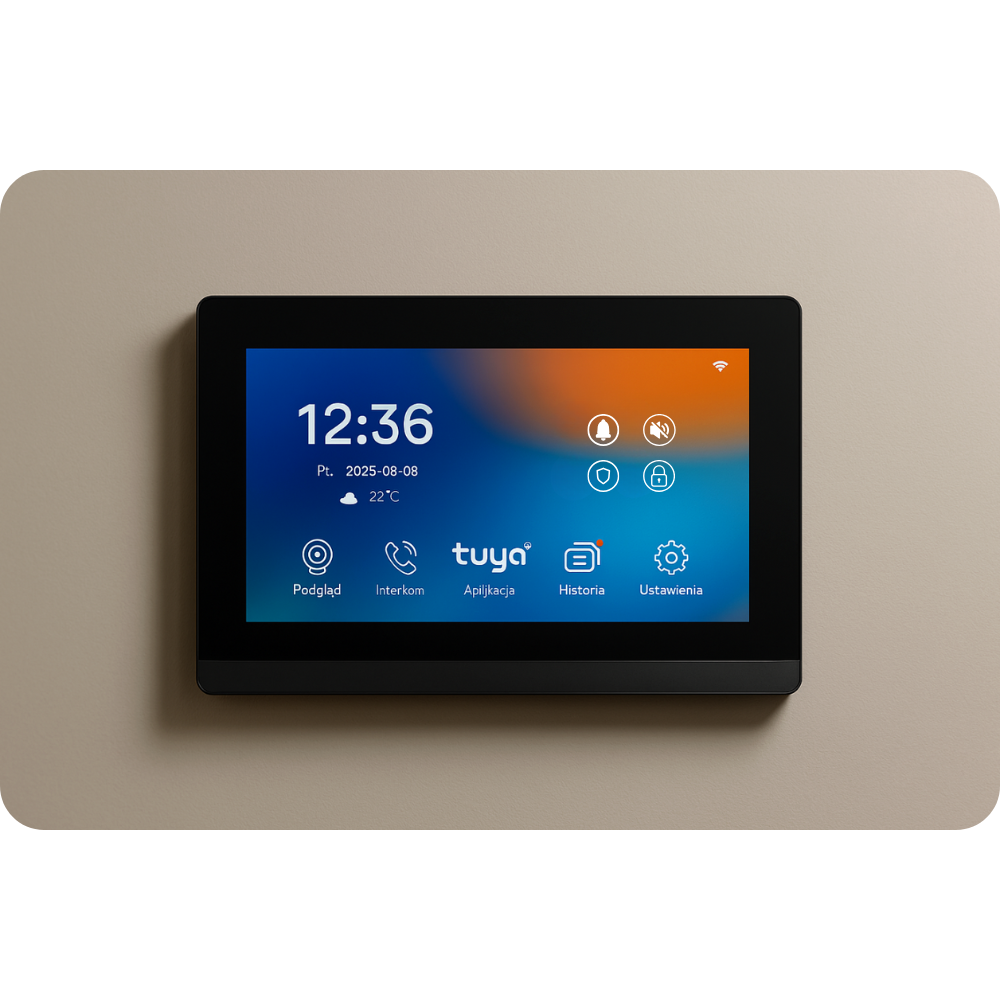

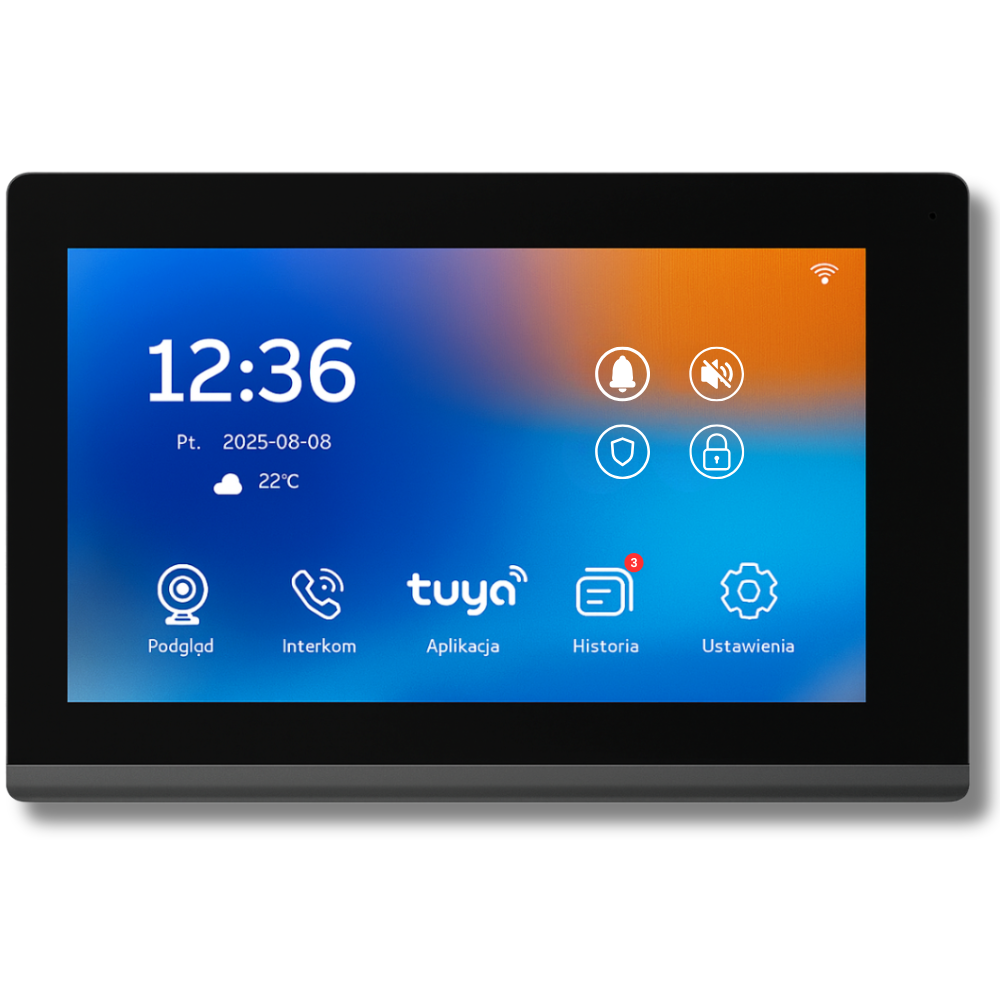

- Large, clear 7" screen – Easily recognize faces and details, color display, touch buttons, volume and brightness controls.
- 140° Wide Camera Angle – The lens covers the entire monitored entrance; a bracket is included for angled installation, directing the lens towards the entrance.
- Two-way communication – Conveniently talk to your guests while standing at the screen.
- Controlling the gate and door – Directly from the screen and from the mobile application.
- Notifications and remote access – Instant notifications when the doorbell is pressed and the ability to talk/open from the app, even when away from home.
- Photos or Videos Upon Call – Short video clips or photos when motion is detected, so you know who was outside your home and when.
- Network camera support – Ability to connect IP cameras and view directly on the monitor screen.
- Contactless opening - Keyless entry using a key fob or proximity card.
- Unlimited Expansion – Perfect viewing on any floor or office, managed by a single set. Connect two more monitors to a single monitor.
- Waterproof – The outdoor unit is resistant to rain, dust and vandalism; designed to work in all conditions.
- Quick and easy installation – Clear markings, 4-wire technology, full installation instructions. Includes: wall mount, dedicated power supply, RFID tags, and a complete wiring kit.
- Night mode – Recognize visitors even in complete darkness thanks to discreet infrared lighting.
- Current weather – Weather conditions and temperature visible immediately after looking at the monitor.
- Security and alarm – Possibility to set a password for the monitor, external station sabotage system and alarm inputs in the monitor (12V GND IN1, IN2) for connecting a defense alarm.
- Polish interface – The entire system is in Polish, intuitive and understandable to everyone.
Installation

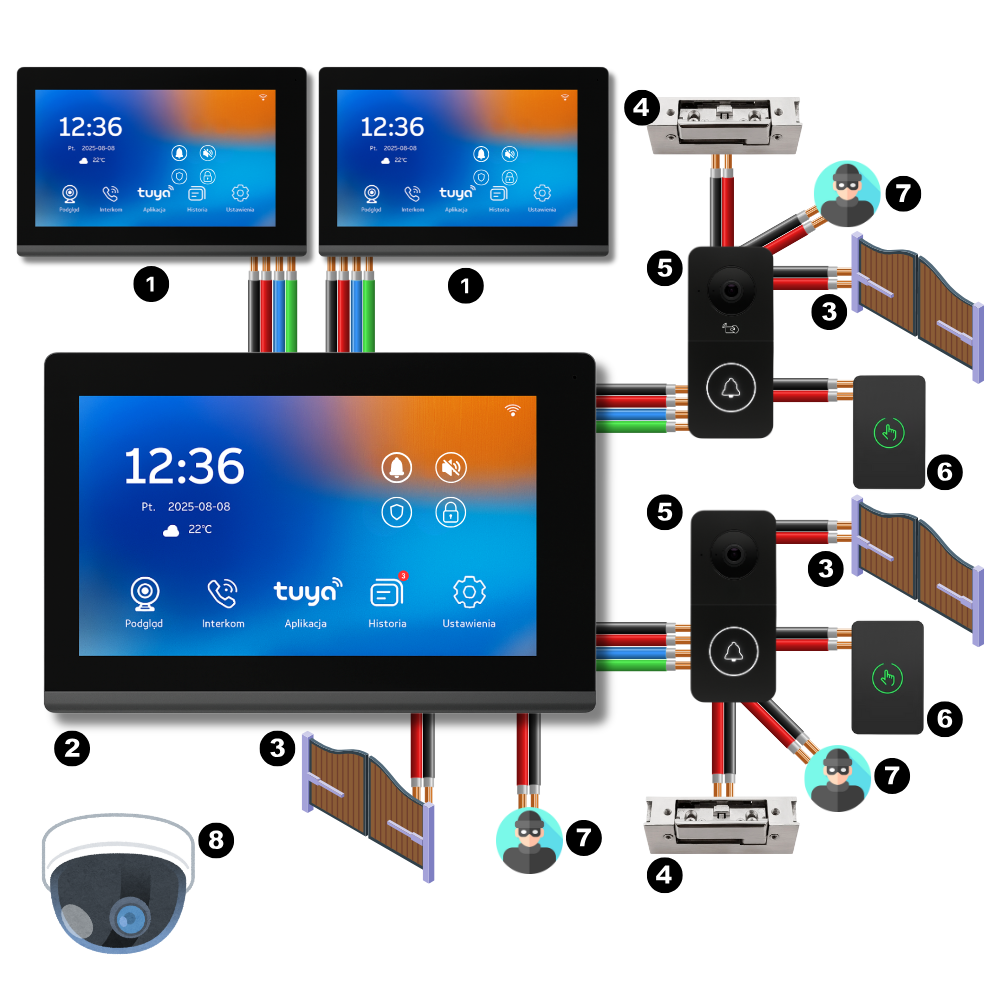

The entire system operates on a four-wire line (power + audio/video). Simply run it from the main unit to the external panels and, if necessary, on to additional monitors.
- Additional indoor units (1) – you can connect up to two additional monitors to one 4-wire control unit to have an overview and control, e.g. on the first floor or in the office.
- Main unit (2) – 7″ screen from which you talk to the visitor, open the gate and set up the system.
- Gate output (3) – a separate relay allows you to open the entrance gate or garage door with one touch.
- Electric strikes (4) – locks mounted in the gate; each powered by its own external panel, you can also release it directly from the monitor screen.
- External units (5) – units at the gate with a camera and RFID reader; each has two relays to connect the gate and the electric strike, exit button and tamper system separately
- Exit buttons (6) – mounted on the side of the property, they allow household members to open the gate themselves when leaving.
- Alarm system (7) - additional protection of the system against sabotage, additional alarm sensors
- IP cameras (8) - possibility of connecting an unlimited number of network cameras thanks to the ONVIF protocol

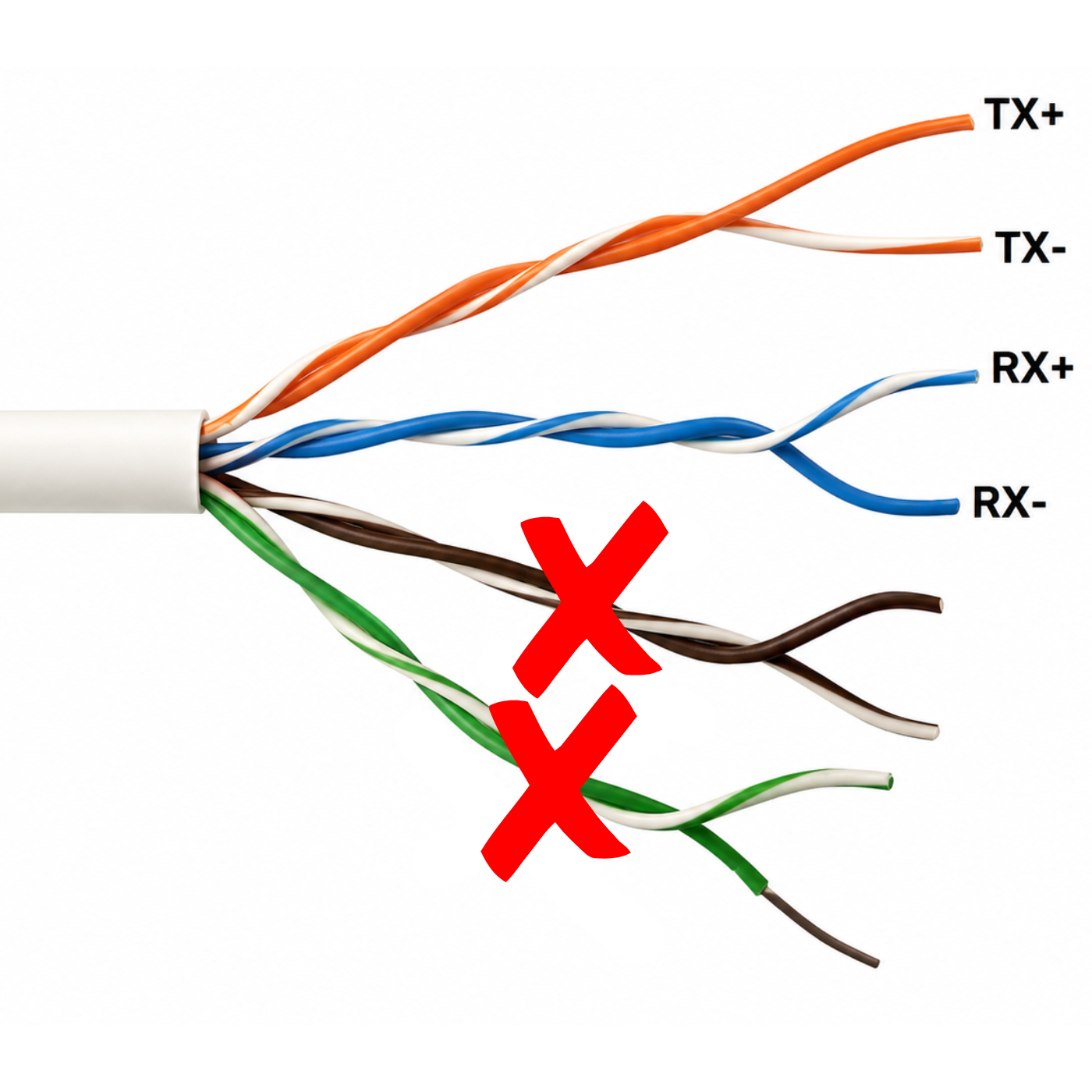

Be sure to observe correct wire polarity and use at least 4 × 0.75 mm² RVV cable – this will ensure clear image and sound even over longer distances. Expansion is equally simple: add another monitor or external panel.
Technical specifications
Internal monitor
- Display/resolution: 7″ LCD, 1024×600
- Audio: two-way, built-in microphone and speaker
- Ringtones: 15 melodies, volume control
- Set support: max 3 internal monitors
- Power supply: DC 12-18V power adapter (included)
- Operating temperature: –20 °C … +70 °C
- External memory: micro SD up to 128 GB

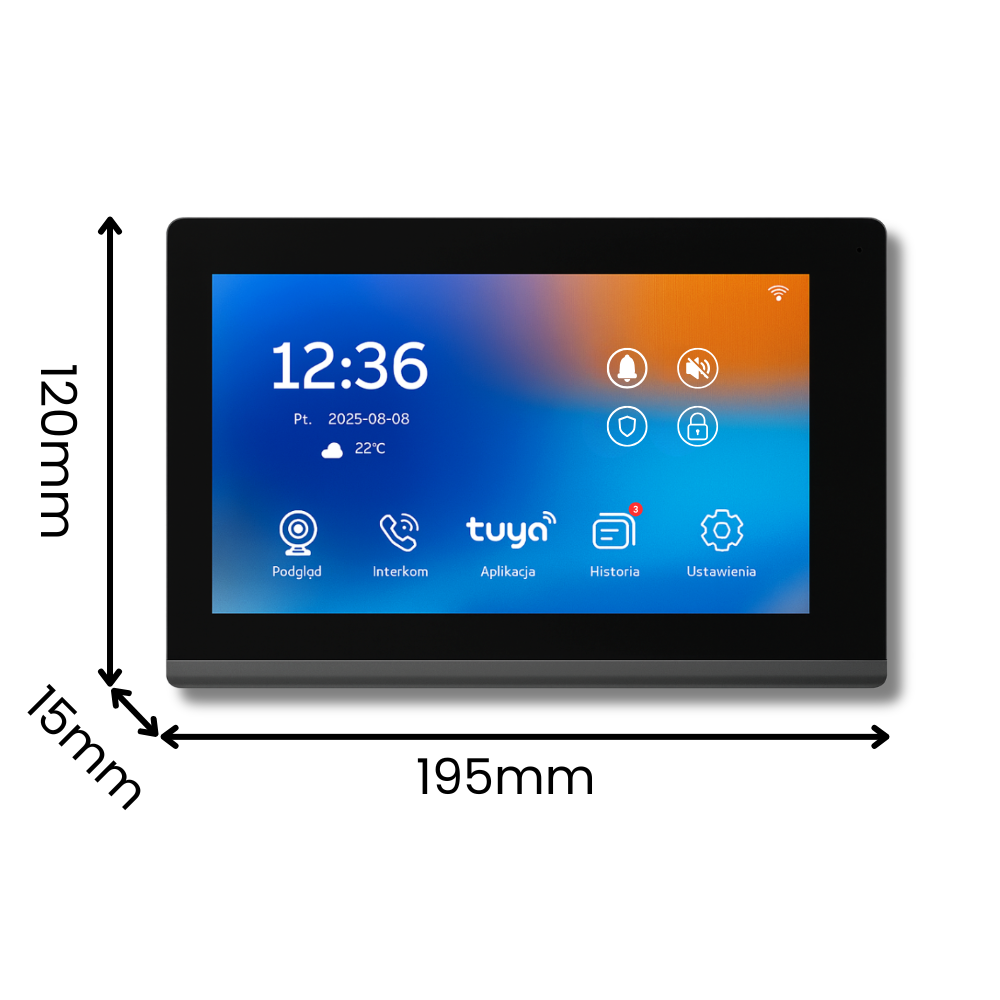

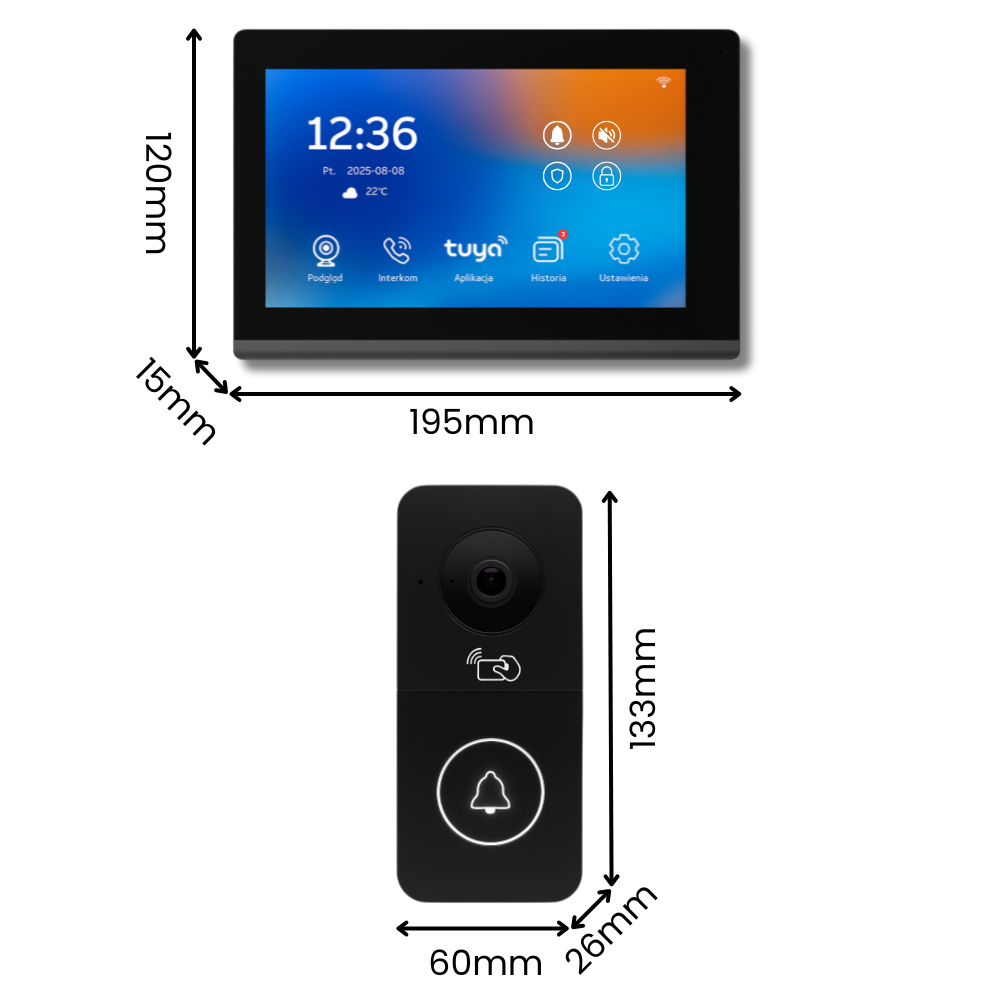

- Dimensions: 195 x 120 x 15 mm

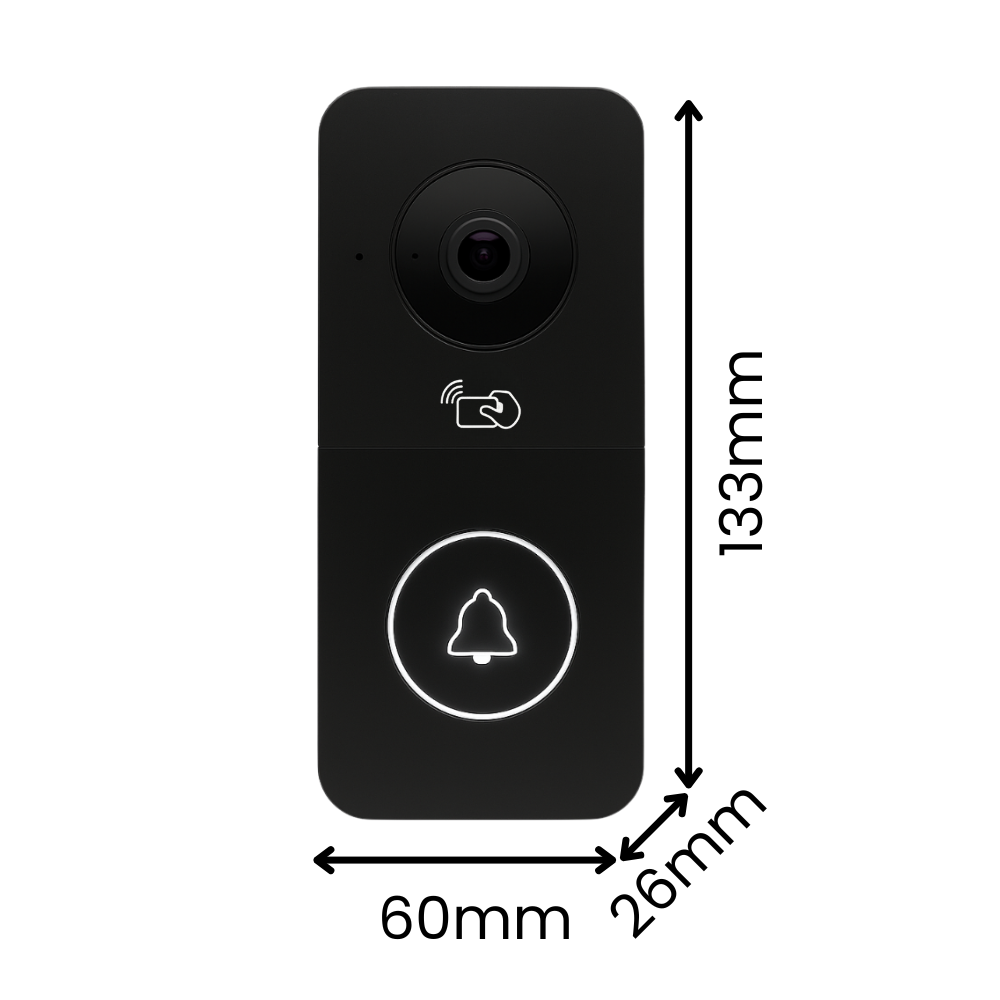

External panel
- Sensor / resolution: 1/3″ CMOS, 2 MP (800 TVL)
- Lens/angle: 3.7mm pinhole, 140° (D-FOV)
- Night lighting: 940 nm IR LEDs
- Audio: two-way, speaker + microphone
- Lock/gate control: 2 relays (NO/NC)
- RFID opening: 13.56MHz IC cards, 5 pieces per set
- Waterproof class: IP55
- Power supply: from the monitor or external in the post (DC 12-18 V)
- Operating temperature: –40 °C … +70 °C
- Dimensions: 140 x 45 x 30 mm

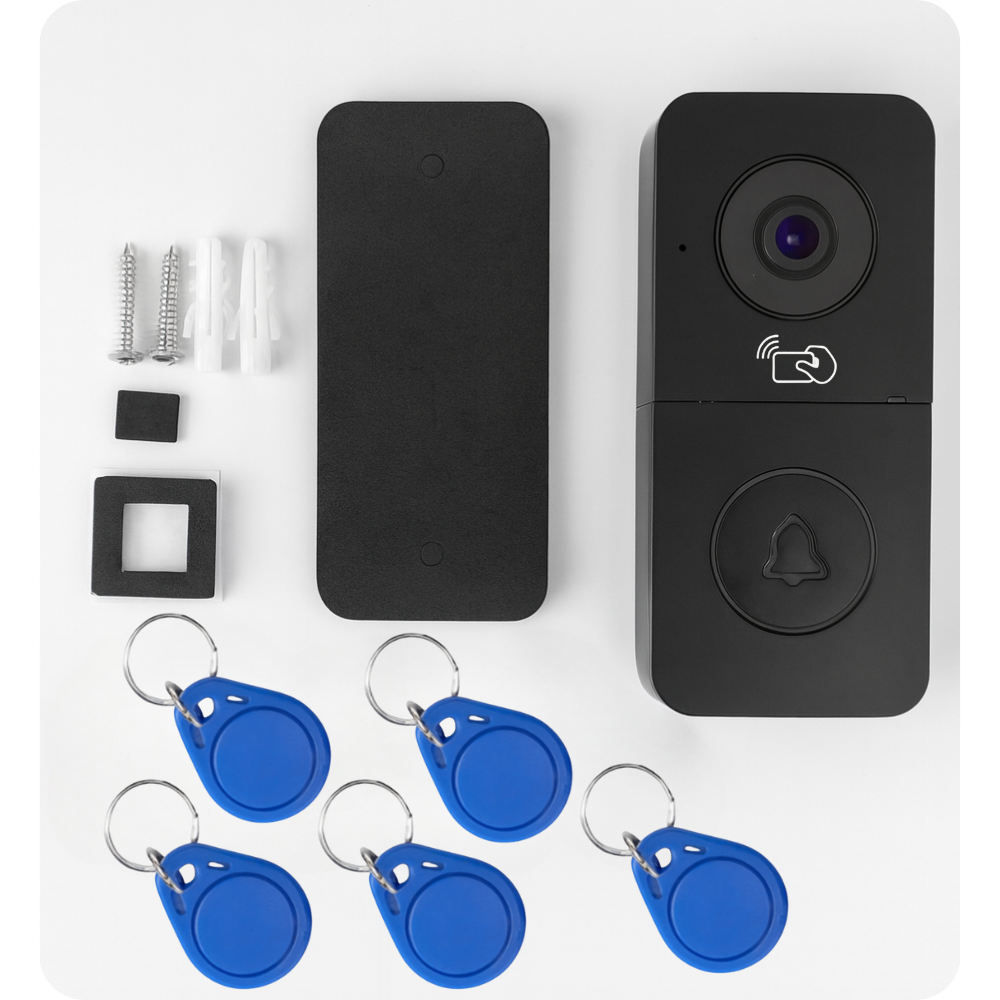

The set includes

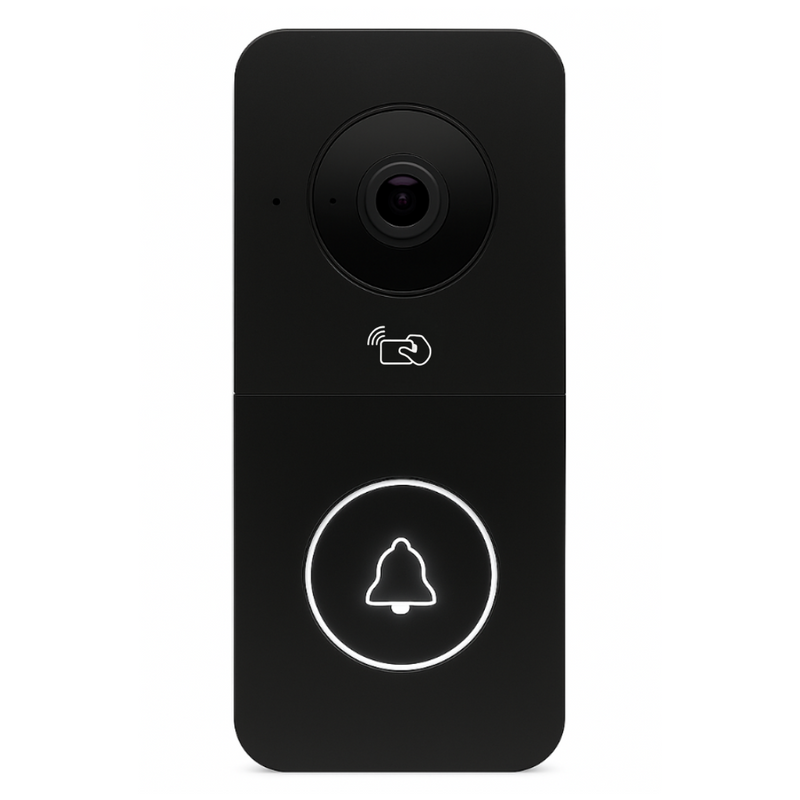

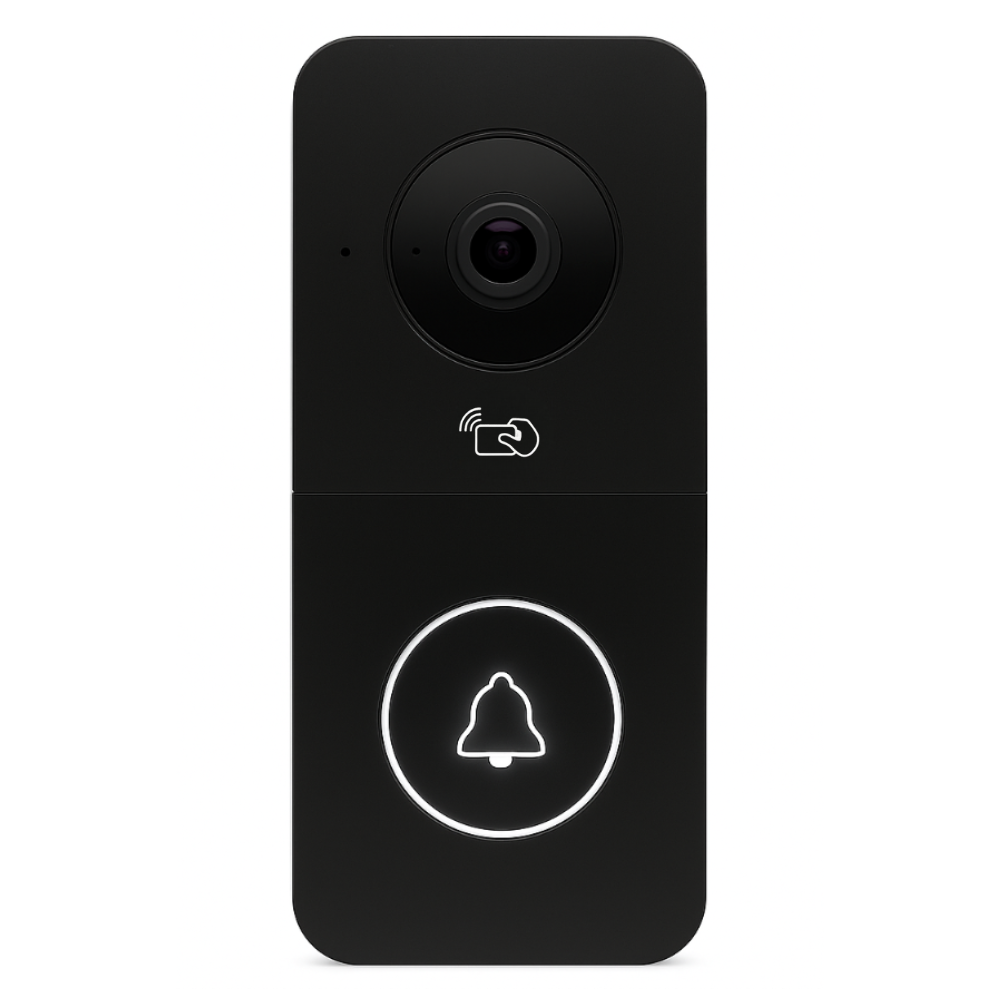

- 1x JD-S5-B Black Video Intercom Outdoor Station
- 1x Mounting accessories
- 1x Double-sided tape
- 5x RFID chip 13.56 MHz
- 1x Bracket for angled mounting

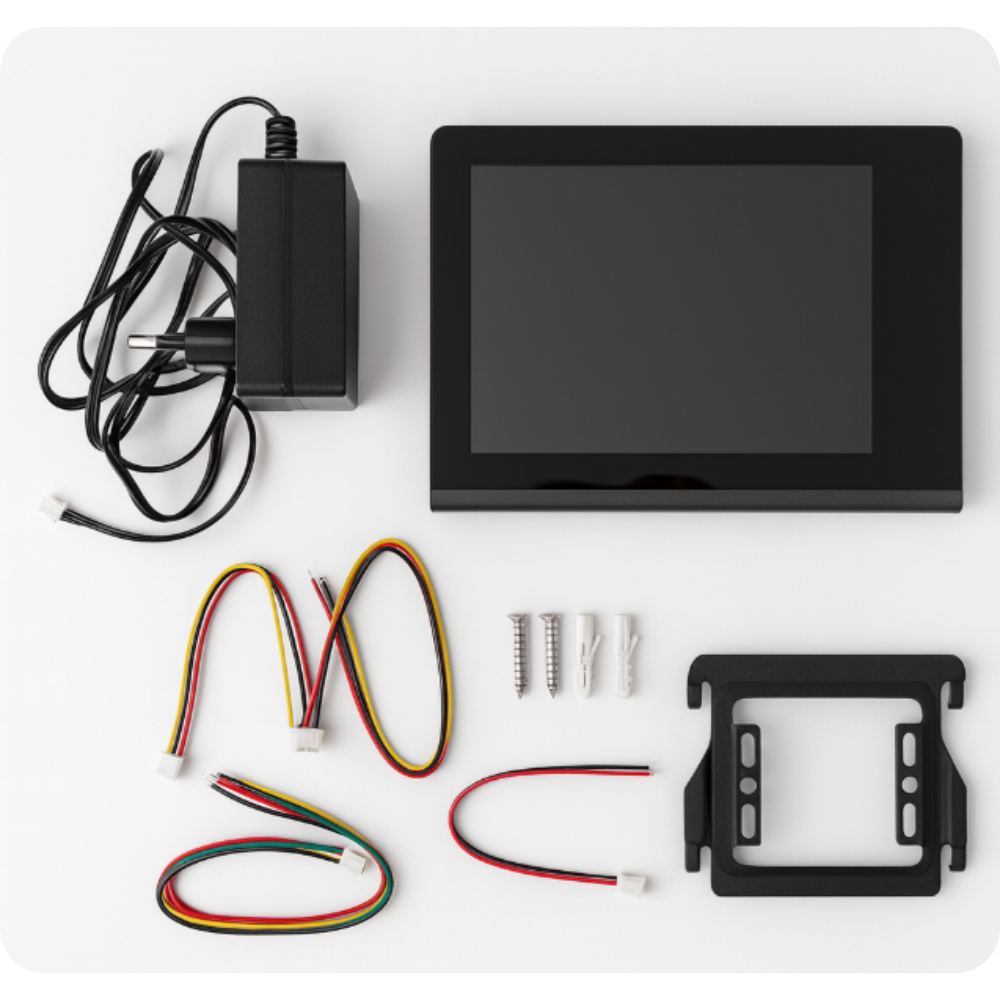

- 1x JD-S5-M Black Video Intercom Indoor Station
- 1x Mounting accessories
- 5x RFID chip 13.56 MHz
- 1x Bracket for angled mounting
The Polish electronic manual is available as a downloadable attachment. You can find it above or below our product description .
