SS010 roller shutter alarm sensor
Our Spreest magnetic door and window contacts are the perfect solution for those looking for reliable and effective security for their home or workplace.

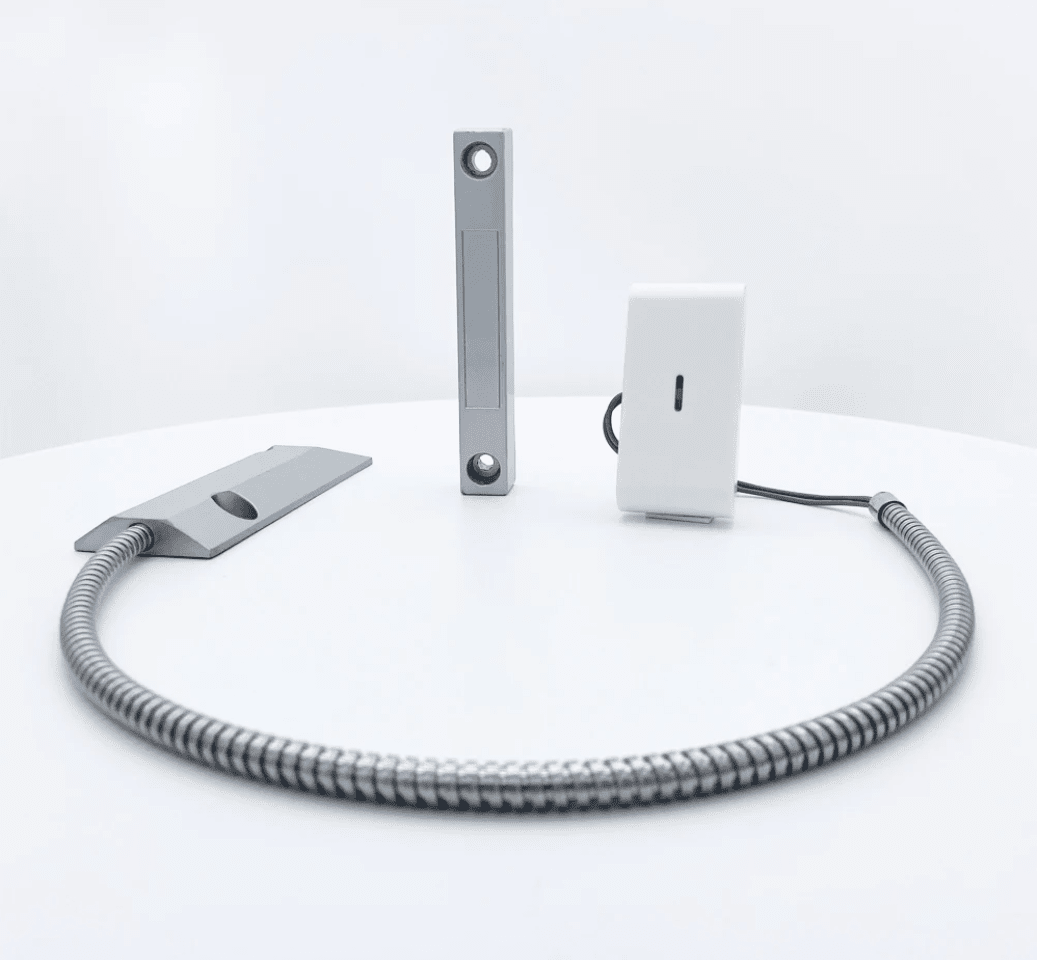

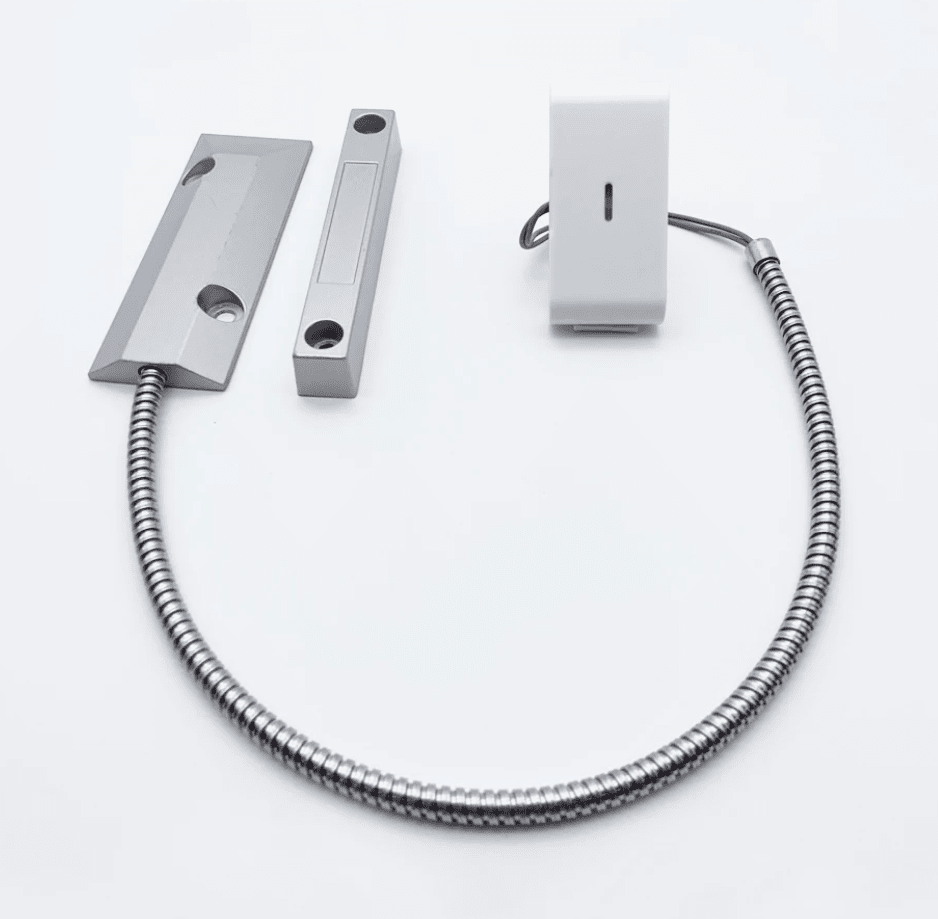

Our magnetic contacts consist of two parts: a switching section and a magnetic side. Using permanent magnets, the sensor generates a constant magnetic field , activating the switch and transmitting an alarm signal to security systems .
Thanks to high-quality workmanship and advanced technology, our magnetic contacts provide unparalleled protection against burglary .
It works with Spreest alarm systems available in our offer, including the H700, H501 , and other GSM and Wi-Fi alarms operating at 433mHz. To trigger an alarm, the sensor must be paired with the alarm system wirelessly via the 433mHz frequency.
Sensor installation

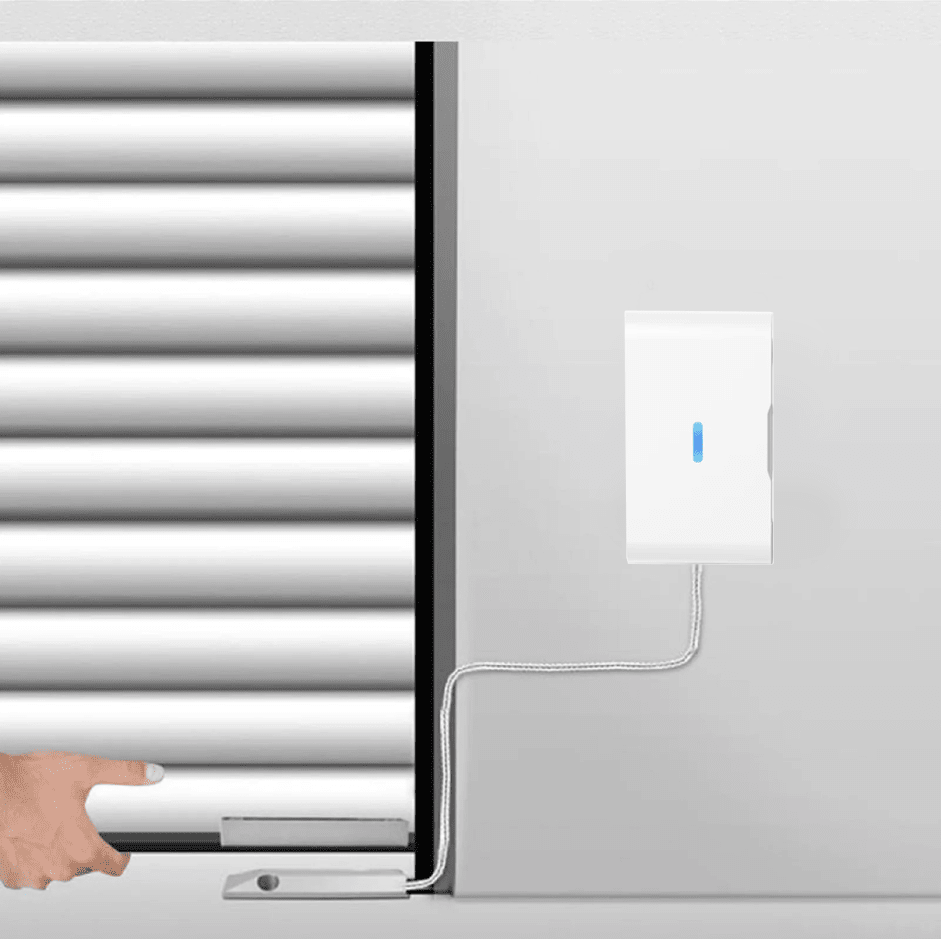

Magnetic contacts can be mounted using screws or double-sided adhesive tape , depending on the door and window material. They are ideal for wood and metal structures , mounted without the need for screws. They are especially designed for installation in garage doors and shop shutters .

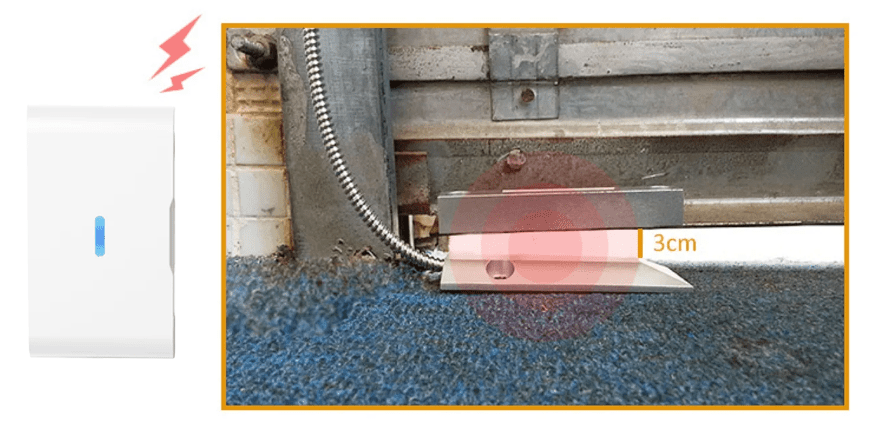

The distance between these two parts should be less than 3-5 cm when the roller shutter/roller door is closed .
One part (magnetic) should be attached to the moving part (e.g. door leaf) and the other part (with the switch) to the fixed frame .
Technical specifications
- Operating frequency: 433MHz, eV1527
- Operating current: 20mA
- Operating temperature: -10°C ～ 50°C
- Working humidity: ＜95%
- Power supply: 23A 12V battery (included)
- Battery life: 1 year
- Range: 100m (in open area)
- Material: ABS
The set includes
- 1x SS010 roller shutter alarm sensor
- 1x Battery 23A 12V
- 1x Set of mounting accessories
- 1x Double-sided mounting tape
- 1x User Manual
