G6 TTLock Matter Gateway

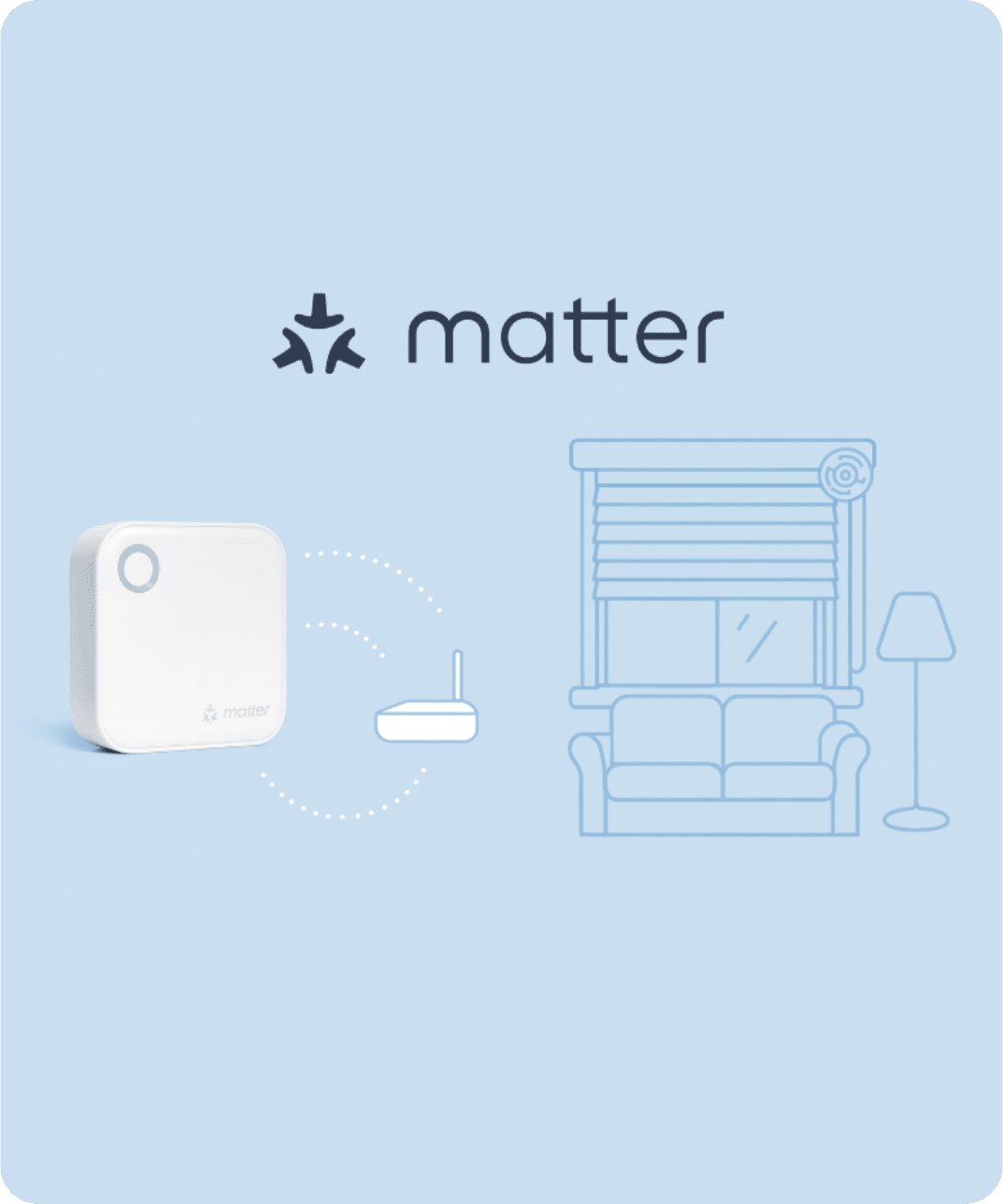

Integration with Matter technology

The TTLock G6 gateway supports the latest Matter over Wi-Fi standard, allowing smart locks to be easily integrated into smart home ecosystems from various manufacturers .

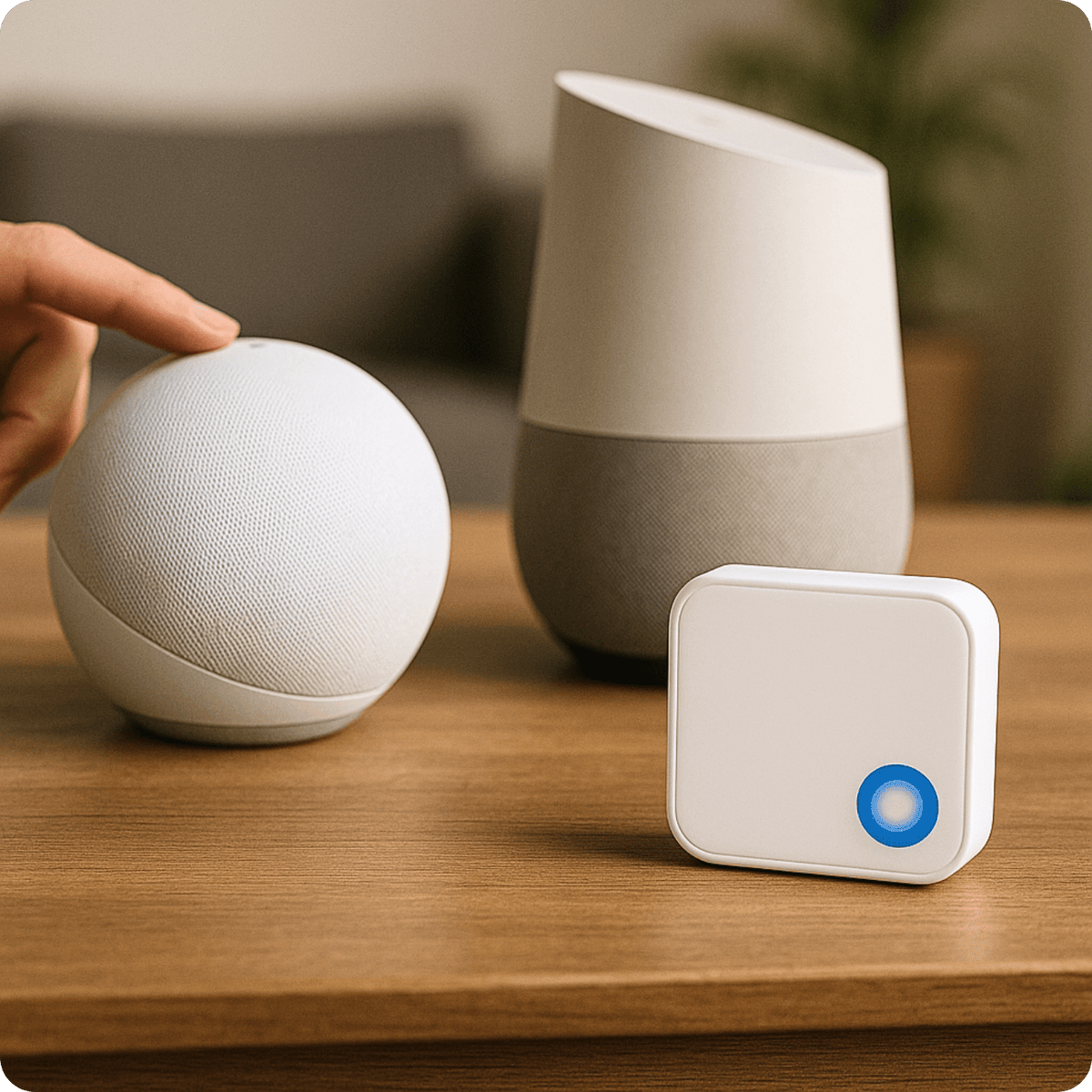

Matter technology ensures full interoperability - the gateway works with Apple Home, Google Home, Amazon Alexa, and other systems compatible with the standard, enabling convenient control from a single application or by voice.

Thanks to this, the user gains simpler configuration, greater security and the ability to create automated cross-platform scenarios , which significantly increases the comfort of everyday use of smart locks.

Application

The TTLock Matter gateway makes your lock part of your entire smart home. It lets you connect your door with other devices:

• when you open the door, the lights in the hallway automatically turn on,
• when you close the lock, the system turns off all the lamps and lowers the heating,
• you can open the door with your voice via Google Assistant, Siri or Alexa,
• you can set the "night" mode – the gate will close the door itself at the selected time.

To work: other devices in the home (lights, blinds, heating, etc.) must also support the Matter standard or be connected through their own Matter-compatible gateways.

How to check it?

• The Matter icon/logo (green logo with 3 arrows) should be present on the packaging or in the device manual.
• Information about Matter support is also provided in the technical specifications on the manufacturer's website.

Connect from anywhere

The gateway acts as an intermediary between the SmartLock and your smartphone . It's connected to your home's Wi-Fi network and must be within range of your router's Wi-Fi signal. and in close proximity to the SmartLock with which it is to cooperate.

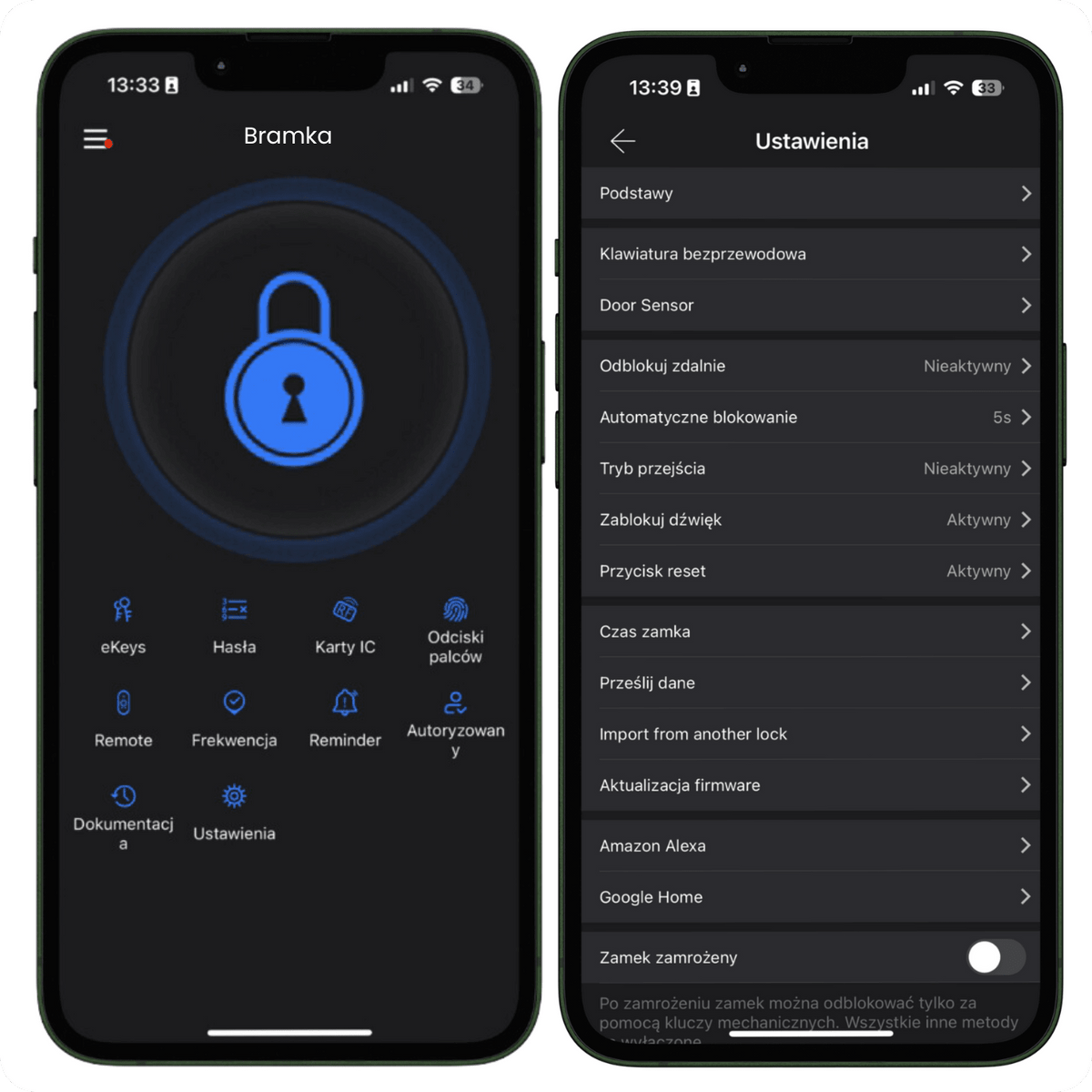

With the TTLock app installed on your smartphone, you can remotely manage your lock , including opening and closing the door, from anywhere in the world, as long as you have internet access .

We send commands and management instructions to the gateway, which then sends the commands to the lock , enabling full control over the security of your home remotely.

Unlimited possibilities

The device provides complete remote management of access to your home. It allows you to:

1. Create, delete, and modify access codes

2. Monitor the battery status in the locks

3. Follow the story

4. Open doors in real time

5. Assign one-time, temporary and cyclical access passwords

6. Receive notifications about all events

7. Connect with the Matter ecosystem

All these features are available right on your phone .

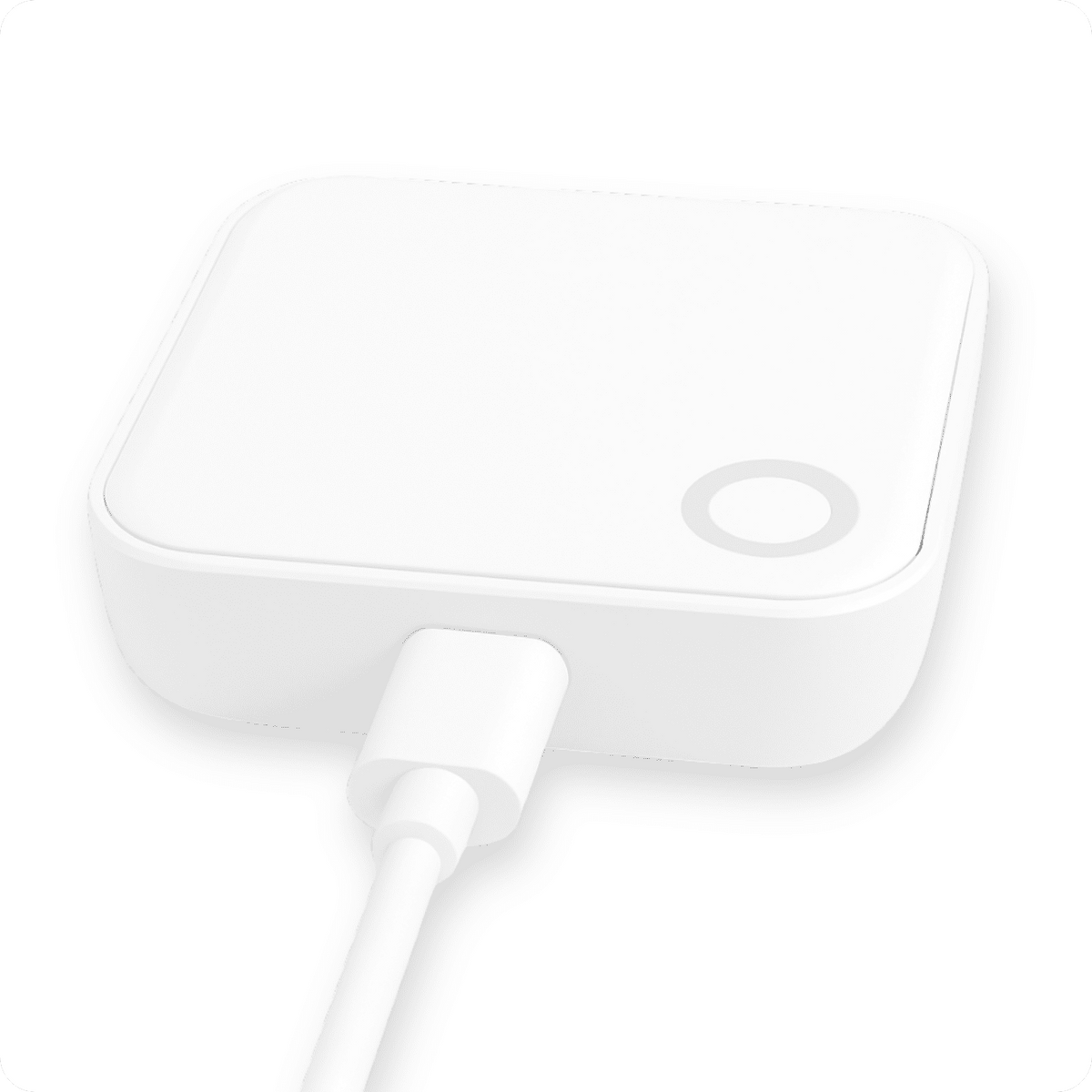

Convenient power supply

The gateway features a modern and convenient USB-C port for powering your device. This allows you to quickly and easily connect it to any power source, such as a phone charger, laptop , or router . The USB-C port provides stable and reliable power, ensuring the gateway is always ready for use .

Technical specifications

• Power supply: 5V DC / 500mA
• Power connector: USB-C
• Bluetooth: 4.0 (max. range 10 m)
• Wireless connectivity: 2.4 GHz
• Wi-Fi standards: IEEE 802.11 b/g/n/ac/ax (Wi-Fi 6)
• Remote control via the application: TTLock
• App Compatibility: iOS 11 or later / Android 6.0 or later
• Operating temperature: 0°C to 40°C
• Operating humidity: 10% – 90% RH (non-condensing)

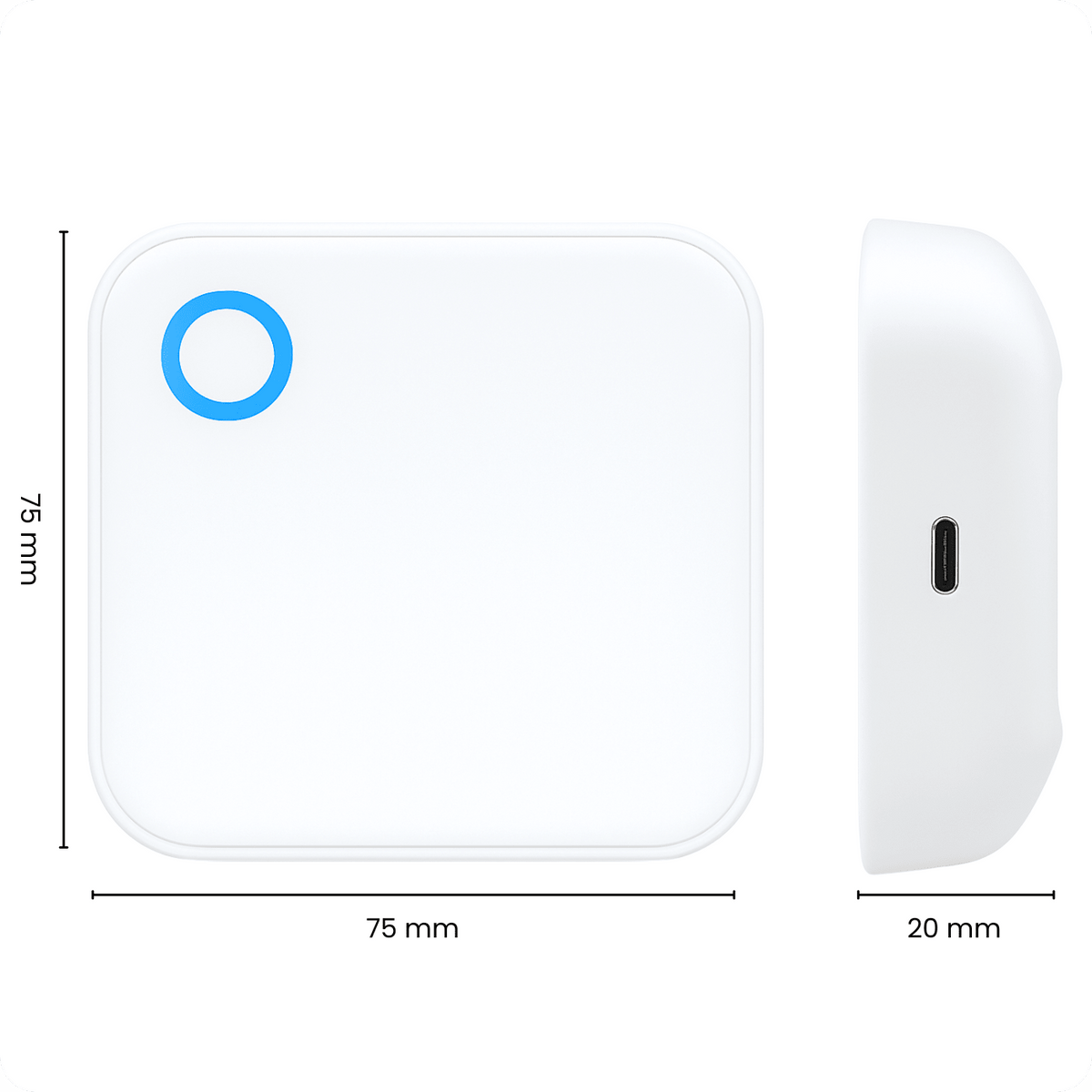

• Dimensions: 75 mm × 75 mm × 20 mm

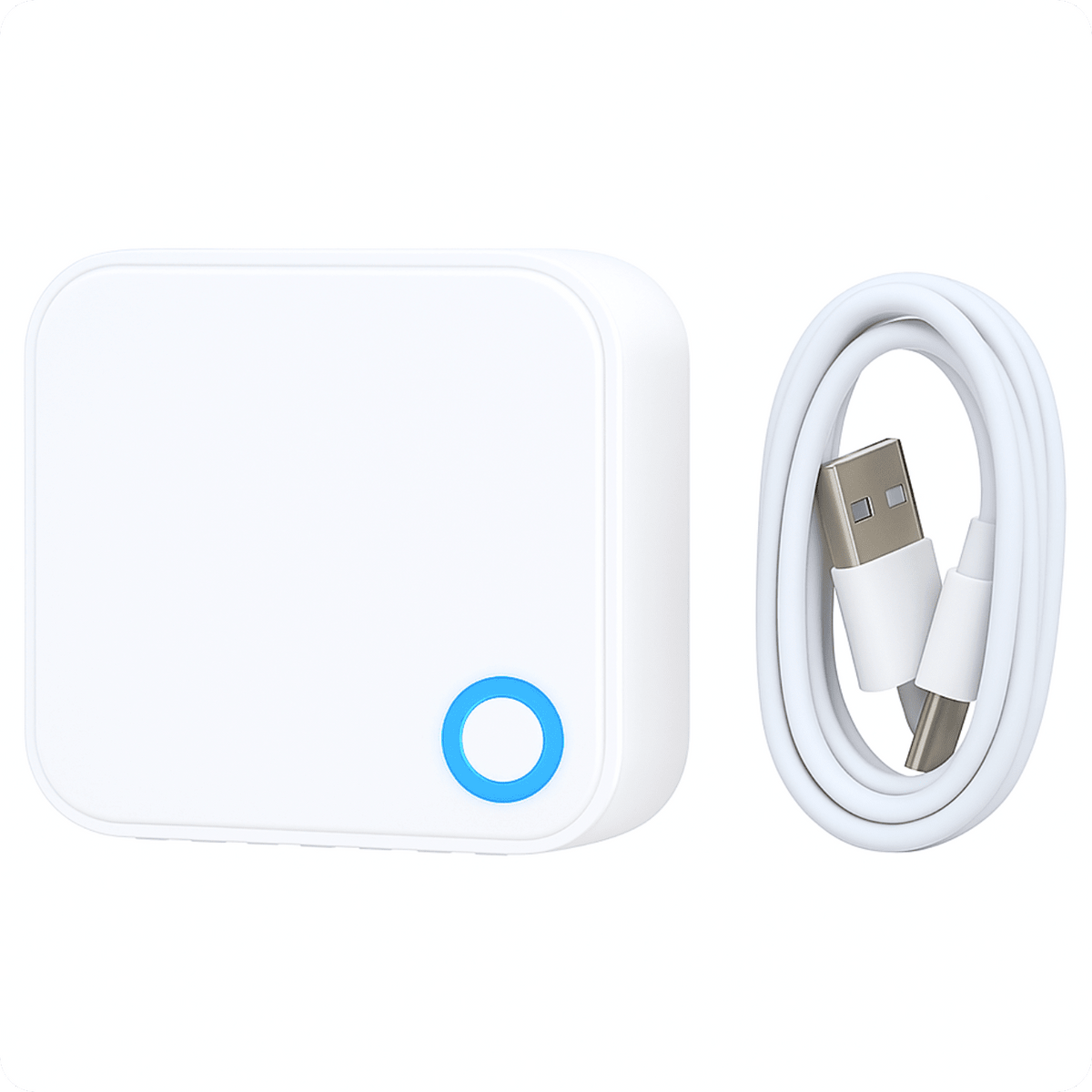

The set includes

• 1x G6 TTLock Matter Gateway
• 1x USB-C cable
• 1x User Manual

The Polish manual is available as an electronic download in the attachment. You can find it above or below our product description .
