Alarm for pet entry into the car MFR+T001Q3

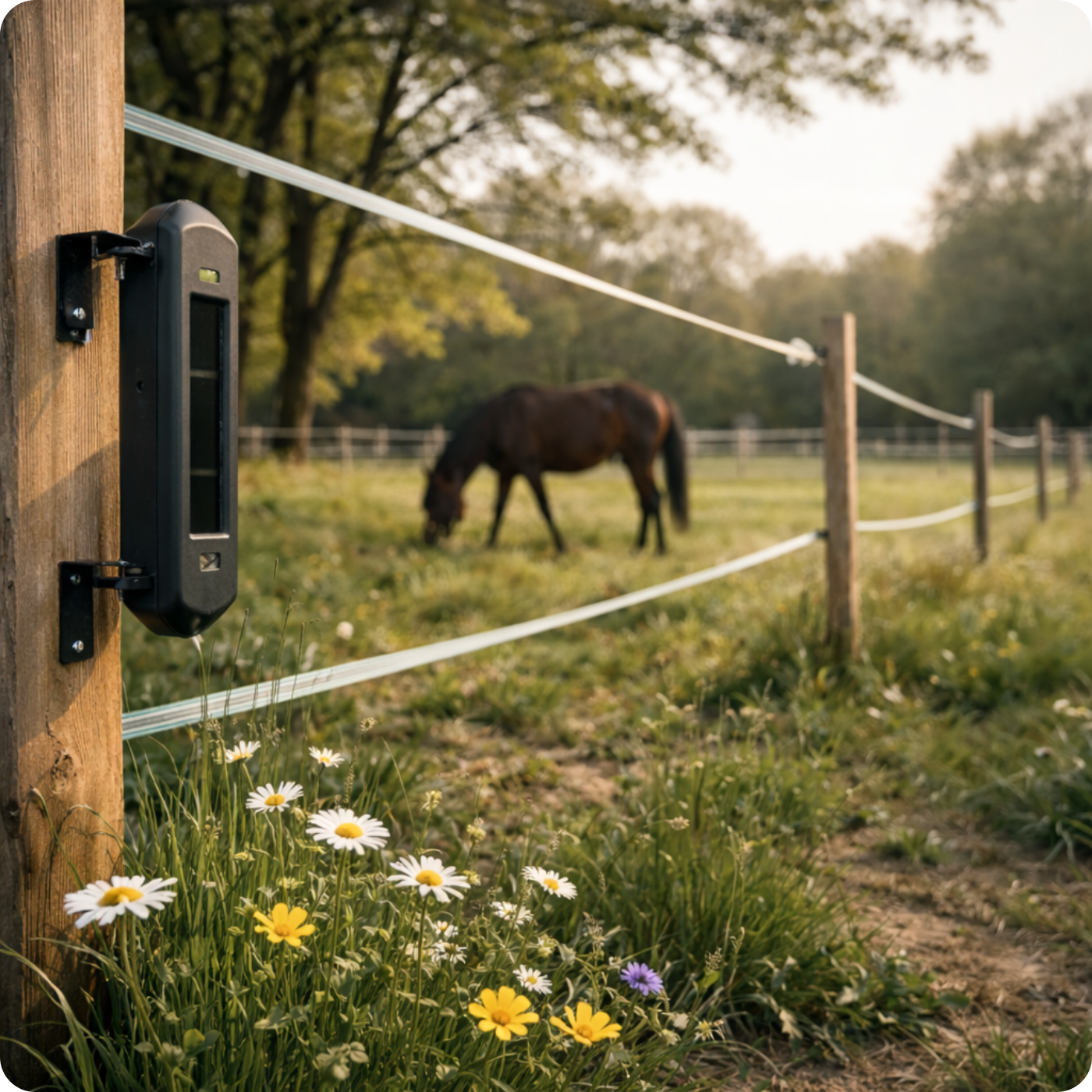

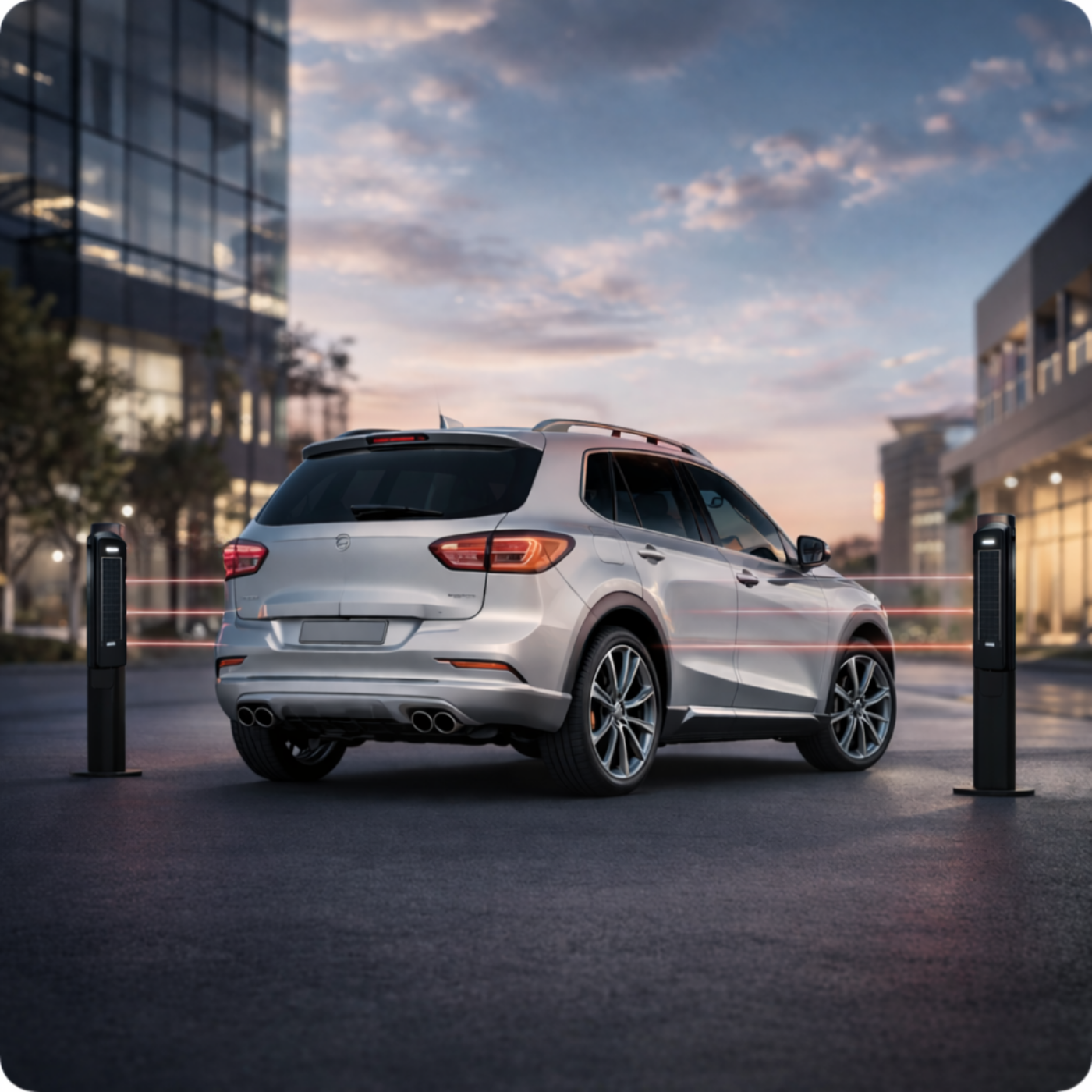

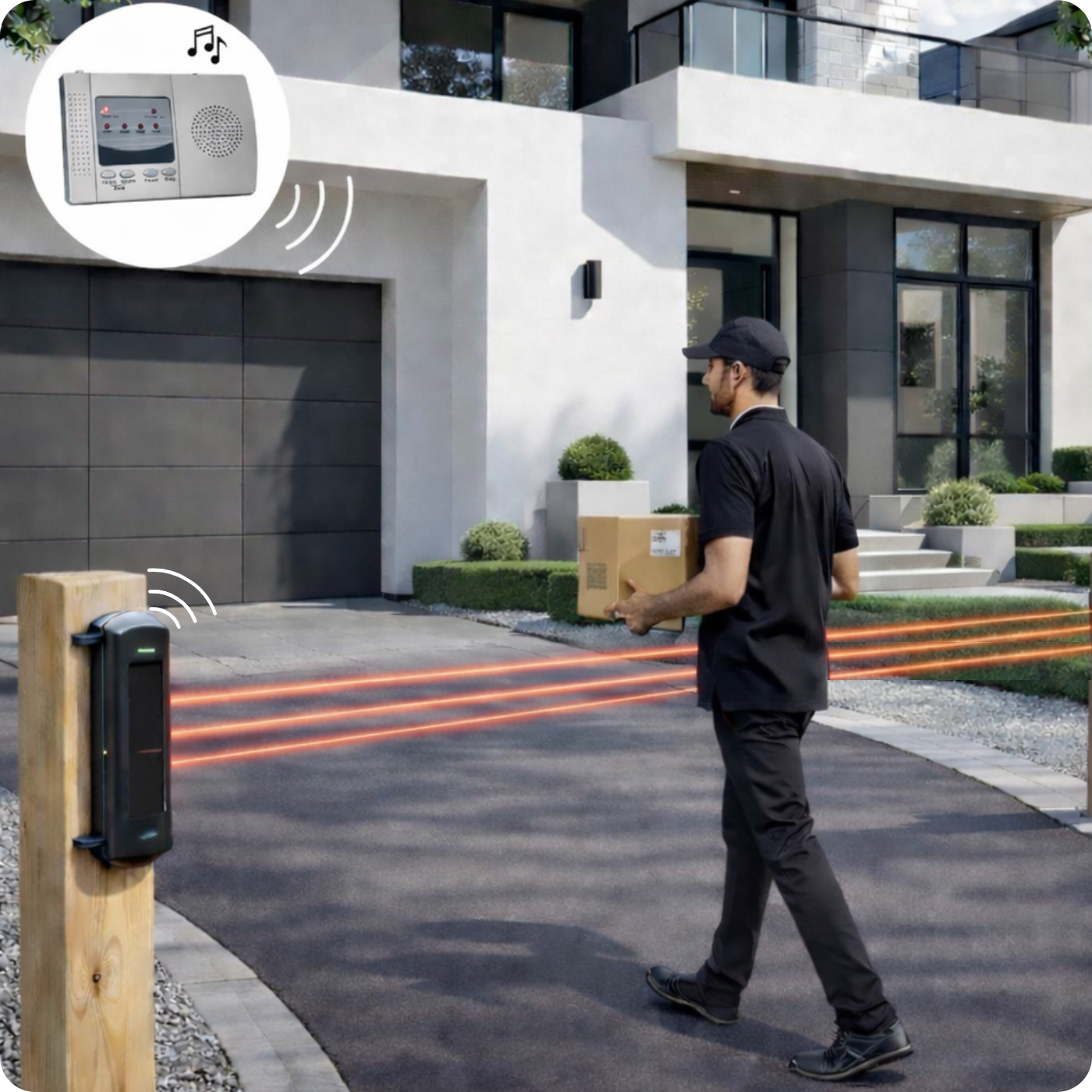

The MFR+T001Q3 wireless entrance alarm by Spreest is an advanced solution for protecting properties, driveways, gardens, and other outdoor spaces.

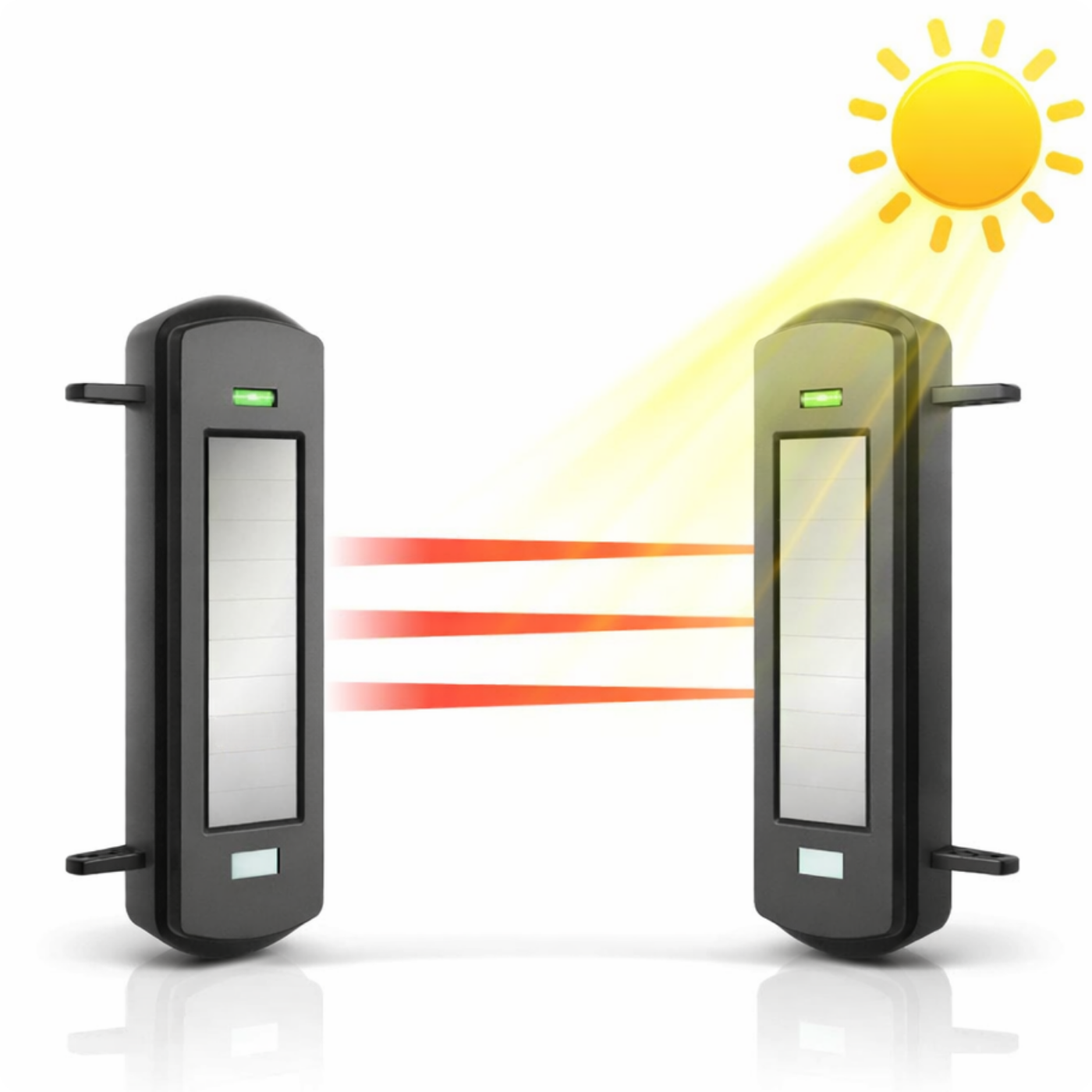

The system combines modern solar-powered infrared sensors with a 4-channel indoor receiver, ensuring effective and stable long-range motion detection.
The receiver allows for connecting an additional external siren and other devices via four relay outputs, such as garden lighting, recording activation, or a deterrent flash lamp for animals.
When the infrared beam is interrupted by a person, animal, or vehicle, a signal is immediately transmitted to the receiver, which triggers an audible alarm or other connected warning devices.
Key Features
1. Infrared detection (3 beams in one pair of sensors) – Increased detection accuracy and reduced false alarms.
2. Detection range up to 100 m – Effective monitoring of the designated area.
3. Transmission range up to 1000 m – Stable signal transmission to the receiver in open space.
4. Solar-powered sensors – Automatic solar charging, no need for frequent recharging.
5. Wireless operation – No need for cables between sensors and receiver.

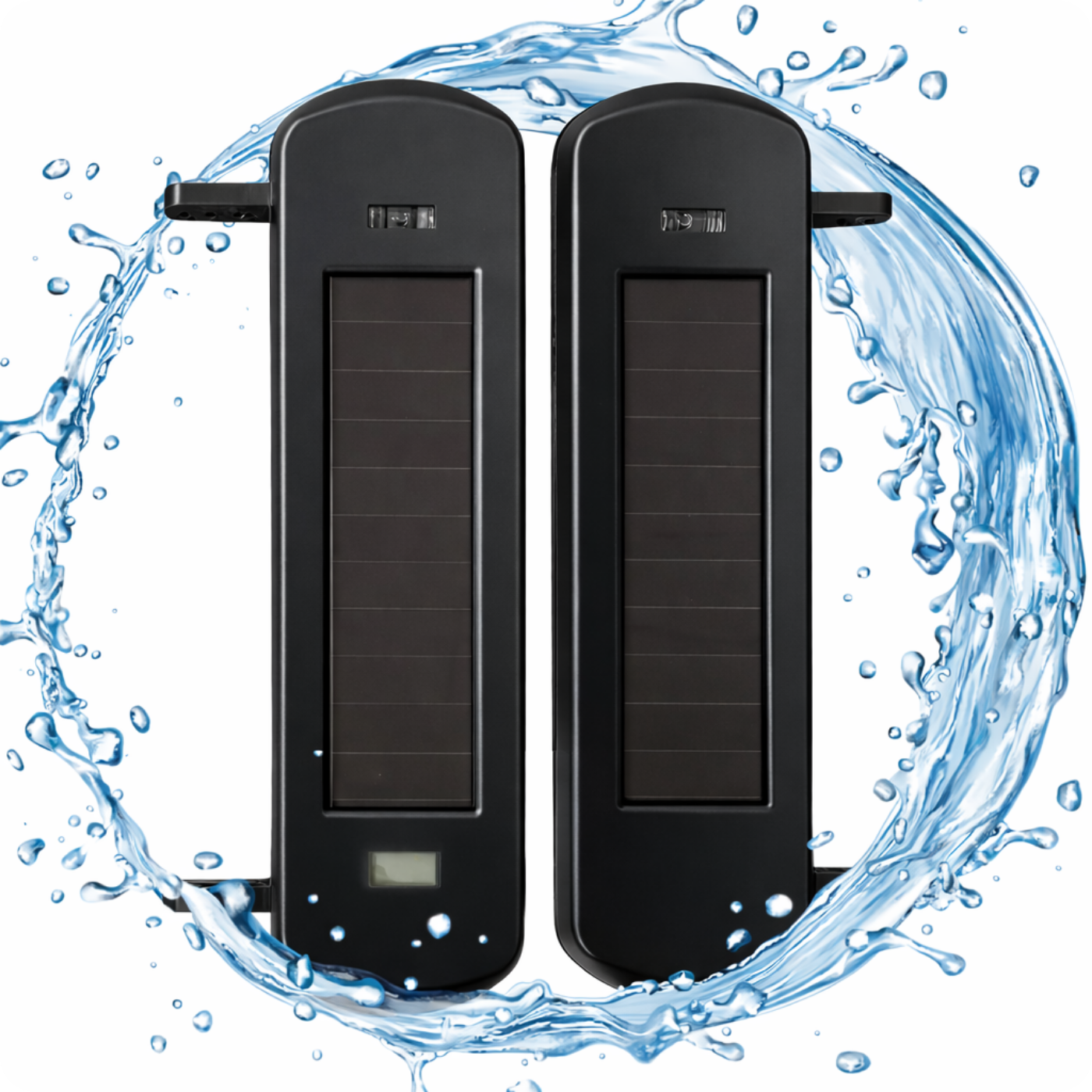

6. IP66 waterproof rating – The sensors are resistant to rain, snow, and harsh weather conditions.
7. 4-zone support – Ability to assign 4 pairs of sensors to different areas (1 pair of sensors included in the set).
8. Temporary mute mode – Temporarily disarms the system without turning it off.
9. Alarm mode – Audible signal repeated every few minutes after intrusion until the button on the receiver is pressed.
10. Relay outputs – Possibility to connect sirens, warning lights, or other devices.

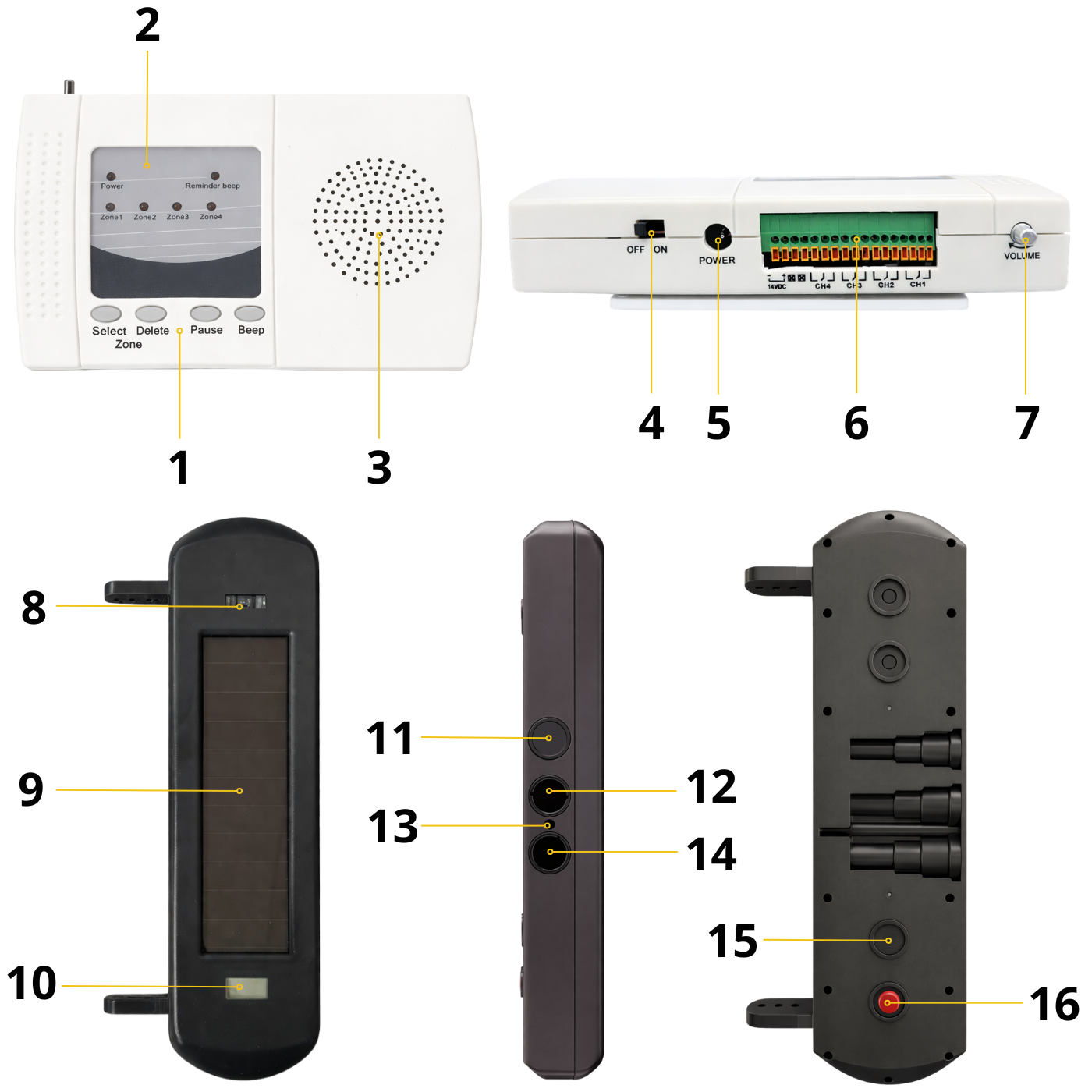

Set Elements
- Control panel
- Indicators
- Speaker
- ON/OFF switch
- Charging socket
- Panel
- Volume
- Spirit level
- Solar panel
- LCD display
- Infrared beam
- Infrared beam
- Calibration hole
- Infrared beam
- ON/OFF button
- Charging socket
Technical Specification
Receiver
- Power supply: DC 12–15 V
- Operating current: 20 mA (standby), 180 mA (alarm)
- Operating frequency: 433 MHz FSK+FHSS
- Relay output: DC 24 V / AC 120 V (2 A)
- Maximum output current: 400 mA

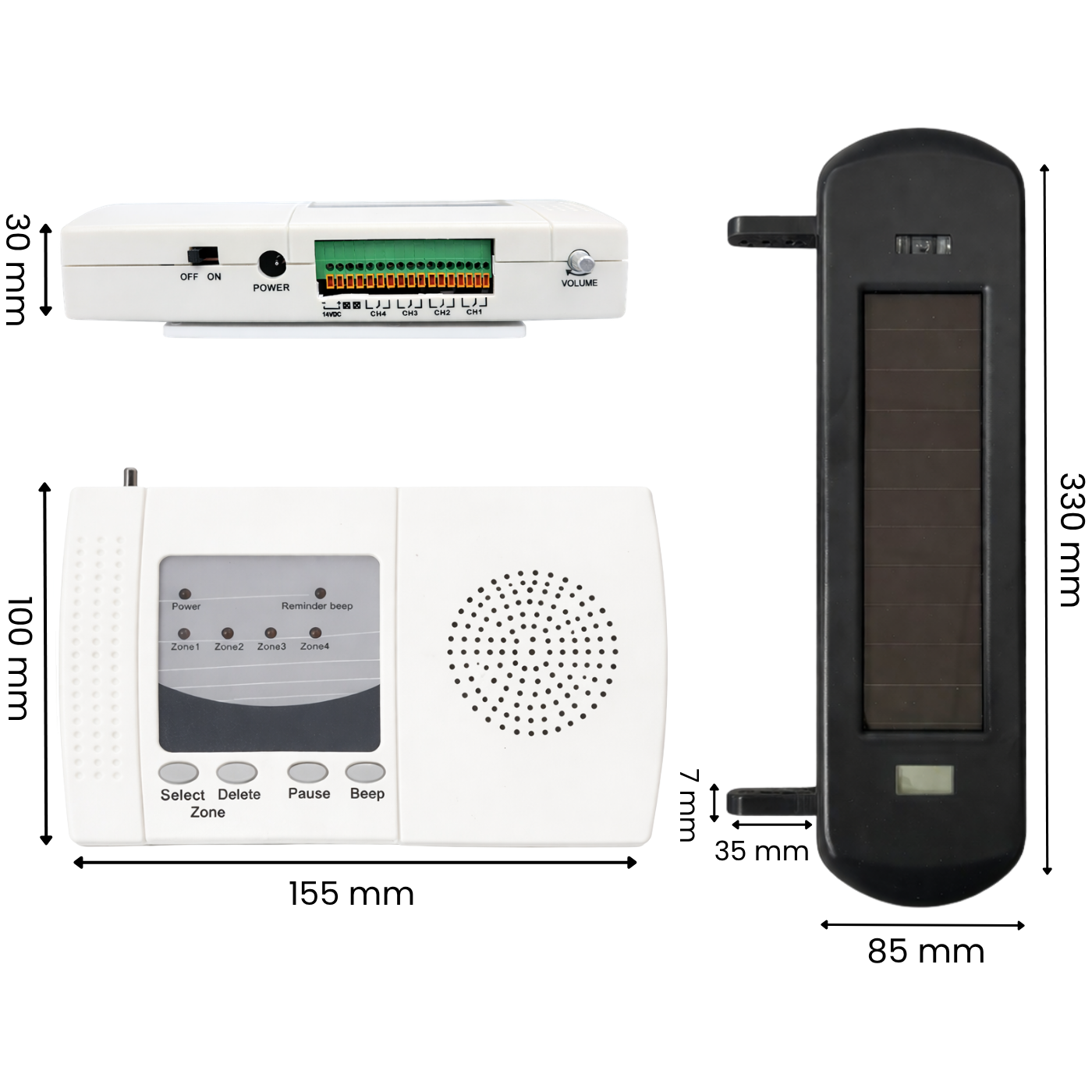

- Dimensions: 155 x 100 x 30 mm
- Weight: 214 g
NOTE: The receiver must be continuously powered.
Sensor
- Power supply: Solar panel + LiFePO4 500 mAh battery
- Water resistance: IP66
- Operating voltage: 3.3 V
- Detection range: Up to 100 m
- Transmission range: Up to 1000 m
- Sensitivity: 200 ms (standard), 100 ms (high)
- Number of beams: 3
- Power consumption: ≤0.5 mA (standby mode)
- IR wavelength: 940 nm ±20 nm
- Solar panel efficiency: ≥2 mA (at 1800 lux)
- Operating temperature: -30°C to +70°C
- Charging time: 4h with power adapter, all day with solar panels
- Dimensions: 330 x 85 x 45 mm
- Weight: 2x 501 g

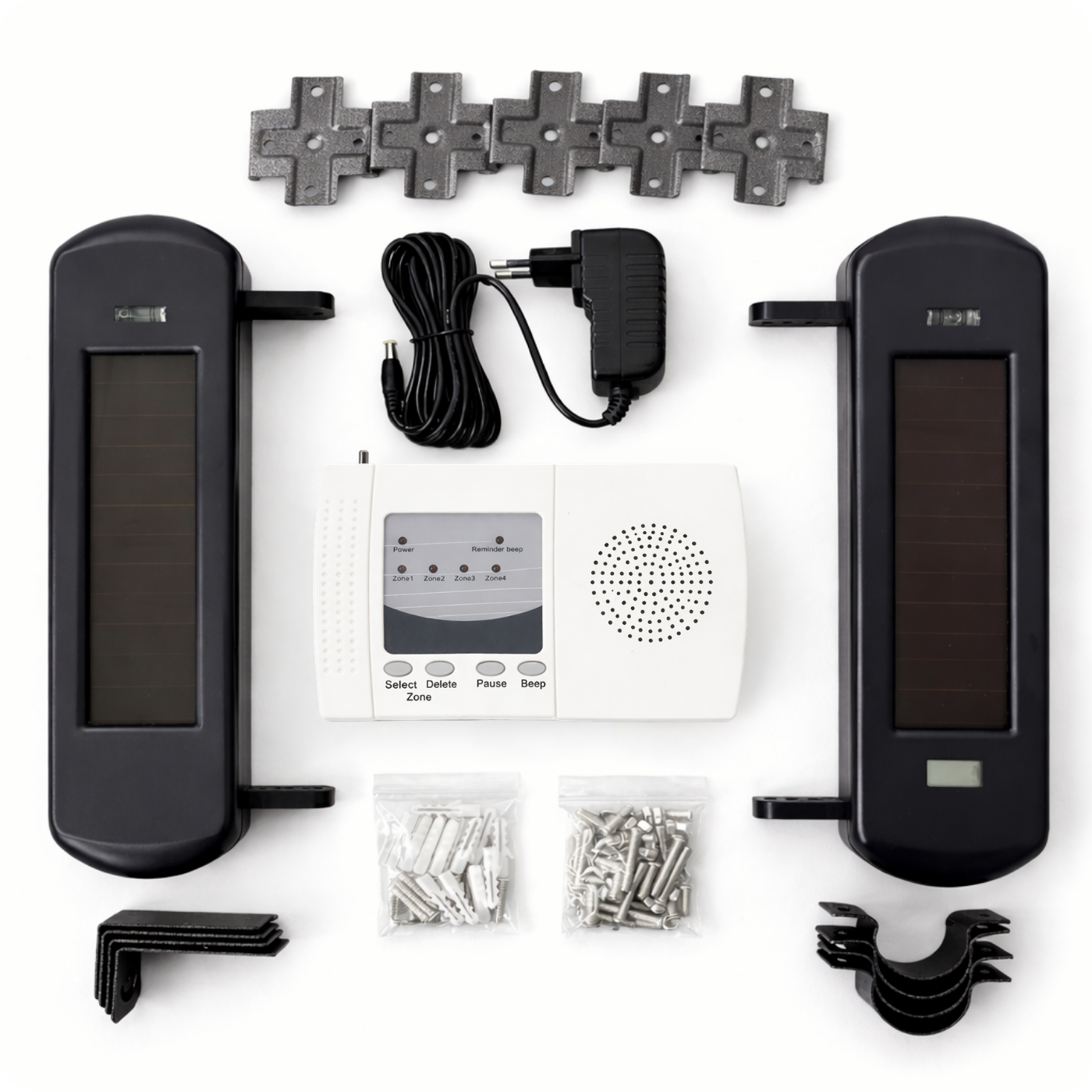

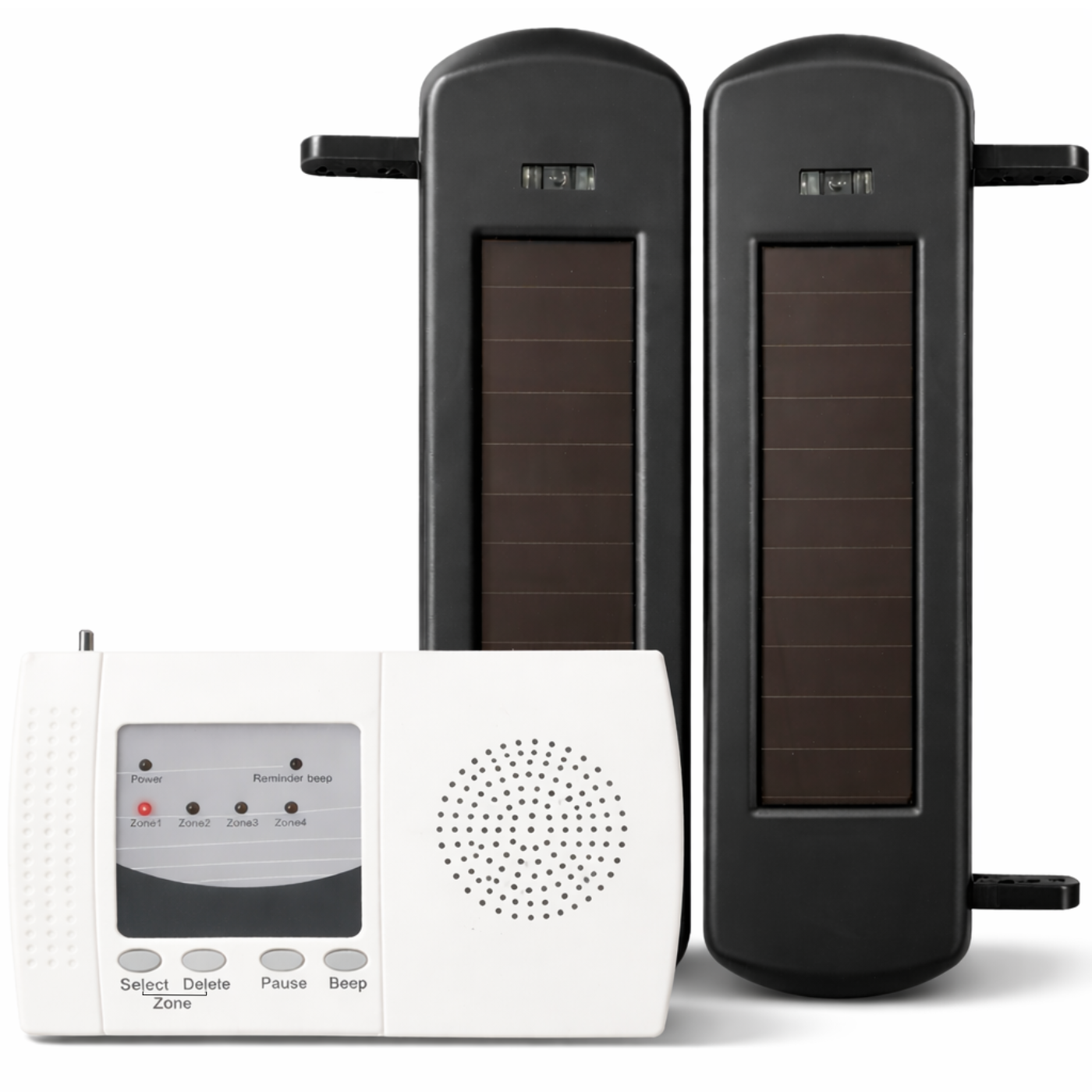

The set includes
- 2x Sensor (infrared barrier)
- 1x Receiver
- 1x Power adapter
- 1x Set of mounting accessories
- 1x User manual
