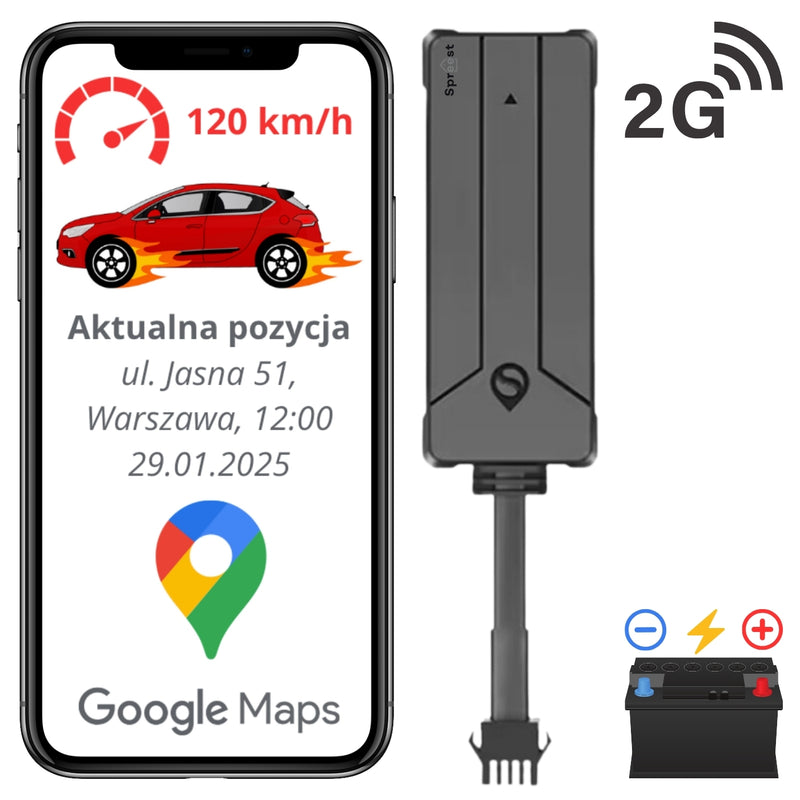

D11 2G GPS locator
129,99 zł
dcae9b01a322ab7ef2591d4abd8ce233
D11L 4G GPS locator
143,99 zł
b4a7ae1acb31fdbd8640eddd874e37b6
D21 2G GPS locator
183,99 zł
d4502b7481e343e0909ba855a4cb235f

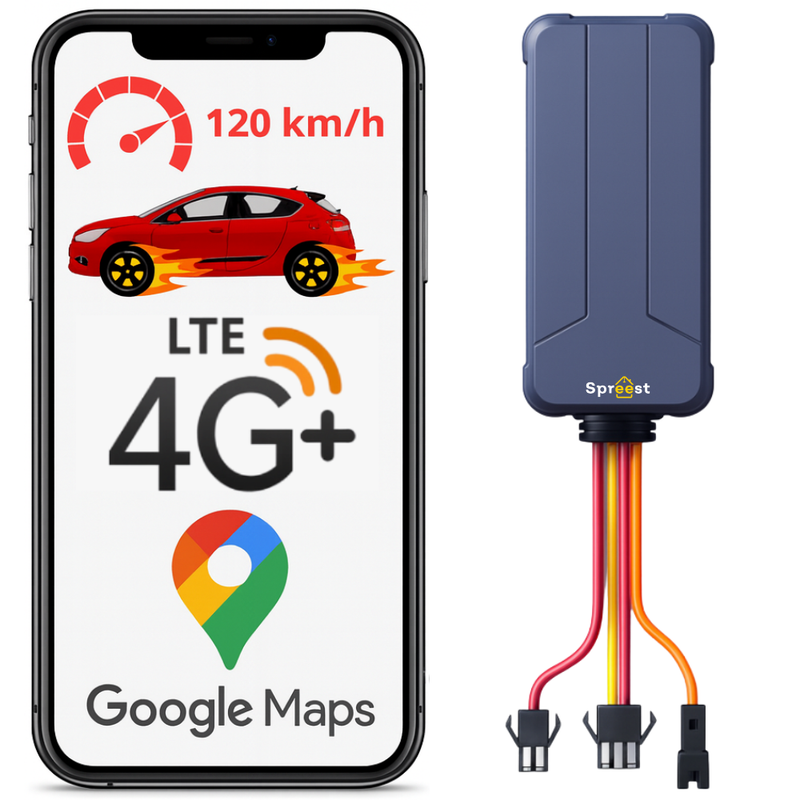

D21L 4G GPS locator
199,99 zł
20,000+ reviews

Over 20,000 verified Spreest reviews, with an average rating of 4.7/5

Pickup available at Odbiór w Mińsku Mazowieckim

Usually ready in 1 hour

2196f7334837cb5105d2918c8dc1a03e

Fuel Cut-Off Relay 12V-Relay

Odbiór w Mińsku Mazowieckim

Pickup available, Usually ready in 1 hour

Romualda Traugutta 19
05-300 Mińsk Mazowiecki
Poland

601580259

Full post-purchase support

Write to us or call us 11:00 - 17:00 Monday - Friday , we provide full post-purchase support

Safe delivery

Plus, free shipping for orders over PLN 150 - for InPost, DPD, DHL couriers and many parcel collection points

Safe shopping

Secure payment methods and many years of experience of the Spreest brand on the Polish market

Lightning fast delivery

Order by 6:00 p.m. on weekdays using the InPost carrier and receive your parcel the next day

Introducing the Spreest remote fuel/power cut-off relay – the perfect complement to our trackers .

The module enables immediate or scheduled shutdown of the fuel pump or ignition , controlled directly from the tracking platform.

Thanks to full integration with the tracking platform, you can at any time, from the website or mobile application, interrupt the fuel supply automatically (according to a programmed schedule) or immediately – with a single button.

Key Features

  • Full integration with locators: works with D11, D11L, G10L, D21, D21L models available in our offer
  • Two cut-off modes: Manual – instant button in app/website; Automatic – time schedule, geofencing or event rules.
  • Simple installation: installation in line with the fuel pump (or ignition), connection of four wires according to the standard diagram.
  • Minimum power consumption: quiescent current < 10 mA, no impact on the battery.

Installation cables:

  • White (85) – +12V relay power supply
  • Yellow (86) – control signal from the locator
  • Green #1 (87A) – Normally Closed Contact
  • Green #2 (30) – Common COM Pin

Technical specifications

  • Power supply voltage: DC 9 – 16 V
  • Max load: 40A 14VDC
  • Quiescent current: < 10 mA
  • Switching time: < 15 ms
  • Contact life: > 100,000 cycles
  • Operating temperature: –25 °C … +70 °C

Included in the set

  • 1x Fuel Cut-Off Relay 12V-Relay
