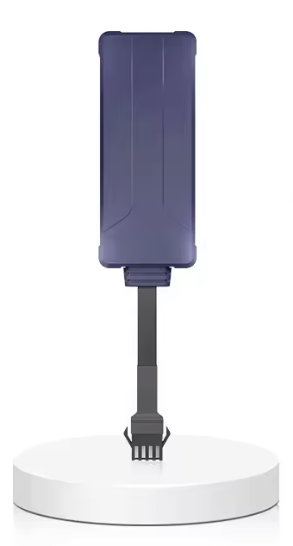

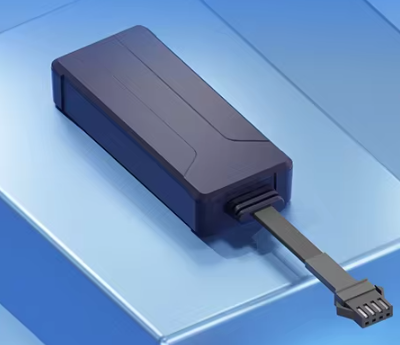

D11L 4G GPS locator

To activate the tracker, you'll need a card with an internet package – you can use your own or take advantage of our offer (the cheapest option on the market). There's no need to register an account, configure the tracker, pay for subscriptions, etc.

When you purchase one of our cards, all you need to do is turn on the device to immediately enjoy full functionality.

• Option 1 - The starting data package is sufficient for approximately 33 months of average use from a location*, the card does not expire for 10 years.
• Option 2 - The starting data package is sufficient for approximately 13 months of average use from the location*, the card does not expire for 3 years.

Before the package runs out, we will remind you by phone about the possibility of purchasing another package at a fixed price.

The selected card variant is available as part of another offer or a set with this offer.

*This scenario does not include changing the default operating mode. Communication takes place exclusively through the platform.

Key Features

• Real-time tracking: online preview in mobile and browser app.
• Ignition cut-off (manual) – after purchasing a relay, you can remotely cut off the fuel or power supply to the vehicle directly from the application.
• Ignition Cut-Off (Automatic) – The device allows you to set a schedule that automatically cuts off or restores power at selected times.
• Up to 6 months of history: analysis of routes, speeds and stops.
• No subscriptions: Lifetime software subscription included in the price of the device.
• Internet SIM card required: You can use your own card or buy a ready-to-use one from us (valid for 10 years).
• Interface in Polish: application, support and instructions.
• Alarms: vibration, overspeed and area, device shutdown, low battery.
• 4G network: stable and fast data transfer.
• Satellite positioning: accuracy up to 2 m.
• Emergency power supply: up to 9 hours of operation without external power supply.

Application features

1. Live tracking (GPS/BDS/LBS/WiFi, accuracy ≤ 2m): satellite map, address, speed.
2. 6-month history: routes, speeds, places and times of stops.
3. Statistics: mileage, average speed, number and duration of trips, speeding.
4. Geo-fences: you define areas and the app itself notifies you about entry/exit.
5. Maps (Google, Apple, Baidu, Bing): map, satellite, road layers, POI.
6. Share: Live View Link (WhatsApp, Messenger, etc.).
7. Alerts: overspeed, vibration, shutdown, no connection.
8. Vehicle personalization: names, icons, photos, notes, contacts.
9. Multiple locators and groups (“Company”, “Family”) in one app.
10. Service and reminders: repair history, insurance and inspection alerts.

Alarms

• Speeding – when a vehicle is driving faster than the set limit.
• ACC Alert – detection of the vehicle ignition being turned on or off.
• Zone crossing – notification of entry or exit from a designated area.
• Low battery/voltage – signal about low battery level or power supply voltage drop.
• Static Threshold – alert upon sudden stop or unusual speed change.
• Sudden braking – detection of a rapid drop in speed below the threshold.
• Sharp turn – a signal that the permissible turning angle has been exceeded.
• Device shutdown – information about unauthorized shutdown of the locator.
• Vibration – Alerts you to excessive vibrations or impacts from the vehicle.
• Offline – loss of connection with the device.

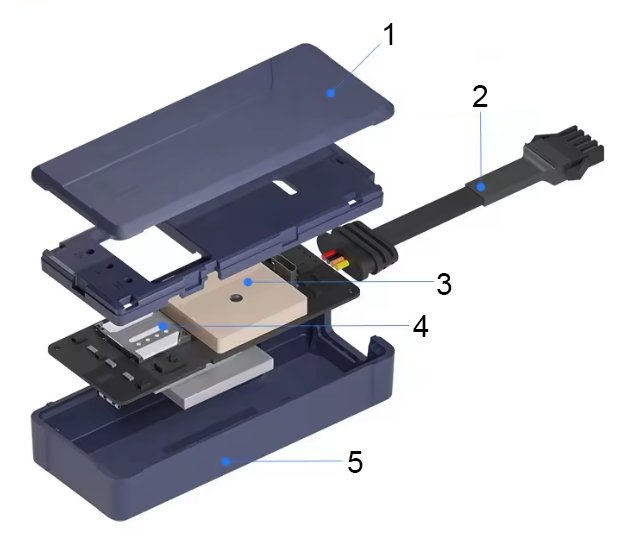

Locator elements

• PC&ABS housing – flame-resistant, protects the interior of the device.
• Four-wire connection – easy integration with vehicle installation.
• Positioning module – precise GPS and BDS tracking.
• Micro SIM slot – data transfer via cellular network.
• Built-in battery – emergency power source.

Connection diagram

• Red cable: V+ (9-90V) – power cord
• Black cable: V- – ground wire
• Orange cable: IGNITION – ignition wire
• Yellow cable: Relay – relay control wire

Technical specifications

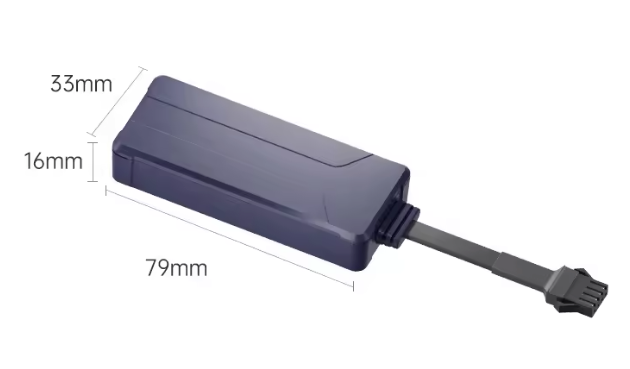

• Dimensions: 79 x 33 × 16 mm
• GSM channels: 4G LTE-TDD, LTE-FDD
• Communication network: 4G
• Device Memory: 4 Mb
• Positioning Mode: GPS/BDS/LBS
• Positioning Accuracy: <10 meters
• Operating Voltage Range: 9-90 V
• Operating Current: 32 mA (12V) / 12 mA (24V)
• Idle Current: 8 mA
• Battery: 100 mAh (20 minutes of continuous operation, 3 hours of standby operation)
• Semi-blind memory capacity for tracking points: 600 location points (saved if network connection is lost)
• Operating temperature: -20°C ~ +60°C
• Weight: 60 g

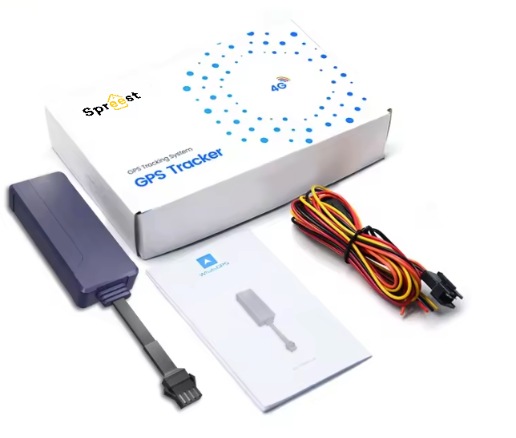

Included in the set

• 1x D11L 4G GPS Tracker
• Double-sided tape for mounting
• Cables for installation (with the possibility of connecting as a fuse)
• User manual

The set requires the purchase of a card with an internet package from our offer or another provider.

Attention

Please read the instructions carefully before using the device for the first time.

The Polish electronic manual is available as a downloadable attachment. You can find it above or below our product description .
