9134 TTLock Control Module
The 9134 TTLock module from Spreest is a small board measuring 40×28 mm , which is plugged directly into the existing gate, wicket or electric strike installation.
After installation, the device allows you to open the entrance by phone , remote control or code from an external wireless keypad.
Thanks to the TTLock application and the ability to send e-keys, you can control access conveniently, locally or remotely (after connecting a Wi-Fi gateway).
Key Features
- Local opening – with one click from a phone within the Bluetooth range of the module.

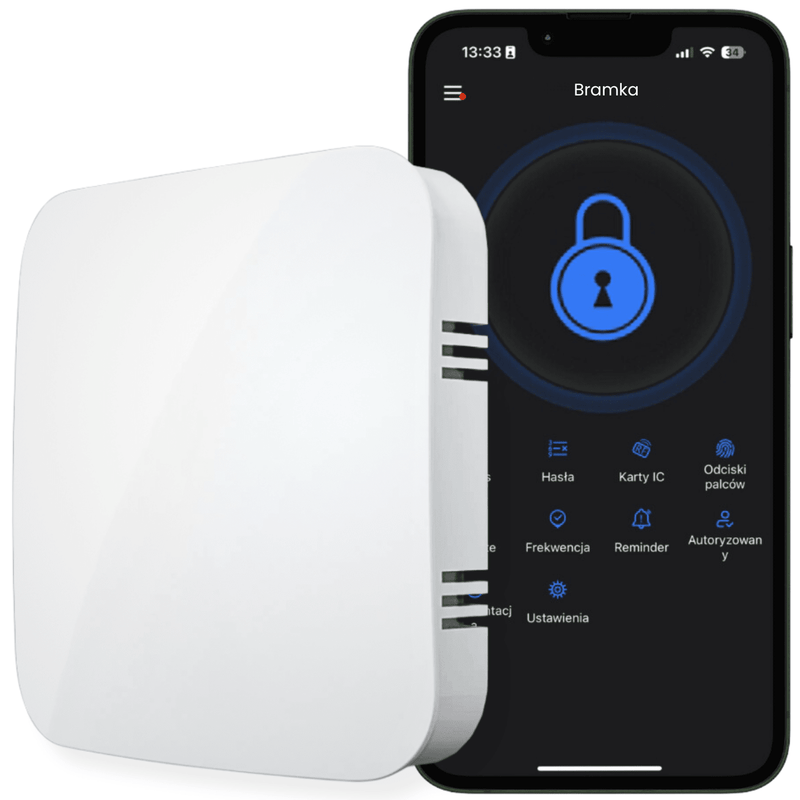

- Remote opening from anywhere – when paired with the TTLock Wi-Fi gateway.

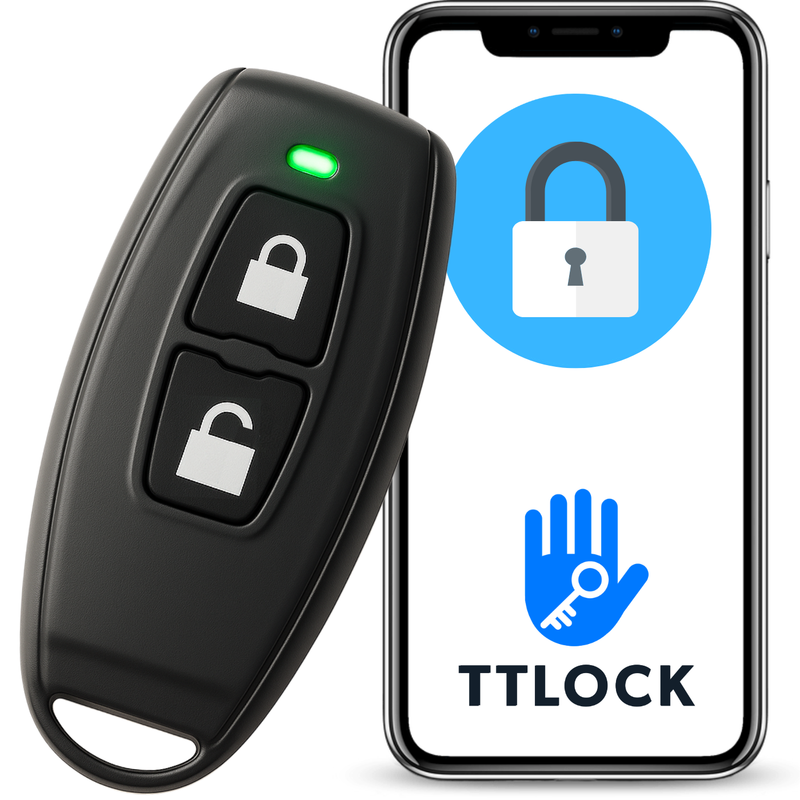

- Wireless remote control operation – quick opening of doors, gates or gates with one button.
- Wireless keypad support - quickly open doors or gates using an external wireless keypad.
- NO / COM / NC - Control of any impulse device.
- Power Supply - Standard 12V DC power supply.
- Access via e-key – you grant access to other people by assigning it to their phone number or email address.
- Access profiles: permanent, temporary, one-time or cyclical.
- Event history – full registration of module usage.
You can grant access to the apartment owner, service team, family or guests – without having to be on site.
Multi-purpose relay
With the module you can easily handle, among others:
- electric strikes and bolts,
- electromagnetic locks,
- sliding/swing gates,
- garage doors,
- barriers,
- automatic doors,
- cabinets and boxes,
- alarm systems and building automation.
- and others...
Compatible with most access control systems.
Technical specifications
- Model: 9134 TTLock
- Power supply: 3.3–12 V DC, 12 V DC recommended (VCC + GND)
- Output: NO / COM / NC relay
- Control: Bluetooth, wireless remote control, wireless keyboard, Internet (with Wi-Fi gateway)
- Compatibility: WK2/WK3 keyboards, TTLock remote controls, all TTLock peripherals
- eKeys: full e-key distribution support (e-mail/phone)
- Local unlocking range: up to 10 m (depending on the environment)
- Low power consumption – the module operates in sleep mode until activated
- Built-in RTC clock (accurate time and access management)
- App: TTLock (Android/iOS)
- Dimensions: 40x28mm
- Bluetooth: BLE 5.2 (built-in antenna)
The set includes
- 1x 9134 TTLock Control Module
The Polish electronic manual is available as a downloadable attachment. You can find it above or below our product description .
