Roller blind control module FS-TD 433MHz
Sale price50,09 zł

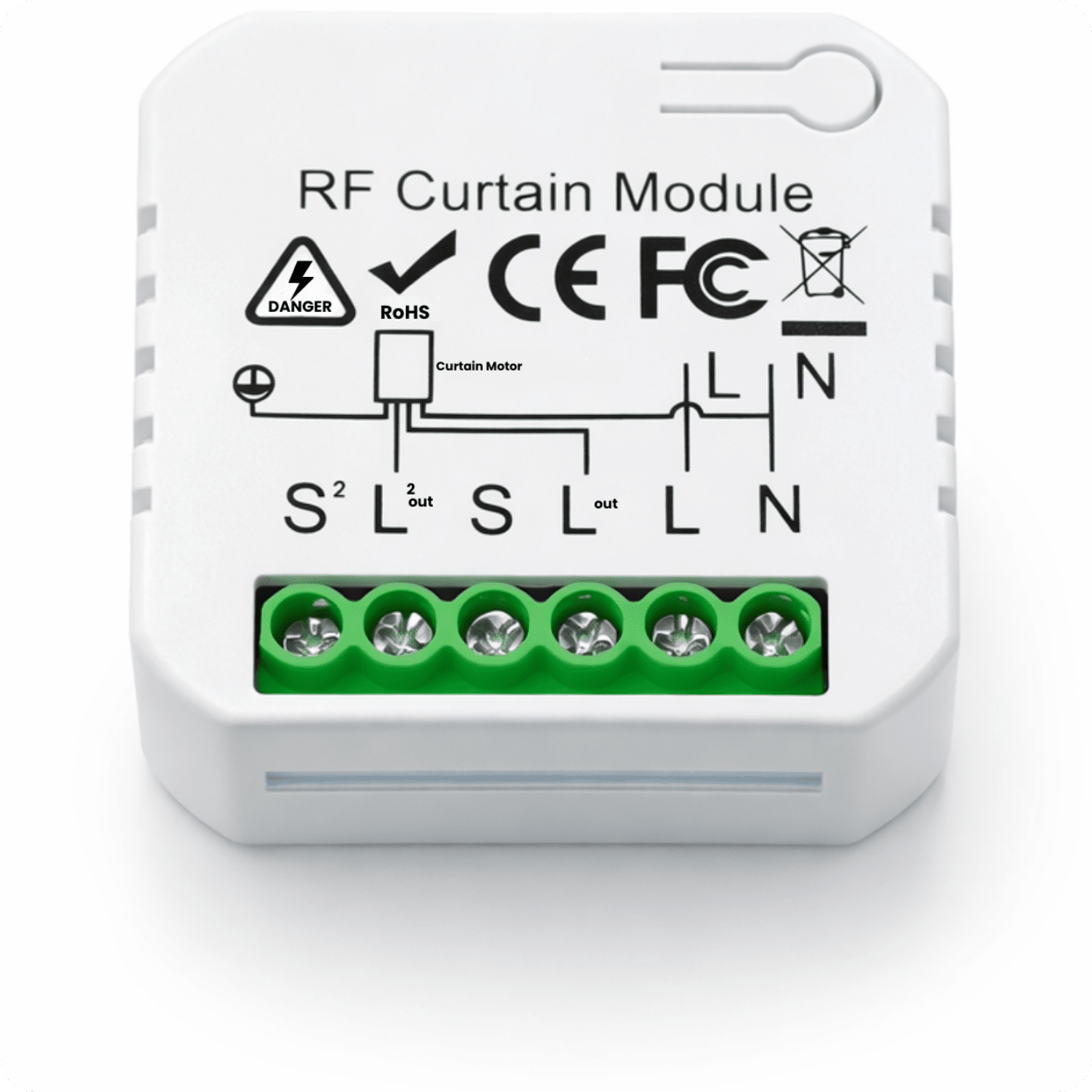

Meet the FS-TD blind and roller shutter control module by Spreest. This compact controller allows for remote and manual management of roller shutter, curtain, or awning motors using a remote control or a wall switch. It's a practical solution for automating window coverings in your home or office.
The module is designed to easily fit into a standard FI60 electrical box.
The device works with a classic electrical installation and requires connecting the phase (L), neutral (N) wires, and motor control wires. It is also possible to connect an external switch (S1/S2).
On our listing, you can purchase a remote control that will be fully compatible with the offered module.

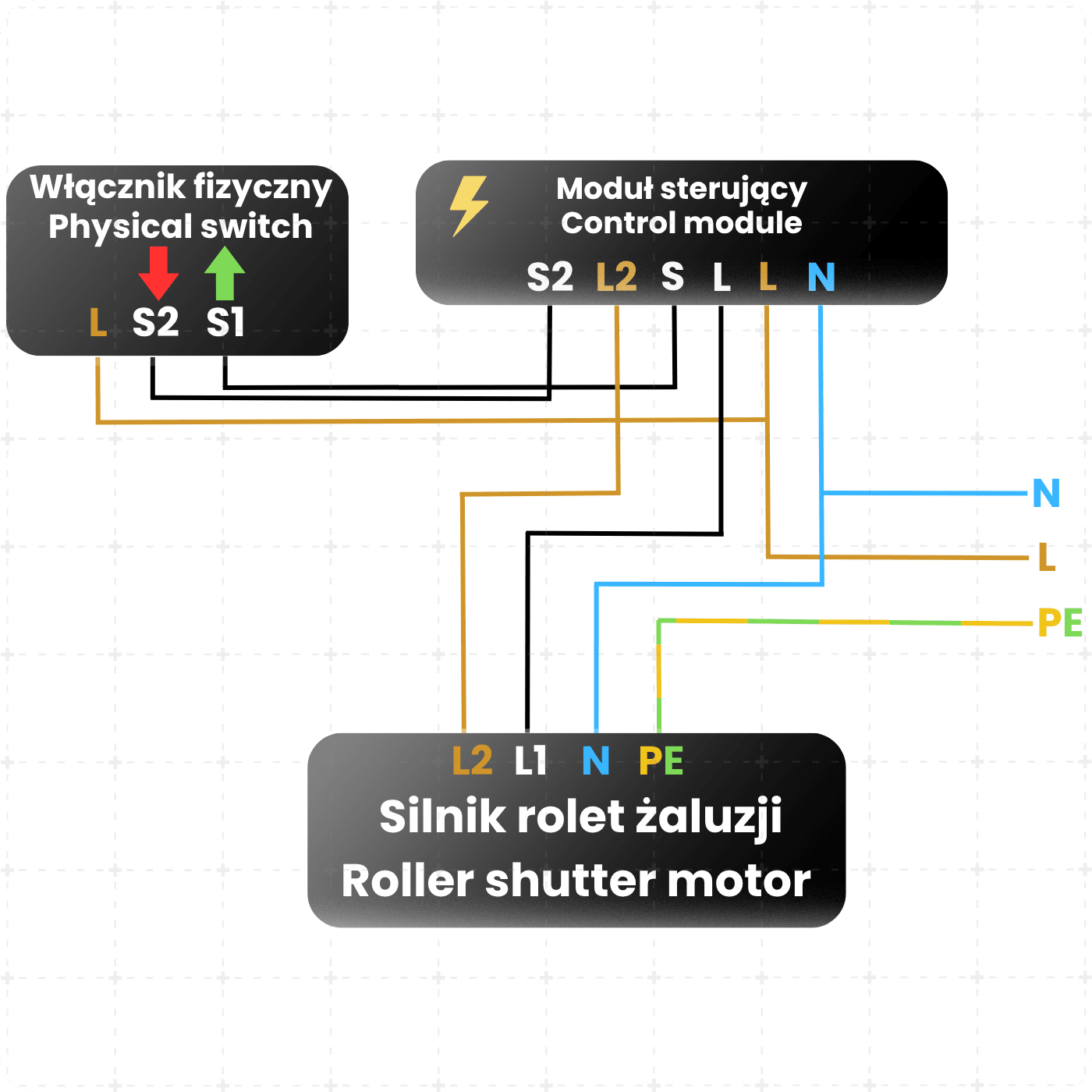

Installation and Control
- Connection with switch: Connect the common wire (COM) to the phase (L), and the control outputs to S1 (opening) and S2 (closing).
- Module power supply: The phase L and neutral N wires must be connected to the module.
- Connecting the roller shutter motor: Connect the motor wires to the module outputs according to the markings, and connect the N and PE wires to neutral and ground respectively.
- Remote control: After pairing, you can control the roller shutters remotely – opening, stopping, and closing.
- Manual control: Short press – full open/close, hold – movement only while held, release – stop at the selected position.

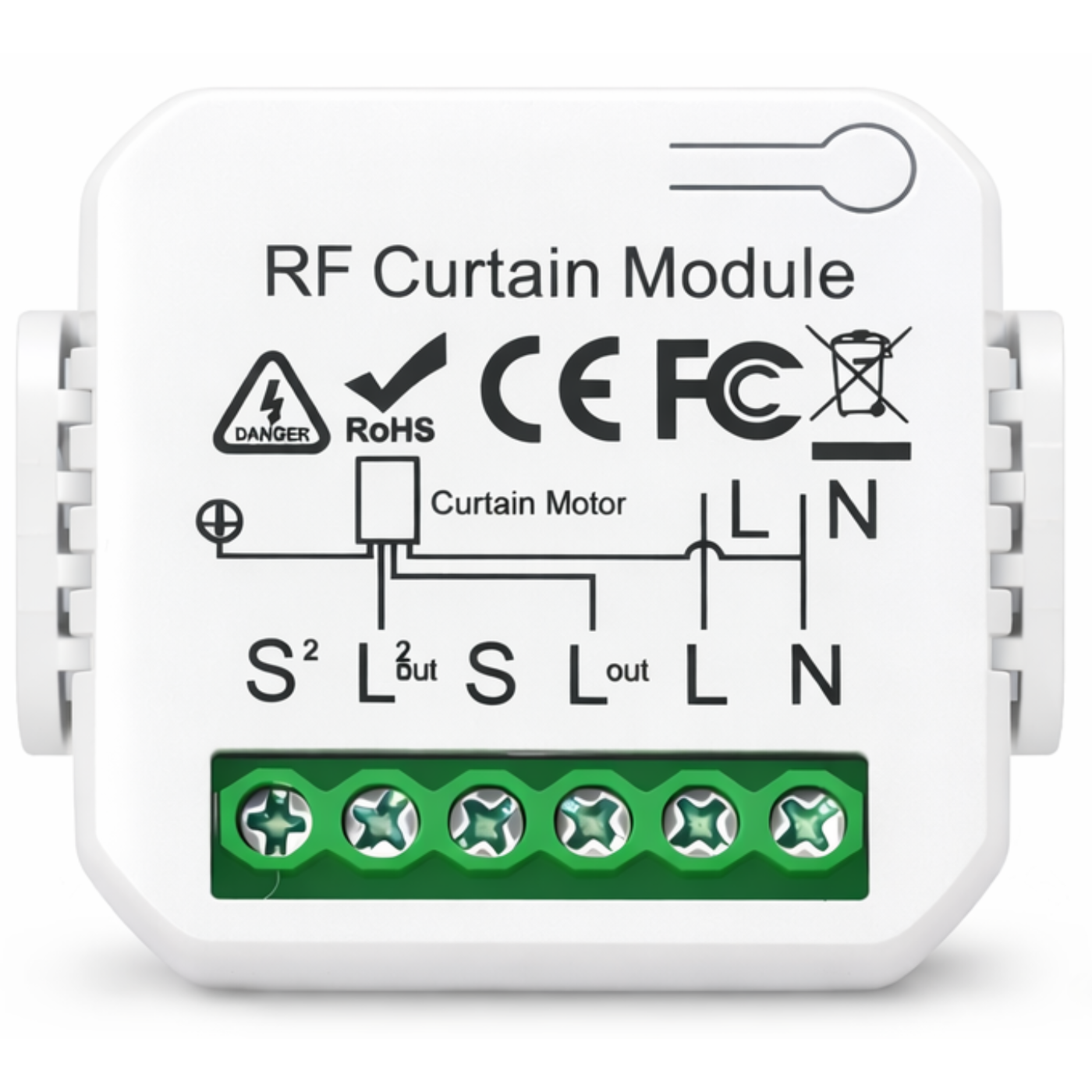

Wire markings
- L – Phase wire
- N – Neutral wire
- S1 – Opening control
- S2 – Closing control
- PE – Grounding
- L1 / L2 – outputs for controlling the operating directions of the roller shutter motor
Technical specifications
- Supply voltage: AC 100–240 V
- Frequency: 433.92 MHz
- Power consumption (standby): Approx. 0.2 W
- Maximum load: 16 A
- Control: RF Remote + Manual Switch
- Application: Roller shutters, curtains, awnings

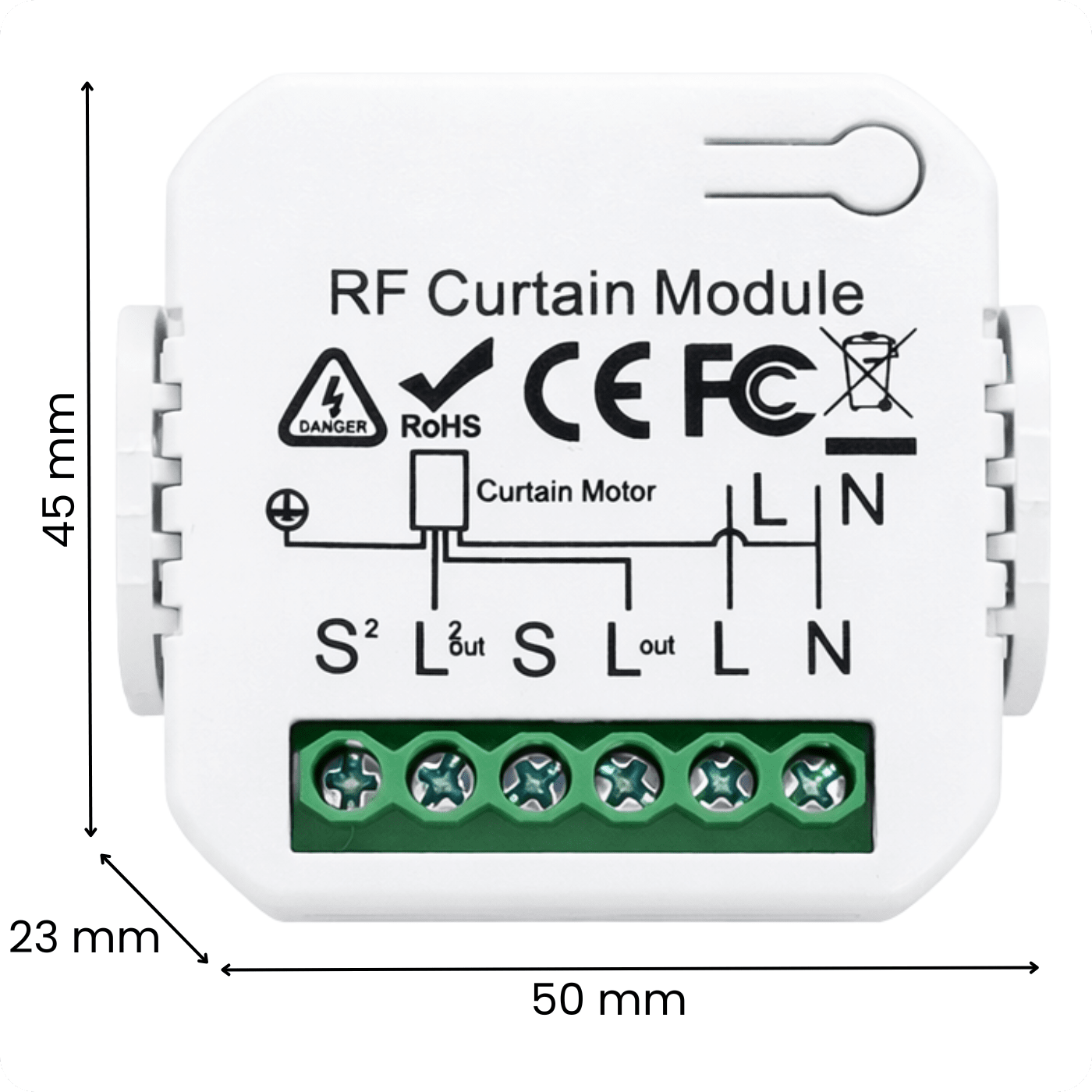

- Dimensions: 50 x 23 x 45 mm
- Weight: 42g
Set contains
- 1× FS-TD 433MHz blind and roller shutter control module

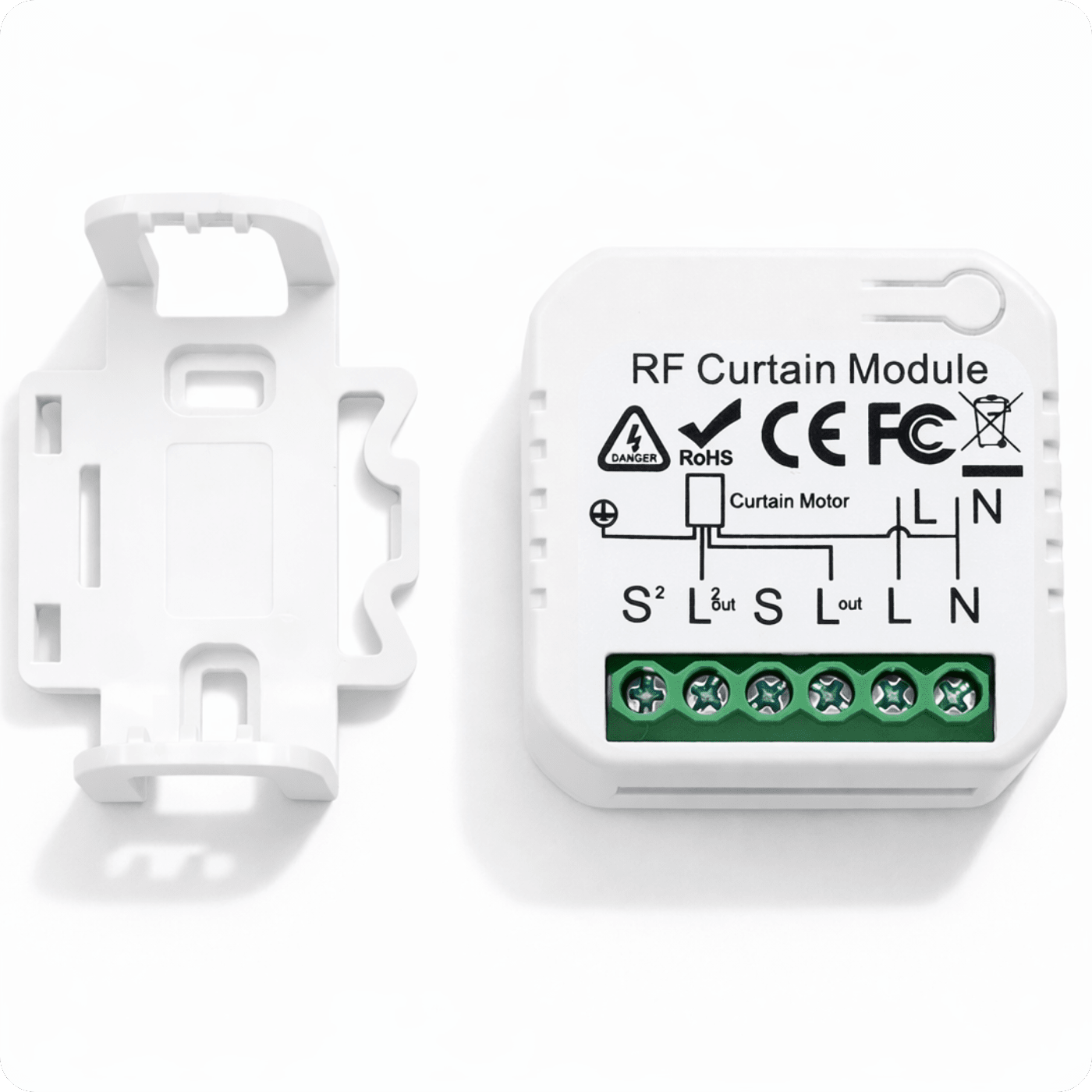

- 1x Mounting bracket
- 1× User manual
