Electronic lock S99 E1
Discover a robust and convenient way to effectively secure and easily control access to your doors.

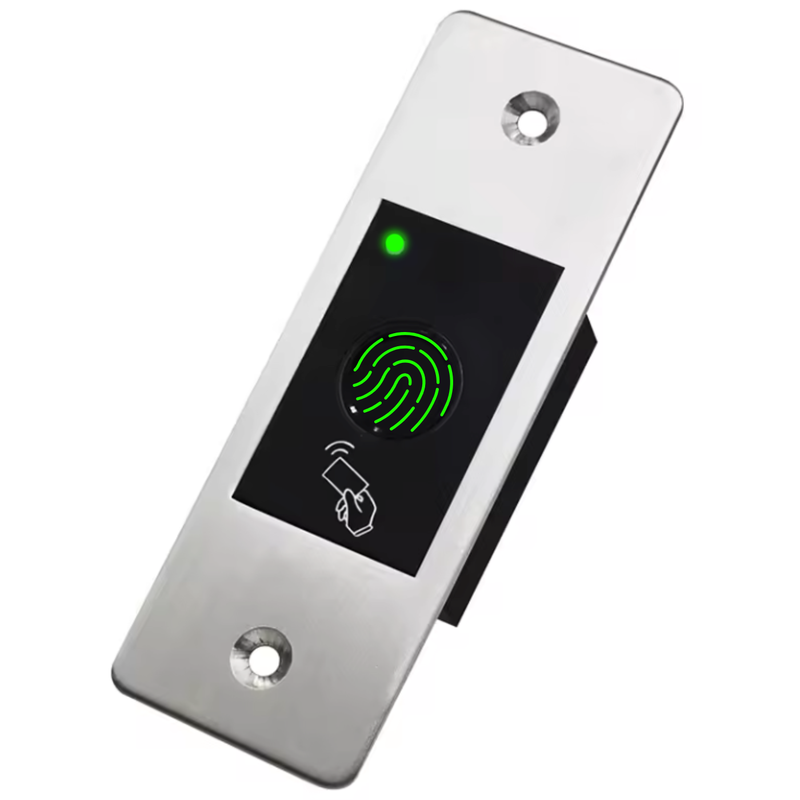

The Spreest electronic lock combines high-quality craftsmanship (metal, IP66 waterproof casing) with modern RFID identification technology (EM 125 kHz cards).
Thanks to its standalone operation and Master card support, configuration and permission management are intuitive and simple for everyday use.
This compact controller fits perfectly on door frames, allowing secure entry to both homes and businesses, warehouses, or other facilities.
Key Features
1. Standalone Access Control: No additional central control units required – all settings and data are stored within the device itself.
2. Waterproof Metal Casing (IP66): Excellent for outdoor use, guaranteeing resistance to rain, humidity, and various weather conditions.
3. Supports 3000 Cards: High user capacity – ideal for businesses, warehouses, or facilities with many employees or guests.
4. Administrative Card Included (Master Card): Provides a quick and intuitive way to add or remove access permissions without complex programming.
5. Latch Mode: Allows doors to remain continuously open (e.g., when moving goods or during maintenance work).
6. Tri-color LED Indicator: Quickly informs about the current status of the device (red/yellow/green), so you know if the lock is blocked, in programming mode, or unlocked.
7. Wide Connection Possibilities: The device can work with various types of power supplies (9–24V DC), electric strikes (NO/NC), and also integrate with an exit button (REX) – ensuring installation flexibility in different facilities.
8. Operational Safety: The lock has built-in protections (including a 1N4004 diode) to protect against overvoltages. You can safely use the device in professional access control systems.
IP66 Waterproof Rating
The IP66 waterproof casing provides reliable protection against rain, humidity, and dust, making it an excellent choice for mounting on outdoor door frames. Thanks to its solid, metal construction and special seals, the device maintains full functionality regardless of the weather, ensuring security and continuous operation.

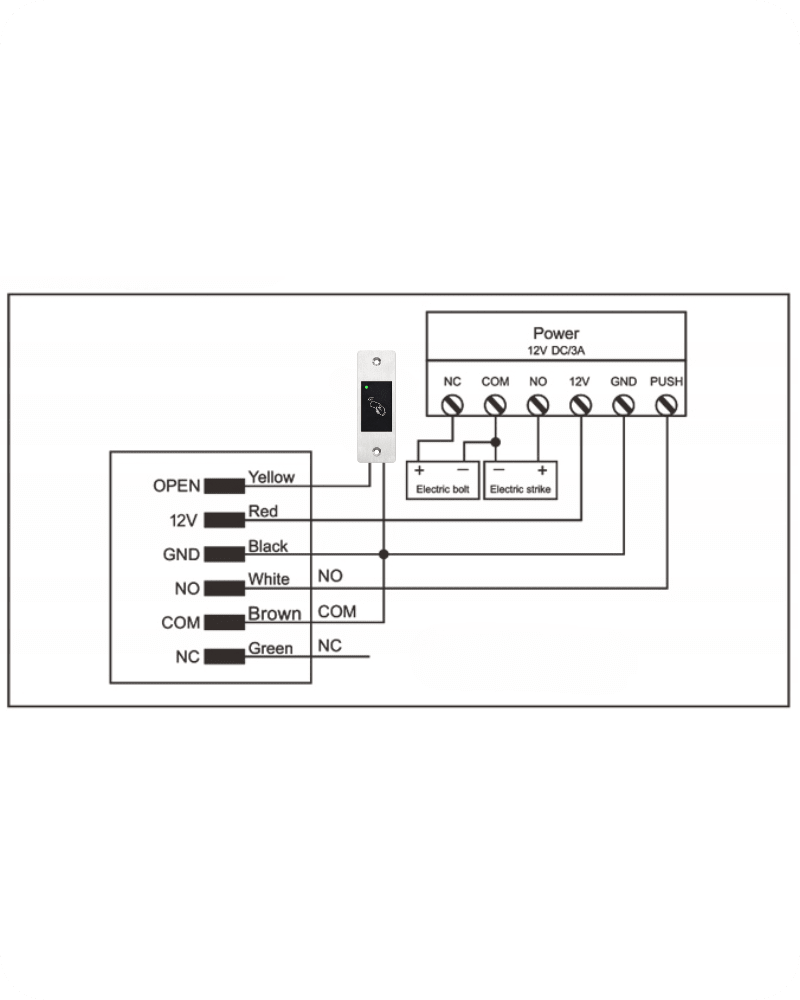

Wiring Diagram
The device supports many functions thanks to simple and flexible connection options. Below is a description of each wire, its symbol, and its application – for both standard power supply and specialized power supply (access control power supply).
Lock Wire Descriptions:
Yellow — OPEN — Exit Button Input (REX – Request to Exit) — Allows opening the door from the inside.
Red — 12V — Device Power Supply 9–24V DC (typically 12V DC)
Black — GND — Ground / Earth — Common for power supply and relay.
White — NO — Normally Open Relay Contact — Used, for example, for NO type electric strikes.
Brown — COM — Common Relay Line — Essential when connecting devices to NO or NC
Green — NC — Normally Closed Relay Contact — Used, for example, for NC electromagnetic bolts.
Example Application
The device allows control of various access control elements:
Exit button (REX): When pressed, it opens the door from the inside – convenient in offices, warehouses, etc.
→ Connected to the OPEN (yellow) terminal.
Power Supply: Can be connected to a standard 12V DC power supply or a special access control power supply (DC 12V/3A).
→ 12V (red) and GND (black) terminals.
Electric Strike: The device opens the lock after reading a valid card or fingerprint.
→ Connection via NO (white) and COM (brown).
Electric Bolt: Used for glass or metal doors – operates in closed mode.
→ Connection via NC (green) and COM (brown).
Important
*When connecting to a standard power supply, it is mandatory to install the 1N4004 protection diode (included in the kit).
This protects the device from damage.
*When using a specialized access control power supply, the diode is not necessary, and the connection is made directly to the appropriate terminals of the power supply (NC, NO, COM, PUSH, etc.).
Thanks to this universal diagram, the device can be used in both simple home installations and professional access control systems in companies, warehouses, schools, and other facilities.
Technical Specification
- User Capacity: 3000 cards
- Power Supply Voltage: 9–24V DC (constant, stabilized)
- Quiescent Current: ≤25mA
- Active Current: ≤100mA
- Proximity Card Reader:
- EM Technology – 125KHz Proximity Card
- Read Range – Approx. 2 cm
- Connections: Relay Output, Request to Exit (REX) Button
- Relay:
- Relay Operating Time – 0–99 seconds (default 5 seconds)
- Relay Output Load – Max 2A
- Operating Temperature: -25℃ ~ 60℃ (-13℉ ~ 140℉)
- Operating Humidity: 20%RH ~ 98%RH
- Waterproof Rating: IP66
- Color: Silver and Black
- Material: Zinc alloy plate
- Dimensions: 115 mm x 40 mm x 30 mm
- Device Weight: 105 g
Set includes
- 1x S99 E1 Electronic Lock
- 1x Master Card (card is for programming only)
- 1x Set of mounting accessories
- 1x User Manual
The manual in Polish is available in electronic version for download. You can find it below our product description.
